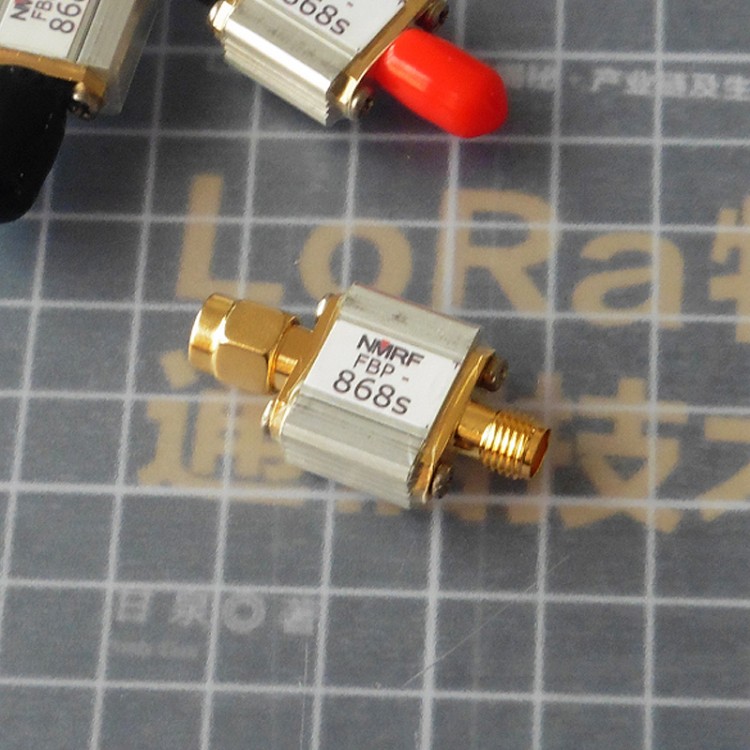

NMRF FBP-868s SAW Filter RF Bandpass Filter 866-870MHz 4MHz Bandwidth for 868MHz RFID IoT
Description:
This filter has a 1dB bandwidth of 4MHz and a steep cut-off characteristic. It is used to optimize the performance of 868MHz RFID receivers and European standard LoRa IoT node devices. In addition, it can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Specifications:
- Model: FBP-868s
- Impedance: 50 Ohms
- Center frequency: 868 MHz
- Passband (1dB bandwidth): 866 to 870 MHz
- In-band insertion loss: < 3.5 dB
- Maximum carrying power: 100 mW (20 dBm)
- Interface: SMA-M and SMA-F
Package Included:
- 1 x Filter
Frequency Response Diagram:
The figure is marked as 3dB bandwidth, and the sweep center frequency is 868MHz. Blue line span: 100MHz. Vertical scale: 10dB per division.
