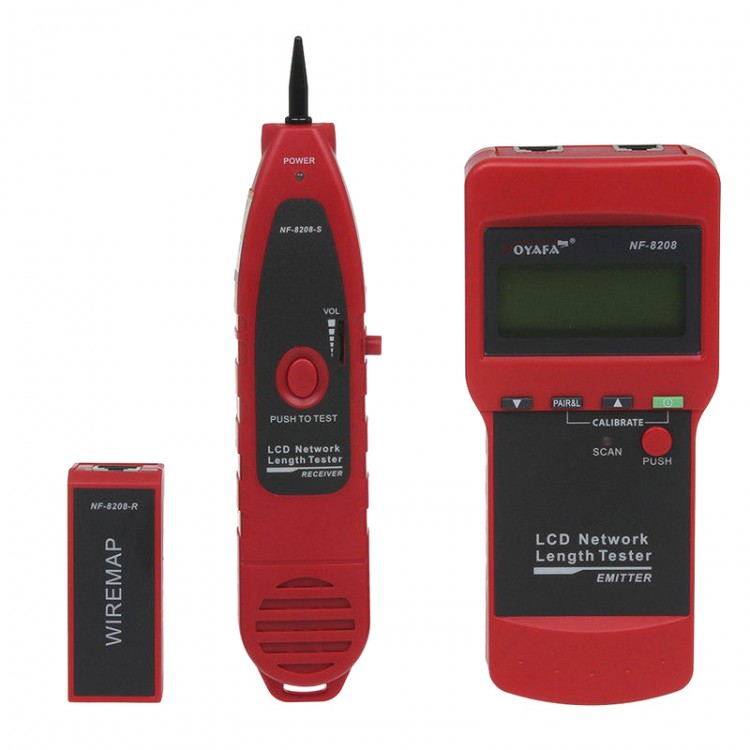

NOYAFA NF-8208 LCD Display Network LAN Cable Tester Wire Tracker Tracer Length

Availability: In stock, usually dispatched in 1 business day

  • Price:$47.58
  • Price in reward points: 476 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $46.63 $45.68 $44.25 $42.35 Contact US
Quantity:

NOYAFA NF-8208 LCD Display Network LAN Cable Tester Wire Tracker Tracer Length


Features:

1. Check wiring error in 5E, 6E, such as open circuit, short circuit,jumper wire, reverse connection.
2. Measure length of network cable, and locate the breakage point.
3. Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
4. Enables cables to be located even when totally concealed.

Attention:
1. Don't connected high voltage lines to avoid buring out the machine.
2. Put into the right place to avoid hurting others,because of the sharp part.
3. Connected the cable to the right port.



4. Read the user manual before use it.

Technical Indexes:

NF-8208 Transmitter specifications



Indictor

LCD 53x25 mm

Tone frequency

225 Hz

Max. distance of transmission

2 km

Max. distance of cable map

1000m

Max. working current

Less than 70mA

Tone mode

2 Tone adjustable

Compatible connectors

RJ45

Max. signal voltage

15Vp-p

Function and faults LCD display

LCD display ( wiremap, Tone, short, , No adapter, Low battery )

Cable map indication

LCD (#1-#8)

Shielded indication

LCD ( #9)

Voltage protection

AC 60V/DC 42V

Battery Type

DC9.0V (NEDA 1604/6F22 DC9V x 1pcs)

Dimension(LxWxD)

185x80x32mm

NF-8208 Receiver specifications



Frequency

225kHz

The Max. working current

Less than 70mA

Earjack

1

LED illumination

2

Battery Type

DC9.0V (NEDA 1604/6F22 DC9V) x1pc

Dimension(LxWxD)

218x46x29 mm

NF-8208 Remote unit specifications



Compatible connectors

RJ45

Dimension(LxWxD)

107x30x24mm

Function Comparison:

Function

NF-838

NF-8208

NF-308

NF-838

NF-868

Find Cables

RJ45+RJ11+BNC
USB + 1394

RJ45

RJ45+RJ11+BNC
USB

RJ45+RJ11+BNC
USB

RJ45+RJ11+BNC
USB

Address Cables

RJ45+RJ11+BNC
USB + 1394

RJ45

RJ45+BNC

RJ45+BNC

RJ45+RJ11+BNC
USB

Test Length

×

RJ45

RJ45

RJ45

RJ45+RJ11+BNC
USB

Test cross cables

RJ45+BNC

RJ45+BNC

Test short-circuit

RJ45+BNC

RJ45+BNC
