Optical Fiber Ranger 60KM 1310/1550± 20nm Support FC/PC Connectors NK304
Description:
The NK304 is the industry's lightest fiber-optic obstacle-finding instrument. It adopts the OTDR principle and integrates powerful analysis software to quickly and accurately detect the location and type of fiber optic cable fault points, and can store the test data records of the fiber. Users can quickly and accurately measure without setting up, and the screen can directly display the results customers need. APC, PC fiber break, etc. can be accurately identified. It can be widely used in engineering construction, maintenance testing and emergency repair of optical fiber communication systems; development and production testing of optical fiber and cable.
Main Functions:
- Test the Length of fibers
- Find out the positions of failures
- Store, check, and delete data via PC
- Test the distance between two points of the fiber
- Detect fiber repair condition
Features:
- Convenient to carry and easy to use, featuring compact size and light weight
- Can be powered by rechargeable batteries or AA Alkaline dry batteries (Batteries are not included)
- Universal Micro-USB interface and multiple power supplies for extra long working hours
- Smart Switchable Power Supplies: Priority to using power adapter, followed by built-in rechargeable batteries, and then dry batteries (Batteries are not included)
- Optional Accessories: Micro-USB Cable
Technical Parameters:
- Model No.: NK304
- Max. Testing Range: 60KM
- Wavelength: 1310/1550± 20 nm
- For Optical Fibers: 9/125 μm Single-Mode Fiber
- Connection Adapter: FC/PC
- Detector: InGaAsAPD
- Pulse Width: Self-Adjustment
- Reflect Event Dead Zone: ≤10m
- Red Light Power: ≥2mW
- Test Accuracy: ±（3m+2*10-4*Distance）
- Auto Off: 10 Minutes
- Memory: Store up to 2000 test results
- Size: 100 x 186 x 50mm
- N.W.: 240g
- Operating Temperature: 0℃ to 50℃
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 5% to 95%, no condensation

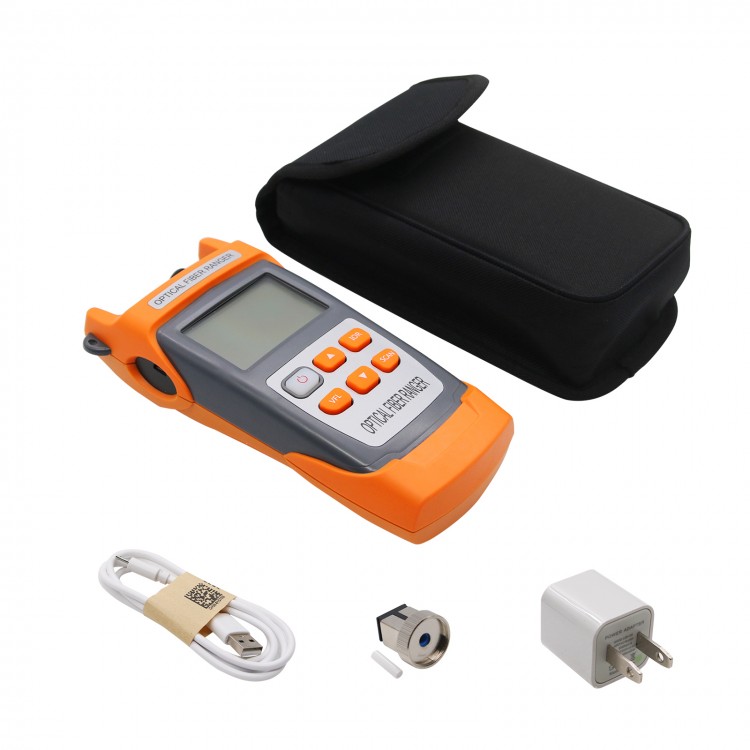

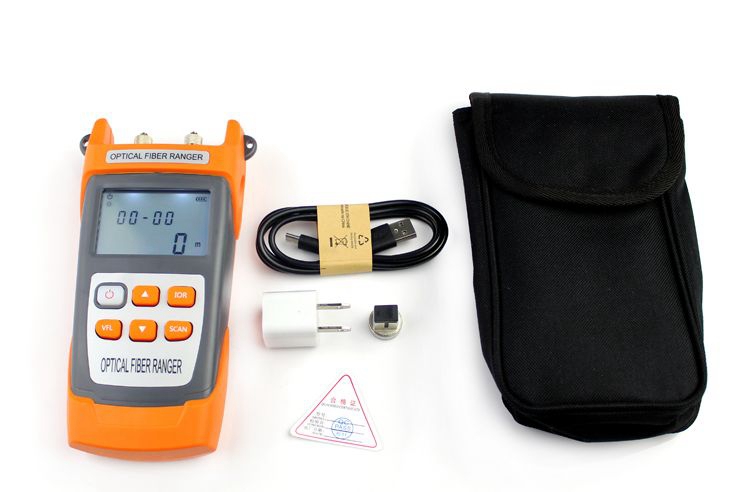

Package Included:
