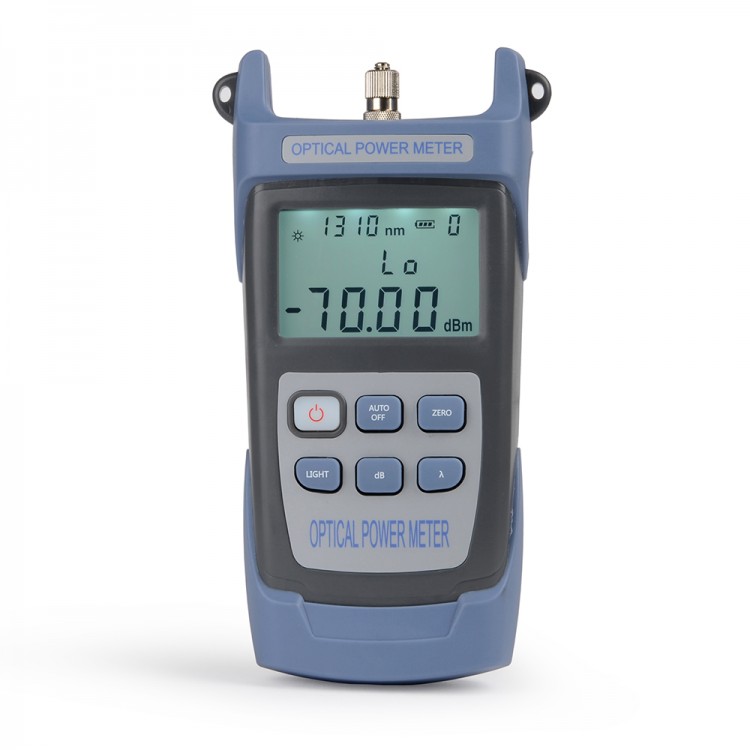

Optical Power Meter Optional -70 to 10dbm/ -50 to 26dbm Support Universal/FC/SC/ST Connector NK300
Features:
- Linear Display (mW) and Logarithmic display (dBm) show on the same screen
- Smart Power Supply Switching Function: Support recharging via a power adapter or powered by 3*AA batteries (Batteries are not included)
- Support automatic shutdown
- Support backlight
- Support user self-calibration
- Support one-button automatic zero calibration
- Support FC, SC, ST connectors
- More than 40hours continuous working time
- Optional Power Adapter
- Optional Micro-USB connector for universal uses
Specifications:
- Wavelength: 800-1700
- Suitable for: Universal/FC/SC/ST Connectors
- Probe Type: InGaAs
- Optional Test Range: -70 to 10dbm, -50 to 26dbm
- Standard Wavelength (nm): 850/980/1300/1310/1490/1550/1625/1650
- Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm
- Optical Interface: FC/UPC
- Electrical Interface: USB
- Optional Power Adapter: Input 100-240V AC, 50Hz; Output DC 5V, ≥1A
- Power Consumption: ≤0.5W
- Size: 186 x 100 x 50mm
- N.W.: 240g
Package Included:
- 1 x Optical Power Meter
Note:
- Batteries are not included in this package.
- Optional Test Range: -70 to 10dbm, -50 to 26dbm. Please tell us when purchasing.
- If other optional accessories are needed, please contact us. Thank you!
