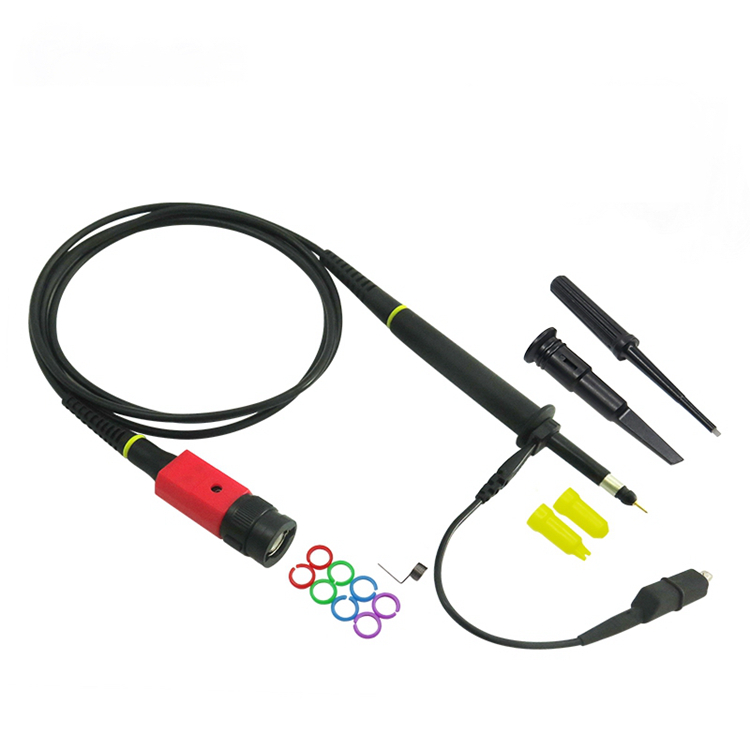

P4100 Oscilloscope Probe 100MHz 100:1 High Voltage Oscilloscope Probe Kit Withstand 2KV
Description:
The P4100 probe is designed for high voltage application. This is a must have probe if you are working on high voltage vacuum tube guitar amplifiers or other tube gear.
Specifications:
- Model No.: P4100
- Attenuation Ratio: 100X
- Input Resistance: 100MΩ
- Input Capacitance: 100X: 6 pF
- Compensation Range: 10pF~35pF
- System Bandwidth: 100X: DC-100MHz
- Rise Time: 3.5ns
- Input Voltage: 100X: <2KVDC+AC Vp-p
- Operating Temperature: -15℃ to 75℃
- Non-working Temperature: -20℃ to 60℃
- Humidity: ≤85% RH
- Cable Length: 120cm
- Process: Injection Integration
- Color: Black
- N.W.: 55g
Package Included:
- 1 x Set of 100X Oscilloscope Probe
