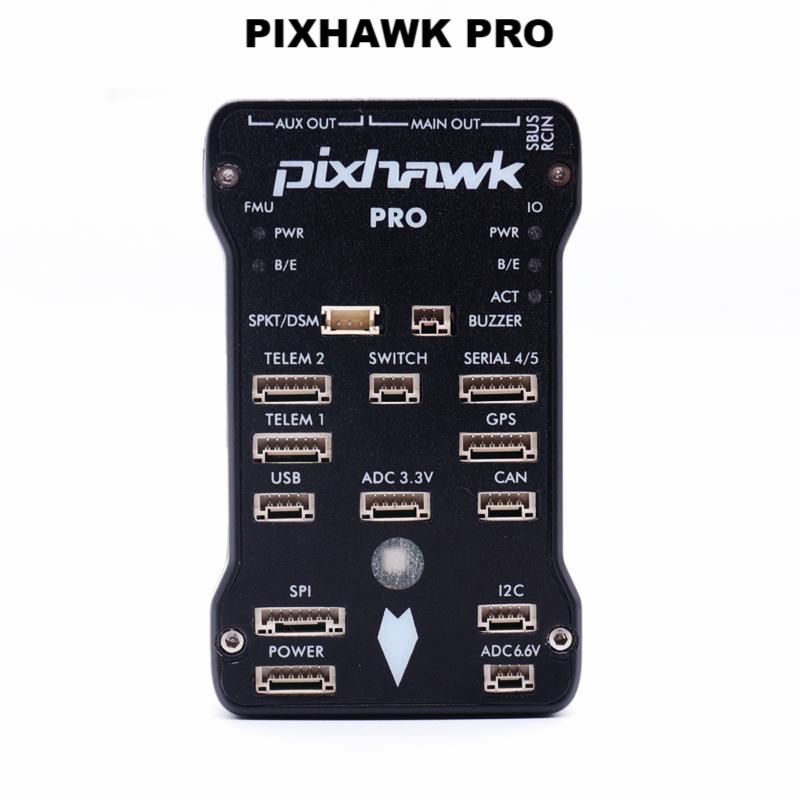

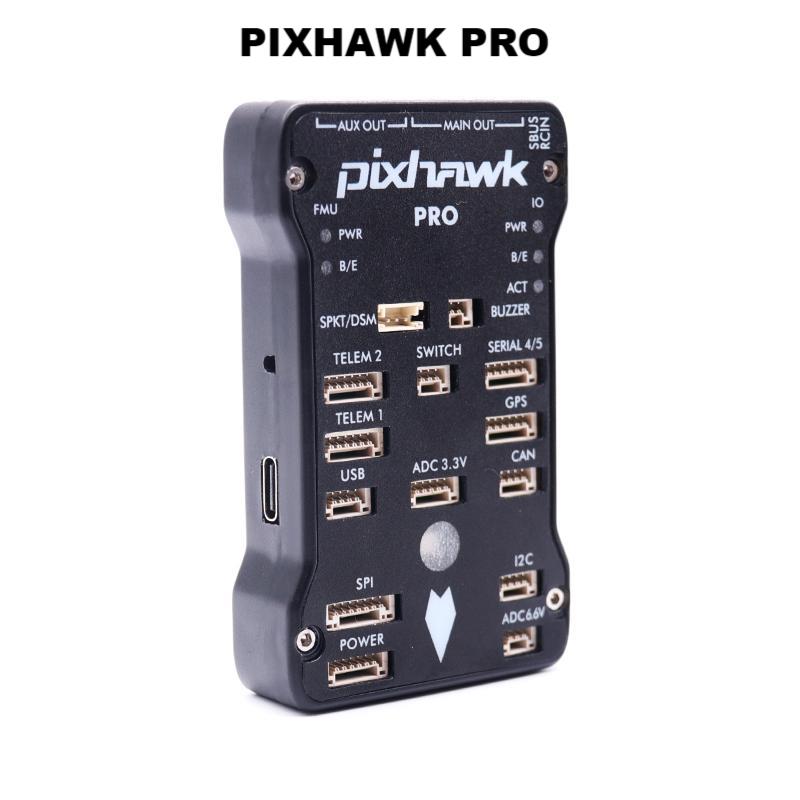

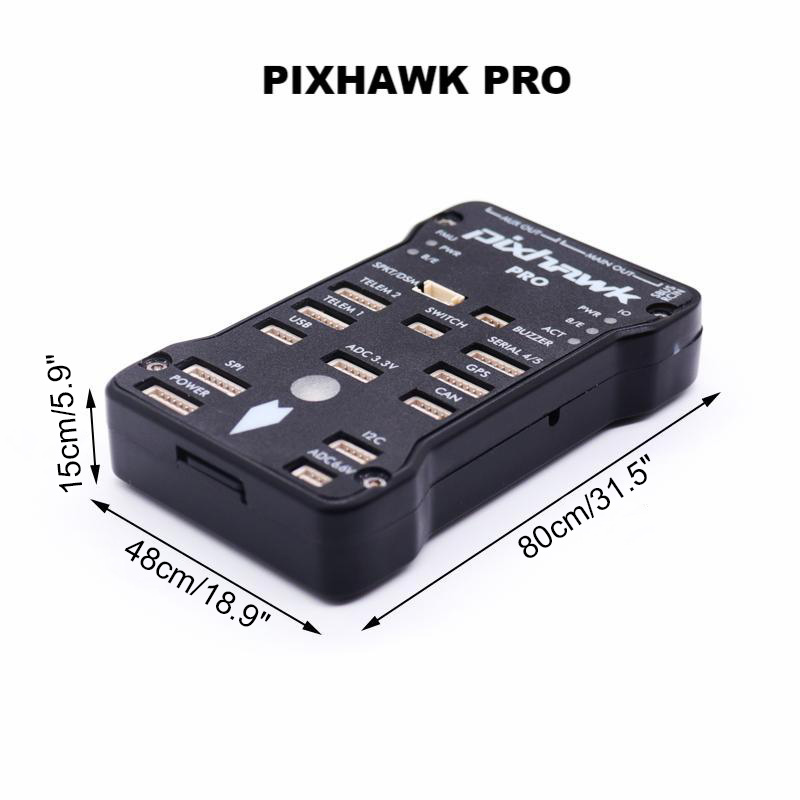

• Pixhawk PRO PX4 32 Bit Drone Flight Controller with PPM & I2C Boards for Autopilot RC Quadcopter

Pixhawk PRO PX4 32 Bit Drone Flight Controller with PPM & I2C Boards for Autopilot RC Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$106.15
  • Price in reward points: 1062 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $104.03 $101.90 $98.72 $94.47 Contact US
Quantity:
Pixhawk PRO PX4 32 Bit Drone Flight Controller with PPM & I2C Boards for Autopilot RC Quadcopter

Description:

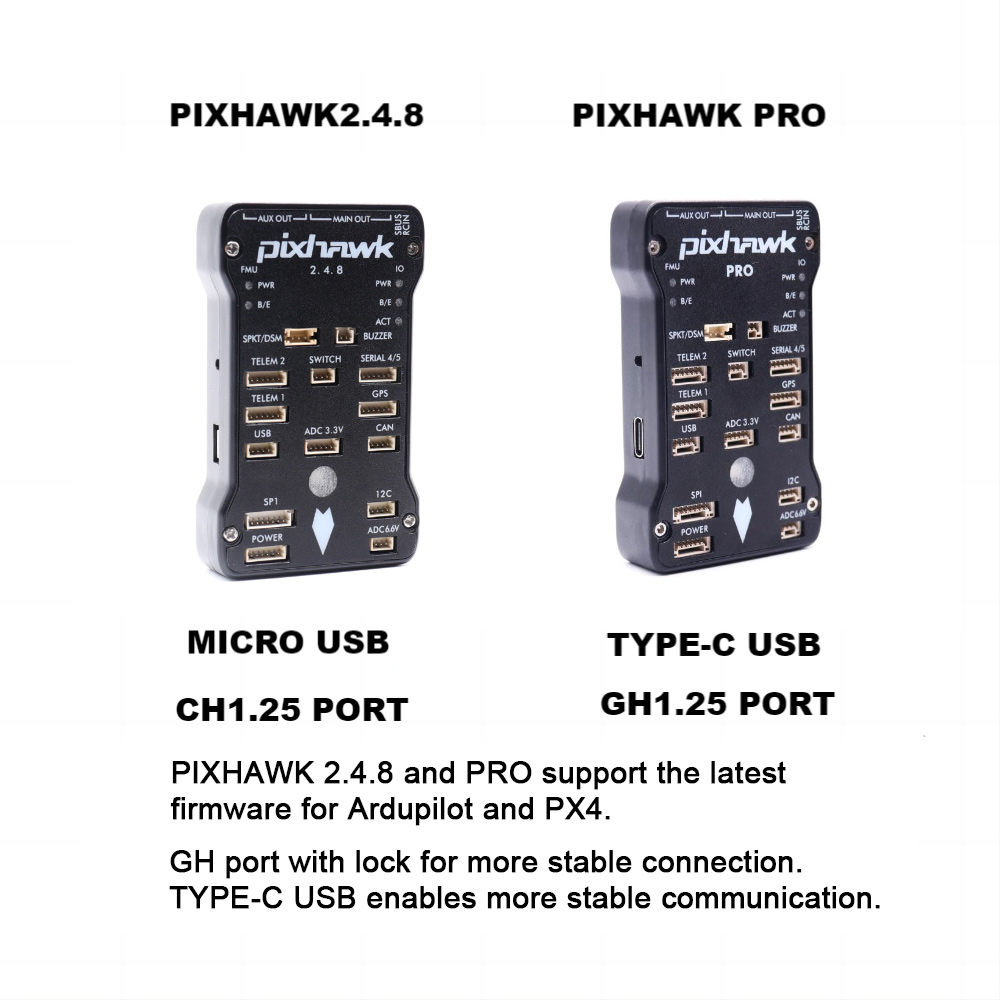

Pixhawk PRO supports the latest official firmware for Ardupilot and PX4.

Features:

- Advanced 32-bit high-performance processors (2MB flash) for ARM CortexM4 can run RTOS real-time operating system for NuttX.
- 14 PWM / servo output
- Bus interface (UART, I2C, SPI and CAN)
- The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe
- Provide automatic and manual modes
- Provide redundant power input and fail-over
- Multi-color LED lights
- Provide multi-tone buzzer interface
- Micro SD recording flight data

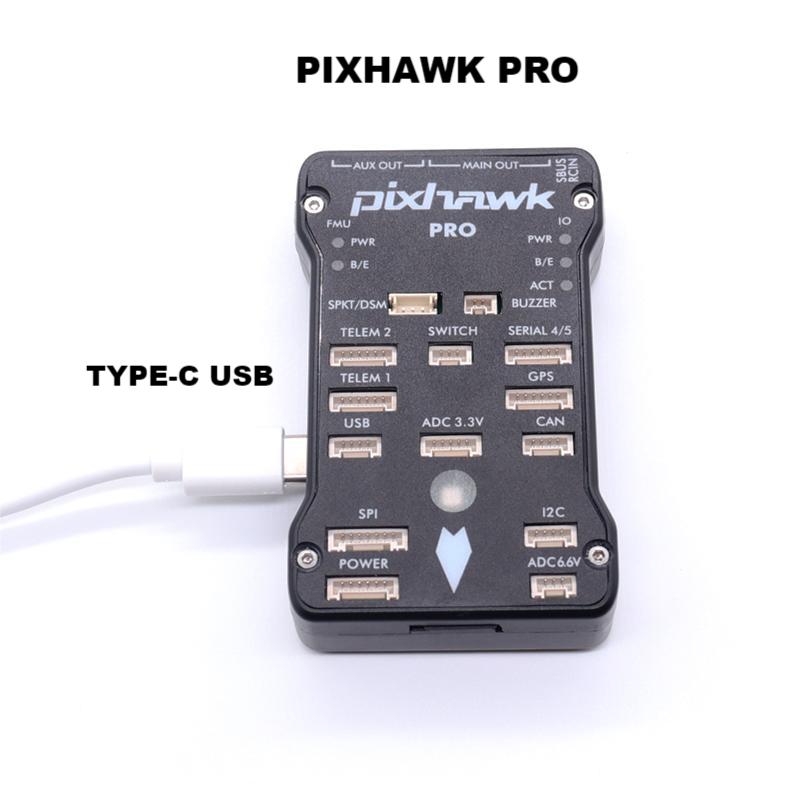

- Type-C USB port
- GH1.25 port

Interfaces:
- 5 high voltage compatible UART 1 and 2 with hardware flow control
- 2 CAN
- Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
- For Futaba SBUS compatible inputs and outputs
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External type-c USB interface

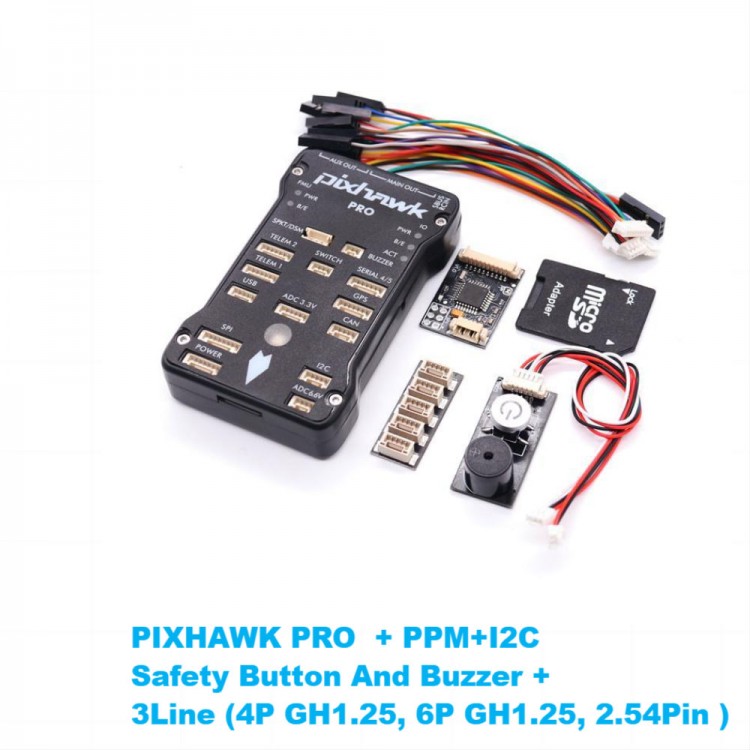

Package Included:
- 1 x Pixhawk PRO
- 1 x PPM board
- 1 x I2C board
- 1 x Safety button and buzzer
- 1 x TF card and SD card adapter
- 1 x Set of cables (4P GH1.25, 6P GH1.25 and 2.54Pin)
