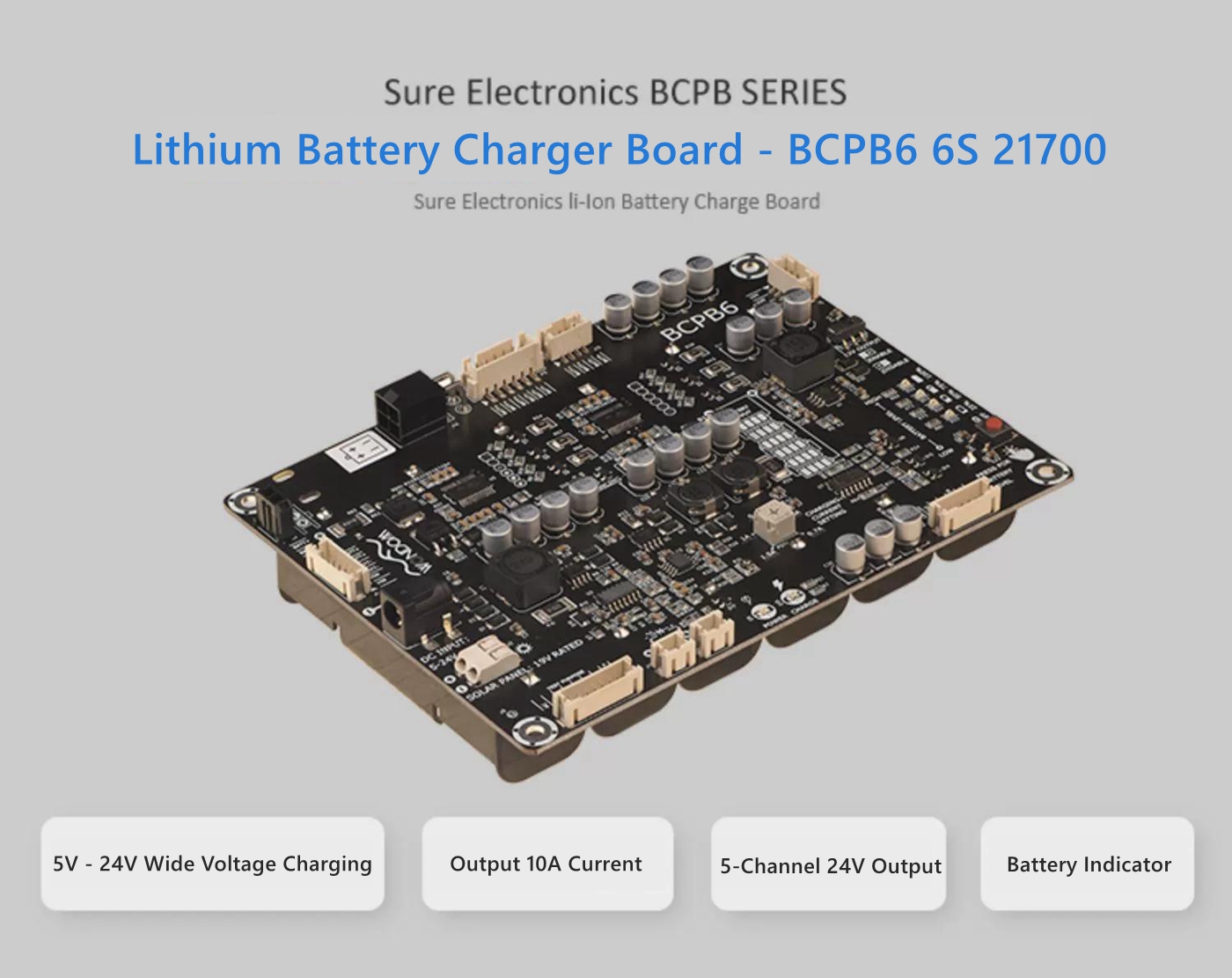

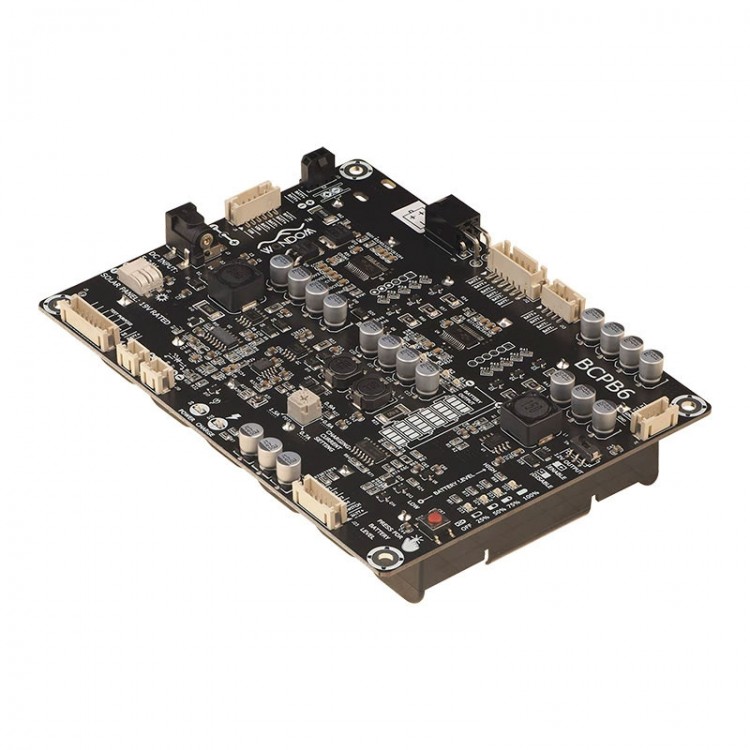

PS-BC12117 6S 21700 High Power Lithium Battery Charger Module Portable Over-charging Balancing Protection Board 5-24V
Description:
- BCPB6 is a highly reliable Lithium-Ion battery charging, protection, and balancing board that operates with wide input range, 5- 24V.
- This board is able to charge the batteries from input voltages above, below, or equal to the output voltages.
- It is designed for 6 in series 21700 Lithium-Ion Battery which provides approximately 88-100Wh energy.
- The MPPT charging integrated feature supports an 18.3-24V power supply.
- BCPB6 is complemented with a visualized display of battery level indicators. To ensure the reliability of this board, it is equipped with full protection circuit; overcurrent, over-temperature, short circuit, and over/under voltage protection.
- The battery balancing IC allows constant battery voltage between 6 in series 21700 Lithium-Ion cells. It is designed for industrial application with verified MTBF for low-temperature increment under rigorous design.
- The BCPB series battery panels are equipped with a Battery Management System (BMS). The battery management circuit not only continuously monitors the voltage, current, and temperature of the entire battery board, but also continuously monitors the voltage, charging and discharging current, and environmental temperature of each battery to provide overcharging, discharging, output overcurrent, short circuit, charging overcurrent, and over temperature protection.
- Thanks to the configured BMS circuit, the BCPB series battery panels can achieve self balancing of battery capacity, eliminate voltage differences between battery packs, and ensure safety and long service life.
Package Included:
- 1 x Battery Charger Board
Note:
- Battery is not included.
