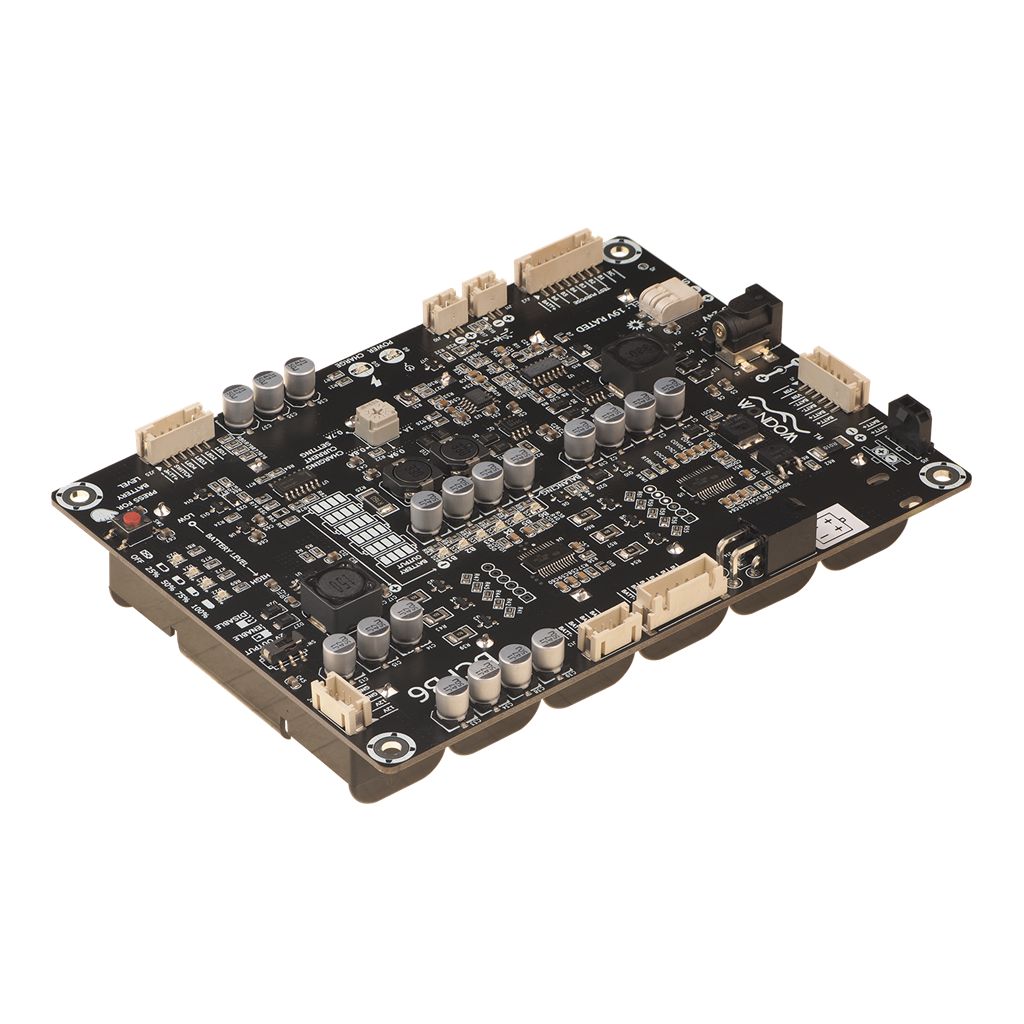

BCPB6 6S 18650/21700 Input Lithium Battery Charger Board and Protection Board with a Portable Design

BCPB6 6S 18650/21700 Input Lithium Battery Charger Board and Protection Board with a Portable Design

Description:
- BCPB6 is a highly reliable Lithium-Ion Battery Charging, Protection, and Balancing Board that operates with wide input range, 5- 24V. This board is able to charge the batteries from input voltages above, below, or equal to the output voltages. It is designed for 6 in series 21700 Lithium-Ion Battery which provides approximately 88-100Wh energy. For the MPPT charging integrated feature supports an 18.3-24V power supply. BCPB6 is complemented with a visualized display of battery level indicators. To ensure the reliability of this board, it is equipped with full protection circuit; overcurrent, over-temperature, short circuit, and over/under voltage protection. The battery balancing IC allows constant battery voltage between 6 in series 21700 Lithium-Ion cells. It is designed for industrial application with verified MTBF for low-temperature increment under rigorous design.
- Wide Input Range as DC5-24V, Supporting MPPT Solar Charging.
- BCPB6 supports extremely wide supply voltage range as DC5V-24V, which means most power supply can be used to charge the batteries through BCPB6. In addition, BCPB6 is integrated MPPT charging circuit, therefore, it supports solar charging. The supported voltage range is 18.3-24V.
- Multiple Discharging Ports for Multiple Devices
- BCPB6 provides multiple discharging ports with different terminal interfaces for customers’ convenient system integration. All the discharging ports are connected in parallel, so the functions are the same. You can use BCPB6 to power several devices at the same time.
- Indicators for Board Running Situation

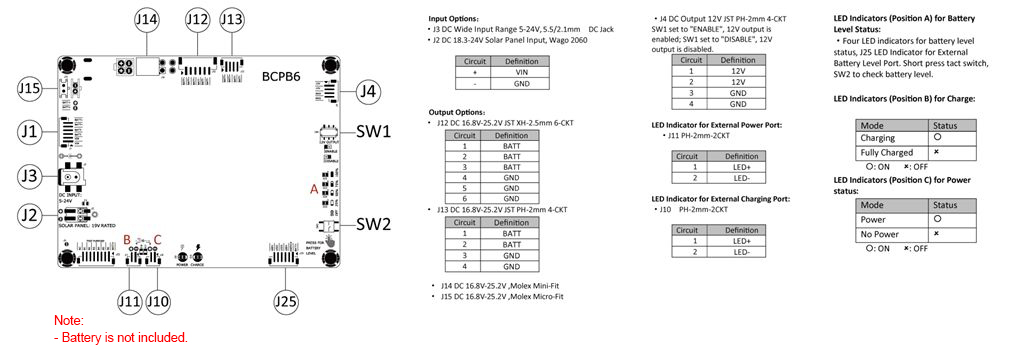

- For customers’ better and more instinct understanding of the running situation of BCPB6, we provide ports for external power, charging and remaining battery level LEDs. These indicators can help you know the status of the battery board even if it’s integrated into a cabinet.
- Full Protection for High Reliability
- BCPB6 is equipped with full protection circuit, such as overcurrent, over-temperature, short circuit, and over/under voltage protection, to ensure the high reliability and stability in any applications.

Features:
- Full Protection Circuit
- Charge and Discharge at the Same Time
- LED Indicators for Battery Level
- Solar Charging Supported
- Two Output Ports
- Battery Voltage Balancing
- LED Indicators for Battery Level
- Full Protection Circuit; Short Circuit, Over-temperature, Over/Under Voltage, Over-current, Over-charge and Over-discharge Protection

Package Included:
- 1 x Board

Note:
- Battery is not included.
