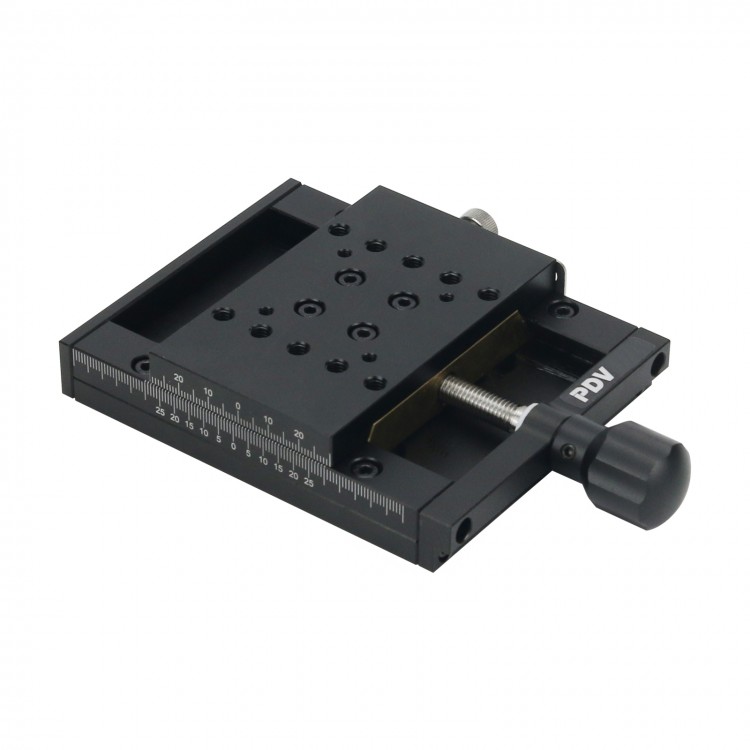

PT-SD102PS X Axis Manual Linear Stage 50mm Translation Stage Manual Platform Optical Sliding Table

Availability: In stock, usually dispatched in 1 business day

  • Price:$119.85
  • Price in reward points: 1199 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $117.45 $115.06 $111.46 $106.67 Contact US
Quantity:

PT-SD102PS X Axis Manual Linear Stage 50mm Translation Stage Manual Platform Optical Sliding Table


Features:
- Precision manual translation platform: PT-SD102PS with lock function
- The guide rail is a swallow tail pair with large bearing capacity.
- The adjustment of the displacement adopts the precision lapping screw, and the driving force is large.
- It is convenient to operate the lead screw in the center of the translation table.
- The mounting holes with standard hole spacing are arranged on the table and the base, which are convenient for installation and combination.
- It can form multi-dimensional adjustment frame or multidimensional adjustment with other series products.




Common type

Model

PT-SD102P

Platform size

100mm x 60mm

Driving mode

Lapping screw

Drive position

Central drive

Trip

50mm

Minimum scale

0.1

Minimum adjustment volume

8 mu

Type of guide track

Finishing Swallowtail

Load bearing

12kg

Straightness

30 mu

Parallelism of mesa

50 mu

Motion parallelism

40 mu

Dead weight

0.7kg

Material Science

Hard aluminum

surface treatment

Anodizing black
