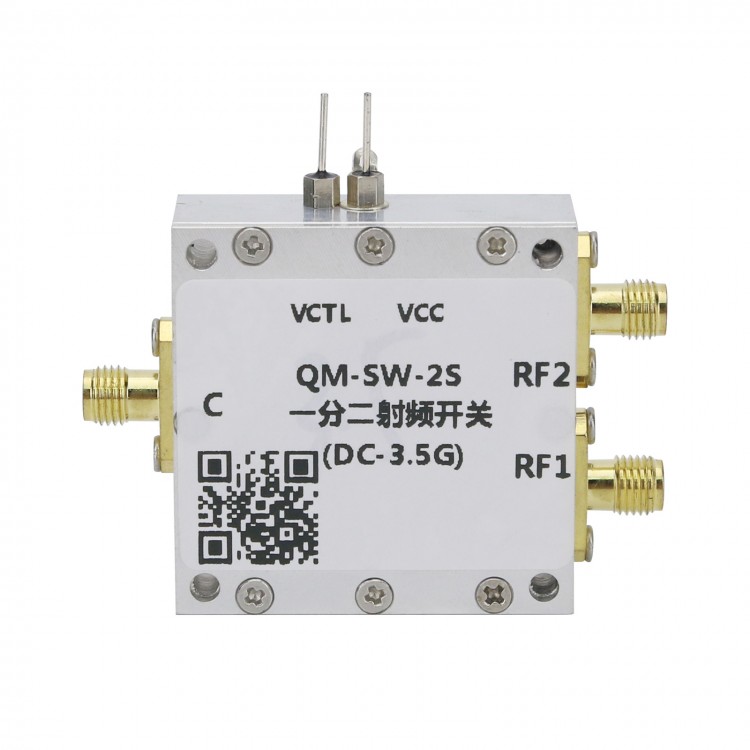

QM-SW-2S DC-3.5G RF SPDT Switch 2.4G Microwave RF Switch with CNC Shell
Description:
The microwave switch, also known as RF switch, realizes the function of controlling the conversion of the microwave signal channel. This module adopts SPDT mode, which can cover up to L and S bands, and can be used in typical frequency points: 433M, 486M, 915M, 1575M, 2.4G and 3.4GHz. It realizes the switching of two signals. Because of its low insertion loss, wide frequency band and high isolation, it can be widely used in communication system equipment. With CNC shell, the module has good electromagnetic shielding performance.
Specifications:
1. Model: QM-SW-2S
2. Working frequency: DC-3.5G
3. Working mode: SPDT
4. Typical insertion loss: 1dB (typical)
5. Port isolation: ≥45dB
6. Power capacity: 31dBm
7. Impedance: 50Ω
8. Power supply: +3.3 to +5V
9. Input and output interface: SMA (female)
10. Module size: 40*40*14mm (without sizes of connectors)
11. With mounting holes
12. Weight: 80g
13. Control method: VCTL: H RF output to RF1; VCTL: L RF output to RF2. (External voltage control, H: 3.3-5V, L: 0V or ground)
Package Included:
- 1 x RF Switch

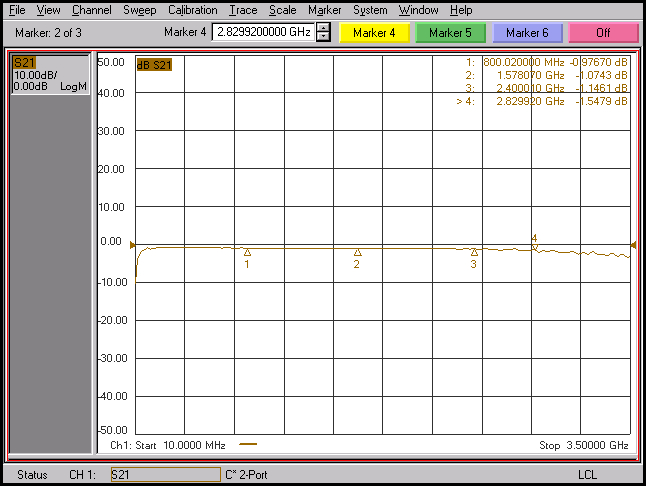

Insertion Loss Test:

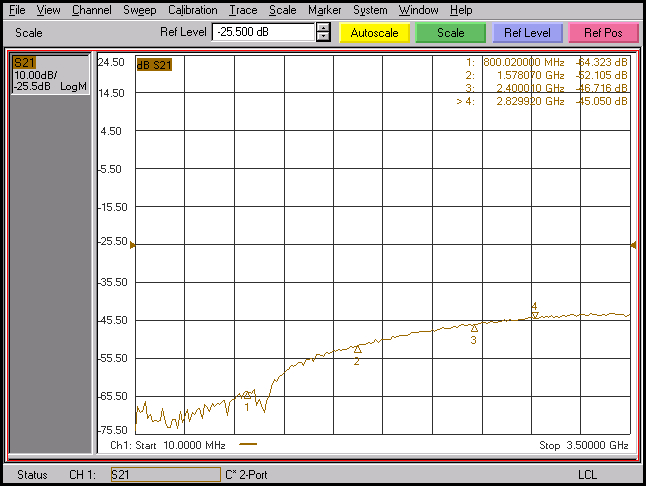

Isolation Test:

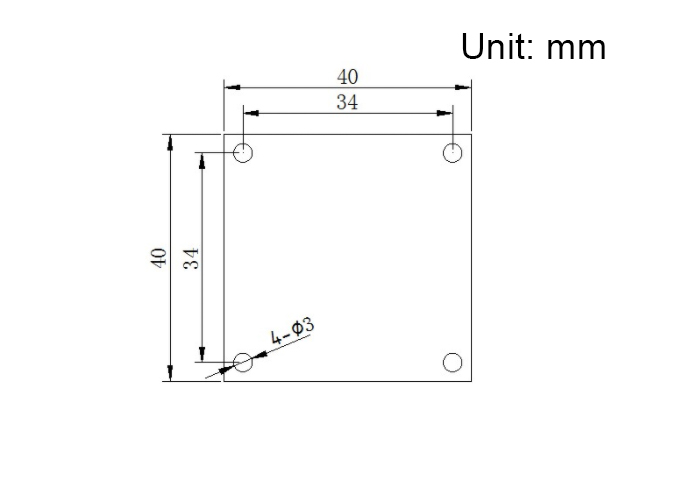

Mounting Holes:
