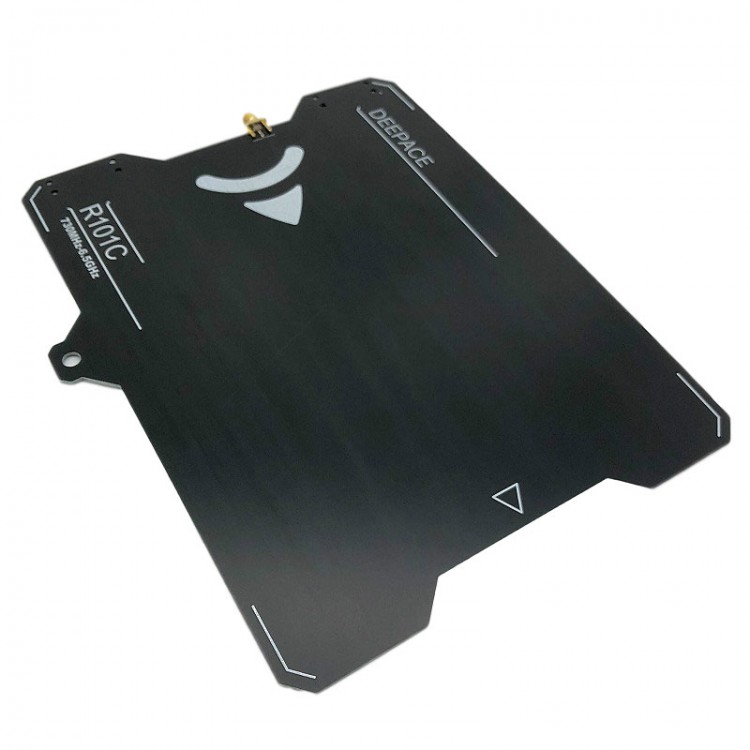

R101C 730MHz - 6.5GHz UWB Wideband Directional Antenna for Directional Wireless Signal Transmission and Receiving

R101C 730MHz - 6.5GHz UWB Wideband Directional Antenna for Directional Wireless Signal Transmission and Receiving

Description:
- The R101C broadband antenna is a printed gradient slot line antenna. It is suitable for directional wireless signal transmission and reception, signal source reconnaissance and direction finding, broadband signal testing, and other purposes.
- The antenna covers the common frequencies of radio frequency units such as mobile communication, UWB positioning module, and WiFi. The antenna has good directionality, high gain, and small volume. The rear end of the antenna is equipped with installation holes, which can be used independently and can be fixed at the focal point of the parabolic reflector as a feed source for the parabolic antenna.
- R101C has stable performance and high product consistency, making it an essential experimental tool for radio frequency workers.

Specification:
- Frequency range: 730MHz - 6.5GHz; The R101C antenna has good transmission and reception performance throughout the entire frequency range, with a standing wave ratio of less than 2.0 and good gain. When the frequency range is exceeded, the antenna gain and return loss quickly decrease, and the usage requirements are appropriately reduced. When the standing wave ratio is less than 2.5, it can be used up to 700Mz-7GHz.
- Polarization mode: Linear polarization
- Rated gain: 7dBi; The gain of R101C antenna slowly increases with increasing frequency, approximately 5dBi at around 800Mhz, 7dBi at 2.4GHz, and 9dBi at 5.8GHz.
- Return loss: 10dB
- Power capacity: 5W
- Direction sensitivity: R101C has good directionality throughout the entire segment and smaller side lobes. It can be used as a direction finding antenna. The antenna pattern in the horizontal direction is relatively wide, with a -3dB width of approximately 60°; The directional pattern in the pitch direction is narrow, with a width of -3dB of approximately 40°.
- Size: 23 x 22.5cm
- Connector type: SMA-K
- Weight: 400g
- Temperature range: - 45℃ ~ 80℃
- Humidity: 0% ~ 95% (100% for short-term is allowed, no watering)
- Waterproof performance: After being soaked in water, it needs to be dried and the connector cable needs to be replaced
- Wind resistance: for safety reasons, it is prohibited to use when the wind speed is greater than 20m/s (level 8 wind)

For safety:
- Be careful when touching live conductors during use and avoid electric shock.
- Avoid outdoor use during thunderstorms, especially in high mountains and open fields. Quickly seek refuge in low areas and lower the antenna.
- Reliable methods should be used to carry high-altitude operations to prevent falls.
- The antenna has edges and corners, so be careful not to scratch it when carrying it.
- The antenna connector and feeder should not be load-bearing and should not be pulled during use. The feeder can be fixed with ties in the fixed holes on the antenna.

For antenna Maintenance:
- Avoid heavy pressure, collisions, and scratches on the antenna
- Avoid excessive bending of cables
- When unfolding the antenna tripod, please place it on a horizontal plane to prevent tipping

Package Included:
- 1 x Antenna
