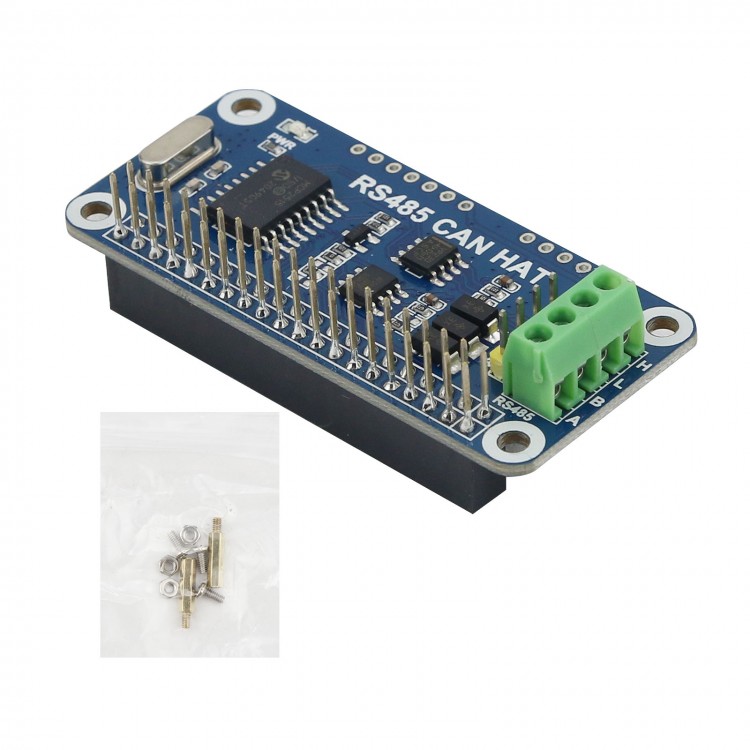

RS485 CAN HAT RS485 CAN Expansion Board CAN Module UART Communication Module For Raspberry Pi
Features:
- Based on the interface for Raspberry Pi 40pin GPIO, suitable for Raspberry Pi series motherboards
- With CAN function, use SPI interface CAN controller MCP2515, with transceiver SN65HVD230
- Equipped with RS485 function, using UART control, half-duplex communication, supporting automatic switching of receiving and sending state without program control, the transceiver is SP3485
- Onboard TVS (transient voltage suppression tube), RS 485 communication can effectively suppress the surge voltage and transient peak voltage in the circuit, lightning protection, anti-static
- Reserved control interface, convenient for other controllers to control
- Provide complete supporting information manual (provide routines for wiringPi and python)
For More Information:
www.waveshare.net/wiki/RS485_CAN_HAT
Parameters:
- CAN controller: MCP2515
- CAN transceiver: SN65HVD230
- 485 transceiver: SP3485
- Working voltage: 3.3V
- Diameter of fixing screw hole: 3.0mm
- Product size: 65x30mm
Package Included:
- 1 x Set of RS485 CAN HAT
