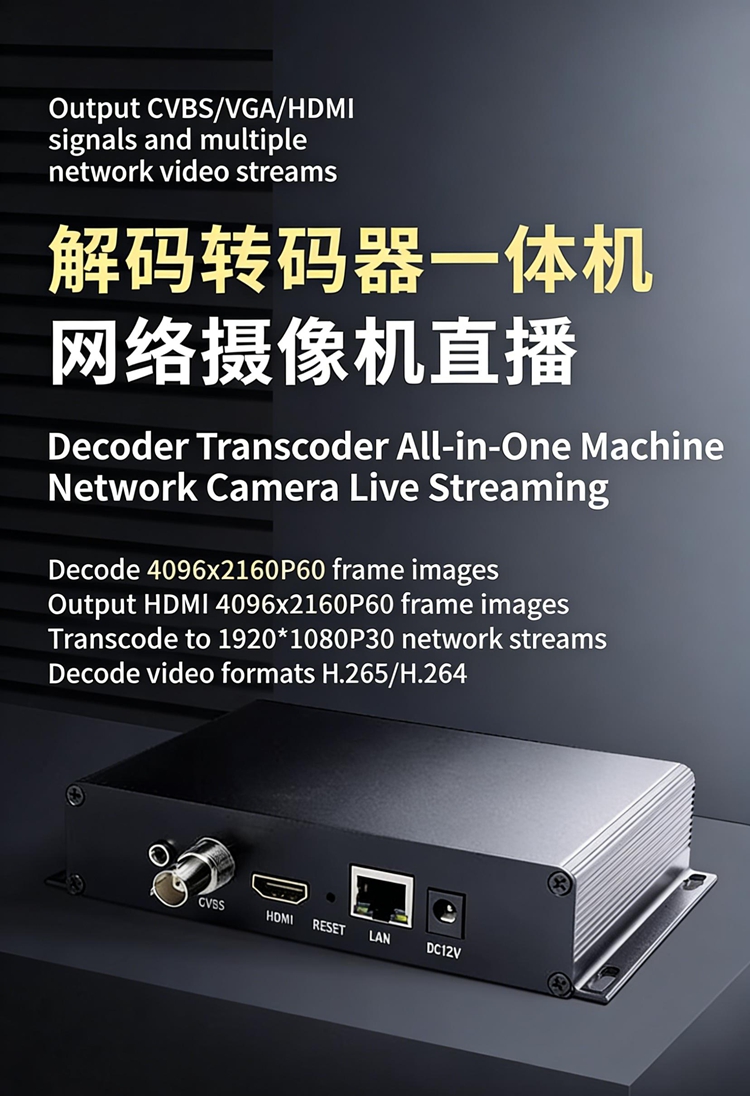

2160P60 Decoder 1080P60 Transcoder Network Video Streaming SRT Decoding and Transcoding

Key Features:
- CPU: Hi3798
- Decoding 1 network video stream, transcoding output 1 network video stream.
- Decoding and transcoding multiple protocols: HTTP TS/HLS/FLV/RTP/SRT/RTMP/RTMPS/UDP/RTP.
- Decoder low latency private protocol PTE/PTL, LAN latency 80-200 milliseconds.
- Decoder video format: H.265/H.264.
- Maximum decoding capability: decode 1 channel of 4096 x 2160P60, output 1 channel of HDMI-compatible 4096 x 2160P60, transcode output 1920 x 1080P30.

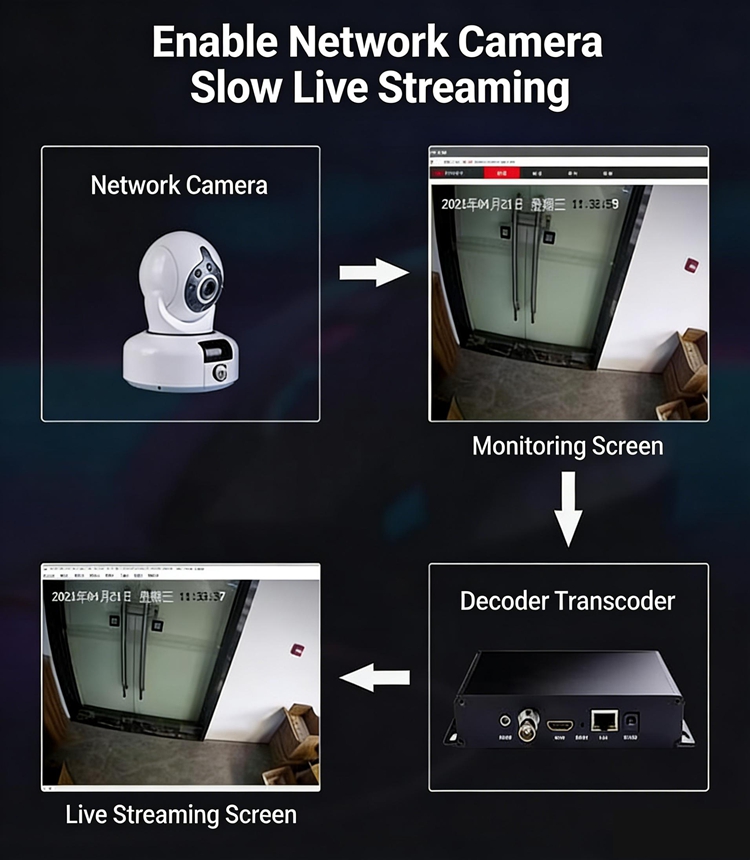

- Support ONVIF to search for network camera RTSP address and decode the address.

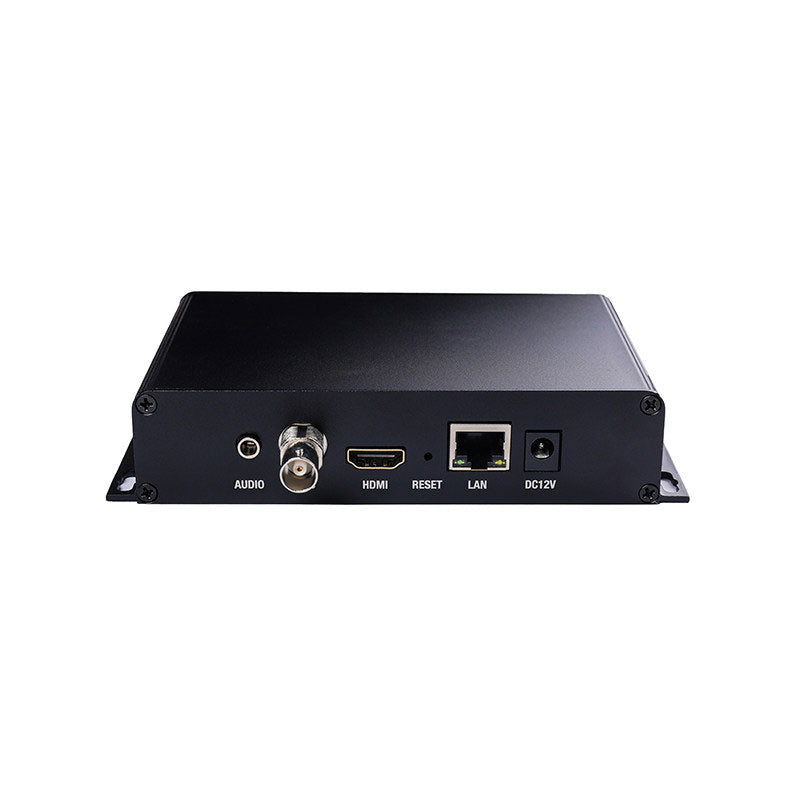

- Video: CVBS/HDMI-compatible simultaneous output.
- Audio: 3.5mm audio port, HDMI-compatible built-in audio output, supports stereo sound.

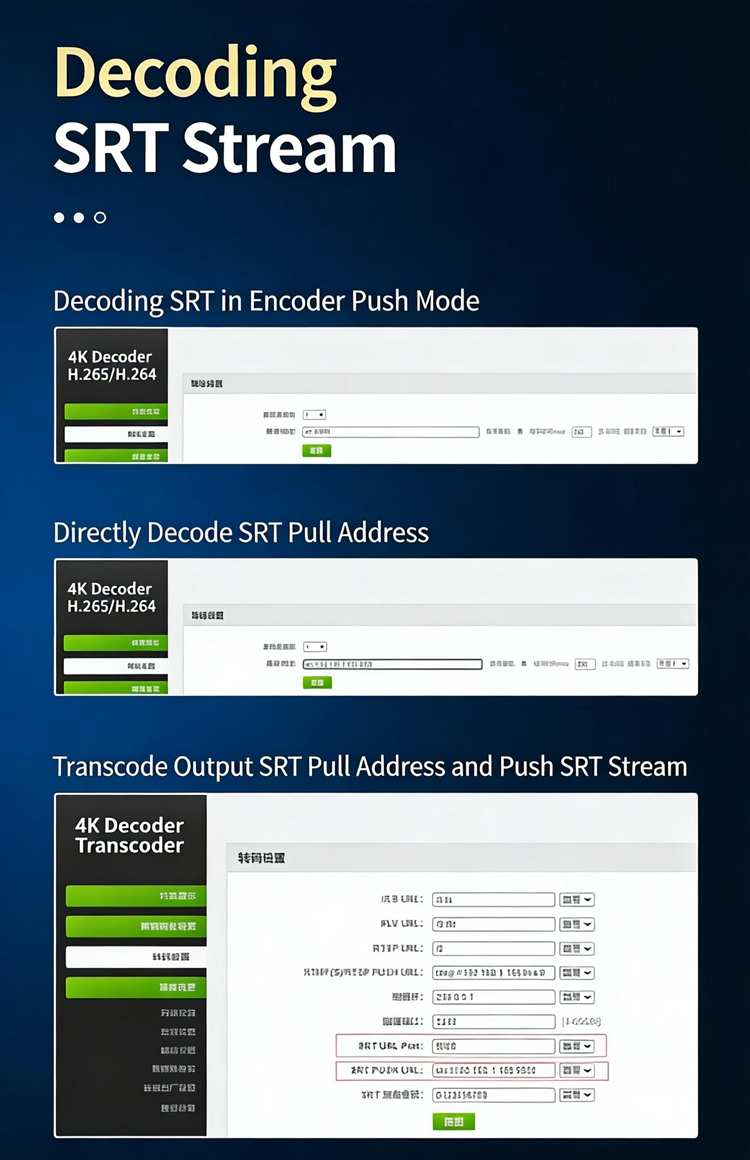

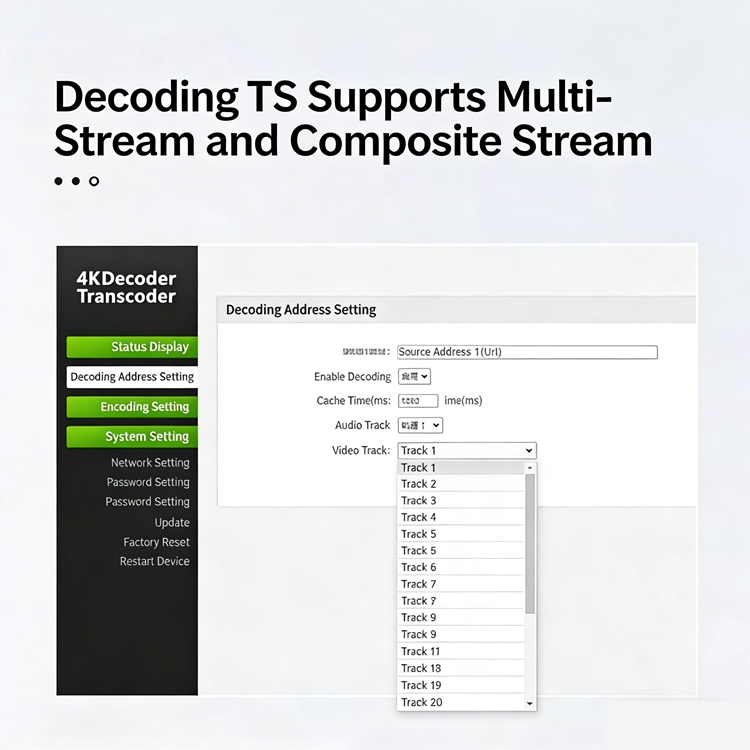

- Configure parameters and upgrade firmware through WEB.

Specification:
Media Access:
- Standard protocols: RTSP/HTTP TS/HTTP FLV/HLS/RTMP/RTMPS/UDP/RTP/SRT
- Private protocols: HTTP PTE

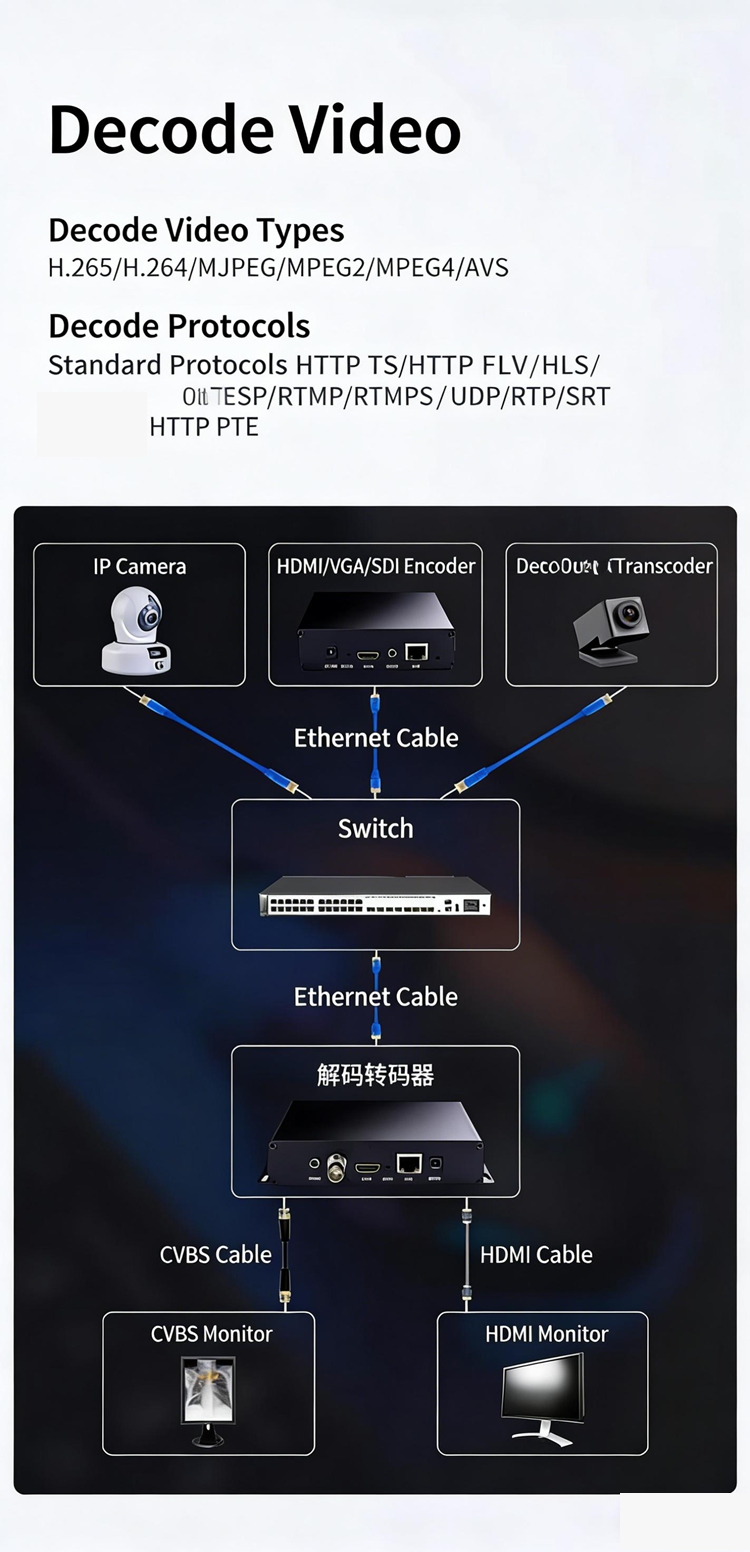

Video Decoding:
- Decoding type: H.265/H.264/MJPEG/MPEG2/MPEG4/AVS
- Frame rate: 1 - 60
- Channel number: 1 channel
- Resolution: support up to 2160P at 60

Audio Decoding:
- Type: AAC/AAC_AT/AAC_FIXED/AAC_LATM/AASC/AC3/AC3_AT/AC3_FIXED/G729/GSM/GS_MS/GSM_MS_AT/MP1/MP1_AT/MP1FLOAT/MP2/MP2_AT/MP2FLOAT/MP3/MP3_AT/MP3ADU/MP3ADUFLOAT/MP3FLOAT/MP3ON4/MP3ON4FLOAT/PCM_ALAW/PCM_MULAW/ADPCM_G726
- Channel number: 1 channel
- Channel: single channel/dual channel
- Sampling rate: 44100Hz

Video Output:
- HDMI-compatible: 4096x2160P60/ 4096x2160P50/ 4096x2160P30/ 4096x2160P25 /3840x2160P60 /3840x2160P50 /3840x2160P30 /3840x2160P25 /1440P60 /1920x1200P60 /1080P60 /1080I60 /1080P50 /1080I50 /1080P30 /1080P25 /720P60 /720P50 /576P50 /480P60
- CVBS: PAL/NTSC
- HDMI-compatible: 48kHz dual channel output
- Color: brightness, comparison, chroma, saturation, adjustable

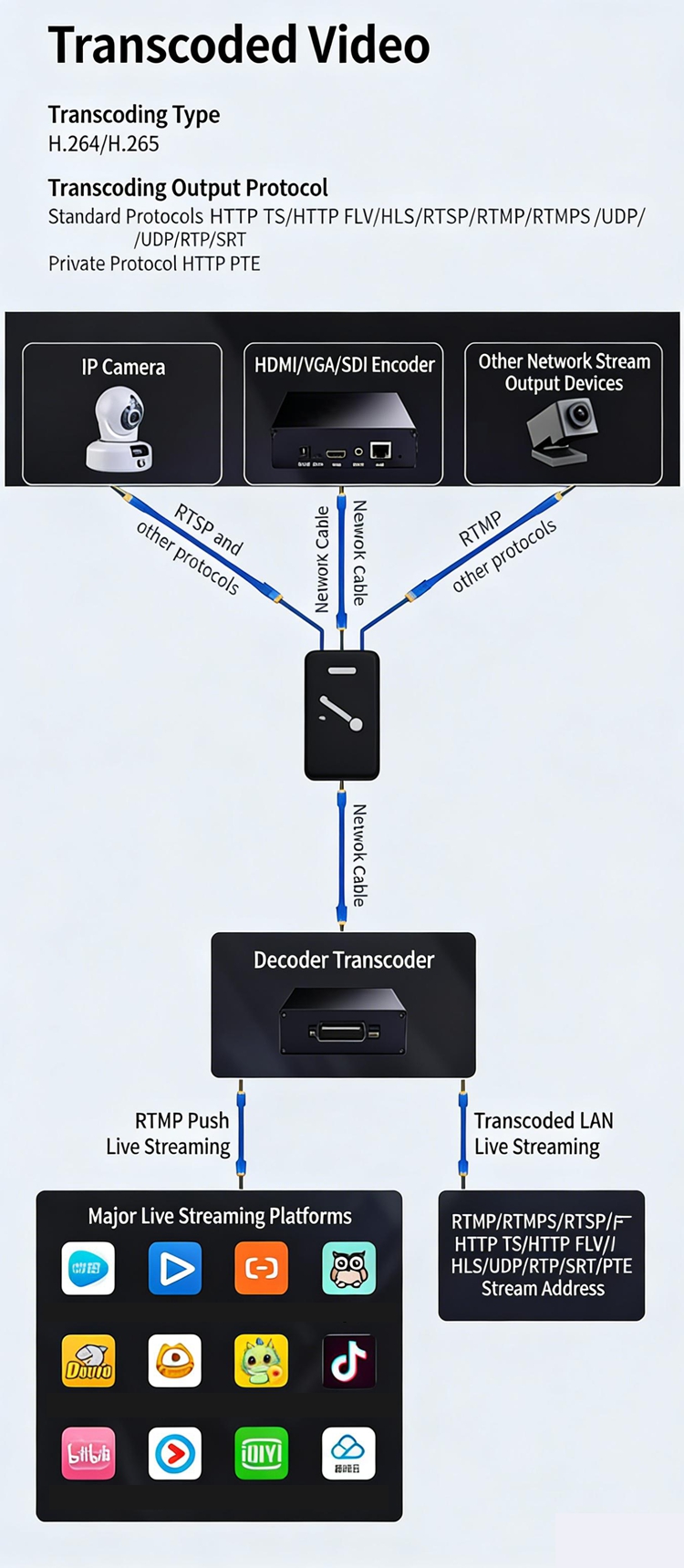

Video Transcoding:
- Standard protocol: support for RTMP/RTMPS/RTSP/HTTP TS/HTTP FLV/HLS/UDP/RTP/SRT
- Private protocol: HTTP PTE
- Encoding type: H.264/H.265 optional
- Encoding frame rate: 5 - 60 adjustable
- H.264 grade: PROFILE_BASELINE/PROFILE_MAIN/PROFILE_EXTENDED/PROFILE_HIGH
- Bit rate (kbit): 32 - 32000 adjustable
- Encoded resolution: 1920x1080 /1680x1056 /1600x900 /1280x720 /1024x768 /850x480 /720x404 /704x576 /640x480 /640x360 /608x448 /544x480 /480x480 /480x384 /480x360 /480x320 /480x272 /480x270 /400x320 /400x224 /352x480 /352x228 /320x256 /320x240 /320x180 /240x180 /176x144 /customized
- Key frame interval: 5 - 300 adjustable

Audio Transcoding:
- Method: AAC
- Sampling rate: 44100/48000 (optional)

General Parameter:
- Network: Gigabit
- Configuration management: via WEB
- ONVIF: support for ONVIF search or browse video
- Power supply: 12VDC, 2A
- Power consumption: 4W
- Working temperature: -20℃ to +60℃
- Working humidity: <90%, non-condensing

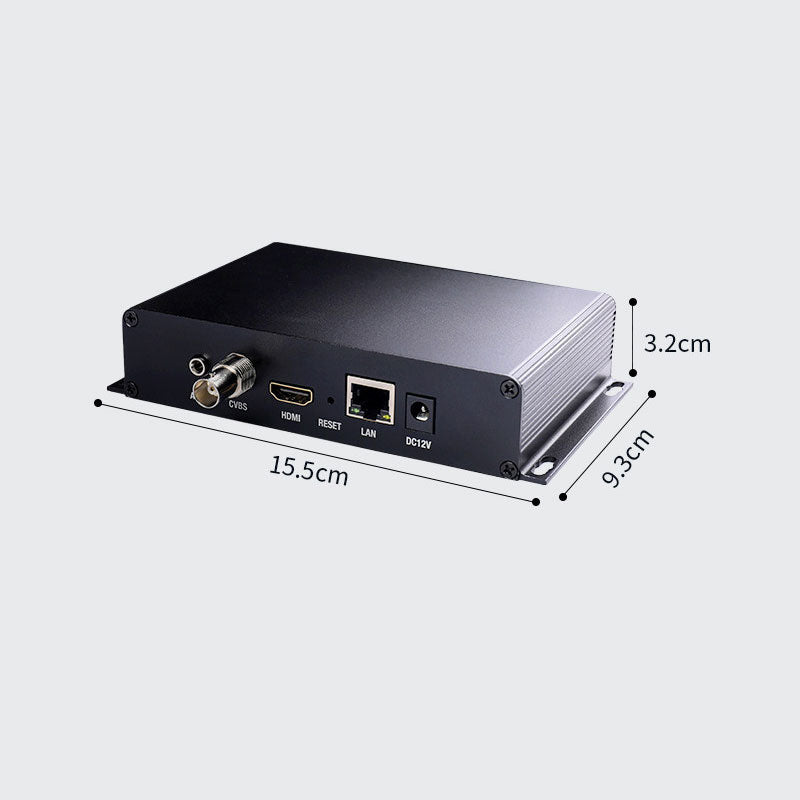

- Product size: 15.5 x 9.3 x 3.2cm
- Net weight: 276g

Package Included:
- 1 x Transcoder
