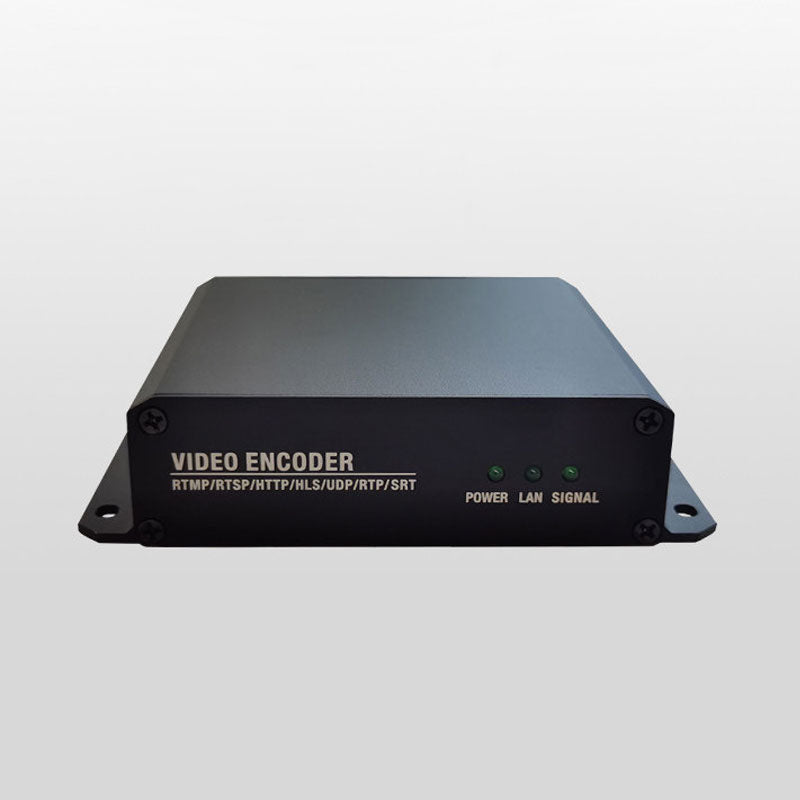

H.265/H.264 CVBS Loop Output Video Encoder Analog Audio Input Live Encoder Support for RTMP/RTMPS/SRT Protocols

Features:
- Support 720x576P60 frame.
- Supports 1 main stream, 3 secondary streams (outputs 4 streams).
- Functions: live streaming, monitoring NVR recording, IPTV live streaming, LAN live streaming, low latency transmission, OSD settings.
- 7 x 24hours 4-channel stable working.
- Upgraded functions: live, monitor NVR recording and playback, IPTV live, LAN live, low delay transmission, OSD setting.
- Support for RTMP/RTMPS/SRT protocols to stream live to major mainstream platforms.
- Built in RTMP, default RTMP streaming address: rtmp://192.168.1.168/live/0
- Built-in SRT, default SRT streaming address: srt://192.168.1.168:9000
- By using the ONVIF protocol, NVR can retrieve the encoder IP and add it to the NVR to play stored videos.
- Supports live streaming for multiple people on the local area network, and supports for RTMP/RTSP/HTTP TS/HLS/FLV/RTP/UDP/SRT protocols for direct playback within the local area network.
- PTE protocol with a delay of 80-200 milliseconds; The PTE protocol is a proprietary protocol independently developed, with the main function of low latency.

Specification:

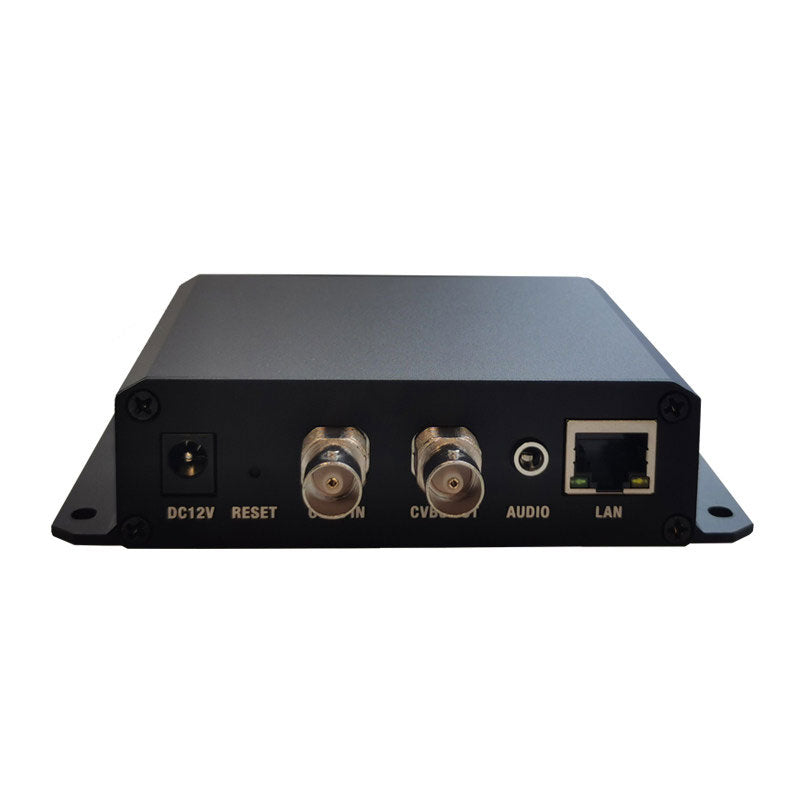

Audio/Video Input:
- Video input: 1 channel CVBS
- Audio Input: 1 channel 3.5mm external audio

Video Output:
- Video output: 1 channel CVBS

Video Encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 profile: Baseline/Main/High (optional)
- Encoding frame rate: same as input frame rate/automatic/customized frame rate 5 - 60
- Key-frame interval (fps): 5 - 300 adjustable
- Bit rate (kbit): 32 - 32000 adjustable
- Encoded resolution: 3840x2160 /1920x1080 /1680x1200 /1680x900 /1280x1024 /1280x720 /1024x768 /1024x576 /960x540 /850x480 /800x600 /720x576 /720x540 /720x480 /720x404 /704x576 /640x480 /640x360 /608x448 /544x480 /480x480 /480x384 /480x360 /480x320 /480x272 /same as the input resolution
- Stream control: CBR/VBR/Strong CBR (optional)
- Streaming protocol: support for RTMP/RTMP(S)/RTSP/HTTP TS/HTTP FLV/HLS TS/HLS MP4/MP4/SRT/UDP Multicast/RTP Multicast

Audio Encoding:
- Audio input: analog
- Encoding sampling rate: 44100/48000/same as input sampling rate (optional)
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus (optional)
- Left and right channel: L+R/L/R
- Encoding bit rate:
  AAC: 48000 - 320000
  AAC+: 24000 - 48000
  AAC++: 12000 - 32000
  MP3: 64000 - 320000
  MP2: 64000 - 320000
  AC3: 40000 - 640000
  Opus: 8000 - 256000 adjustable
- Digital volume gain: -50 to 50 adjustable
- Noise reduction: disabled/enabled (optional)
- PTE stream using G711A encoding: disabled/enabled (optional)
- RTSP stream using G711A encoding: disabled/enabled/enable and resample to 8 (optional)
- G711 encoding: G711A/G711 optional

OSD:
- Transparency: 0 - 128 adjustable
- Type: text/image/scrolling text/time
- Area: 4 areas optional
- X coordinate: 0 - 1920
- Y coordinate: 0 - 1080
- LOGO: can upload 4 logos for backup selection
- Font size: 8 - 72
- Background color: transparent/white/black
- Font color: optional RGB color

General Parameter:
- Network: Gigabit
- Configuration management: via WEB
- ONVIF: support for ONVIF search or browse video
- Power supply: 12V
- Power consumption: < 4W
- Working temperature: -20℃ to +60℃
- Working humidity: <90%, non-condensing
- Product size: 12.5 x 10.3 x 3cm
- Net weight: 264g

Package Included:
- 1 x Encoder
