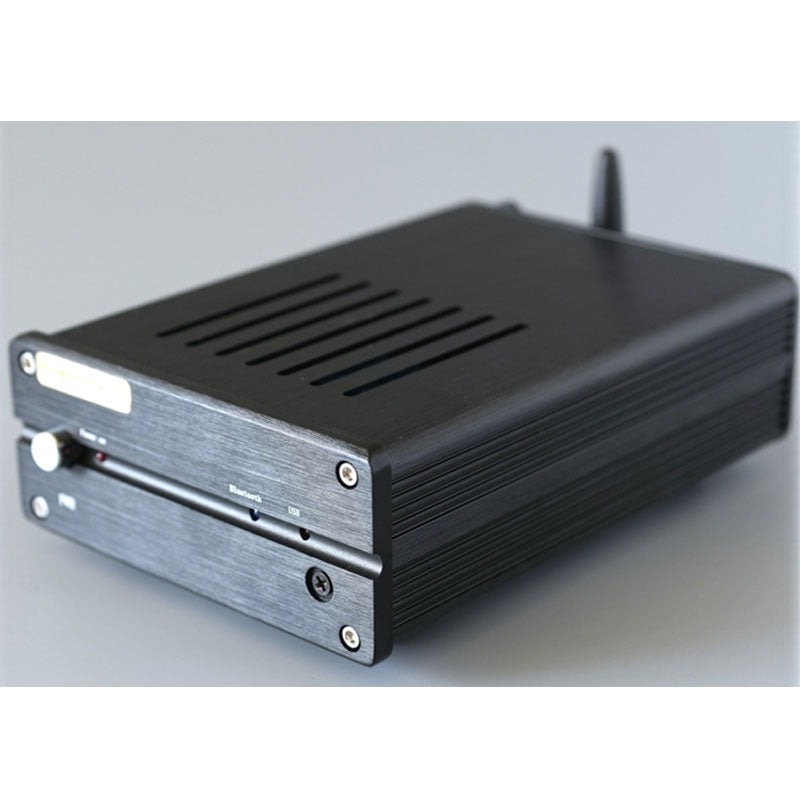

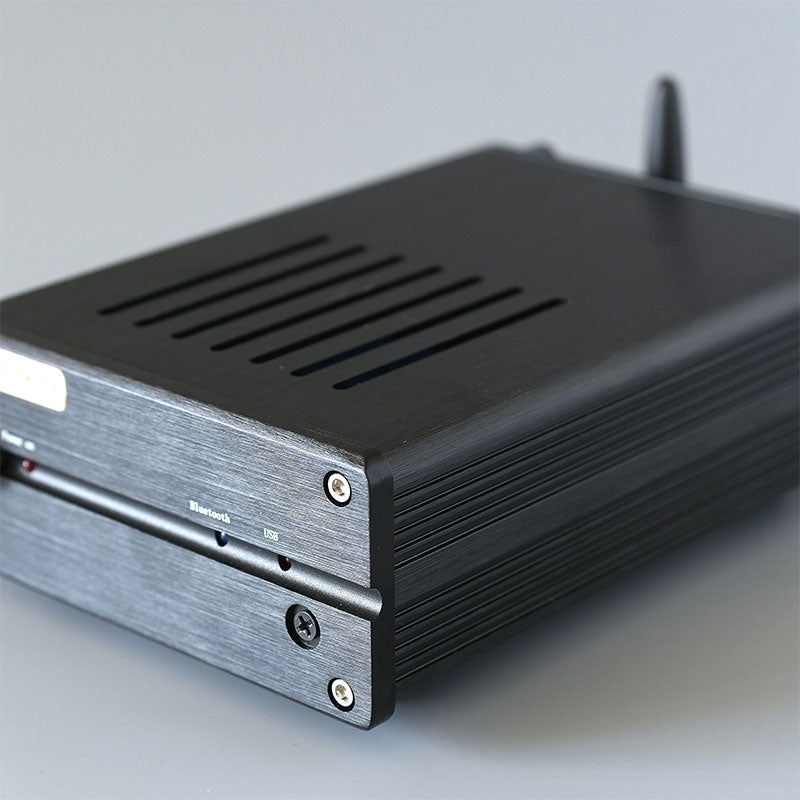

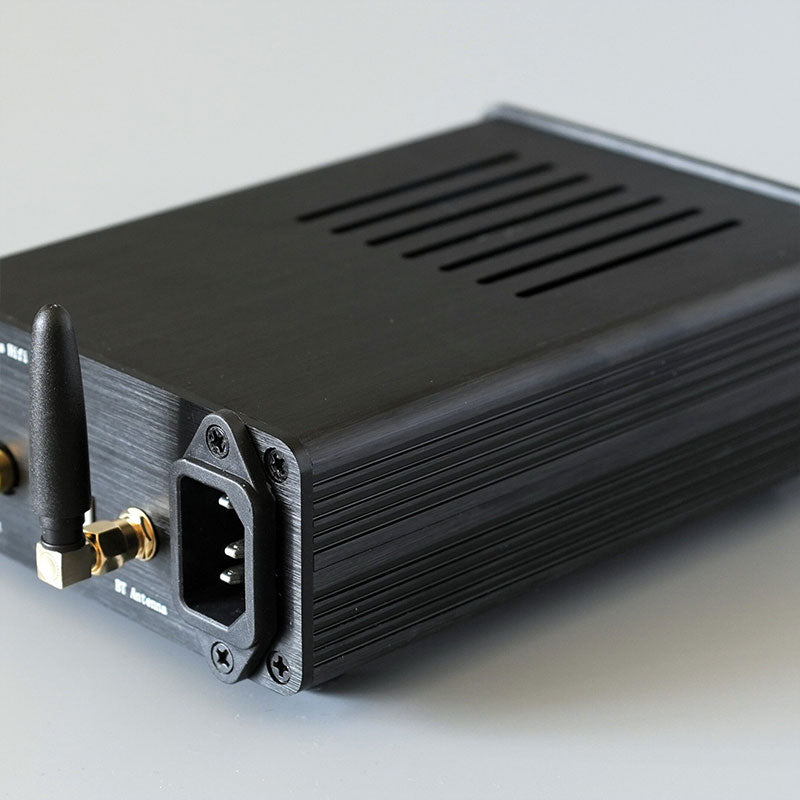

L1794DAC USB/BT PCM1794 Bluetooth USB HiFi Audio Decoder Support for APTX Adaptive/LDAC Protocols

Features:
- Using high-performance PCM1794 code chip, the sound is atmospheric and positive, with excellent dynamic resolution.
- Adopting the latest Bluetooth chip for Qualcomm, it supports for aptX Adaptive and LDAC protocol 24bit 96k.
- Provides USB input and still supports 24bit 96k lossless bit rate for both computers and mobile phones to connect via OTG.

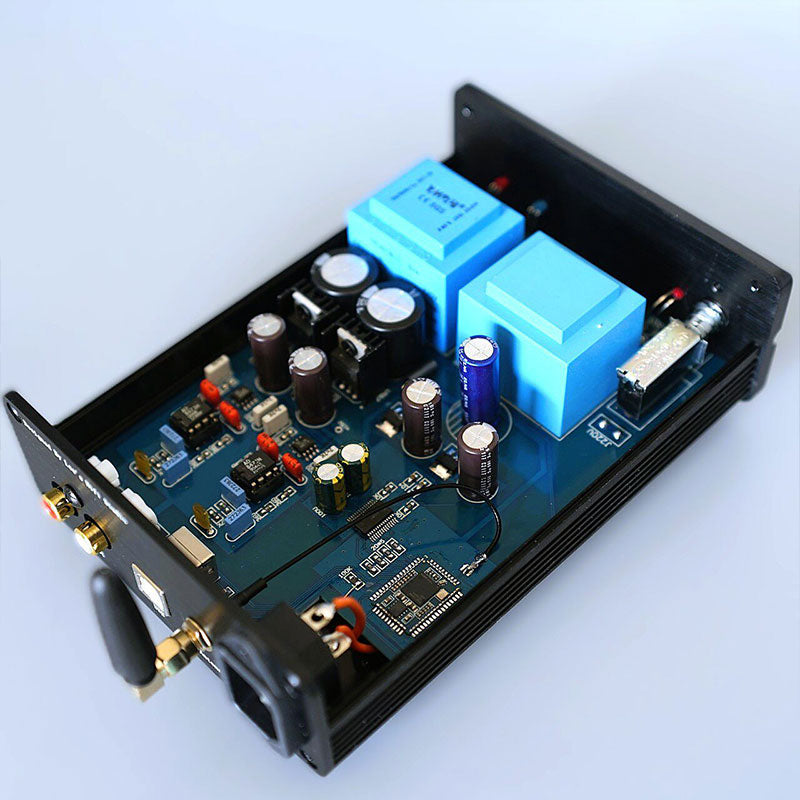

- The dual transformer outputs dual 15V and single 6V to independently supply power to analog and digital circuits.
- Two AD712 high temperature operational amplifiers are used to complete the IV conversion circuit.
- Use AD847 operational amplifier to complete the LFP low-pass circuit.

Specification:
- Input interface: Bluetooth, USB square port
- Input format: PCM 44.1 - 96K
- Line output: RCA stereo socket
- Line output level: 3.8Vppm
- THD+N: -129dB
- Power consumption: <3W for standby; <15W for maximum power output
- Product size: 160 x 114 x 50mm
- Net weight: 900g

Package Included:
- 1 x Audio Decoder
- 1 x Power Cable
