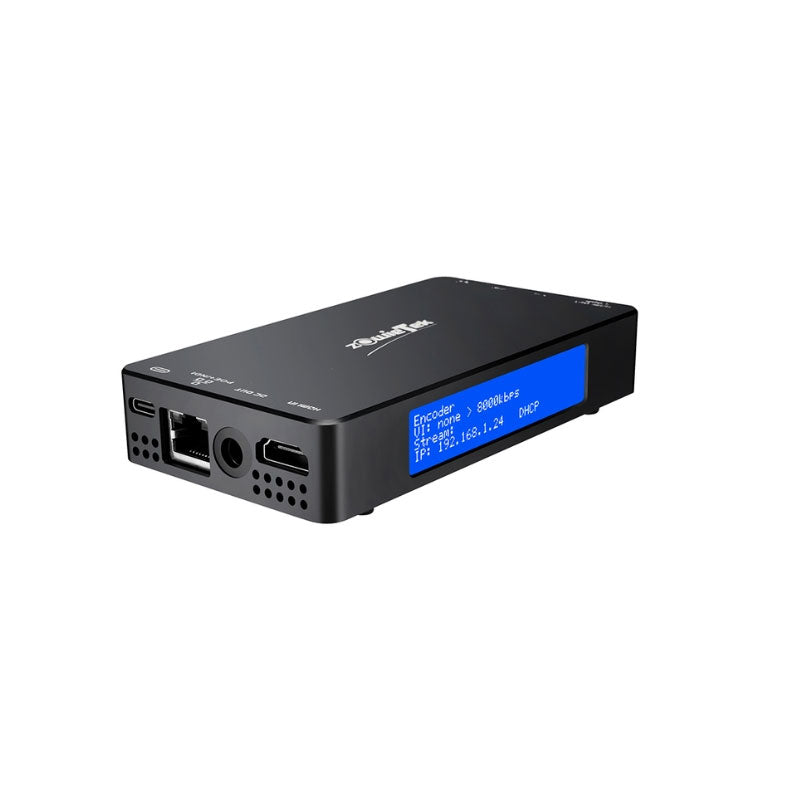

ZowieTek ZowieBox 4K HDMI-compatible Video Encoder Decoder NDI Converter Video Streaming Codec for Youtube/Facebook

Description:

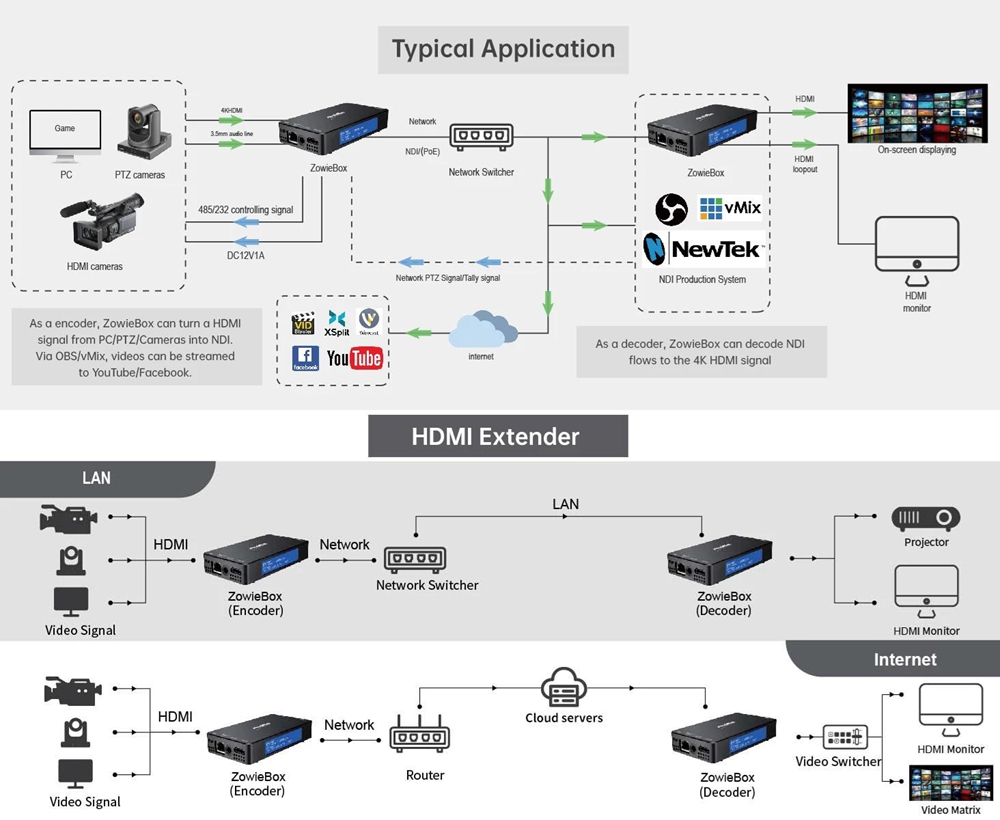

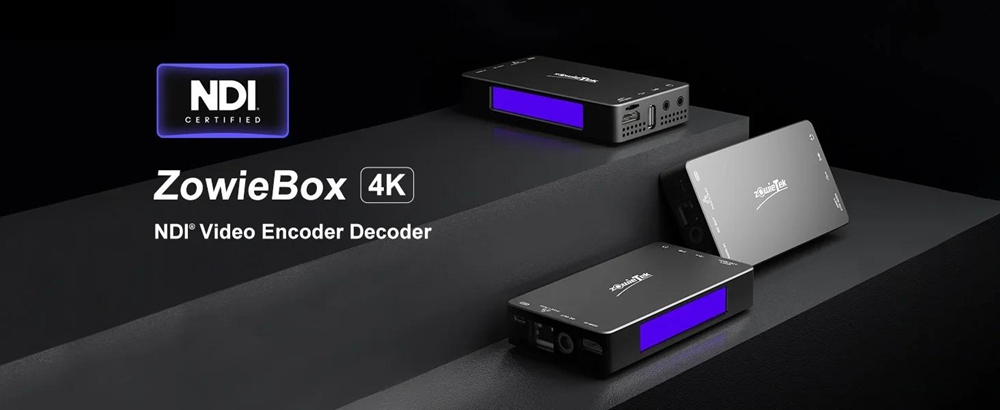

- ZowieBox, a hardware HDMI encoder/decoder, is both a 4K video streaming codec and an NDI|HX3 (Certified) converter. It can standalone stream console gameplays for PS5/4, Xbox, and Switch PC-free, providing a flexible and affordable solution to stream high-quality videos over the internet.

Specification:
Power Supply:

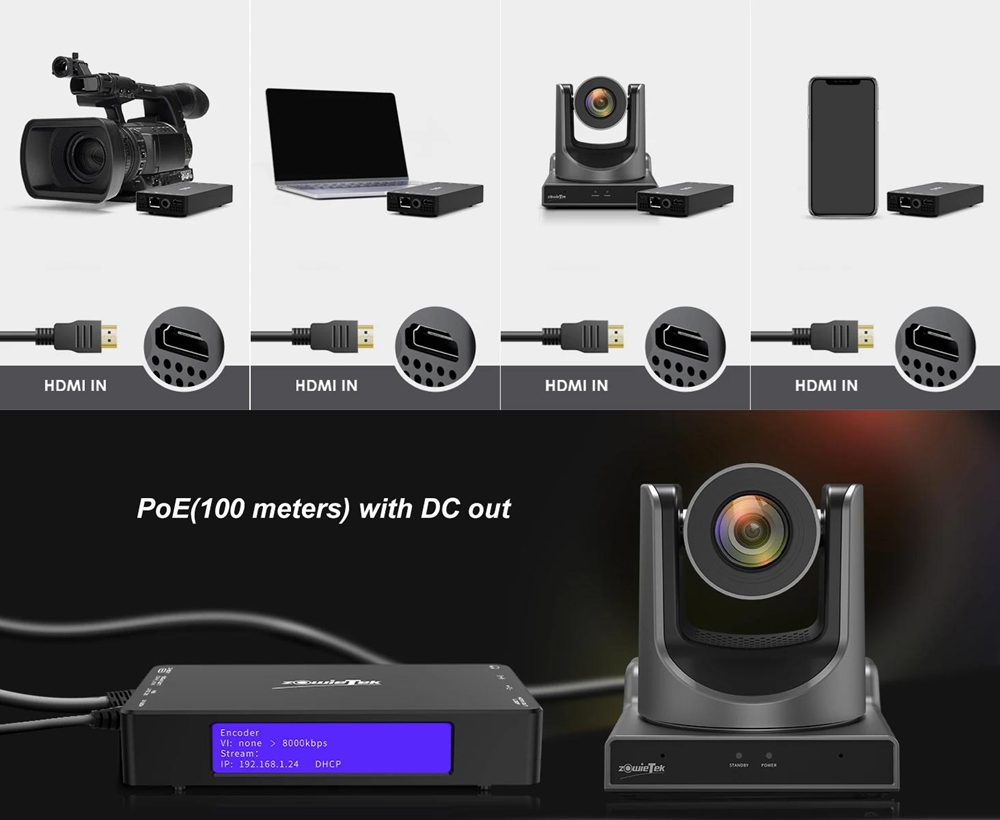

- Input: USB Type-C, up to 25W, 20V 1A, 25W DC adapter; PoE+ (802.3at) CAT5e above
- Power consumption: about 10W (excluding DC output)
- Output: up to 12V 1A DC, with current limit

Video:
- Video encoder: H.264 HP/MP/BP, H.265 MP
- Encoding and decoding resolution: 4K2160p25/30, 1080p25/30/50/60, 1080i50/60, 720p50/60 (for video input and output)
- Loop-out bypass: up to 4K60, 1080P120Hz, HDR10 and Dolby
- HDCP: 1.4/2.2/2.3
- Frame rate (1080/720P): 24/25/30fps, 50/60fps
- Encoding and decoding format: H.264/H.265
- Speed rate control: CBR/VBR
- Live preview: web preview interface, HDMI-compatible loop communication and output

Network:
- LAN: 100/1000Mbps gigabit
- WIFI: 802.11a/b/g/n/ac, dual-band
- Bluetooth: V5.0

Live Streaming:
- Live streaming input: RTSP/RTMP(s)/SRT
- Decoding: RTMP(s)/SRT/RTP/UDP/RTSP/TCP/HTTP(s)
- Bit rate: max. 50mbits/s, adjustable

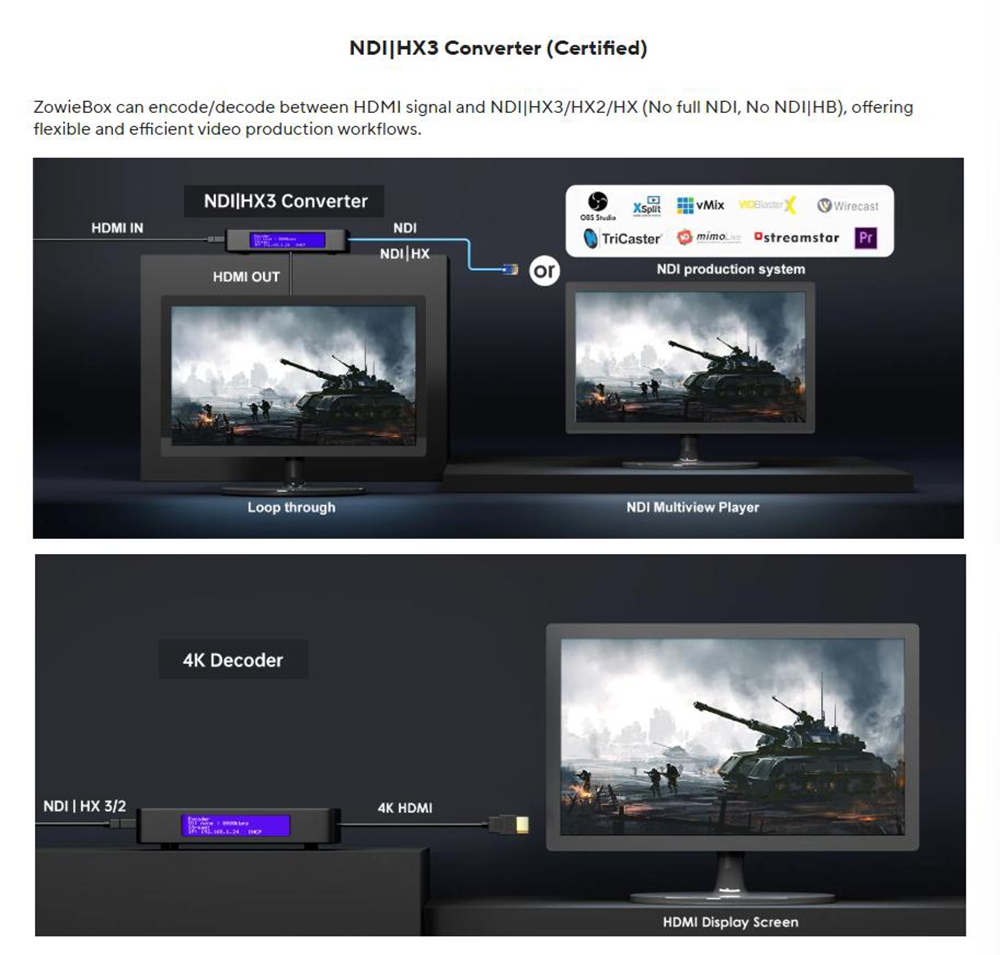

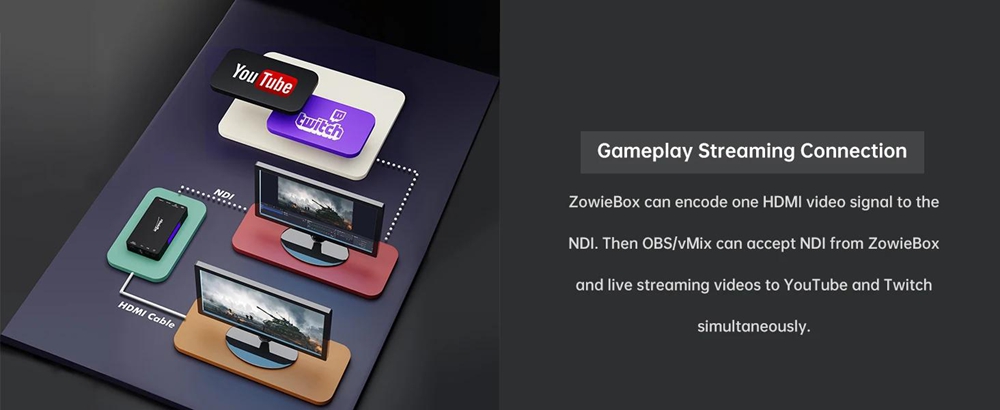

- NDI encoding: NDI/HX3/HX2/HX
- NDI decoding: NDI/HX3/HX2/HX
- NDI audio: audio through NDI
- Recording: mp4, mov, ts
- Rotation: 0/90/180/270n°, native vertical live streaming
- Main stream: up to 4K30
- Secondary stream: up to 720P

Audio:
- Sampling: 32, 44.1, 48kHz
- Encoding mode: AAC, MP3, 16bit
- Bit rate: 32 - 192kbps
- Channel: dual channel, AGC
- Input: 0.7VRMS, 20Kohm
- Output: 16ohm, 30mW
- Source: HDMI-compatible embedded, line input

Input/Output:
- HDMI-compatible input: 1.4b/2.0b, RGB/YCbCr 444/422/420
- HDMI-compatible loop-out: 2.0, up to 4K60
- HDMI-compatible output: 1.4b, up to 4K30

Configuration:
- Display: dot matrix, COG

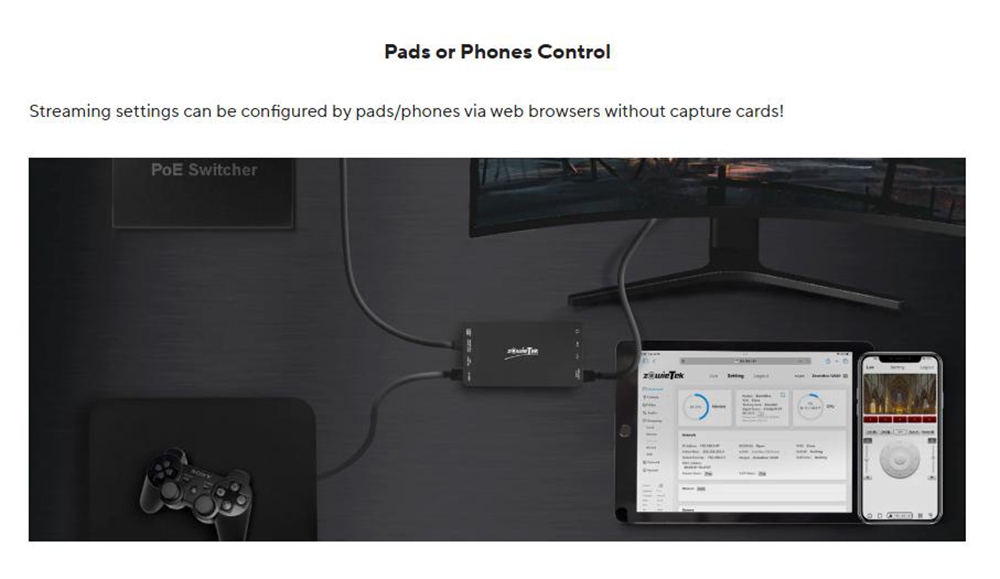

- Setting: mobile phone, Pad, PC, RESTFUL
- OSD: text, logo, subtitles, timestamps

PTZ:
- Interface: RS232/485/422 via USB adapter
- Protocol: Pelco D/P, VISCA

Tally Light:
- Tally light: auto/manual

Software:
- Firmware: upgradeable, for Linux OS

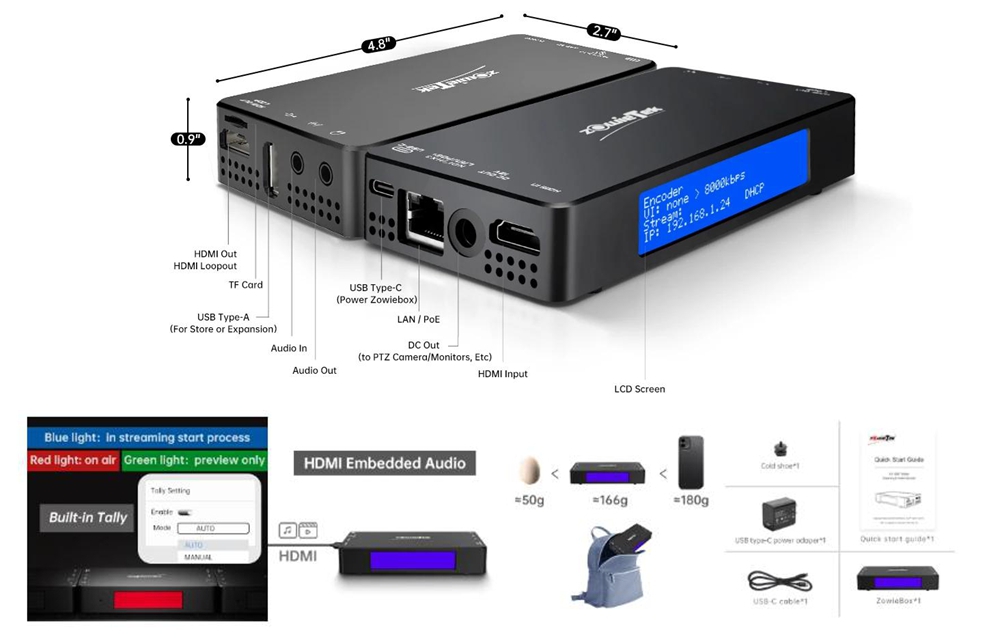

Interface:
- HDMI-compatible input: 1 x TYPE A, socket, 1.4b
- HDMI-compatible output: 1 x A type, socket (Mux), 1.4b
- HDMI-compatible output: 1 x A, socket (Mux), 2.0
- Audio input: 1 x 3.5mm TRS jack
- Audio output: 1 x 3.5mm TRS jack
- Network: RJ45, Gigabit, PoE
- USB: 1 x USB, TYPE A
- Display: 1 RGB LED panel

Storage:
- Interface: 1 x Micro SD/TF, USB
- Network: NAS
- Disk partition format: FAT32 up to 2T, exFAT

Physical Environment:
- Size: 123 x 68 x 22mm
- Weight: 166 grams black aluminum alloy
- Working temperature: 0°C - 45°C
- Storage temperature: -20°C - 60°C
- Tripod: 1/4-20 inches

Certification:
- Certification: CE, FCC

Package Included:
- 1 x Video Encoder
