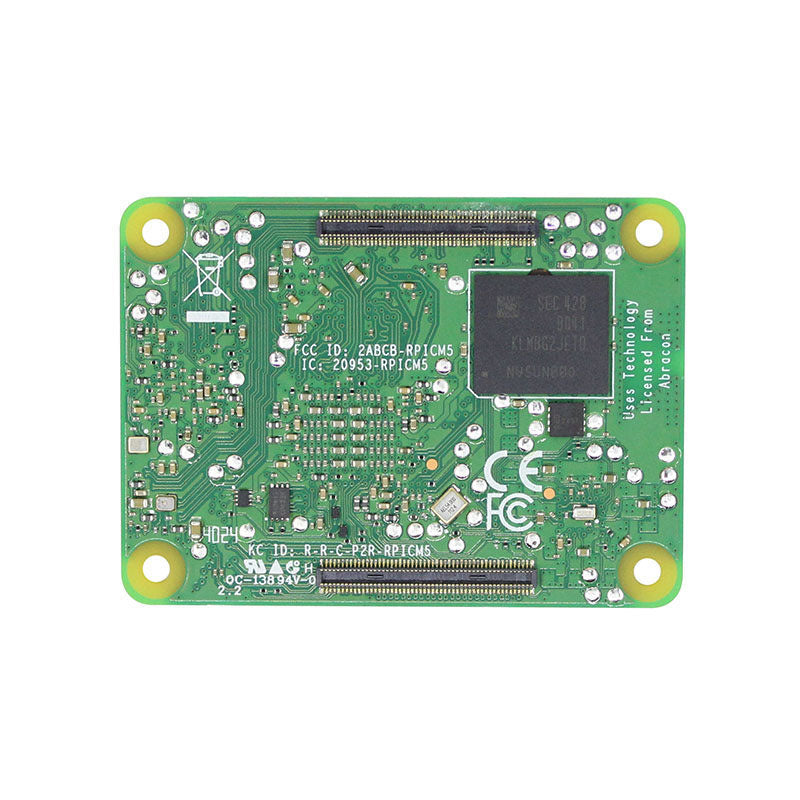

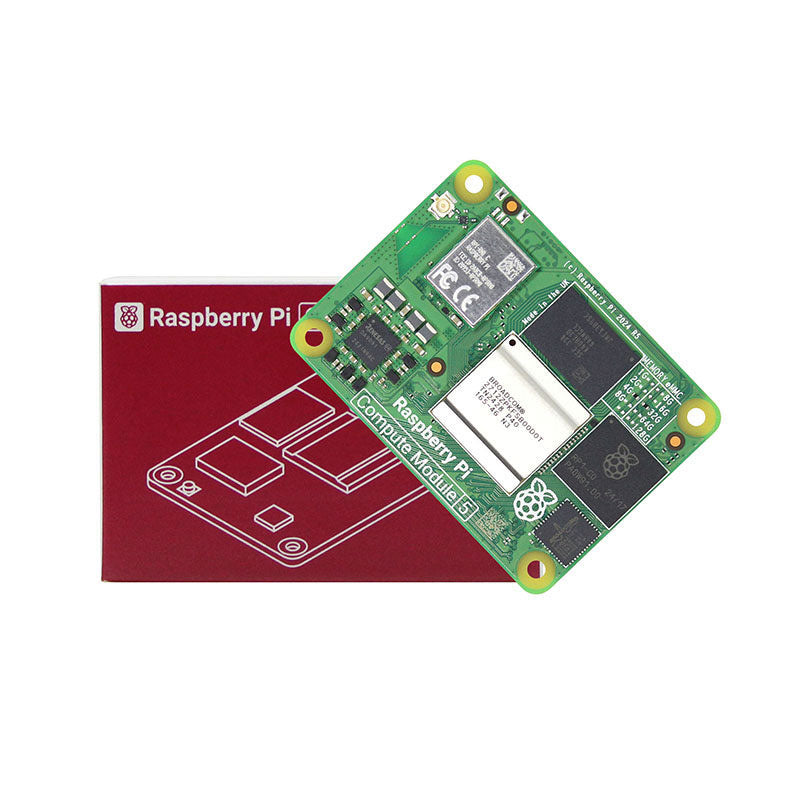

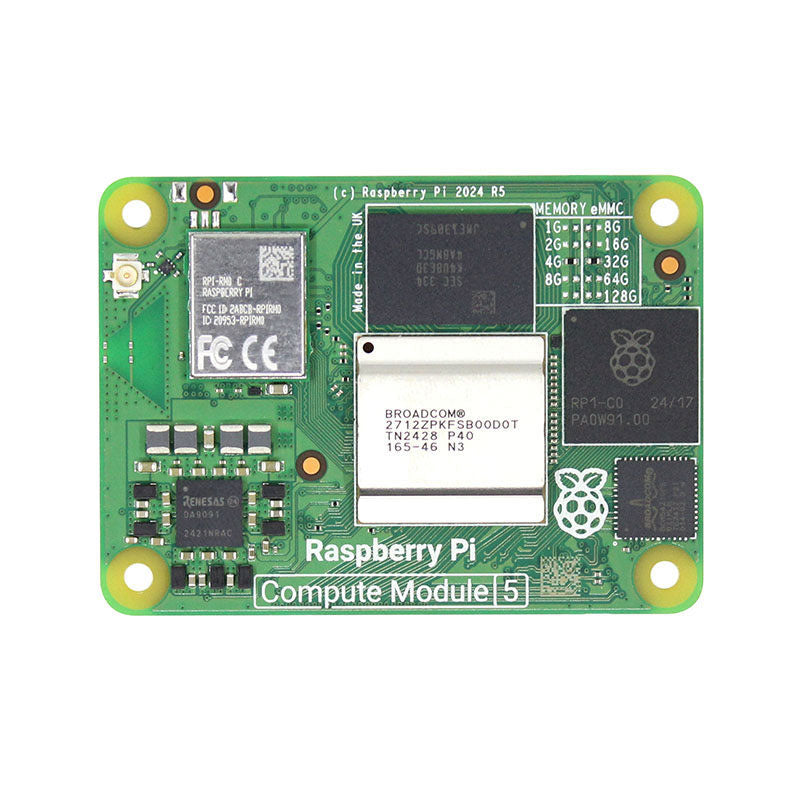

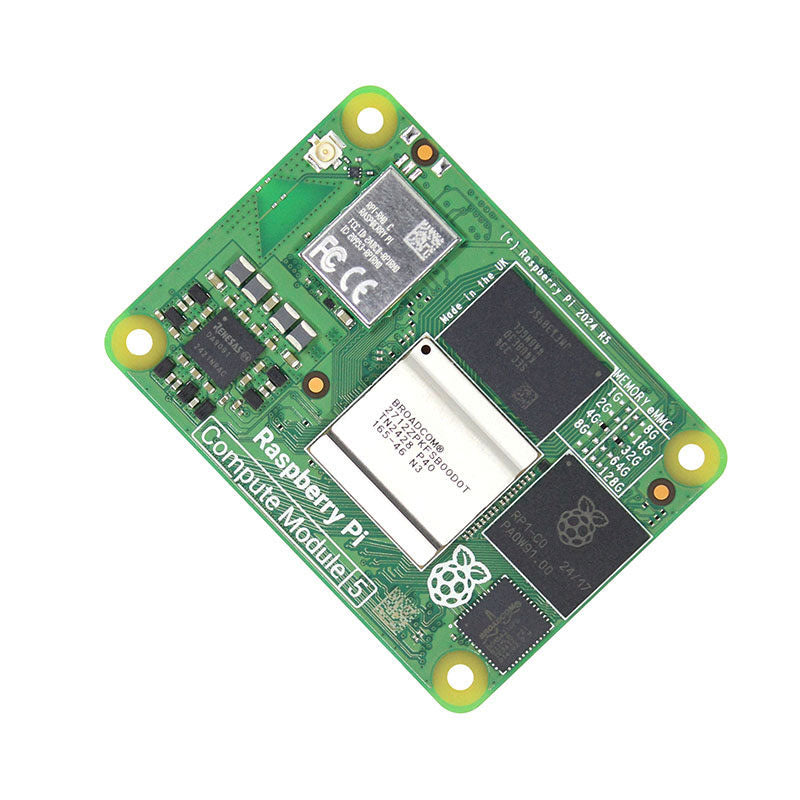

Compute Module 5 Bluetooth5.0 4-Core 64Bit Core Board for Raspberry Pi (16GB RAM without WiFi)

Description:
- The Compute Module 5 for Raspberry Pi is a system level module that features a quad core ARM Cortex-A76 processor, memory, support for power circuits, and rich interfaces. Provides WiFi (optional) and Bluetooth connectivity, as well as multiple RAM options. Compute Module 5 enables you to leverage the powerful hardware and optimized software stack for Raspberry Pi 5 in custom systems and packaging forms.

Features:
- CPU upgrade to BCM2712, quad core Cortex-A76 64-bit processor with stronger performance.
- Provides more RAM options (2GB/4GB/8GB/16GB)
- Wireless module options, including onboard PCB antennas and external antennas, more suitable for industrial applications.
- Designed with B to B connectors, most compatible with CM4.
- Onboard Gigabit Ethernet design, supporting IEEE1588, suitable for network application development.
- PCIe interface extension, flexible addition of related modules.

Specification:
- Processor: for Broadcom BCM2712 quad core Cortex-A76 (ARM v8), 64-bit SoC at 2GHz
- RAM: 2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (optional)

Connectivity:
- Dual band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi (optional), low-power Bluetooth5.0, BLE, onboard antenna or external antenna connection
- Supports IEEE 1588 Gigabit Ethernet
- USB2.0 interface x 1
- USB3.2 Gen interface x 2
- PCIe Gen2 x 1
- 28 x GPIO
- SD Card interface

Video:
- HDMI-compatible (support 4KP60) x 2
- 4-lane MIPI interface x 2

Multimedia:
- 4KP60 HEVC hardware decoding
- For OpenGL ES3.1 Vulkan 1.3

General Parameters:
- Working voltage: 5V DC
- RTC: comes with RTC and powered by an external battery
- Working temperature: -20℃ to 85℃
- Product size: 55 x 40 x 4.7mm

Package Included:
- 1 x Compute Module 5
