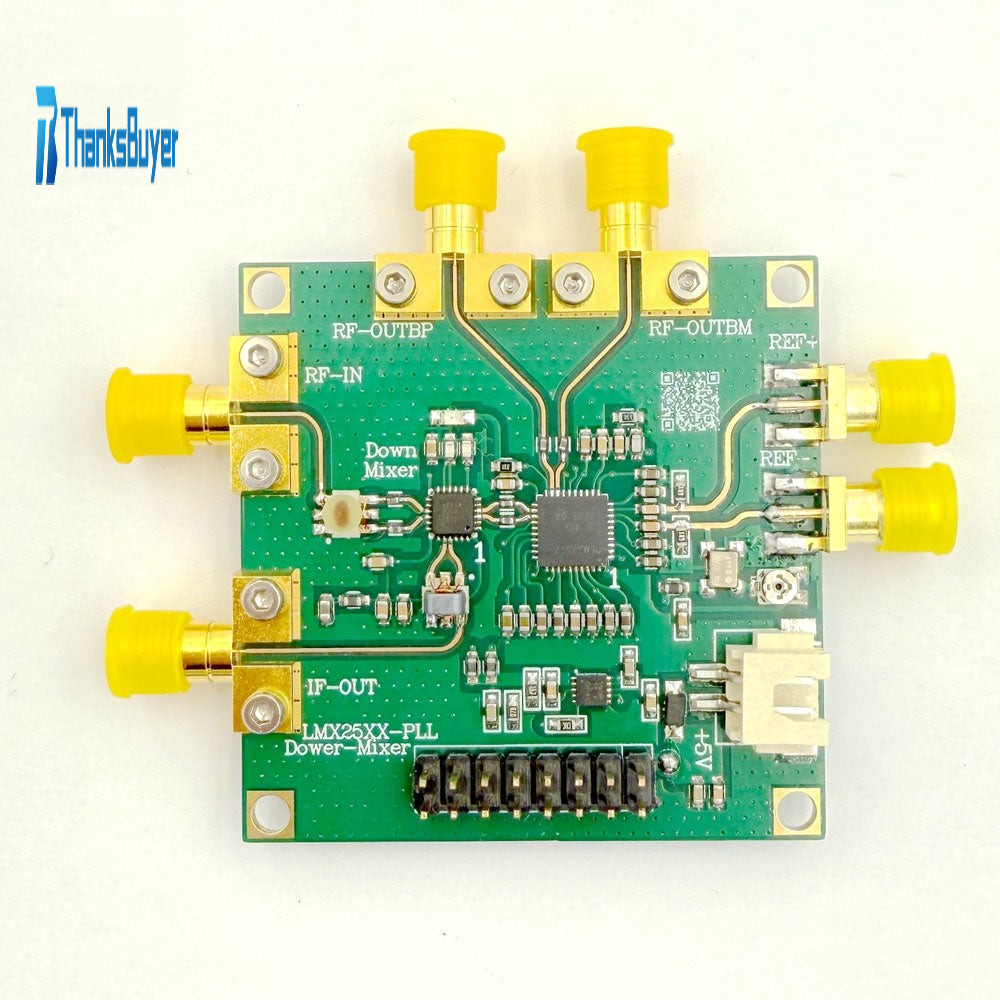

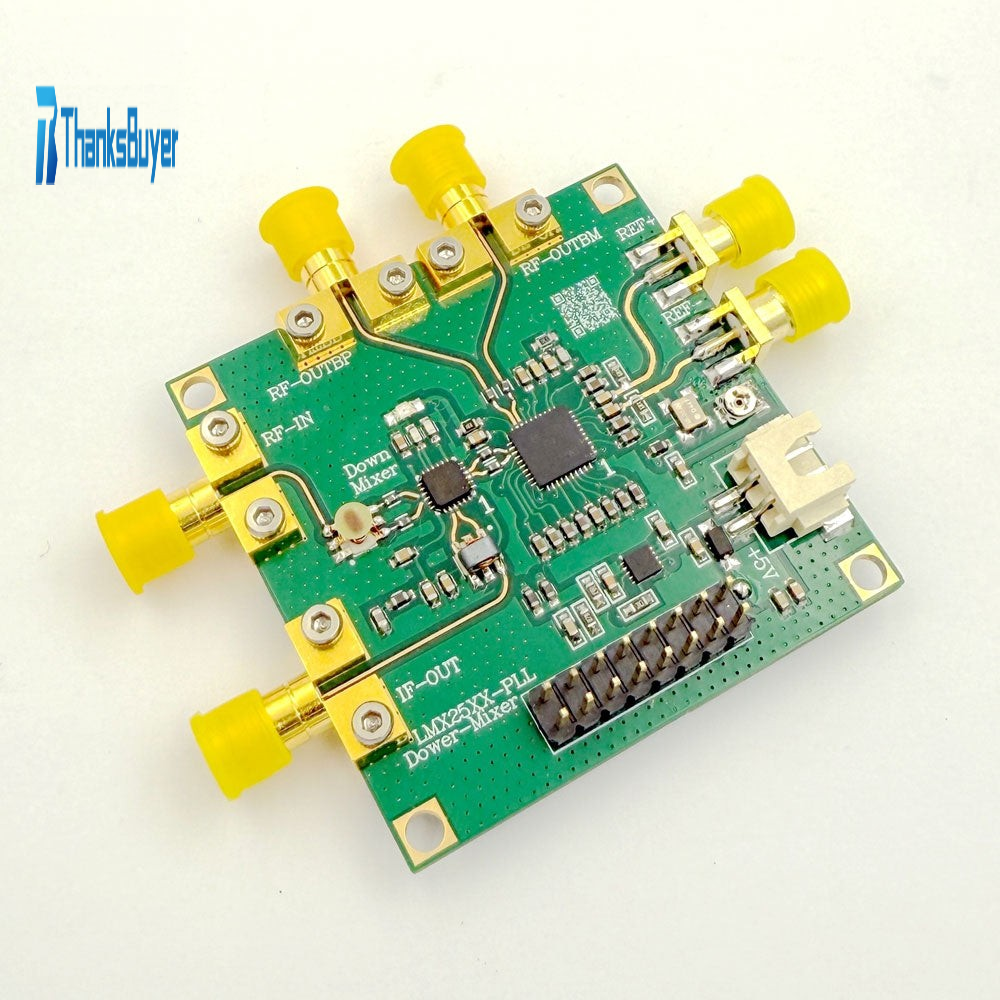

ADL5801-LMX2572 12.5MHz-6.4GHz PLL Local Oscillator Down Frequency Mixer Module + Optional STM32 Main Control Board

$120.11 - $127.89
Сумма налога включена.
Versions: ADL5801-LMX2572
$120.11
$120.11
Availability: В наличии: 2000
SKU: 97498
Tags:
Collections:
ThanksbuyerLMX2595-PLL 15GHz Frequency Mixer Module Local Oscillator Unit Up and Down Mixer + Optional STM32 Main Control Board
LMX2595-PLL 15GHz Frequency Mixer Module Local Oscillator Unit Up and Down Mixer + Optional STM32 Main Control Board
Duplex MMDVM Hotspot with 0.96" Display, Raspberry Pi Zero 2W, Fan and ABS Shell for DMR, YSF, NXDN and P25
ThanksbuyerDuplex MMDVM Hotspot with 0.96" Display, Raspberry Pi Zero 2W, Fan and ABS Shell for DMR, YSF, NXDN and P25
$120.11
$120.11

Description:
- Function: includes down mixer unit channel and direct local oscillator output channel.
- Frequency range: 12.5M-6.4GHz (local oscillator can be directly used as a signal source)
- Integrated ADL5801 down mixer (including input 10M-6G RF balun) and LMX2572 phase-locked loop local oscillator

Specifications:
- Local oscillator LO output frequency range: 12.5MHz - 6.4GHz
- RF input frequency: 10MHz - 6GHz
- Mid-frequency LF output: LF-600MHz
- Frequency mixing loss: 0dB (The RF input and IF output of the active mixer are both amplified.)
- Connector type: SMA female connector

Package Included:
- 1 x Frequency Mixer Module

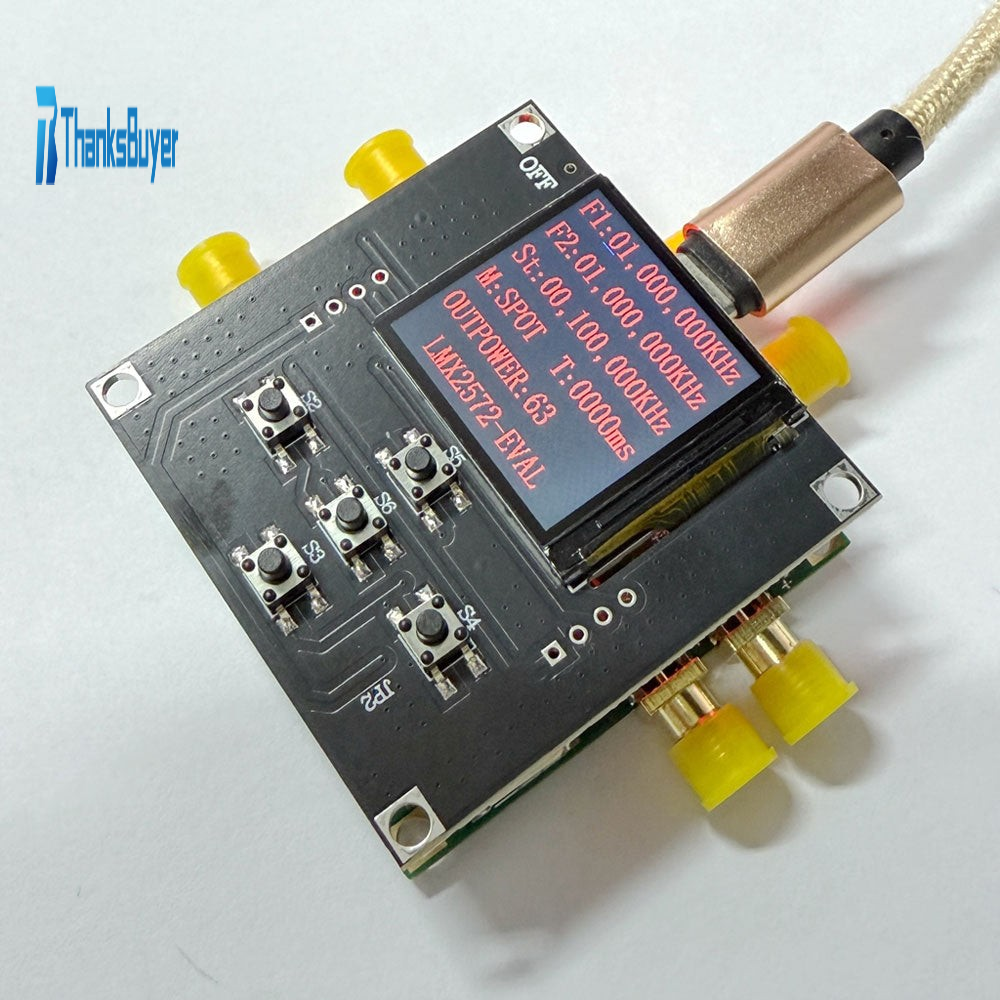

- 1 x STM32 Main Control Board (optional)
