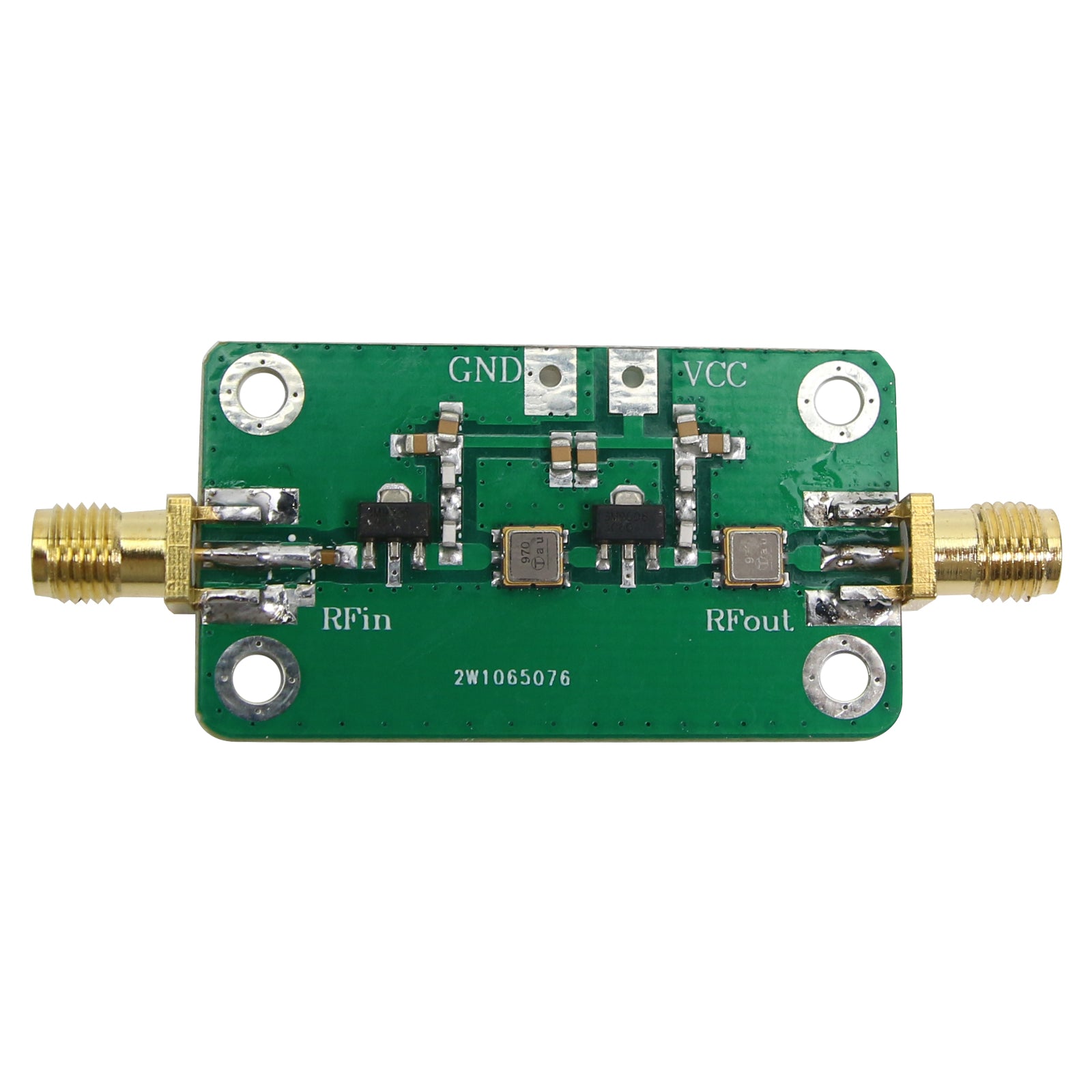

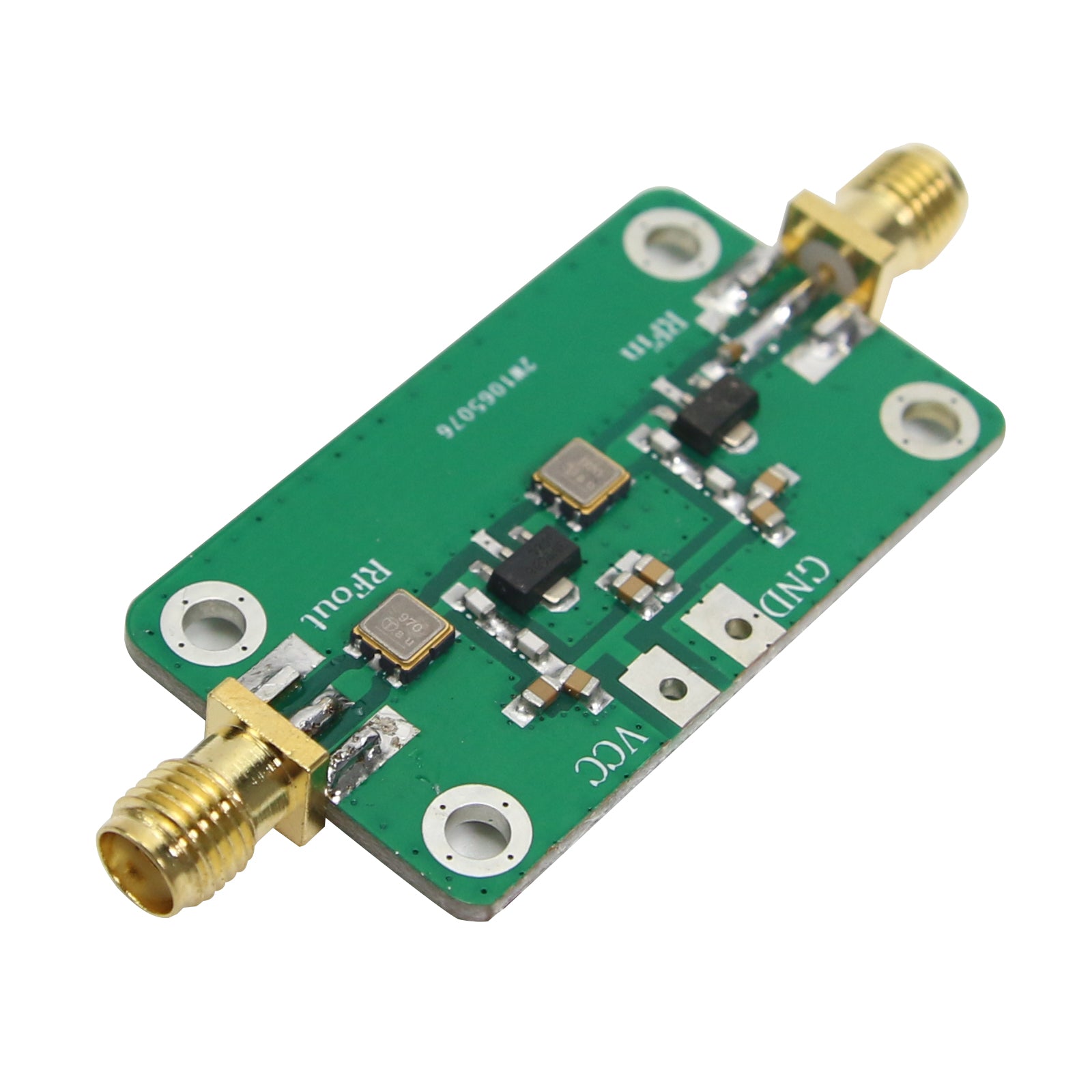

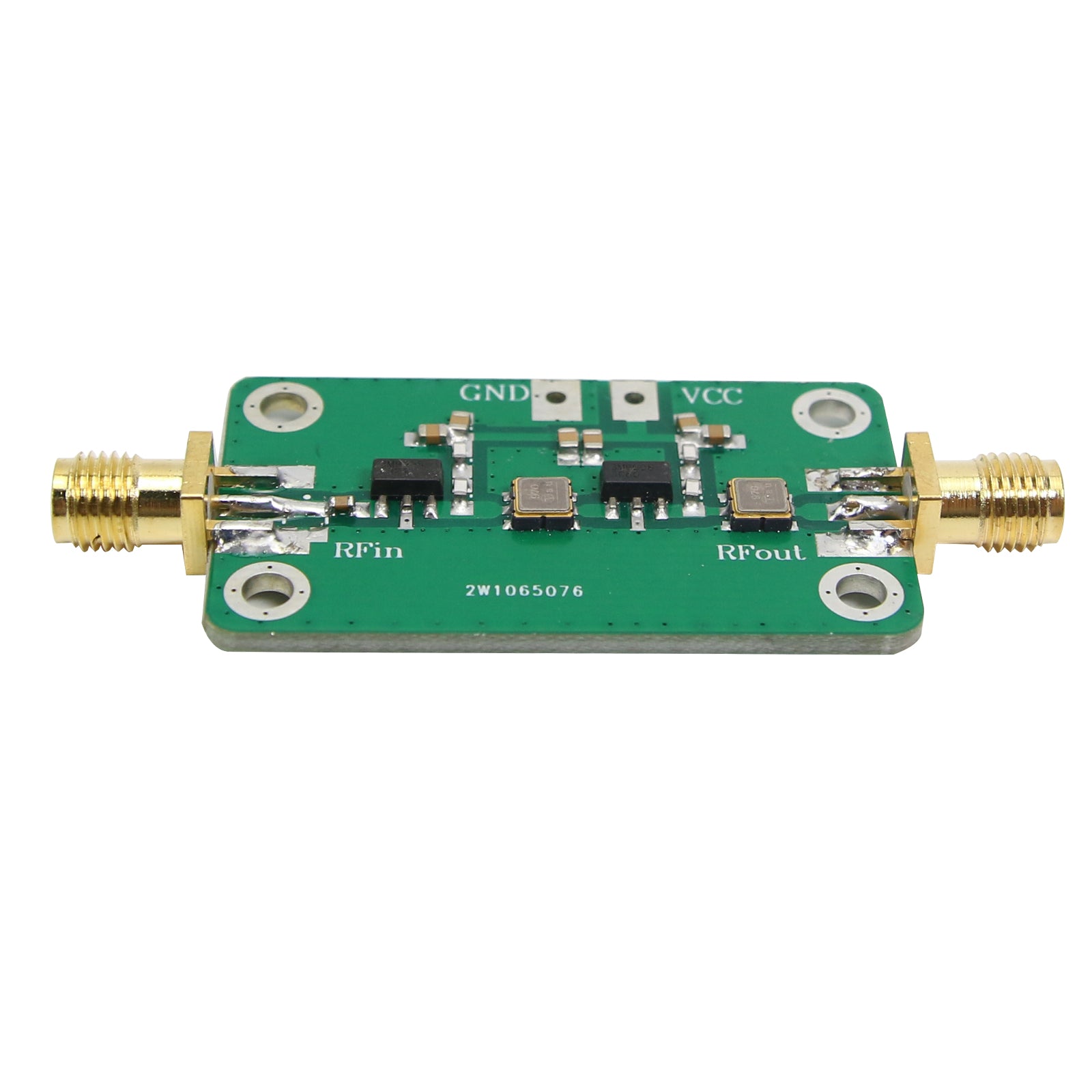

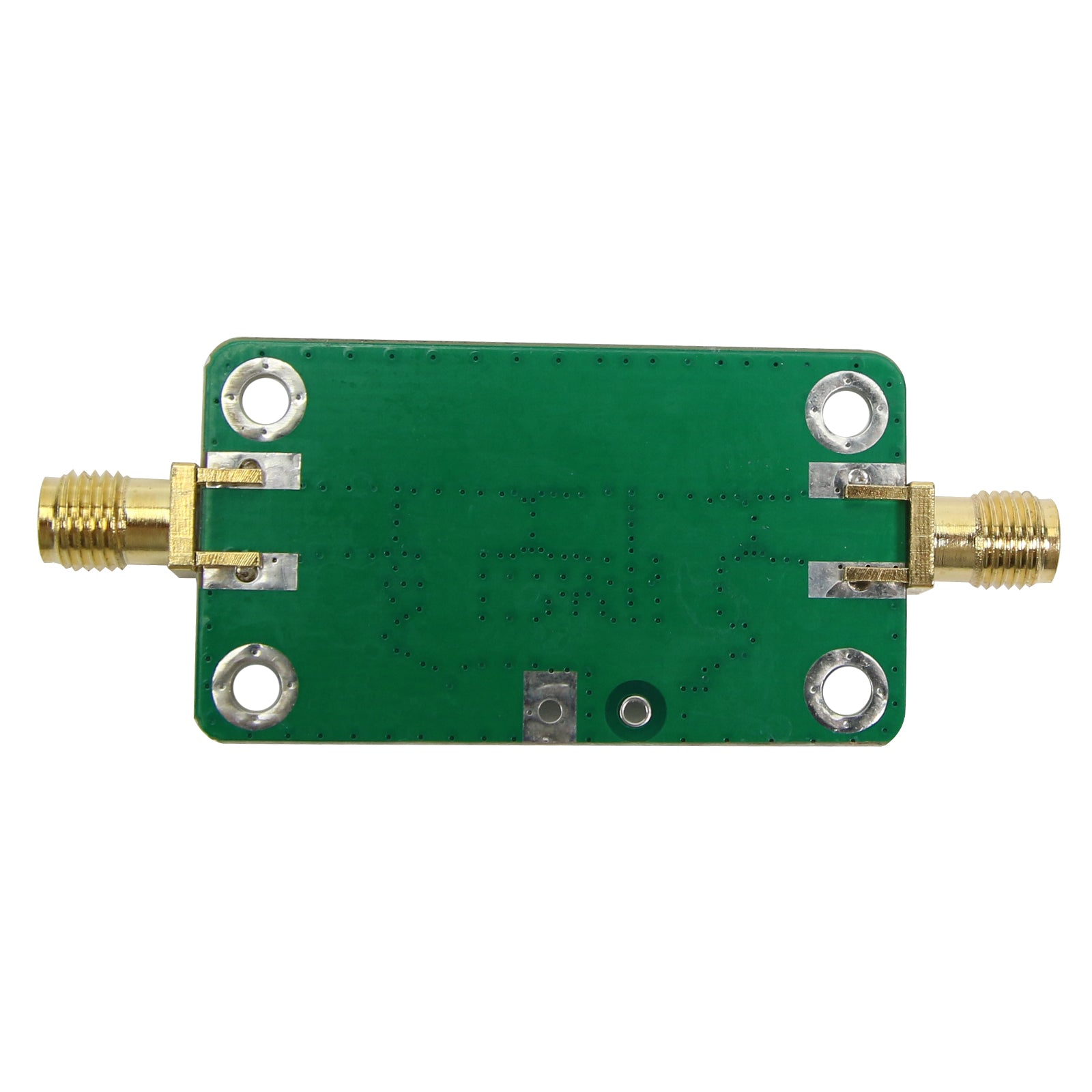

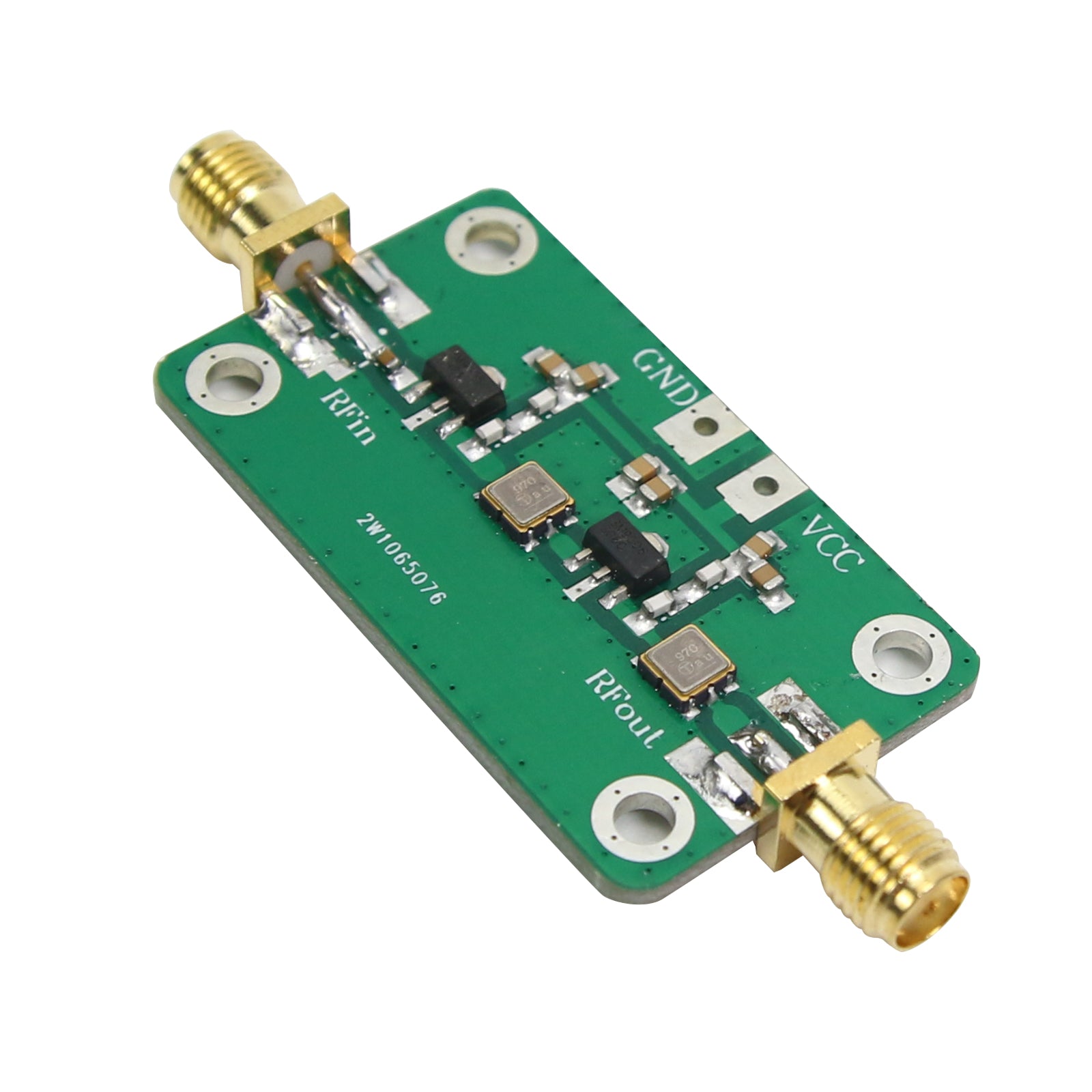

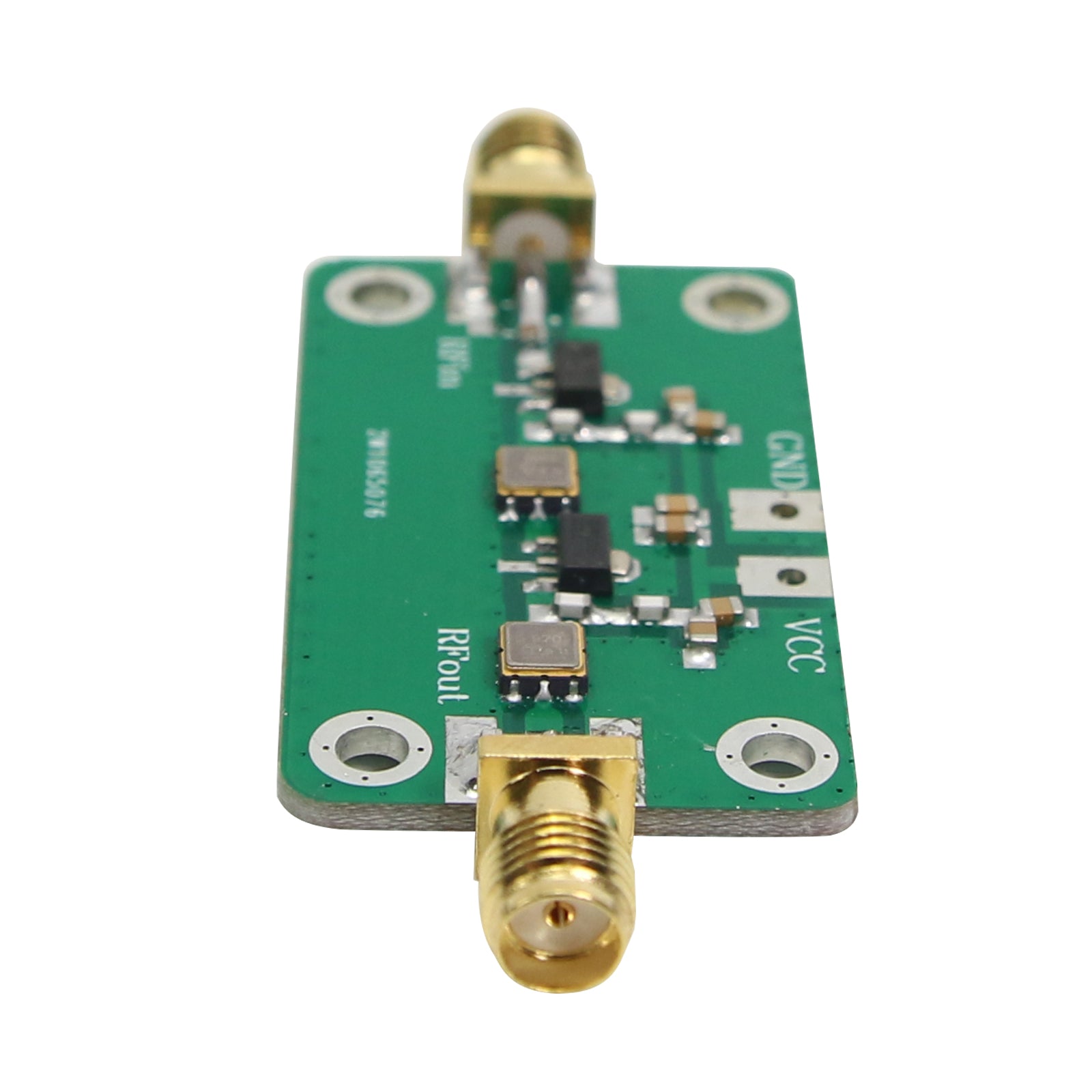

1090MHz Low Noise Amplifier LNA High Gain For ADS-B Receiver Front-End RF Amplification

1090MHz Low Noise Amplifier LNA High Gain For ADS-B Receiver Front-End RF Amplification

Description:
This RF front-end is designed with two-stage low-noise amplifiers and two-stage dedicated filters. It is suitable for RF amplification at the front-end of ADS-B receiver. It features high gain, low noise, and large dynamic range.

Parameters:
- Working Voltage: 3.3-5.0V (DC)
- Working Frequency: 1090MHz (for ADS-B receiver only)
- Amplification Gain: 38dB
- Out-of-band Rejection: -75dB @±50MHz; -55dB @±1GHz
- Special Design: Double filter structure is adopted to ensure sufficient suppression of out-of-band signals and effectively improve SNR

Package Included:
- 1 x RF Low Noise Amplifier
