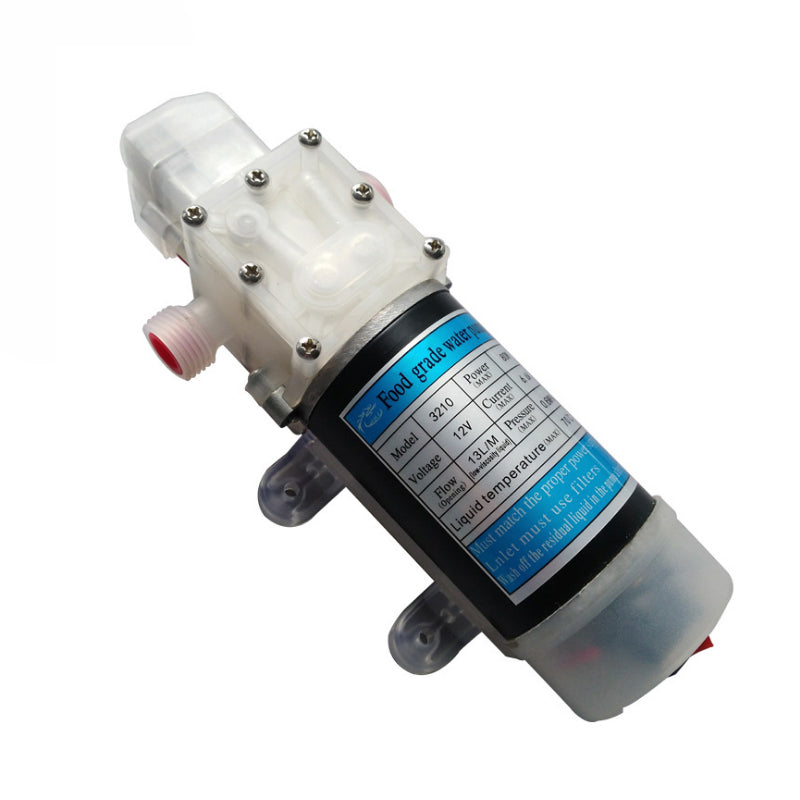

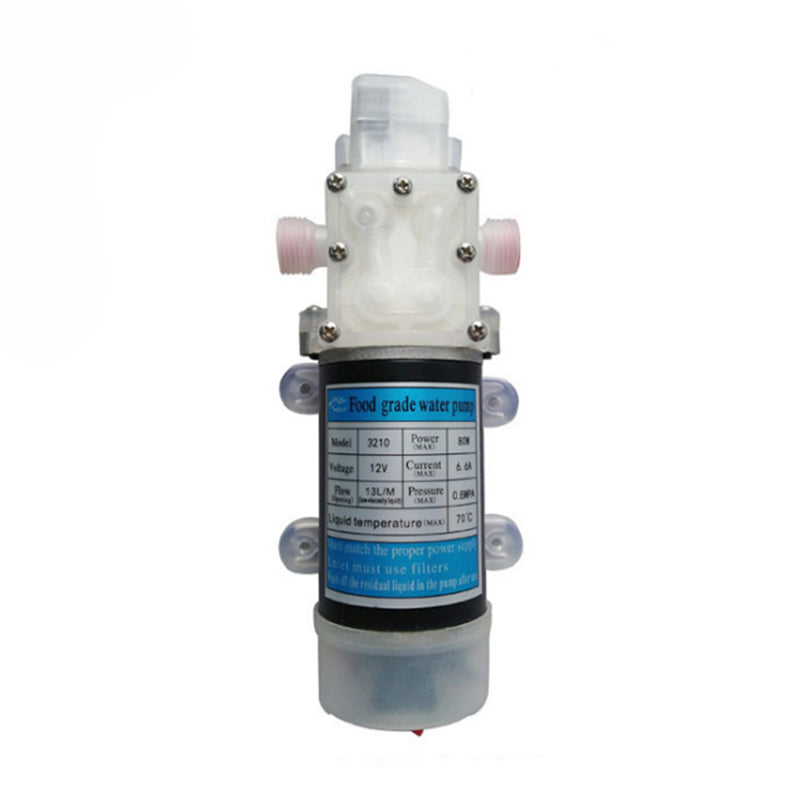

12V 24V 80W 13L/M Miniature High Pressure Diaphragm Pump Self-Priming Pressure Switch Type DC Pump

12V 24V 80W 13L/M Miniature High Pressure Diaphragm Pump Self-Priming Pressure Switch Type DC Pump

Description:
-With DC motor as the core power, the eccentric shaft drives the diaphragm to move up and down to squeeze the liquid flow. Since the diaphragm is completely separated from the transmission medium and the transmission machinery, the liquid flows in a fully enclosed environment, which will not cause corrosion and damage to mechanical components, and will not cause pollution to the transmission medium.
-Power switch, turn on and turn off any time, plug and play.

Specifications:
Voltage: 12V / 24V
Maximum power: 80W
Maximum pressure: 3kg
Working pressure: 1kg
Opening flow: 13L / M
Vertical suction: 1.5M
Head: 40M

Package List:
1 x Miniature Diaphragm Pump
