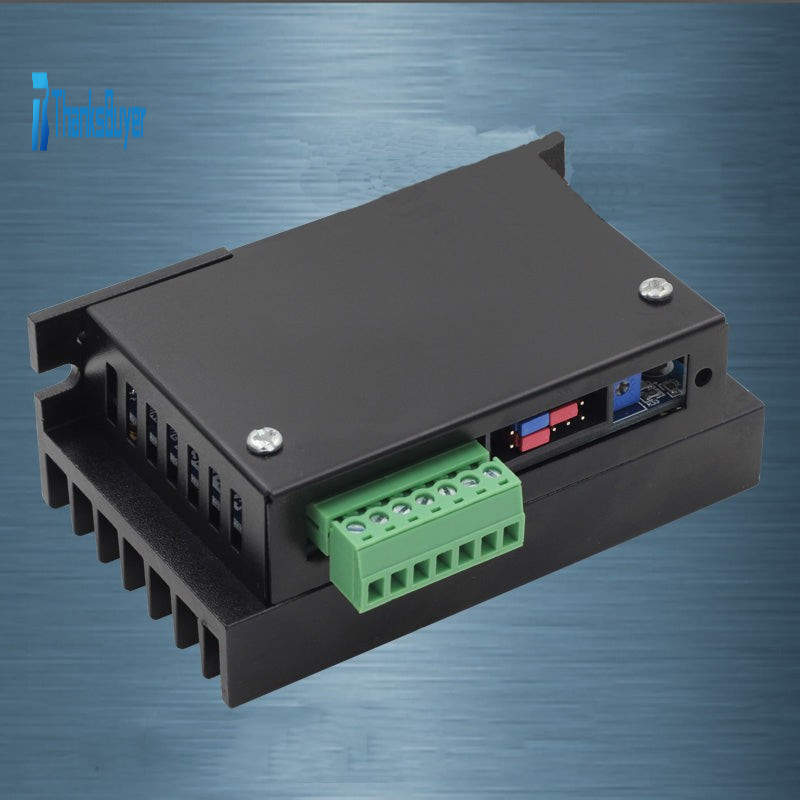

12V-24V Linear Servo Controller Compatible with 3000N motor for Servos Robotic Arm ASMT-01A

12V-24V Linear Servo Controller Compatible with 3000N motor for Servos Robotic Arm ASMT-01A

Video Show:http://v.youku.com/v_show/id_XMTMyNTg5MTA0NA==.html

Parameters:
- Model Number: ASMT-01A
- Operation Voltage: 12V-24V
- Static Current: ＜50mA
- Max. Torque: Compatible with 3000N thrust push rod motor
- Input Modes:
  Pulse Signal (for remote control, multiple channel controller, single-chip microcomputer)
  Analog voltage signal (potentiometer)
- Pulse Signal Input Range:
  0.5ms-2.5ms for all multi-channel servo controller, 1ms-2ms RC remote control, single-chip programming, Arduino etc.
- Voltage Signal Input Range: 0V to 5V
- Control Accuracy: 12bit
- Weight: 150g
- Dimensions: 95mm x 55mm x 37mm
- Application: for medium and large robots, robotic arms and other high-power and high-torque control fields.

Package Included:
- 1 x Linear Servo Controller
