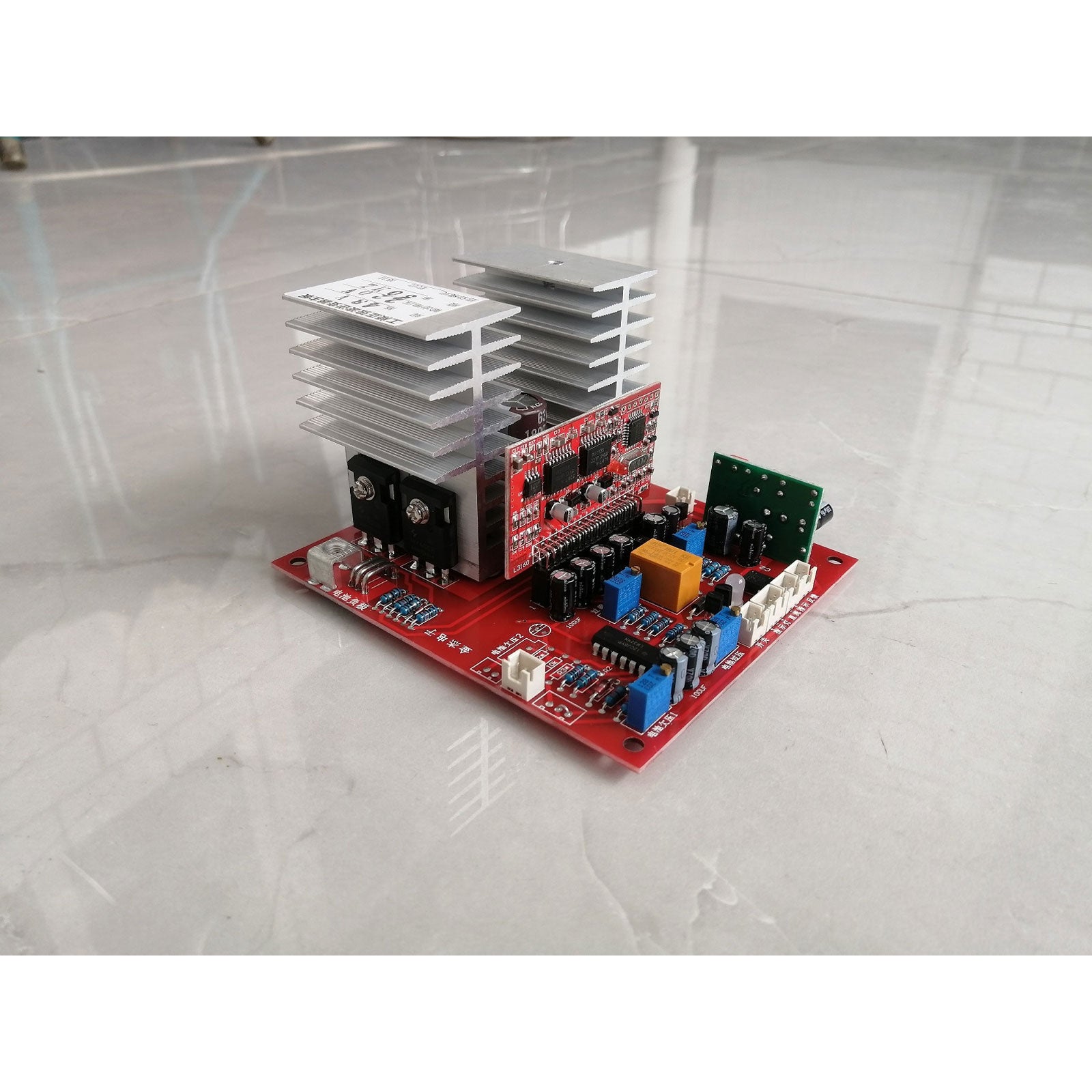

12V500VA Low Power Frequency Sine Wave Inverter Motherboard PCB Circuit Board Sine Wave Inverter Power Board

12V500VA Low Power Frequency Sine Wave Inverter Motherboard PCB Circuit Board Sine Wave Inverter Power Board

Power Frequency Sine Wave Inverter Motherboard Transformer Configuration:
- 12V battery power supply: about 6.5V (6-7V)-220V transformer
- 24V battery power supply: about 13V (12-13V)-220V transformer
- 36V battery power supply: about 19.5V (18-21V)-220V transformer
- 48V battery power supply: about 26V (24-28V)-220V transformer
- 60V battery power supply: about 32.5V (30-35V)-220V transformer
- 72V battery power supply: about 39V (36-42V)-220V transformer
- 84V battery power supply: about 45.5V (42-49V)-220V transformer
- 96V battery power supply: about 52V (48-56V)-220V transformer
- Note: This configuration is a standard configuration in China. If other output voltages (such as 110V) are required, the high-voltage winding of the transformer should be configured according to other voltages.

Package Included:

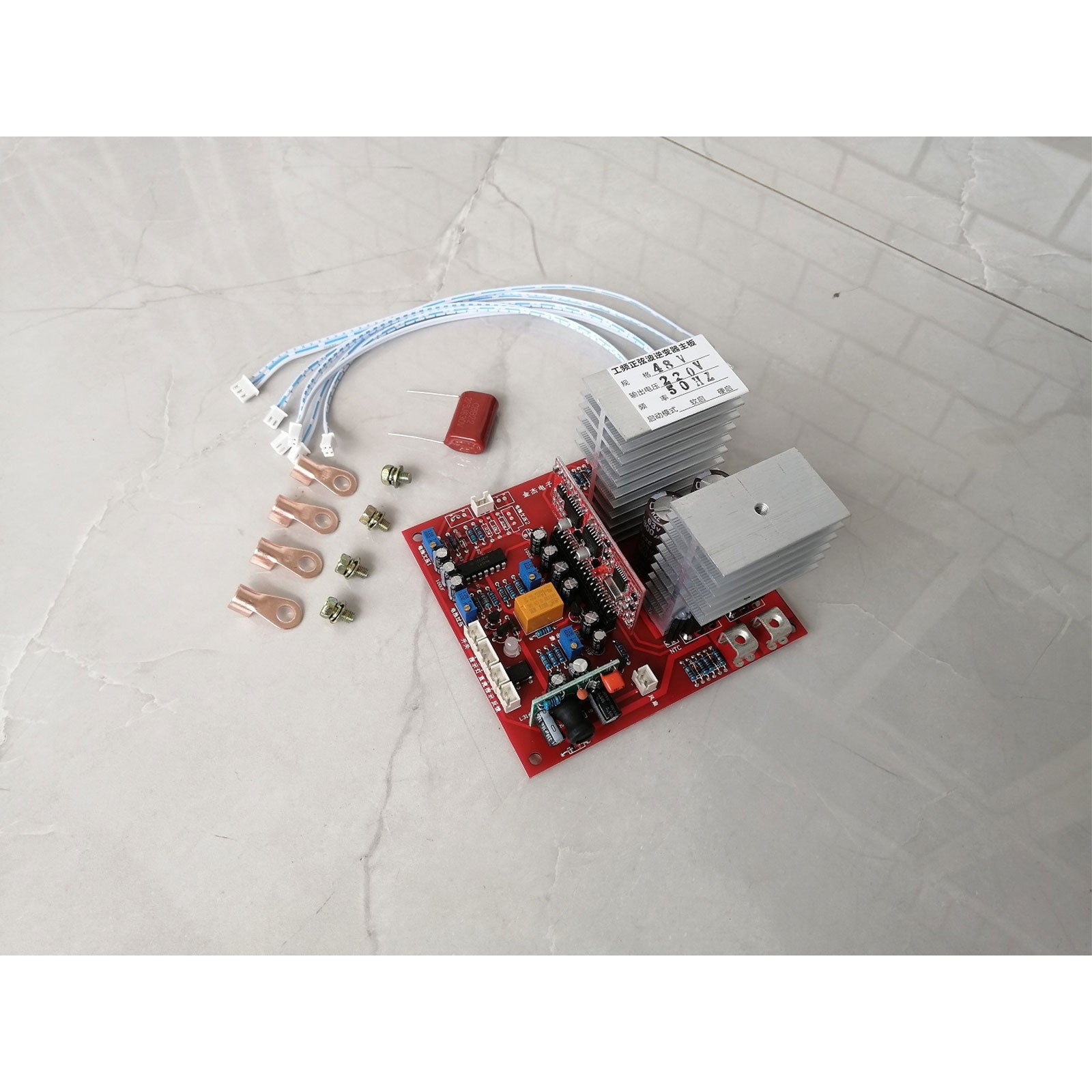

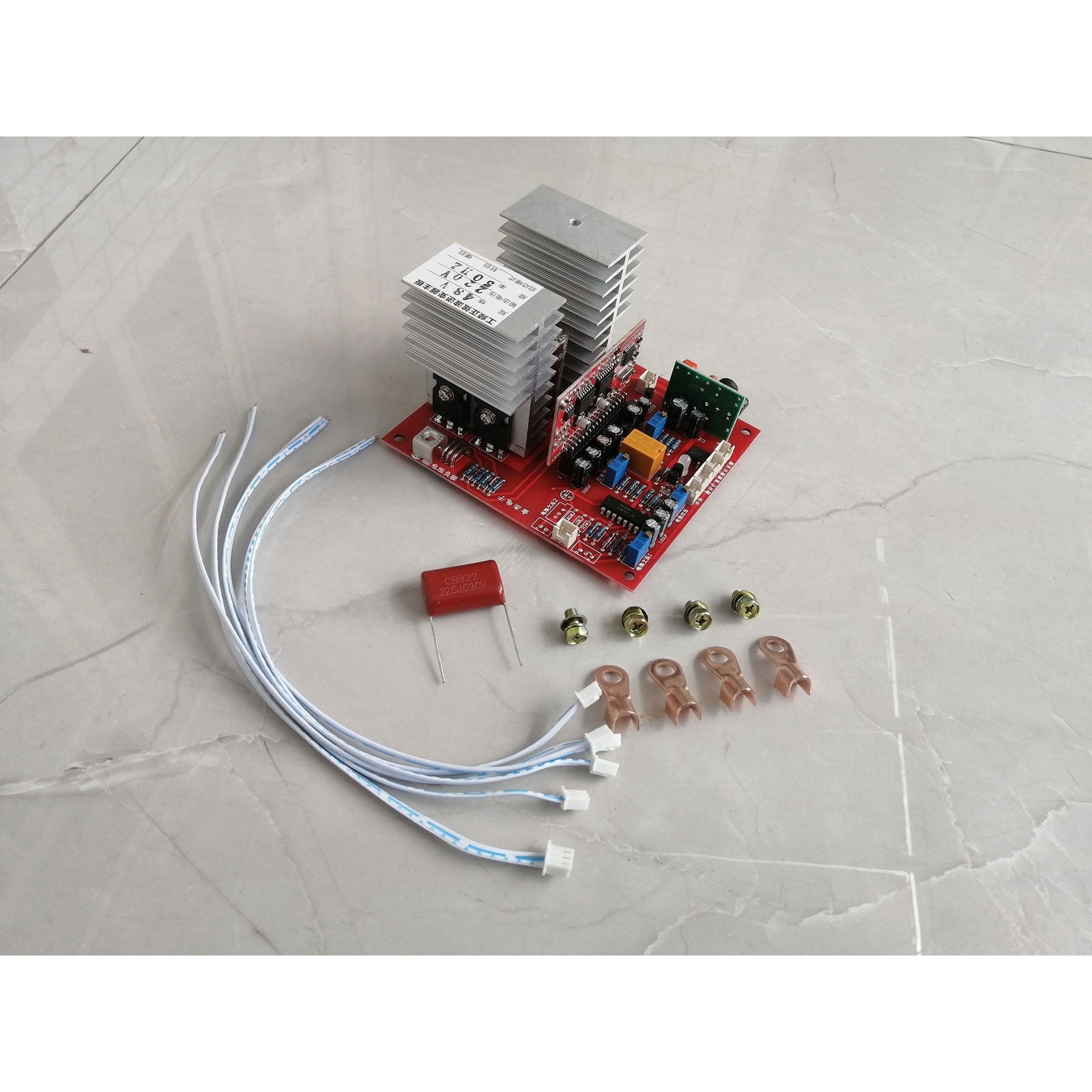

- 1 x Motherboard
