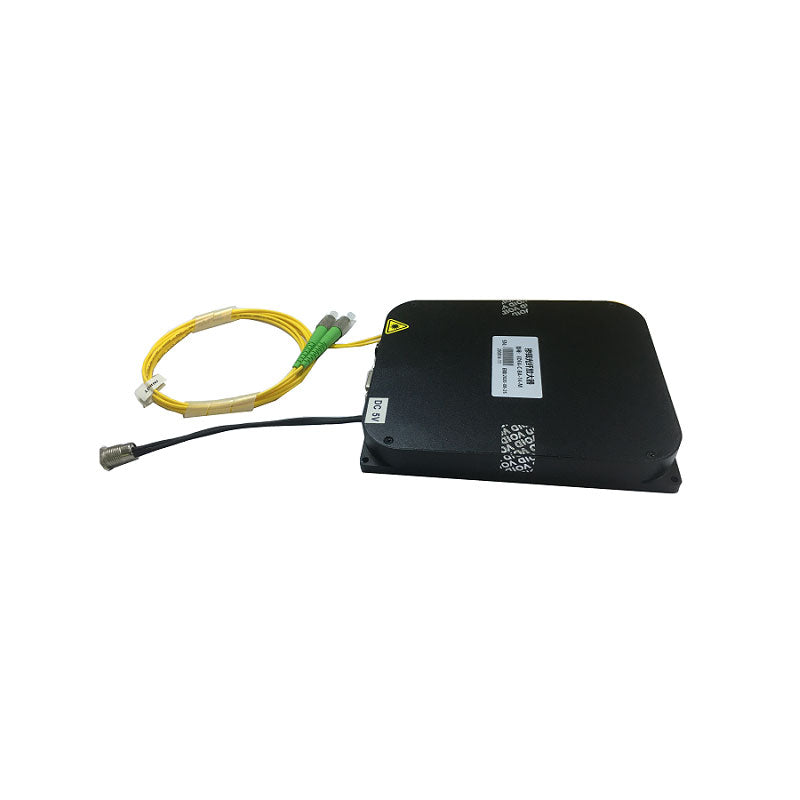

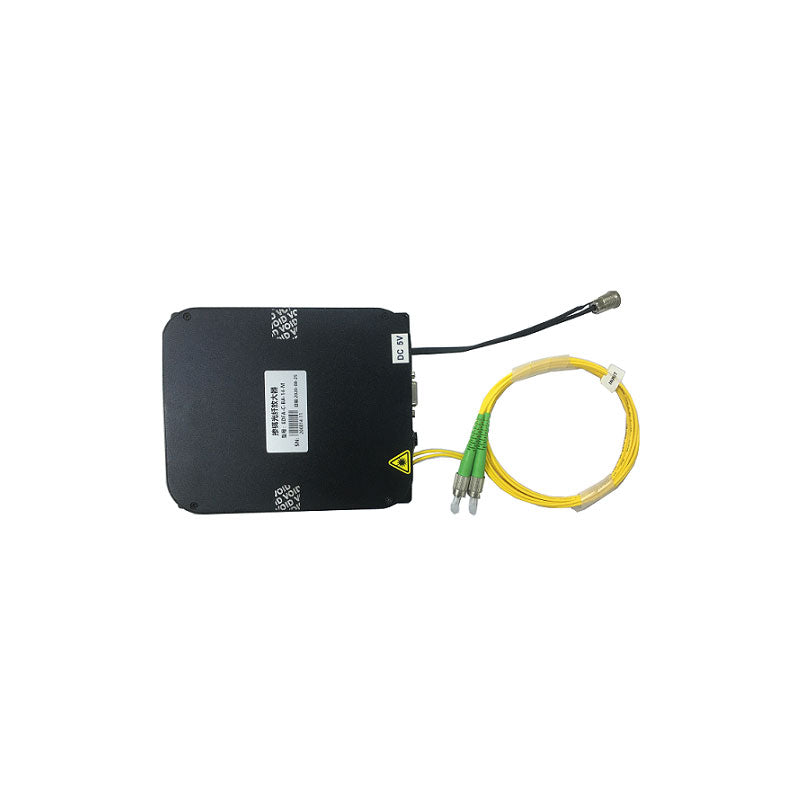

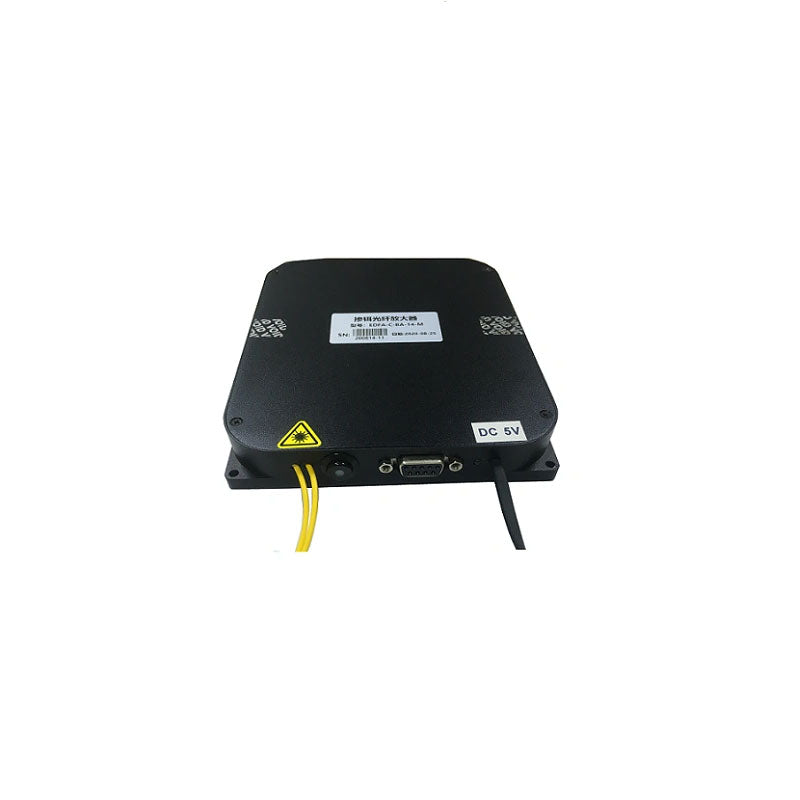

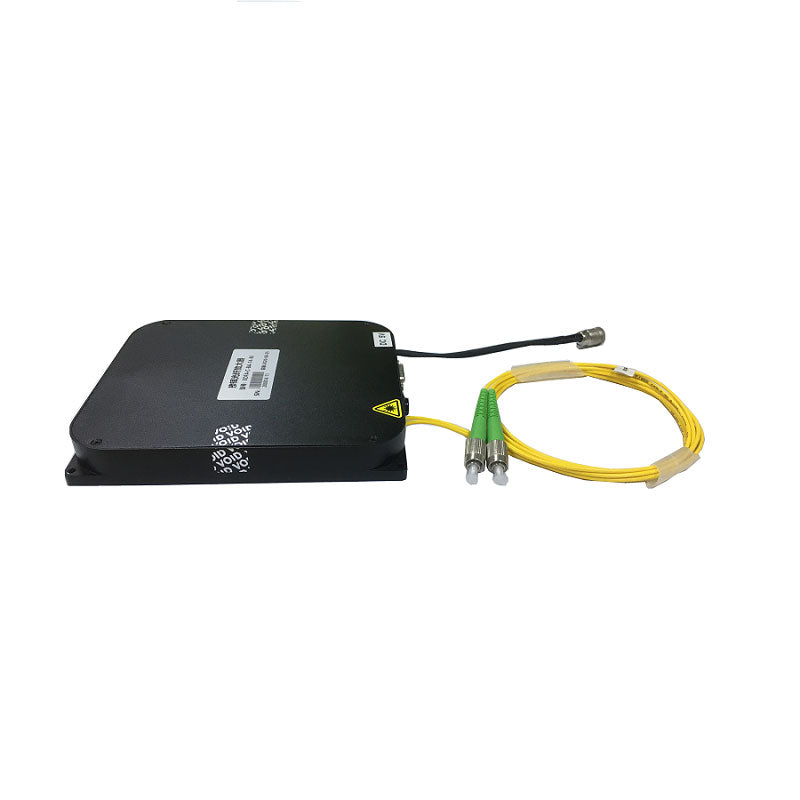

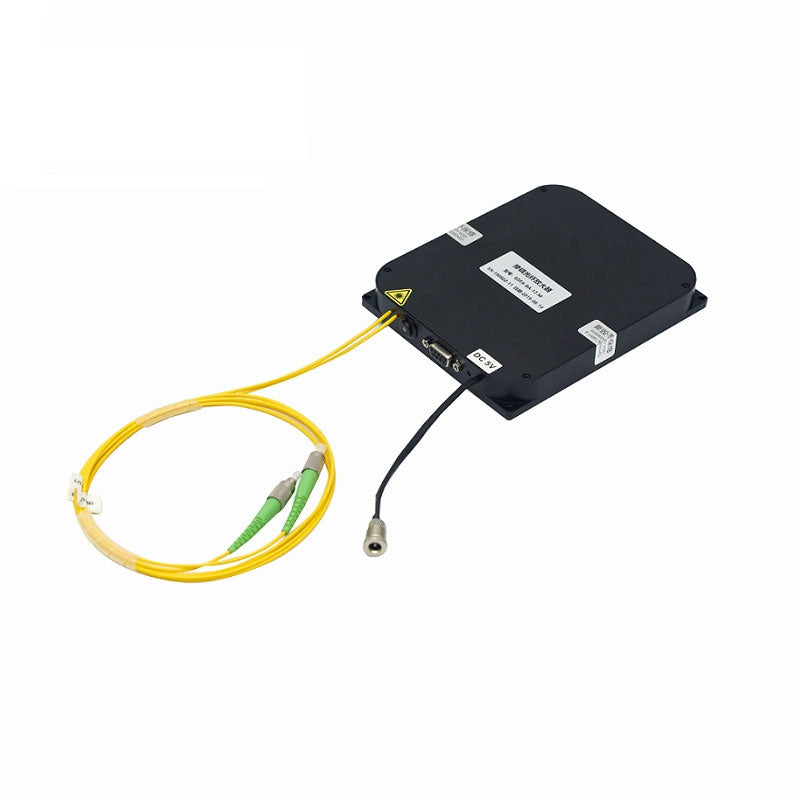

1310nm Ultra Broadband SLED Light Source Module Semiconductor Superradiance Diode Technology 1mW Output Power

1310nm Ultra Broadband SLED Light Source Module Semiconductor Superradiance Diode Technology 1mW Output Power

Description:
- The SLD broadband light source adopts semiconductor superradiance diode technology, which outputs broadband spectrum and has high output power, working wavelengths can be selected from O, S, C, L and other bands, suitable for applications such as fiber optic sensing. It can provide communication interfaces and upper computer software, which facilitates monitoring the status of the light source.

Features:
- Ultra wide spectrum
- Low spectral ripple
- Flat spectrum

Application:
- Optical fiber sensor
- Medical imaging
- Optical fiber device testing

Specification:
- Working wavelength: 1310nm
- Output power: 1mW
- Spectral power density: ≥ -25dBm/nm
- Spectral ripple: <0.2dB
- Short-term stability (15min): ≤±0.2dB
- Long-term stability (8min): ≤±0.5dB
- Polarization degree (DOP): ≤1
- Connector: FC/APC
- Optical fiber type: SMF-28e/PM optical fiber
- Communication interface: DB9 Female (RS232)

Package Included:
- 1 x Light Source Module
