1550MHz PCB Antenna Inmarsat Antenna L-Band Patch Antenna for Inmarsat AERO/STD-C 1.5GHz Satellites
Обычная цена
$9.95
Обычная цена
Цена со скидкой
$9.95
Цена за единицу
за
Сумма налога включена.
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
Availability:
В наличии: 2000
SKU:
76102
Обычная цена
$9.95
Обычная цена
Цена со скидкой
$9.95
1550MHz PCB Antenna Inmarsat Antenna L-Band Patch Antenna for Inmarsat AERO/STD-C 1.5GHz Satellites
Description:

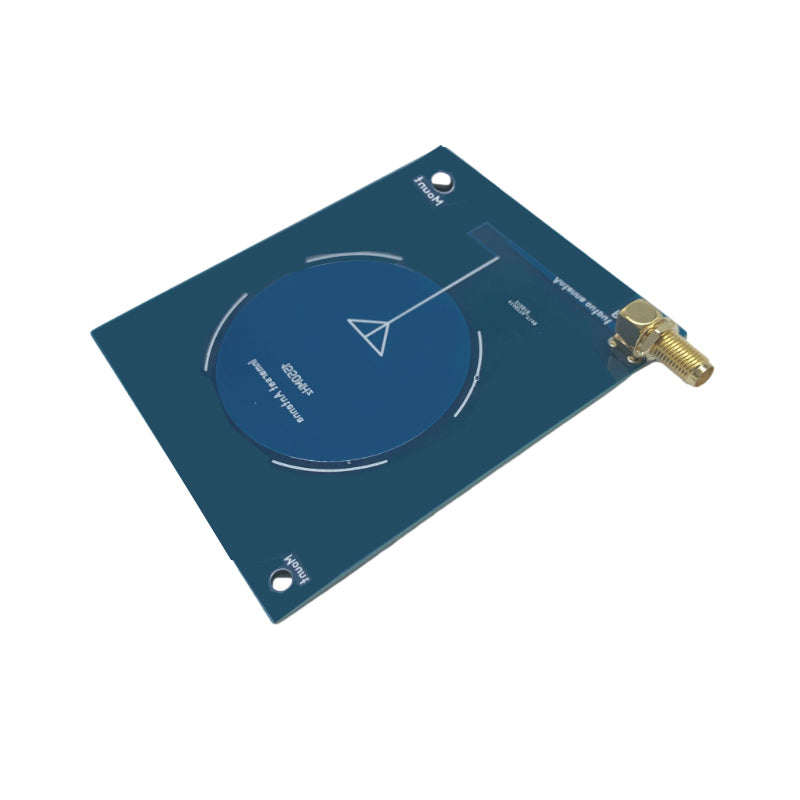

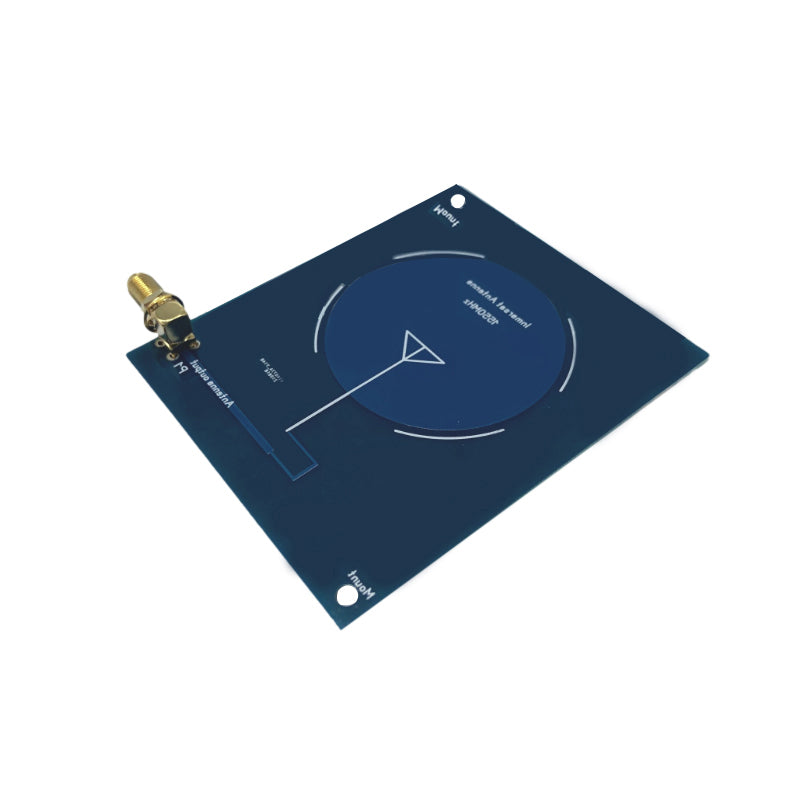

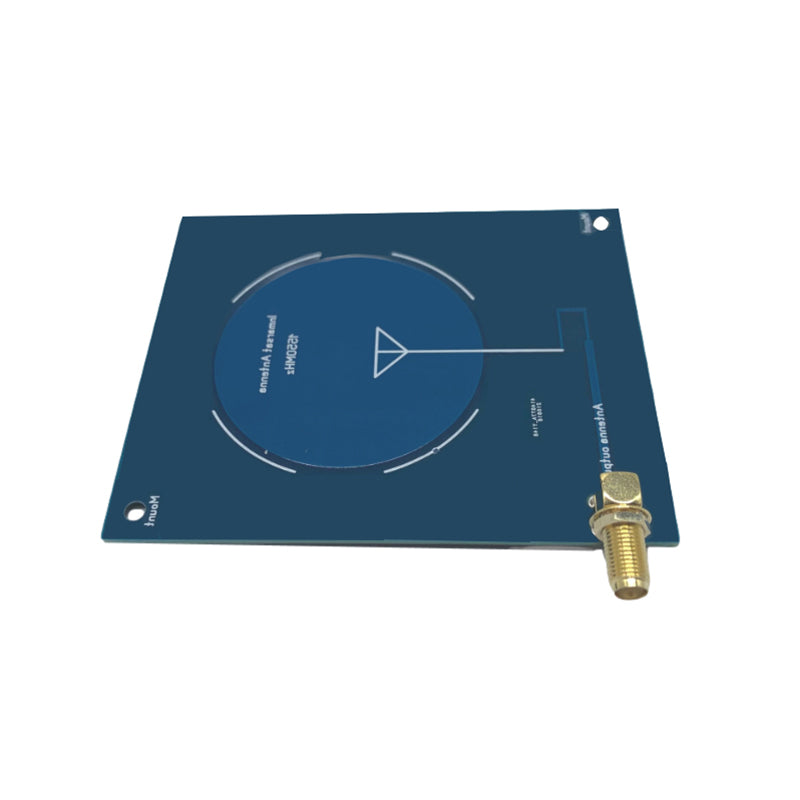

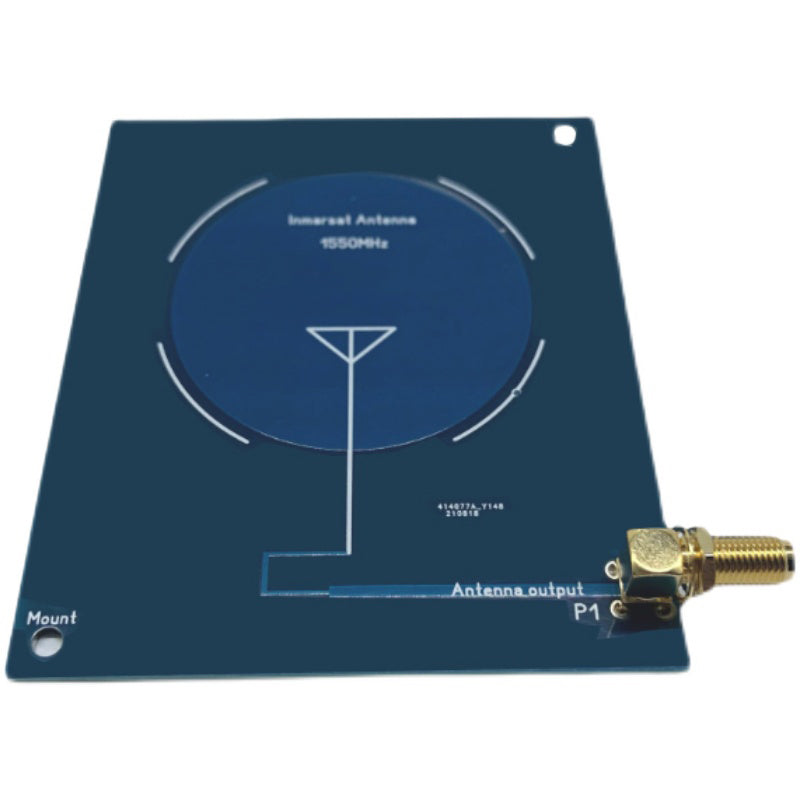

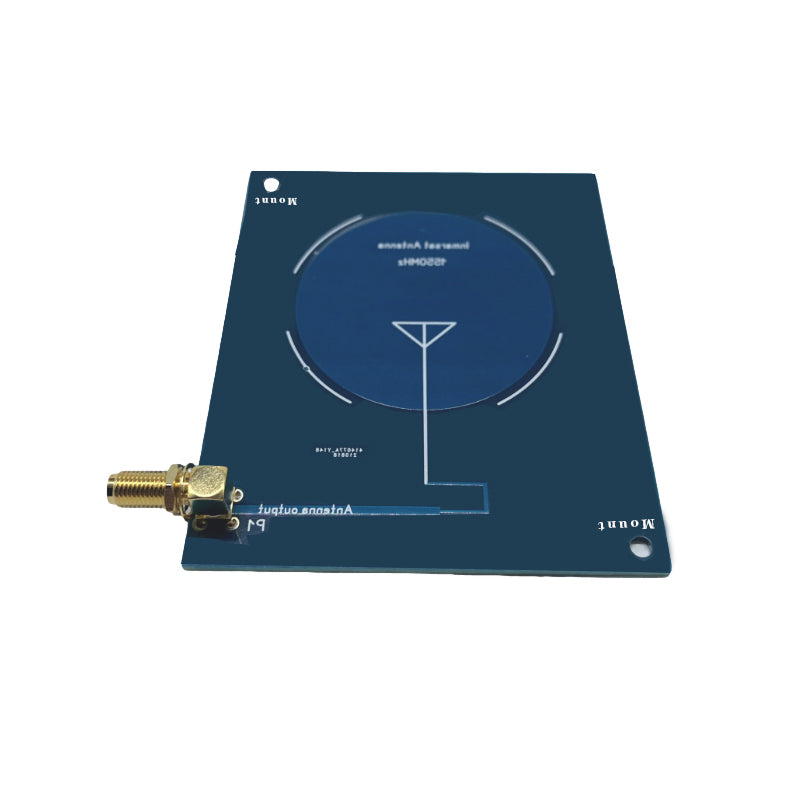

As a PCB patch antenna, it can be used for Inmarsat L-band applications (Inmarsat AERO/STD-C) and 1550Mhz satellites. The antenna comes with a SMA female connector soldered on the PCB.
It is equally suitable for right hand circular polarization (RHCP) and linear signals over the entire frequency range of Inmarsat.
Specifications:
- Center frequency: 1550MHz
- Bandwidth: 66Mhz
- SMD Gain: 3.5dBi
- Impedance: 50Ω
- Dimensions: 95 x 79mm/3.7 x 3.1"
- Weight: 20G/0.04LB
- Connector: SMA female
Package Included:
- 1 x Antenna
