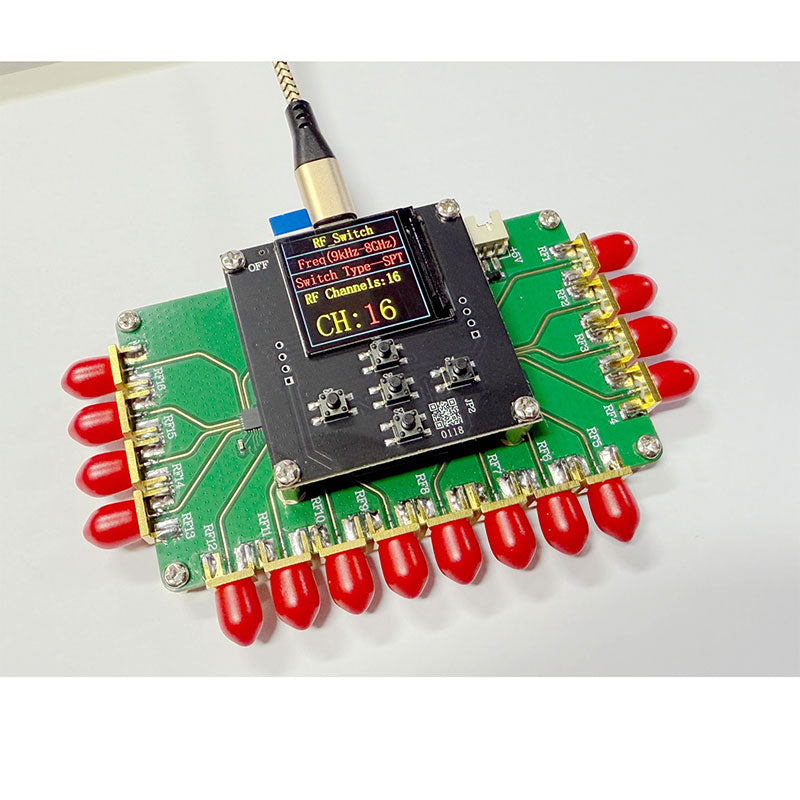

1kHz-8GHz Single-Pole 16-Throw RF Switch Core Board 1W Low Insertion Loss Electronic Switch with STM32 Control Board

Specification:
- RF signal: 1W max.
- Input and output impedance: 50ohms
- Connector: SMA female connector
- Power supply: XH2.54 interface, 5V power supply
- Channel number: 1 to 16
- Product size: 6 x 10cm
- Advantages: good channel isolation degree; Support USB and TTL communication control

Package Included:
- 1 x RF Switch Module
- 1 x STM32 Main Control Board

S Parameter:

Communication Protocol:
(1) TTL serial communication: baud rate 9600
- Channel protocol control: "CH-01"; Modify the corresponding values based on the number of channels selected, and be sure to add a return.
(2) USB virtual serial communication: no baud rate required
- Channel protocol control: "CH-01"; Modify the corresponding values based on the number of channels selected, and be sure to add a return.
