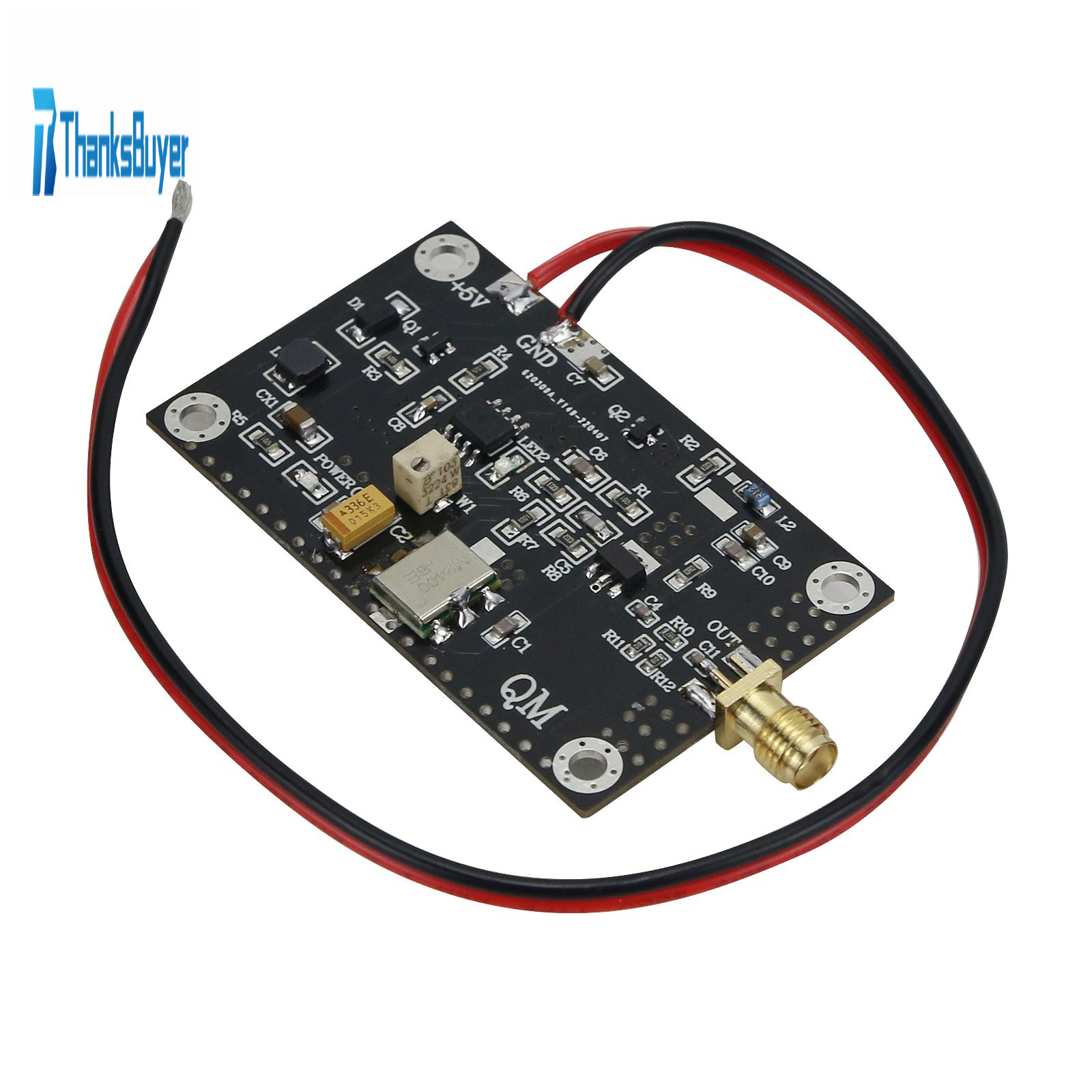

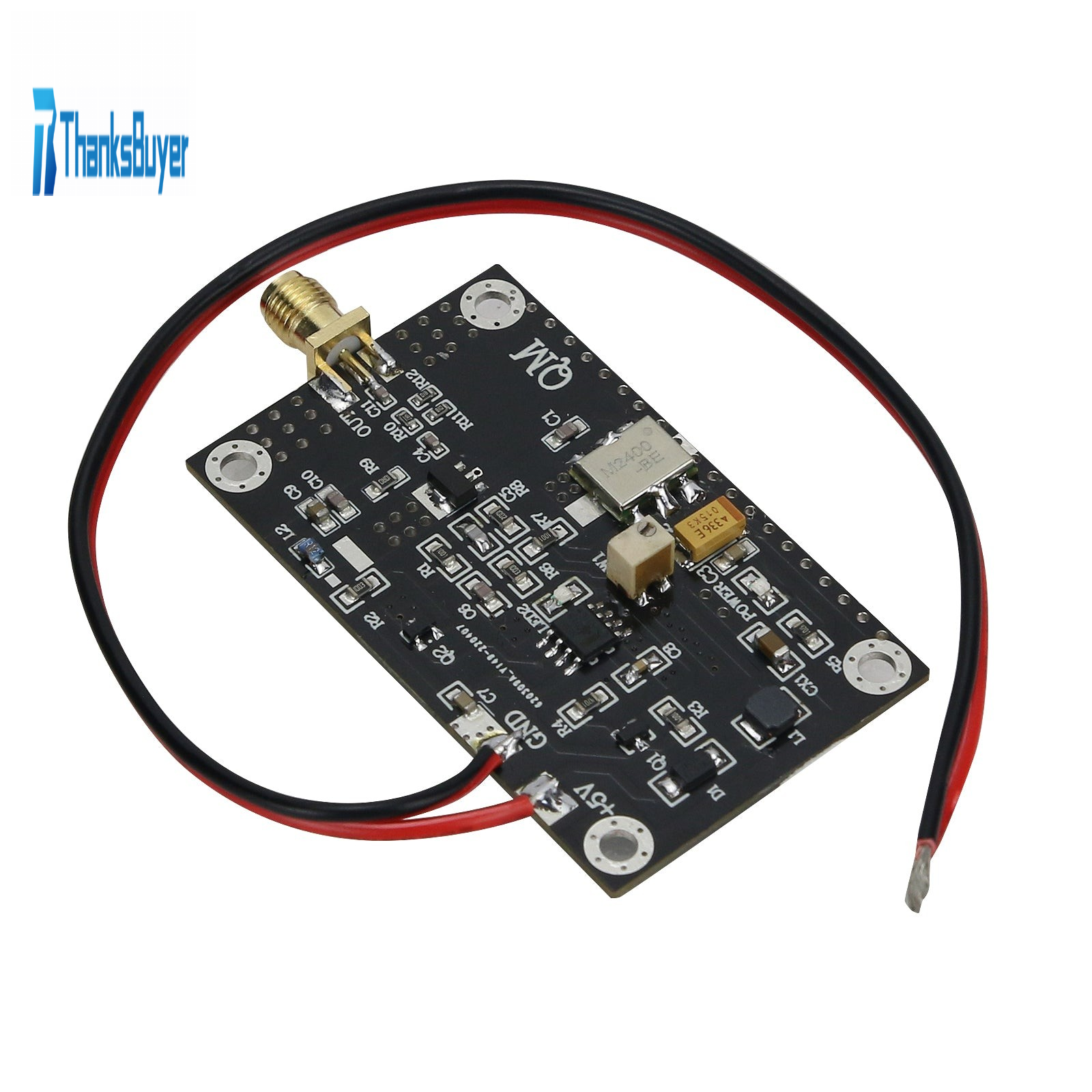

2400M Sweep Generator Signal Generator Board Interference Source Small 2.4G Wifi Signal Blocker

2400M Sweep Generator Signal Generator Board Interference Source Small 2.4G Wifi Signal Blocker

Description:
This module can generate a frequency sweep signal output in a certain frequency range, and can be used as an interference source. The frequency sweep signal source in the range of 70-6000M can be customized.

Module Parameters:
- Working voltage: +5V to +6V single power supply, low power consumption
- Working current: <35MA
- Sweep frequency range & power: 2.3G-2.5G, 6dBm at 2400MHz
- Modulation frequency: The default is about 40KHz (adjustable)
- Output interface: SMA-K
- Ultra-small size: 50 x 32mm/2 x 1.3" (with mounting holes)

Package Included:
- 1 x Sweep Generator
