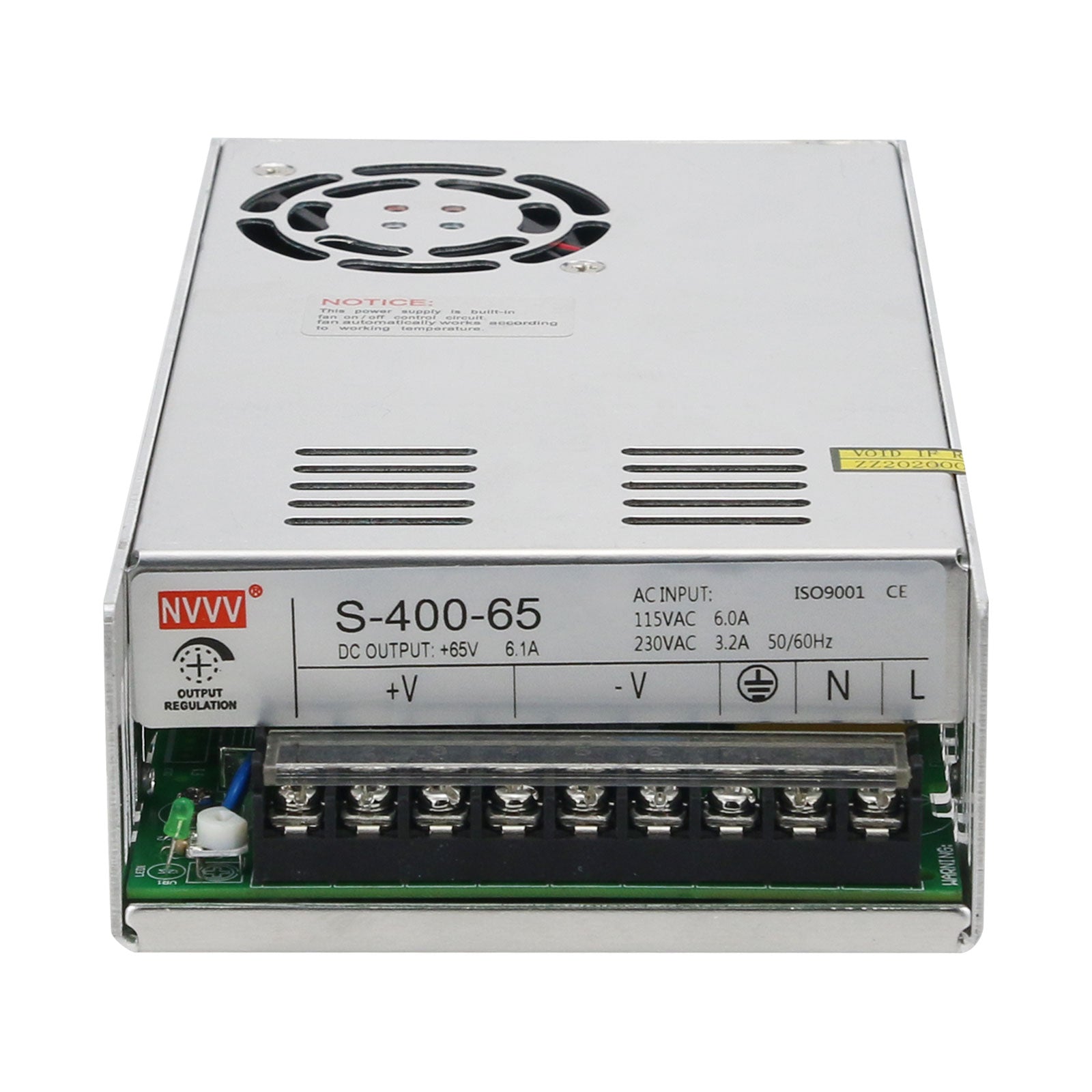

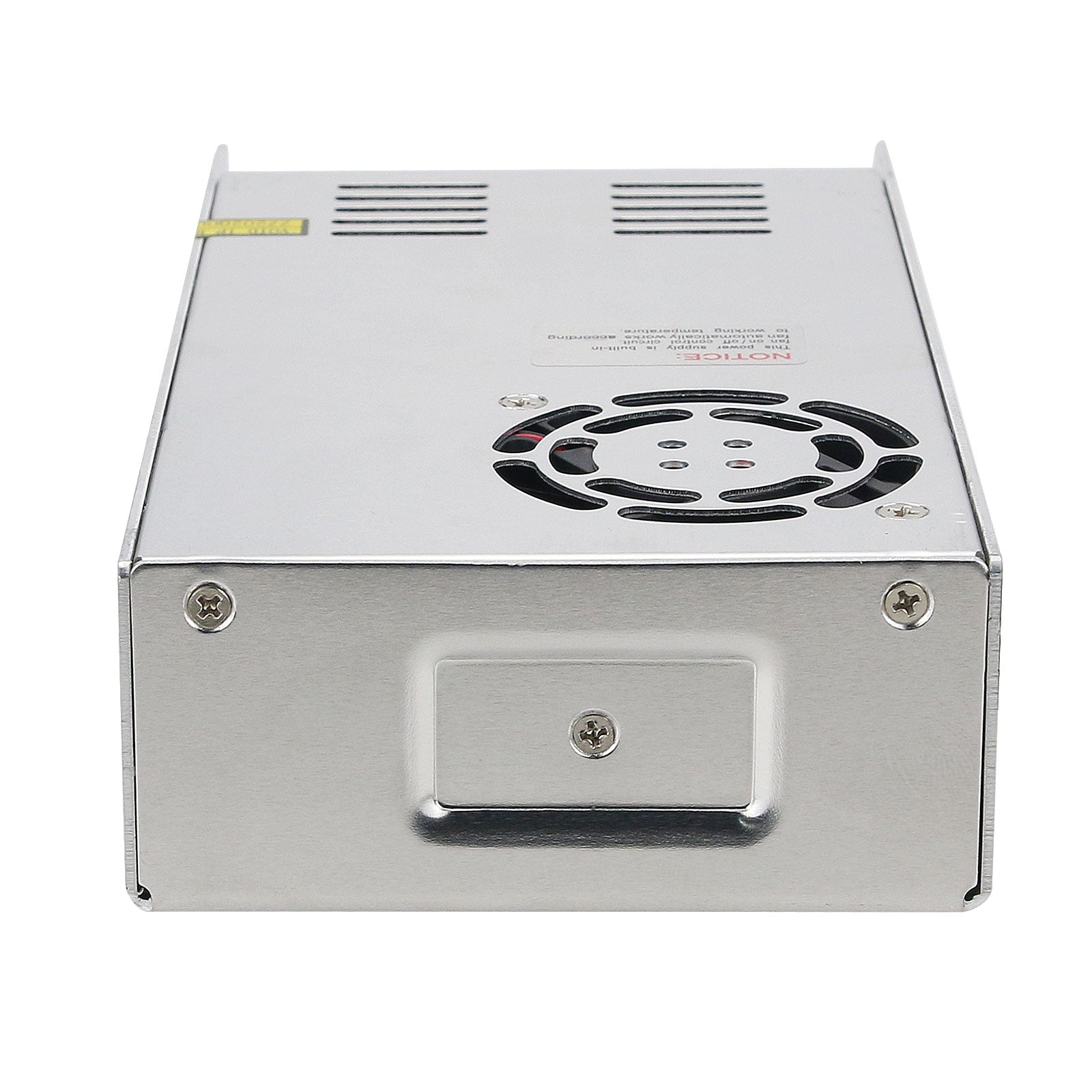

65V 400W Regulated Switching Power Supply Module For RD6006 Adjustable DC Power Supply Module

65V 400W Regulated Switching Power Supply Module For RD6006 Adjustable DC Power Supply Module

Features:
- Amazing Power: The actual power reaches to 450W, which can drive stepper motors.
- Multiple Protections: Ensures stable performance and long lifespan.
- Fine workmanship and beautiful appearance.
- Premium Chip: Enables stable output and long service life.

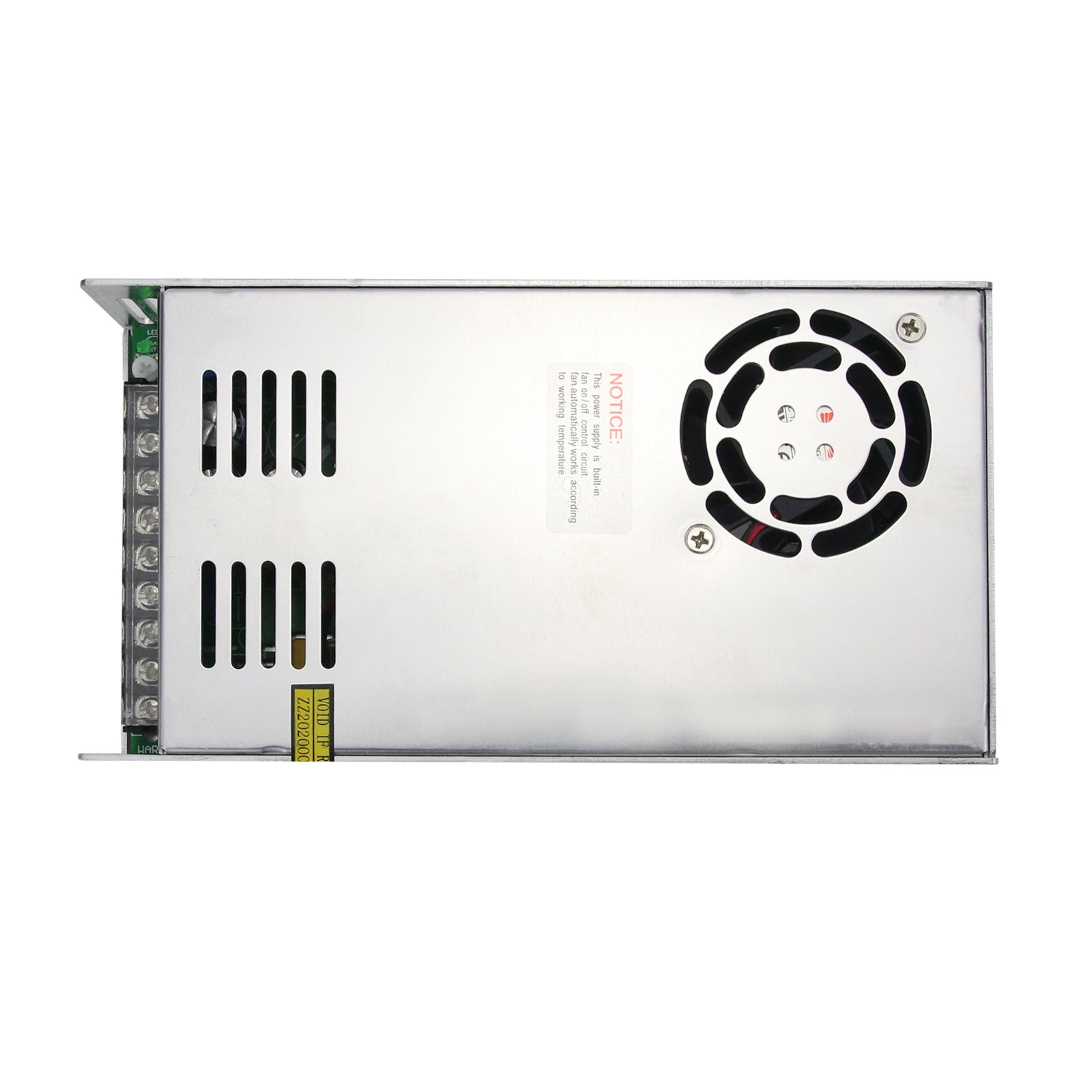

- Excellent Heat Dissipation Performance: A fan dissipates heat quickly and protects the internal components of the switching power supply. Smart temperature controlled fan starts to work when the temperature is over 60℃. And its working speed stands at 4500-5000 r/min.

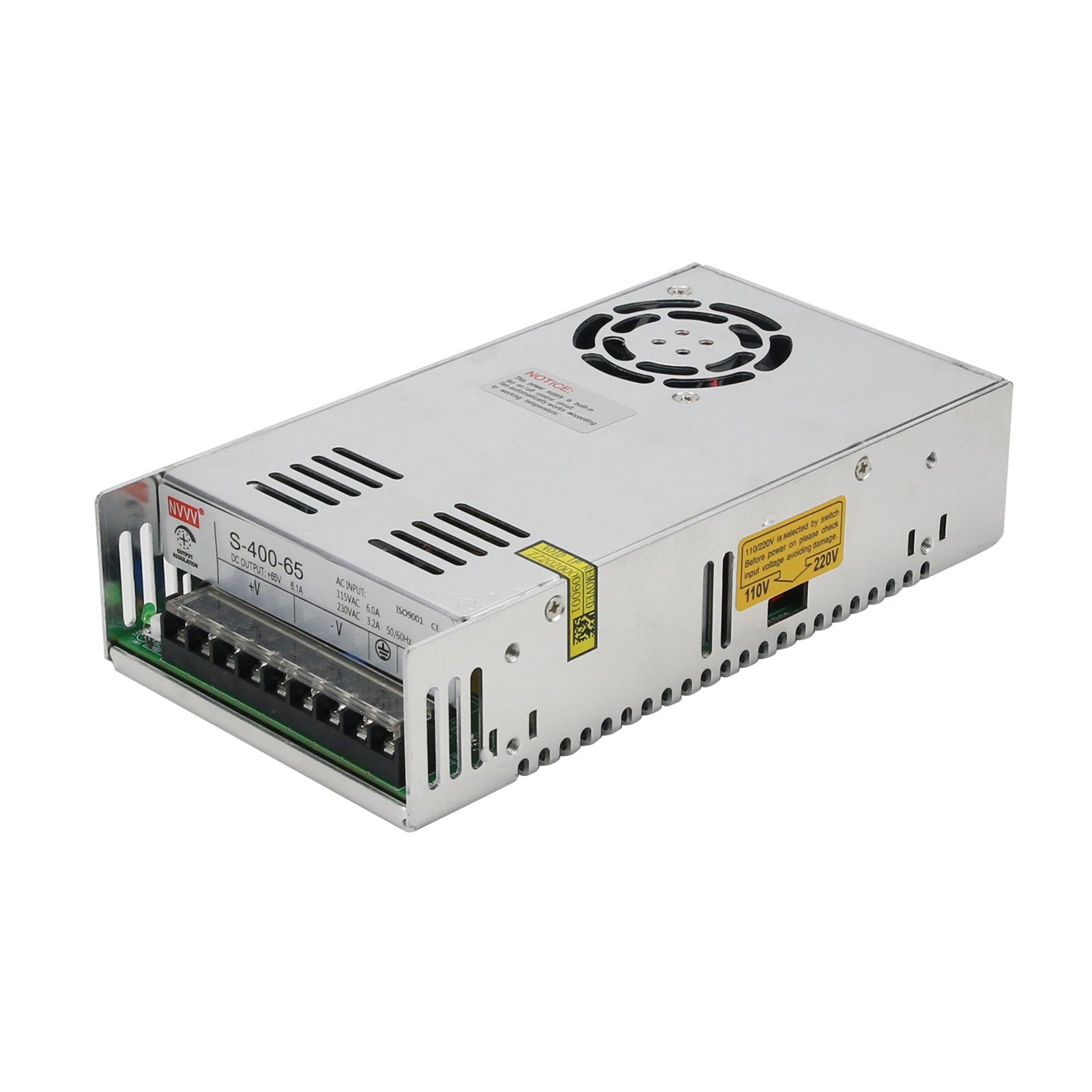

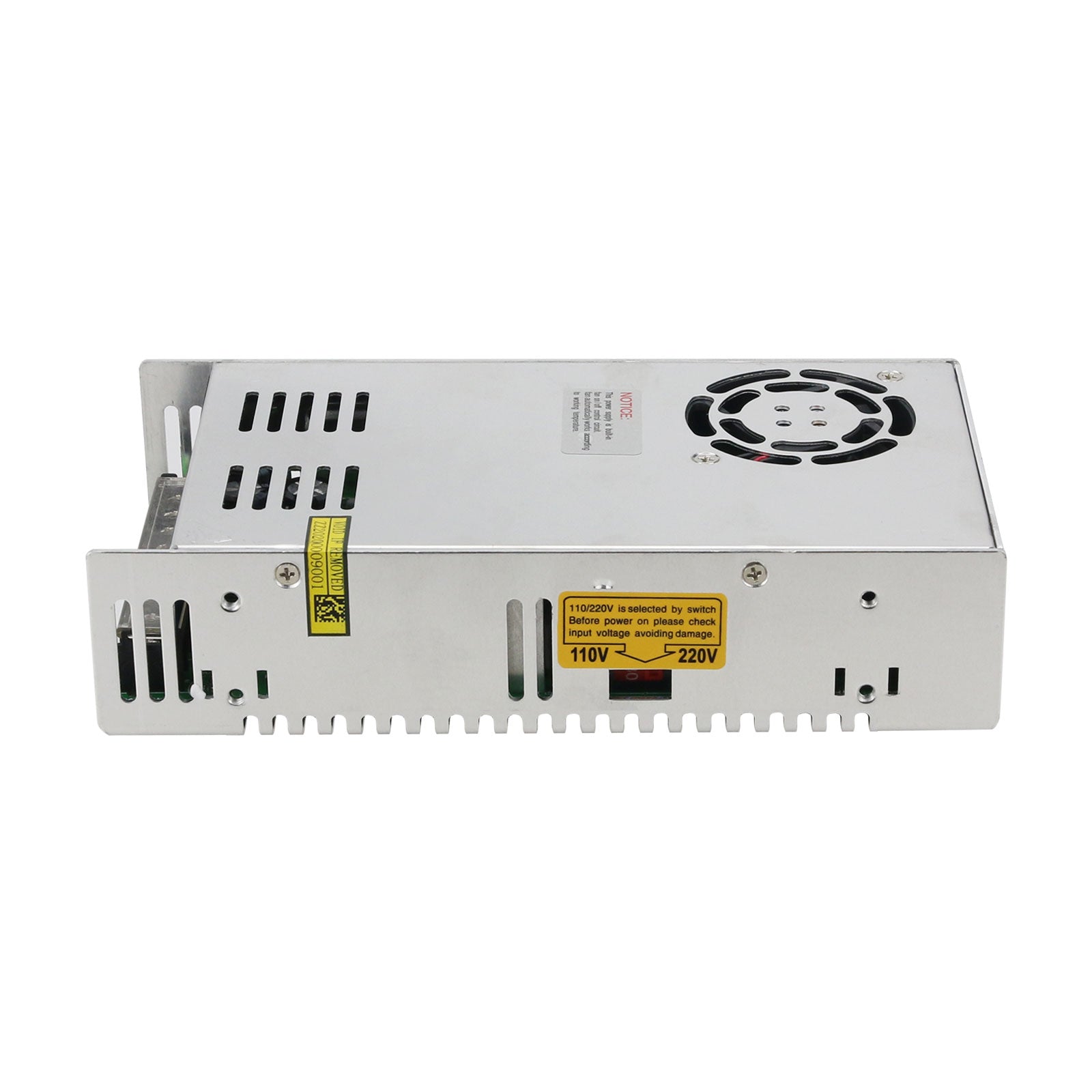

- Universal Voltage 110V/220V: Select input voltage 110V/220V via the switch button on the power supply. To avoid damage, please check input voltage before power on.
- Internal Anti-Dust Cover: Dust-proof cover prevents casual touching, making it safer.
- Quality Filter Capacitors: Withstand high voltage, with less loss and high capacity.
- American chip and circuit board with full welding joints.

Protection System:
- Over-Voltage Protection: When output voltage is greater than 130-140% of rated voltage, the voltage turns off.
- Over-Load Protection: When load power is greater than 130-140% of rated power, it triggers protection function.
- Short-circuit Protection: When output terminal is short-circuited, it turns off output. And the output voltage is 0V.
- Over-Current Protection: When output current is greater than 115-130%, the output voltage begins to drop.
- High-Temperature Protection: It automatically protect the power supply when there is high temperature.

Package Included:
- 1 x Switching Power Supply

Note: Due to different production batches, internal material details may differ. Please make sure that you don't mind before purchasing.
