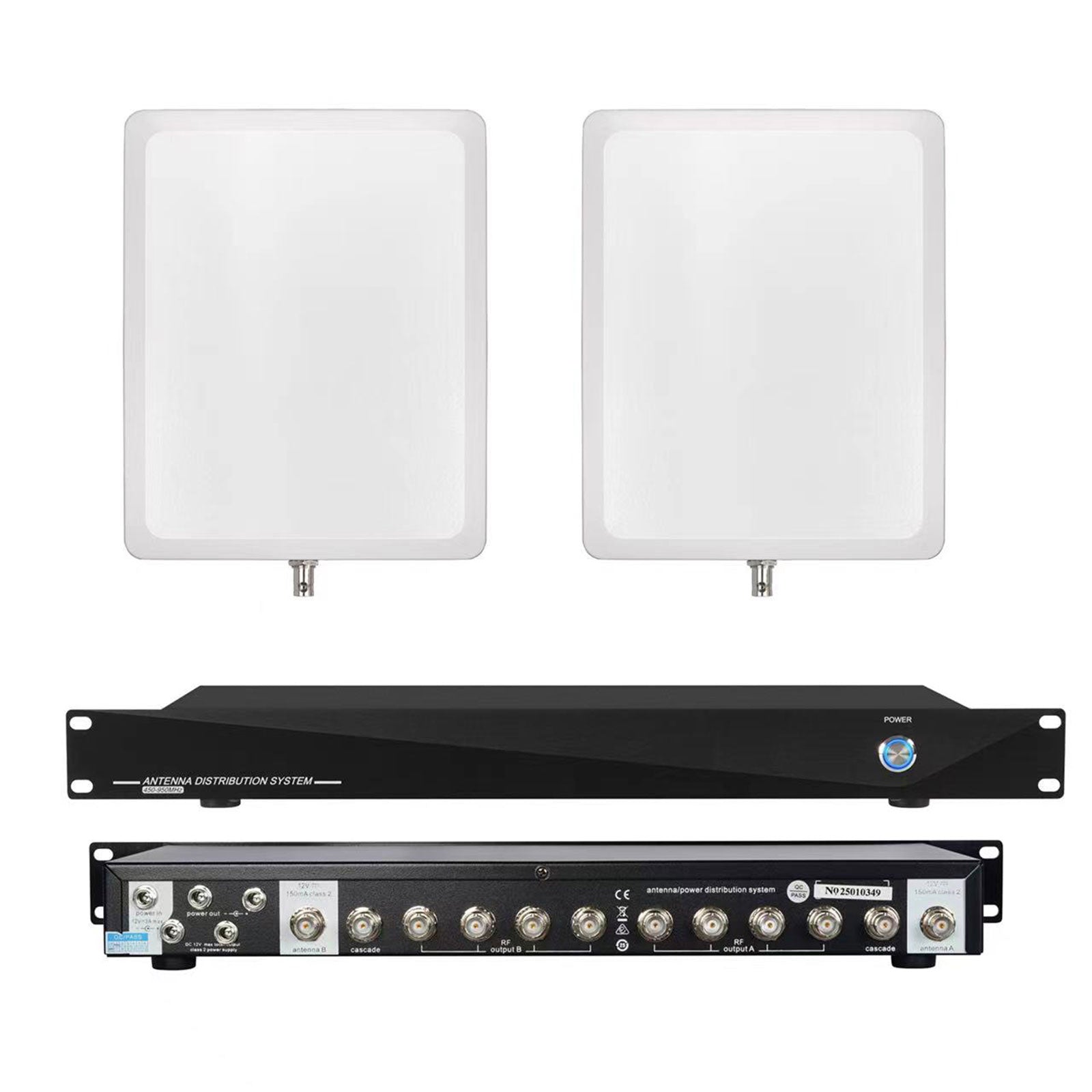

BK-680 450MHz-950MHz Antenna Distribution System 10-Way 360° Omnidirectional Antenna Splitter
Обычная цена
$299.43
Обычная цена
Цена со скидкой
$299.43
Цена за единицу
за
Сумма налога включена.
Стоимость доставки рассчитывается при оформлении заказа.
Не удалось загрузить сведения о доступности самовывоза
Обычная цена
$299.43
Обычная цена
Цена со скидкой
$299.43
BK-680 450MHz-950MHz Antenna Distribution System 10-Way 360° Omnidirectional Antenna Splitter
Parameters:
- Frequency range: 470-960MHZ
- Gain: 12DB
- Horizontal angle 3dB: 360°
- Input impedance: 50Ω
- Polarization: vertical
- Maximum power: 20w
- Lightning protection: DC grounding DC
- Antenna size: 220*174*25mm
Technical Indicators of Main Unit:
- Frequency range: 450MHz-950MHz (positive and negative deviations are not higher than 10%)
- Total gain: 0dB, ±1dB
- Separation: >25dB
- Input/output impedance: 50 ohms
- Connector port: BNC
- Antenna power supply: +12V DC/200mA (the center point is positive)
- DC output: 12V DC/1A (MAX) * 4 groups (the center point is positive)
- Power supply: 100-240V AC, 50/60Hz 36W
Package Included:
- 1 x Main unit
- 2 x Antenna wings
- 1 x Power adapter
- 4 x DC power cords
- 2 x 2.5m connection cables
- 10 x 0.5m connection cables
Packaging Details:
- Weight: 7.5kg
