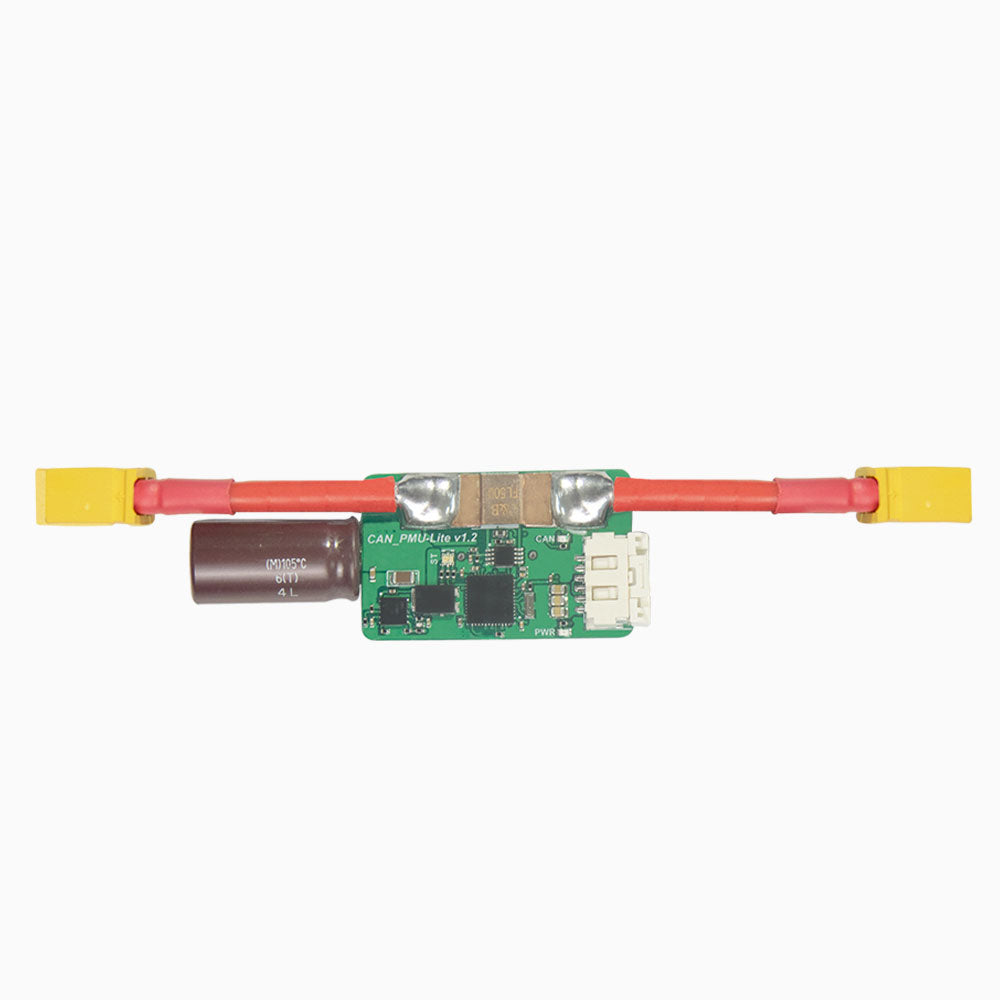

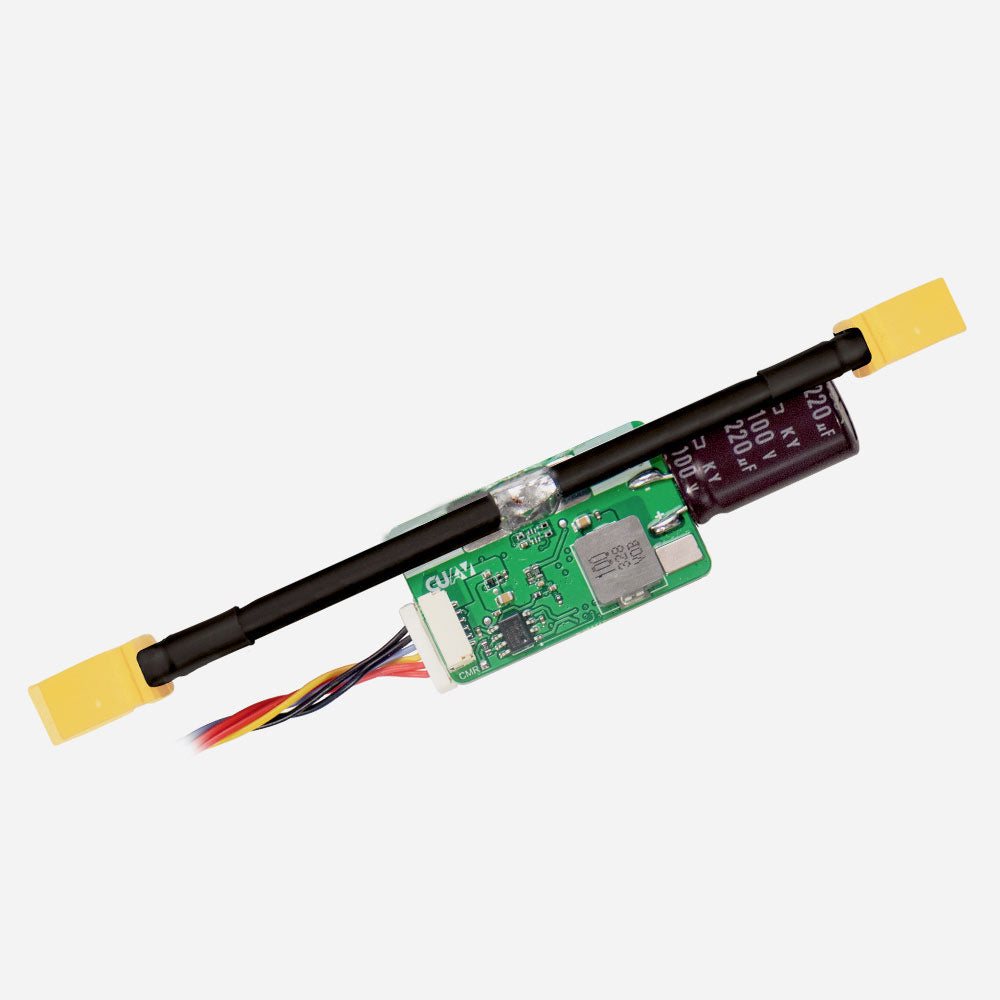

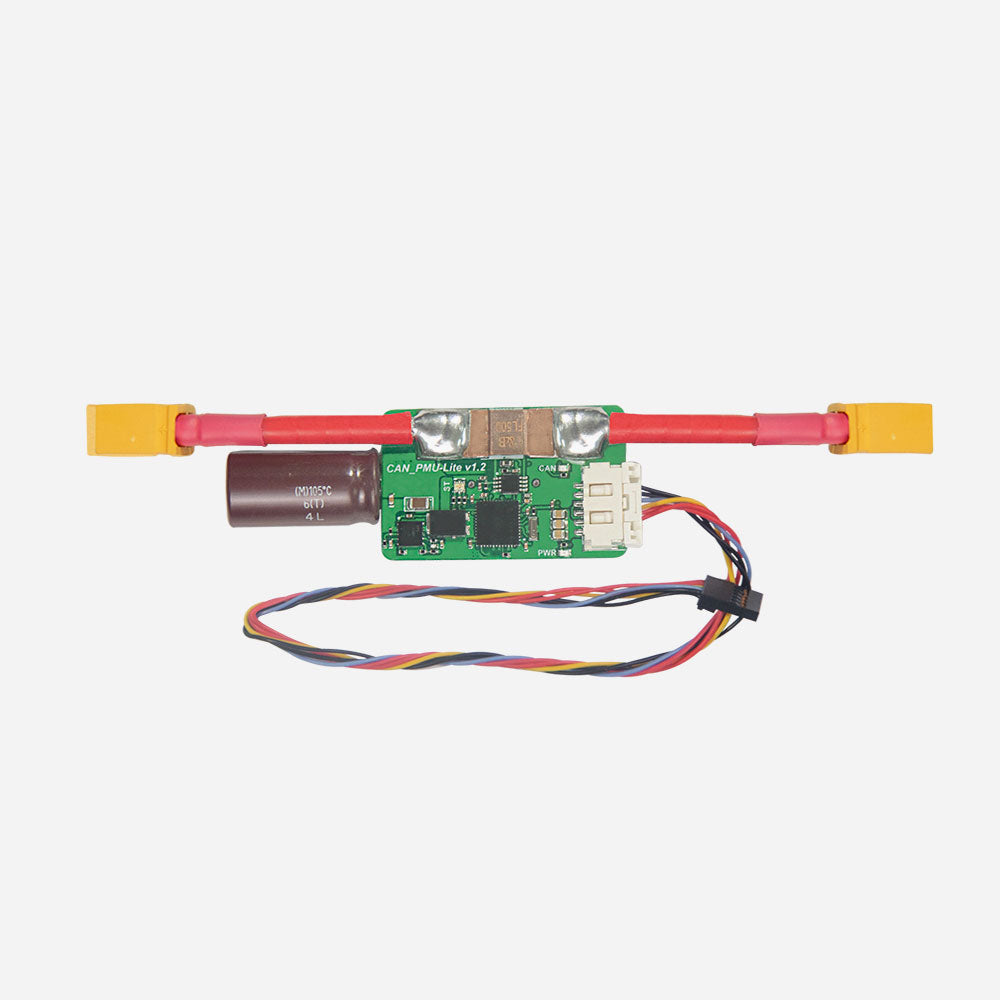

CUAV CAN PMU Lite Module Power Management Unit Power Supply Module for X7 Series Flight Controllers

CUAV CAN PMU Lite Module Power Management Unit Power Supply Module for X7 Series Flight Controllers

Description:
CAN PMU Lite is a CUAV standard power management module with built-in STM32F412 processor, supporting 10~62V input and 5.2V/4A regulated output. Compared with HV_PM, it uses advanced CAN bus communication and supports the standard UAV CAN protocol. PMU Lite has built-in ITT temperature compensation algorithm and has been calibrated to ensure that it can obtain accurate voltage and current data at different temperatures.

Key Functions:
- Support 10~62V voltage input
- Maximum passing current: maximum 110A
- Precision voltage and current detection: current accuracy is 0.2 within 80A and voltage accuracy is 0.15V
- Regulated output: Provides up to 21W5.2V/4A power output for peripherals
- Power indicator LED visually indicates Lipo voltage status
- Future upgrades support more functions such as power consumption statistics and instantaneous power consumption push

Specifications:
- Processor: STM32F412CEU6
- Input Voltage: 10-62V (2-15S Lipo)
- Maximum current: 110A
- Voltage accuracy: ±0.15V
- Current accuracy: ±0.2A
- Resolution: 0.01A/V
- Maximum output power: 4200W/90S
- Maximum stable output power: 3600W
- 5V regulated output: 5A maximum; stable 4A
- Communication protocol: UAVCAN
- Operating temperature: -20 to +100°C
- Firmware upgrade: Support
- Interface type: IN/OUT: XT60-M/XT60-F; Power/CAN: 502585-0670; Other: SM06B-GHS-TB
- Product Size: 140 x 25 x 13mm/5.5 x 1 x 0.5" (LxWxH)
- Support for APM firmware: 1. Rover 3.5.1 and above; 2. Copter 3.7 and above; 3. Plane 3.10 and above; 4. Heli3.7 and above; Copter3.6 firmware users need to flash the 3.7 version first after the firmware is turned on, and then flash back to the 3.6 version
- Support for PX4 firmware: for PX4 ProV1.10.1 and above

Package Included:
- 1 x PMU Module
