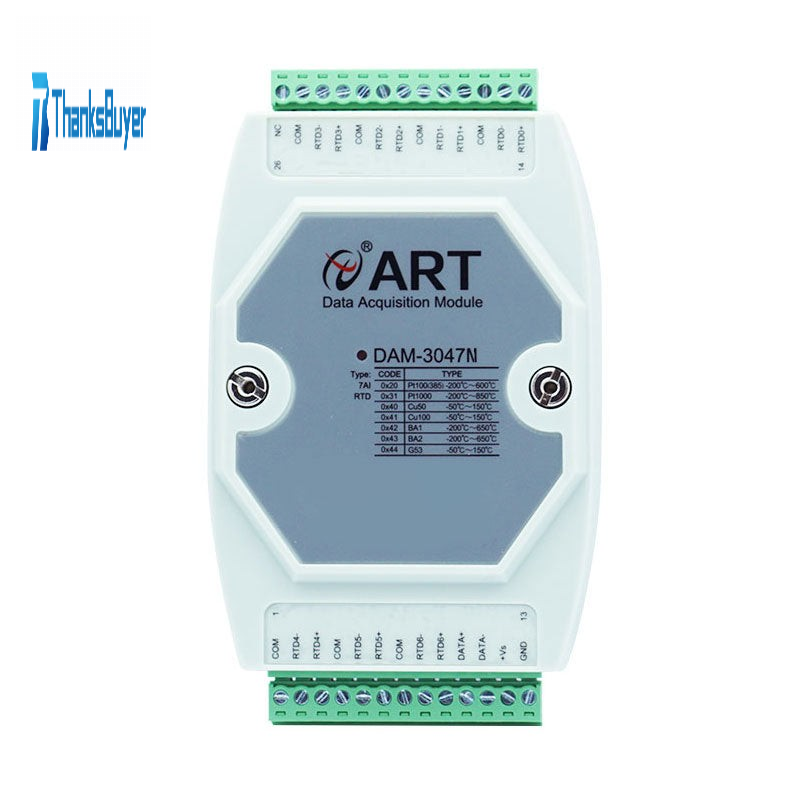

DAM3047N 7-Channel 16Bit Data Acquisition Module PT100 Thermal Resistance Acquisition RS485 without Display

DAM3047N 7-Channel 16Bit Data Acquisition Module PT100 Thermal Resistance Acquisition RS485 without Display

Specification:
- Input channel: 7 channels
- Input type: thermal resistance input
- Acquisition range: PT100 (-200℃ ~ 600℃), PT100 (-100℃ ~ 100℃), PT100 (0℃ ~ 100℃), PT100 (0℃ ~ 200℃), PT100 (0℃ ~ 600℃)
- Sampling speed rate: 10sps (main channel)
- Resolution: 16bit
- Acquisition precision: +/- 0.5℃
- Range setting: each channel can configure the range independently
- Isolation interface: 3000VDC
- Communication interface: RS485
- Isolation voltage: 3000VDC
- Baud rate: 1200 ~ 115200bps
- Watchdog: software watchdog
- Power supply voltage: +10V ~ 30VDC
- Power protection: power reverse protection
- Power consumption: rated value 1W at 24VDC
- Operating temperature: -10℃ ~ +70℃
- Storage temperature: -20℃ ~ 85℃

Package Included:
- 1 x Acquisition Module
- 1 x Data Acquisition Software (Send by Mails)
