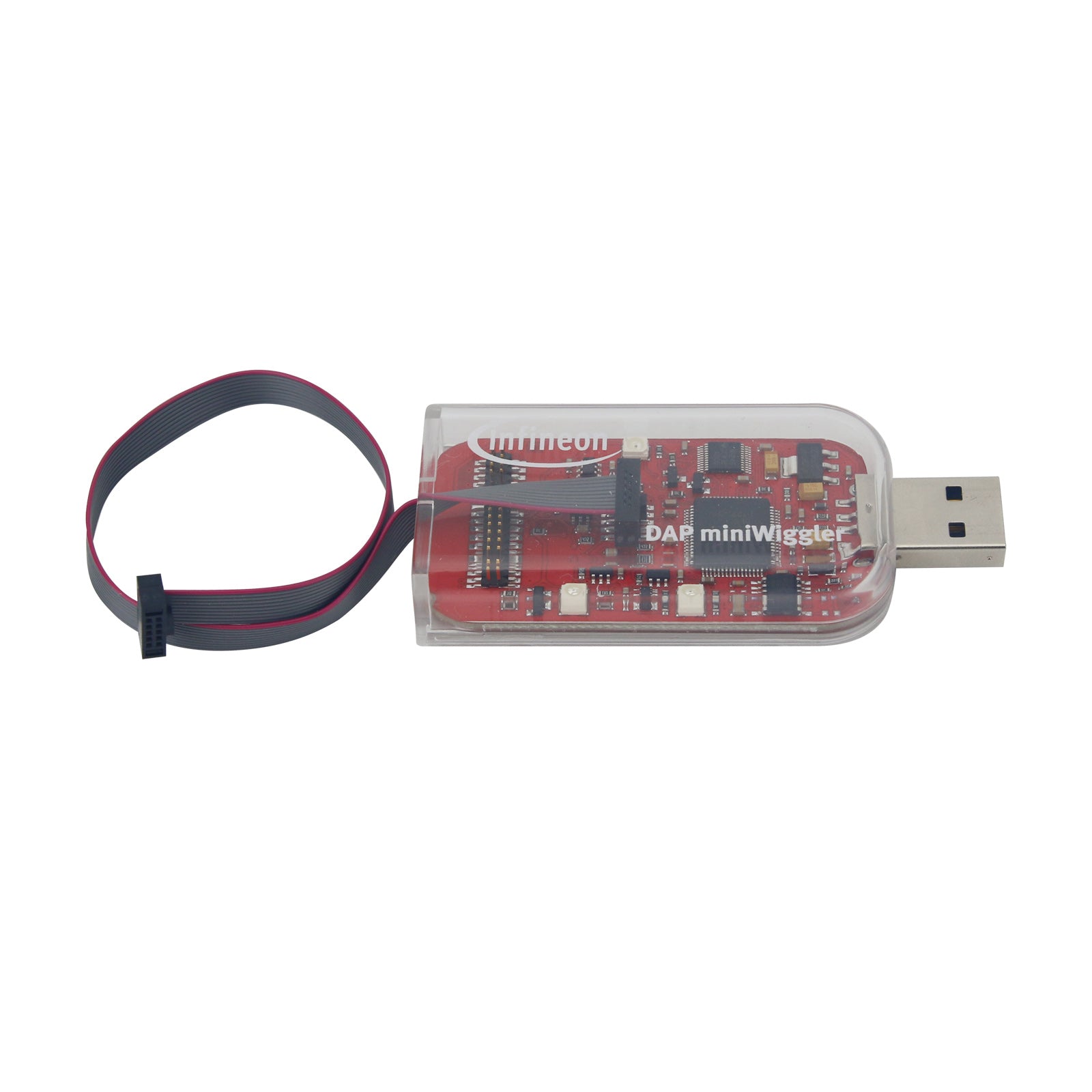

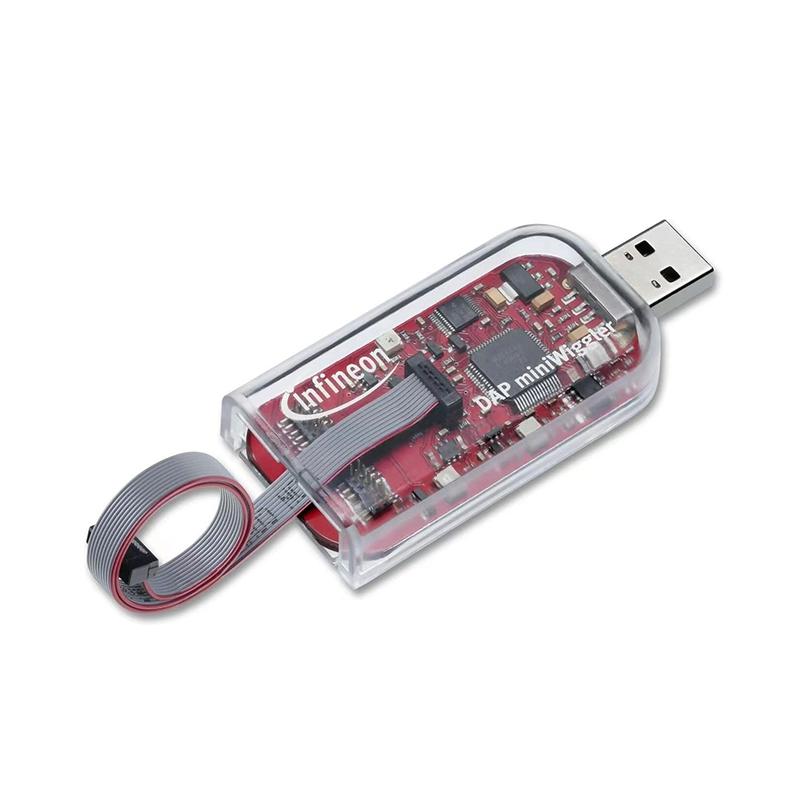

DAP Miniwiggler V3.1 USB Interface Emulator for MCU Development Programmer High Performance Debugging Tool for INFINEON

DAP Miniwiggler V3.1 USB Interface Emulator for MCU Development Programmer High Performance Debugging Tool for INFINEON

Description:
- DAP miniWigglerV3.1 is a continuation of DAP miniWiggler. It can be converted from PC/USB to a debugging interface for Infineon micro-controller devices (10 pin DAP/SPD/SWD, 20 pin automotive JTAG). The software interface of the tool is DAS (Device Access Server) DLL. The new version of DAS can be downloaded from www.Infineon.com/das

Application and Supported Tools:
- For Infineon MemTool (Tools & Software -> "Software Downloads")
- Debugging, Flash programming
- For Altium/TASKING compiler
- For Infineon DAVE Bench
- For Infineon DAVE 3 [Tools & Software ->“DAVE (Version 3) - Legacy -> xSPY Tool”]
- For Hitex HiTOP Debugger
- ARM KEIL uVision
- Supported microprocessor devices: for AURIX, for TriCore, for XMC4000, for XMC1000, for XC2000, for XE166, for XC166, for XC800.

Features:
- Clock speed up to 30MHz (programmable)
- All signals are 5.5V and can be scaled down to 1.65V
- USB 2.0 (high-speed)
- For Microsoft Windows XP, VISTA, certified drivers for 7 and 8
- USB, JTAG, and DAP/SPD hot plugging and unplugging
- 3 onboard status LEDs
- Supports car 20 pin JTAG on 10 pin DAP connectors
- Add connectors for front-end expansion (e.g. for electrical isolation)

Application:
- Debugging
- Flash programming

Package Included:

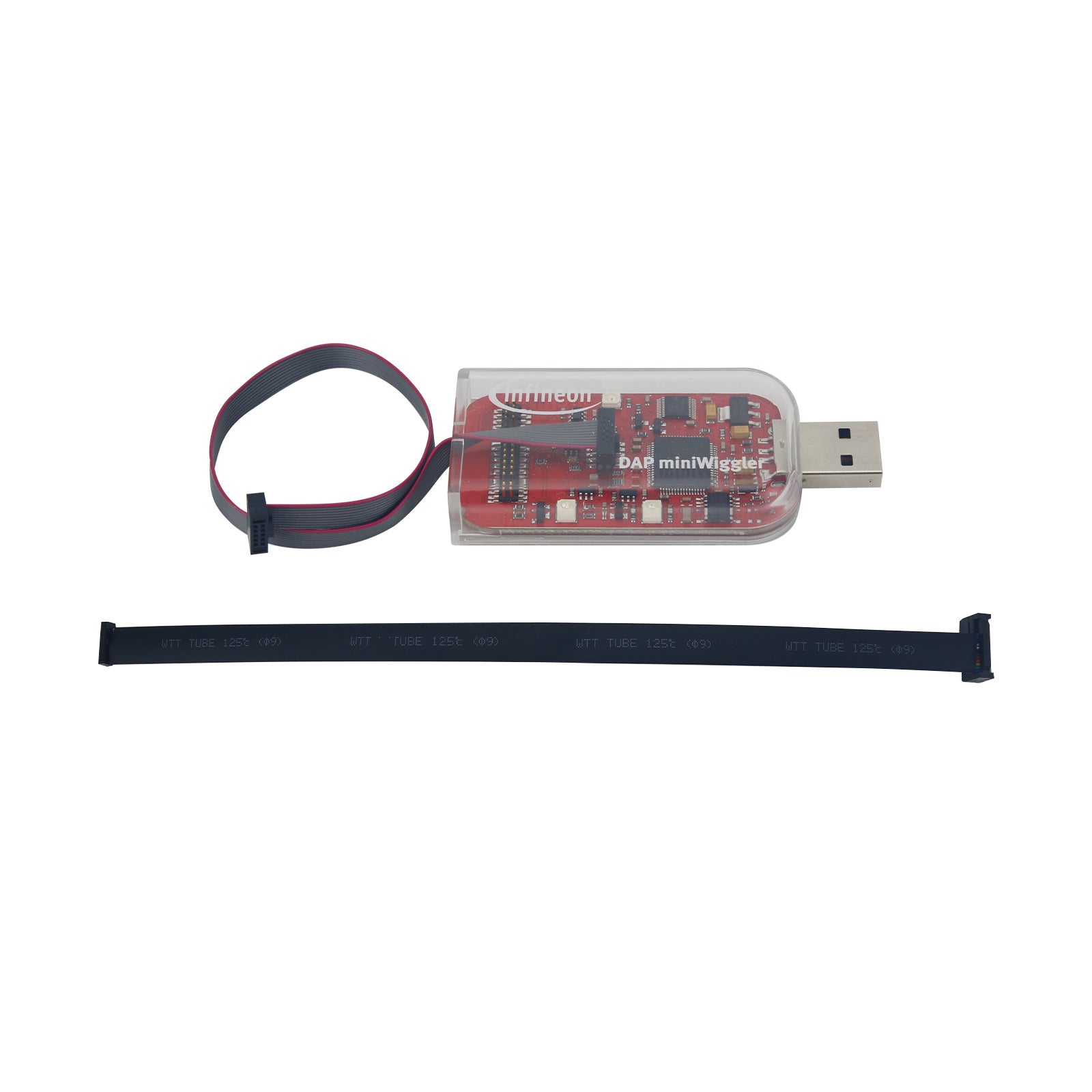

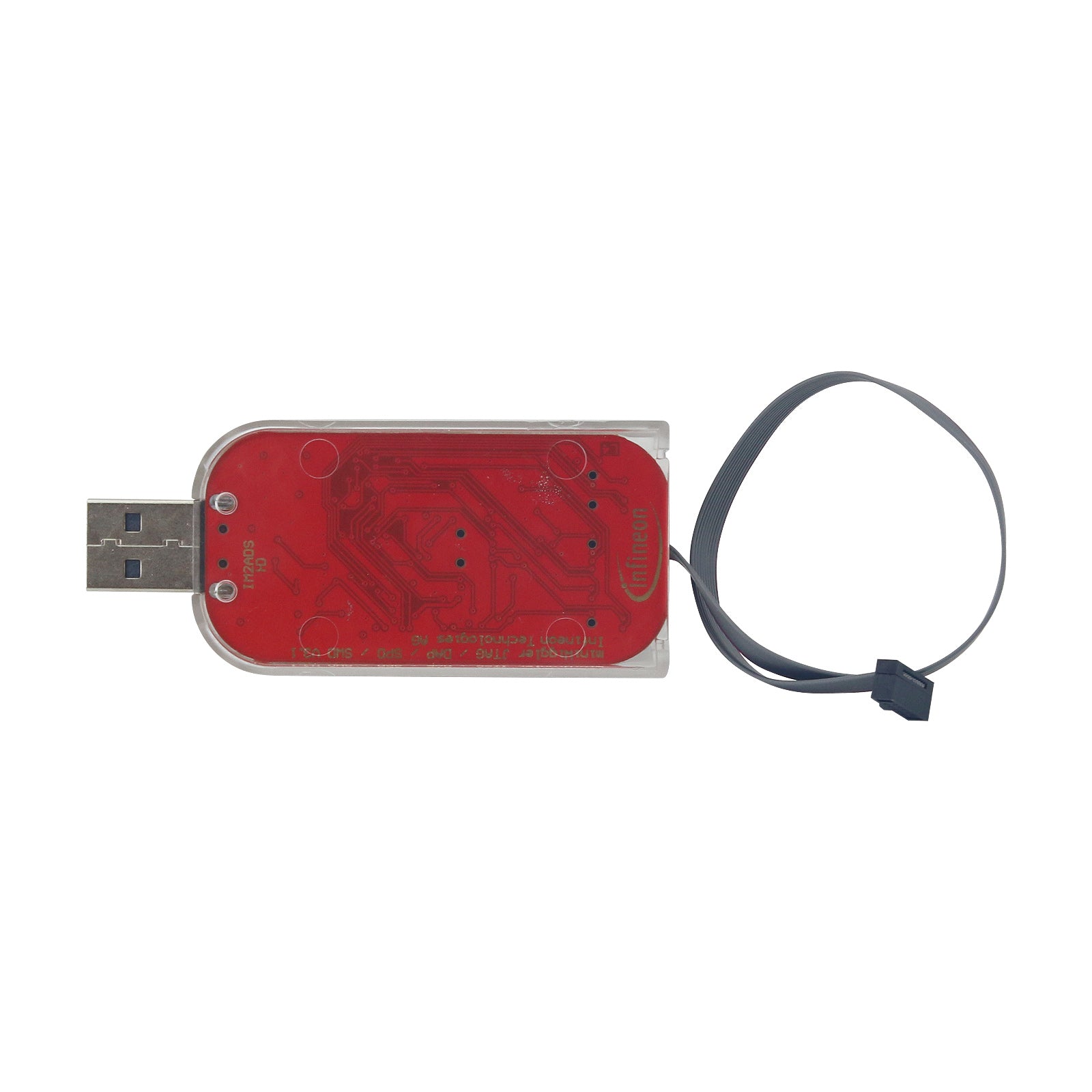

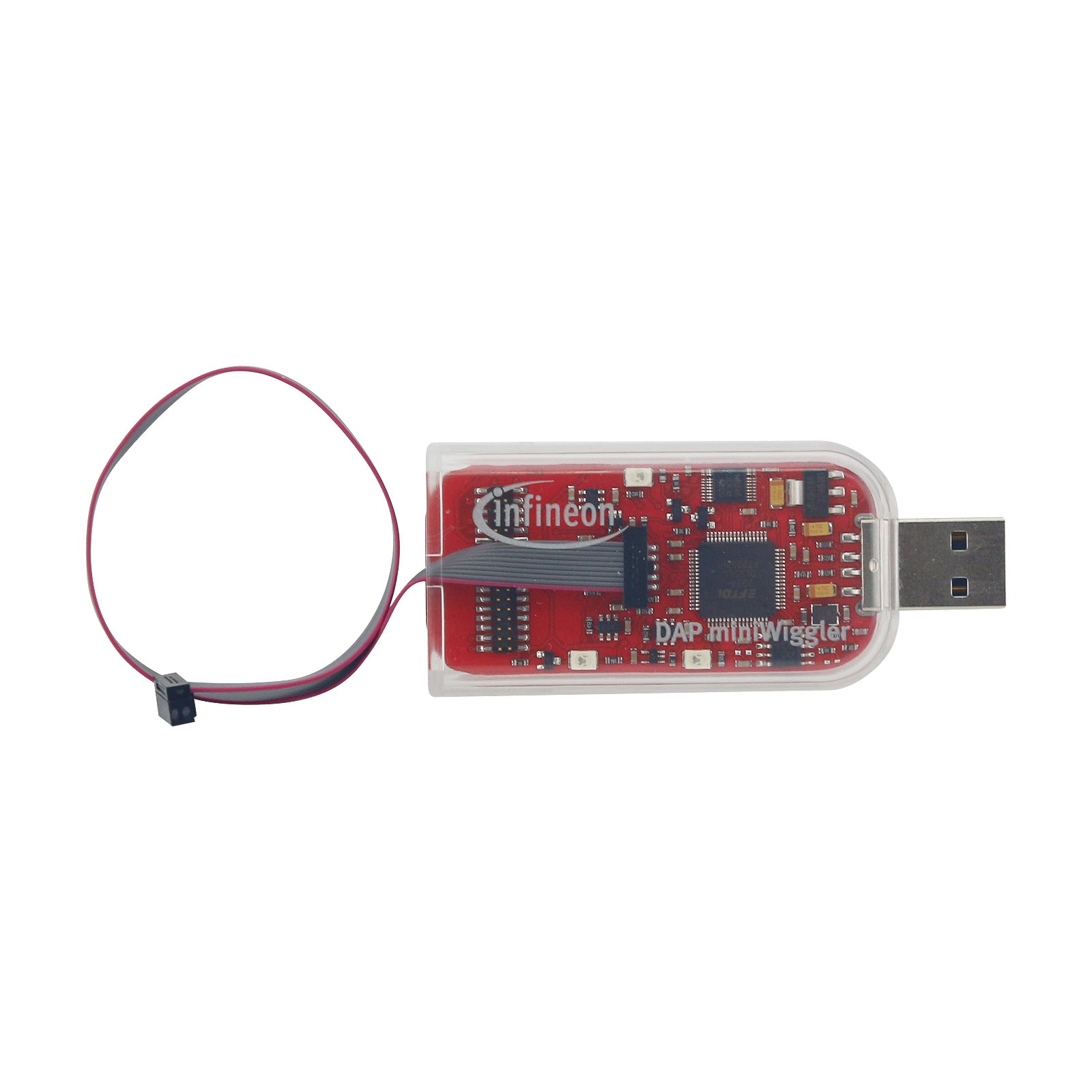

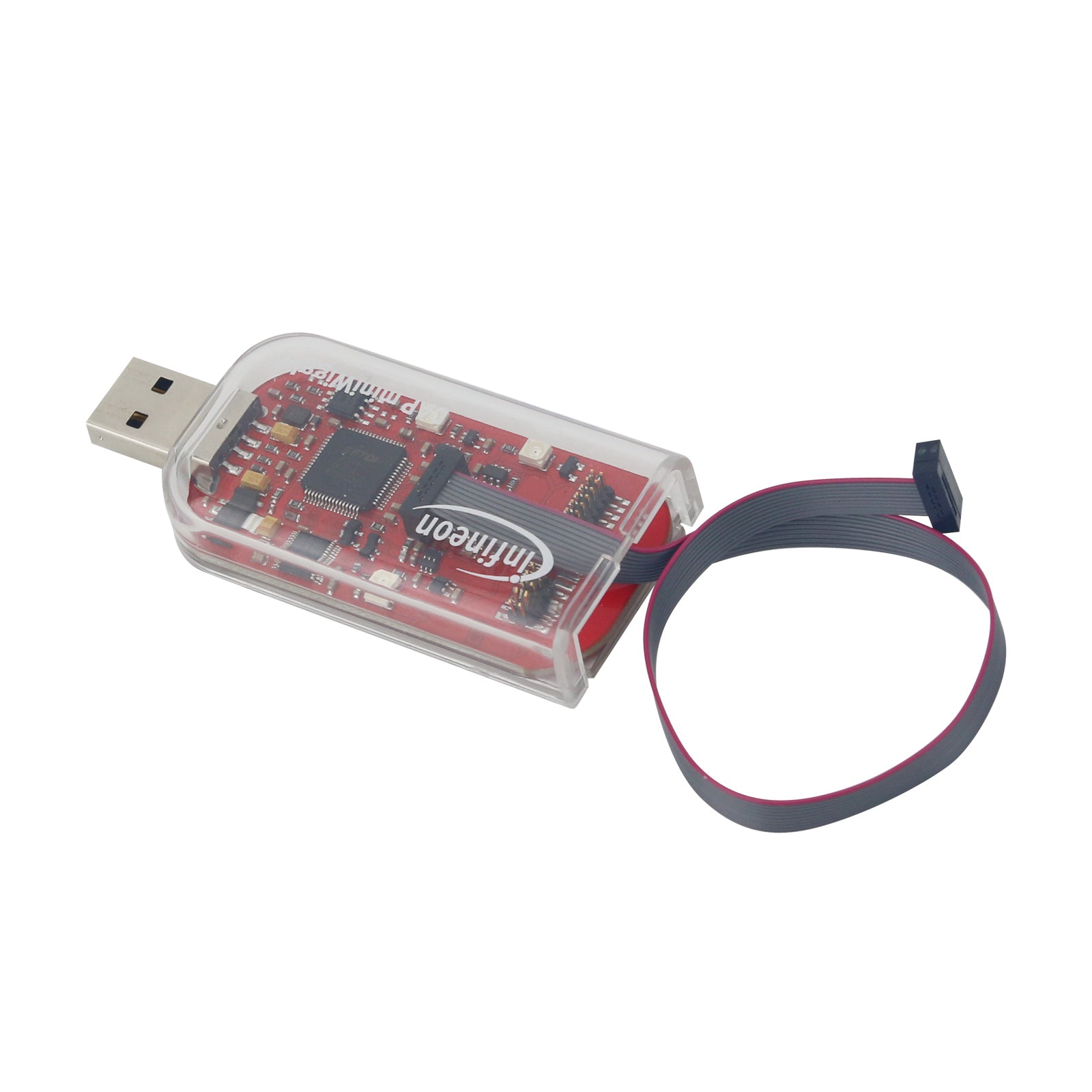

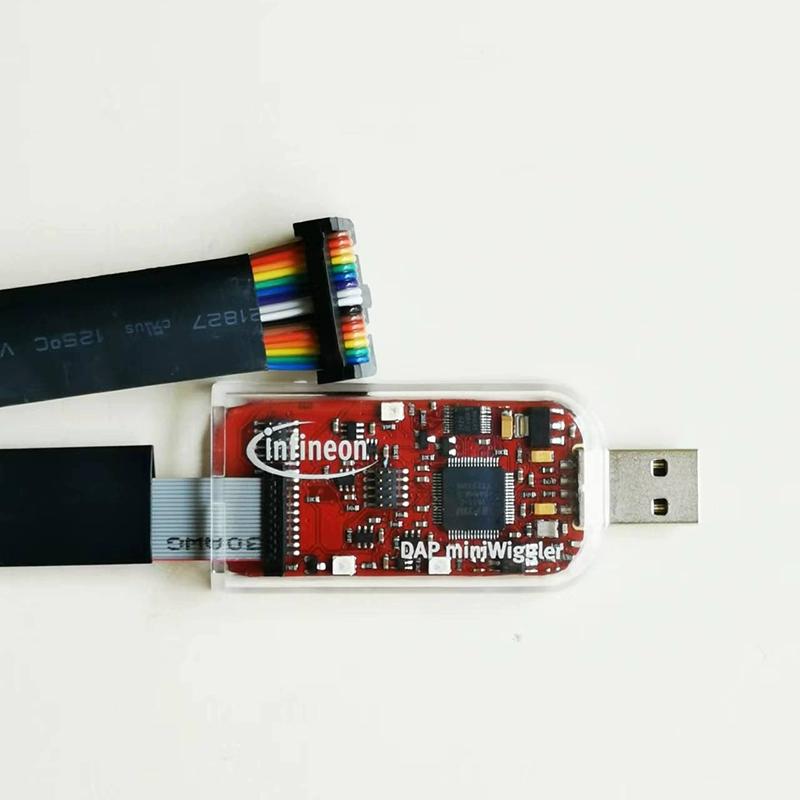

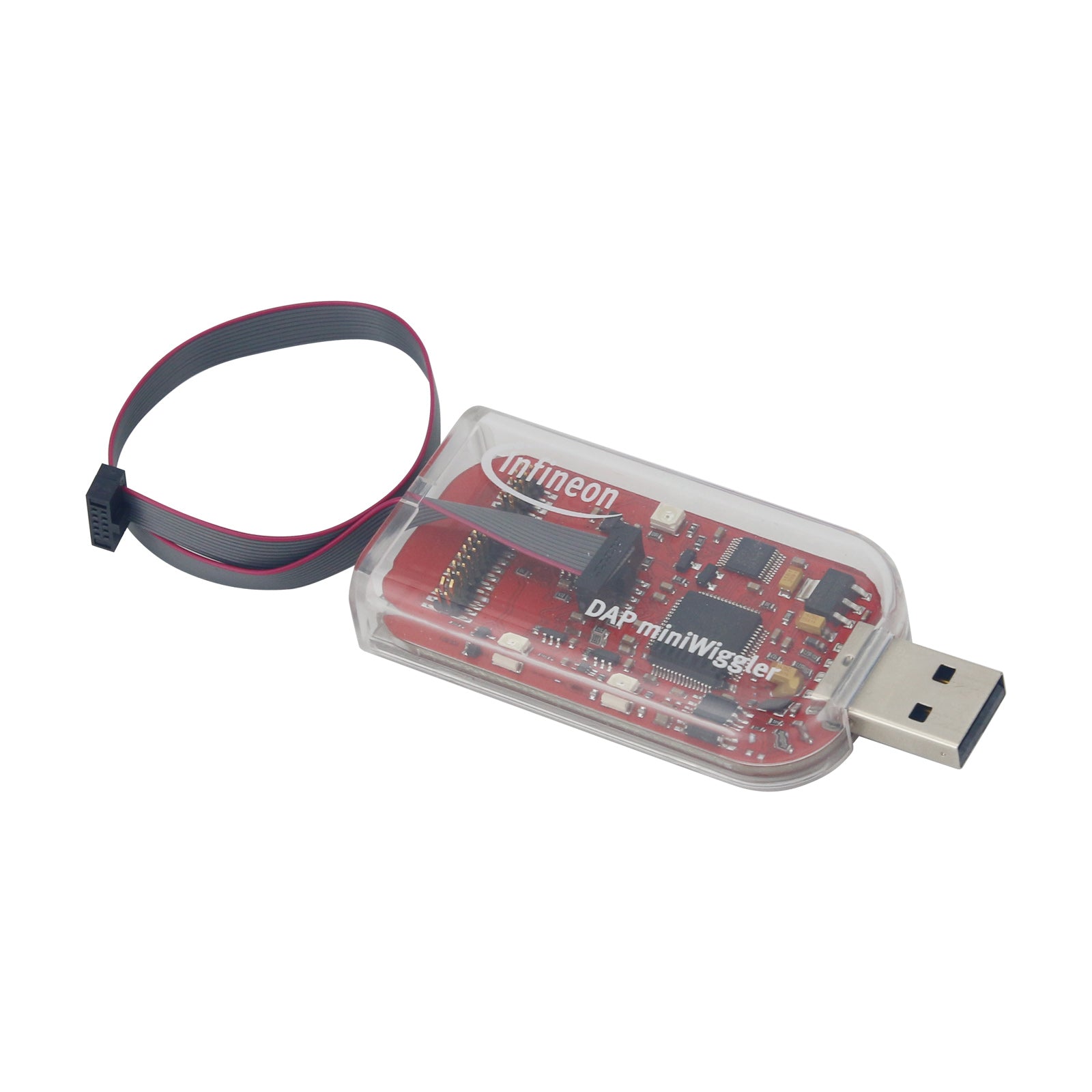

- 1 x Emulator

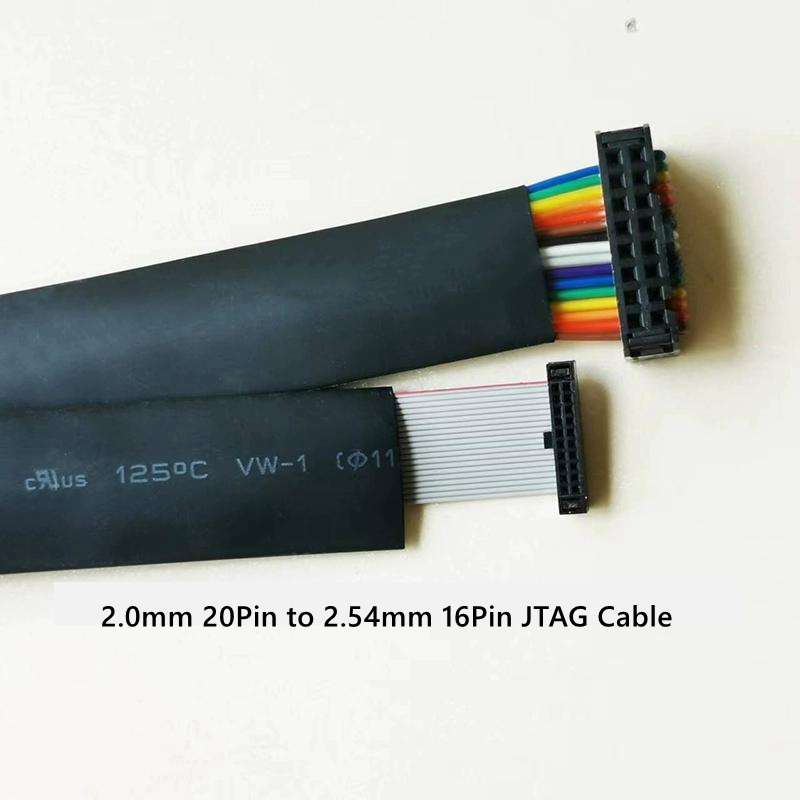

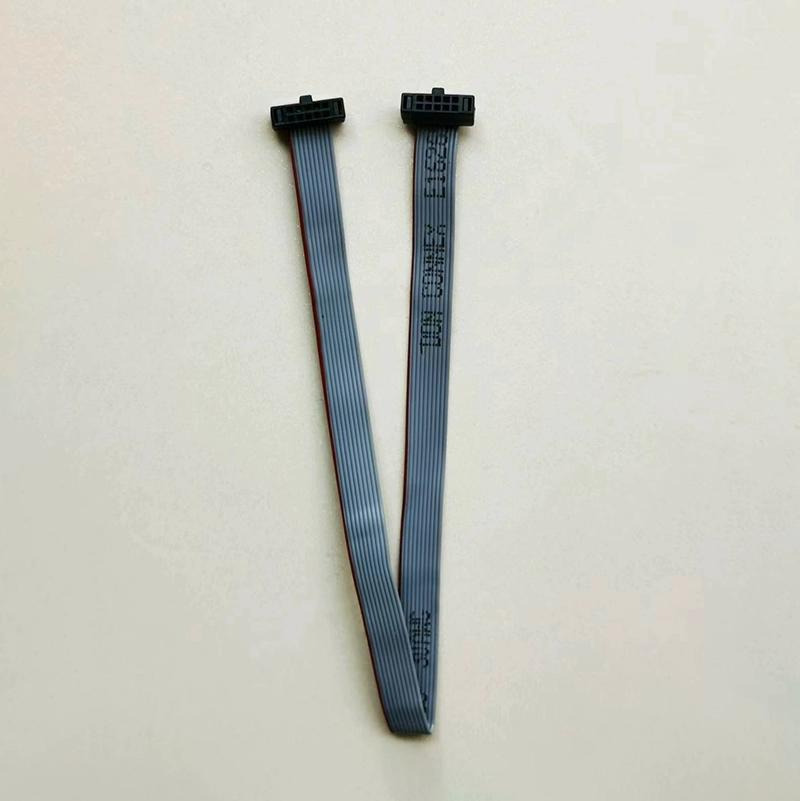

- 1 x 2.0mm 20Pin to 2.54mm 16Pin JTAG Cable
