AUA-40 Optical Fiber Identifier – 800–1700nm, 10mW Visual Fault Locator (Dry Battery & Rechargeable Versions)

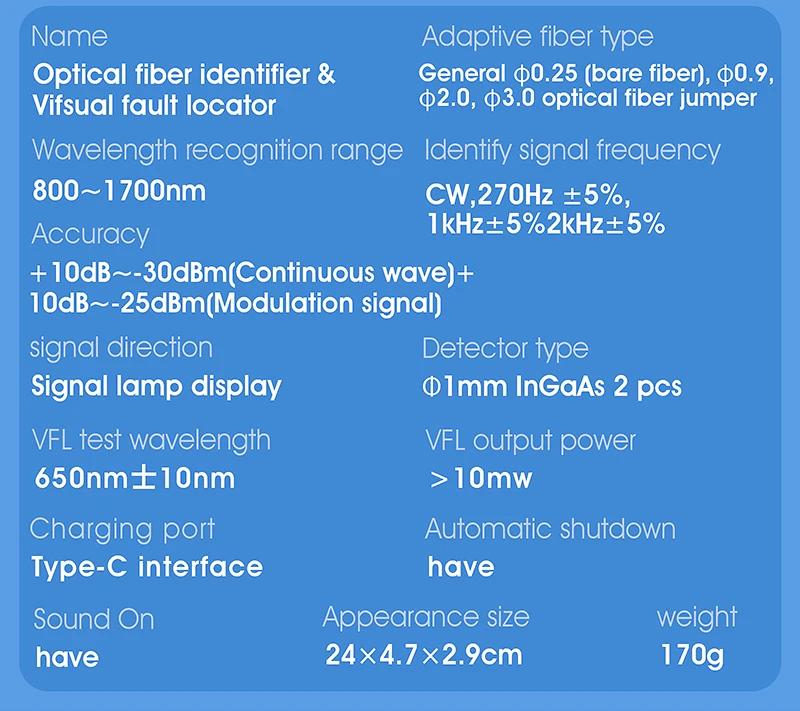

Specifications:
- Name: optical fiber identifier & visual fault locator

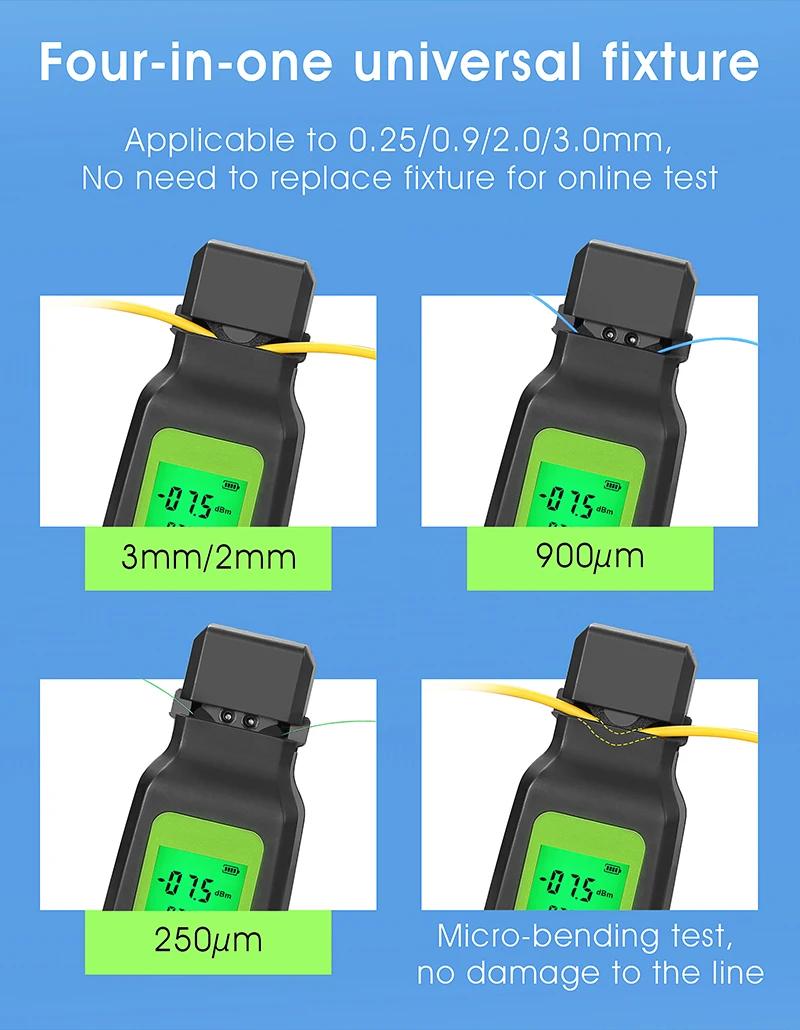

- Adaptive fiber type: general 0.25 (bare fiber)/0.9/2.0/3.0 optical fiber jumper
- Wavelength recognition range: 800 - 1700nm

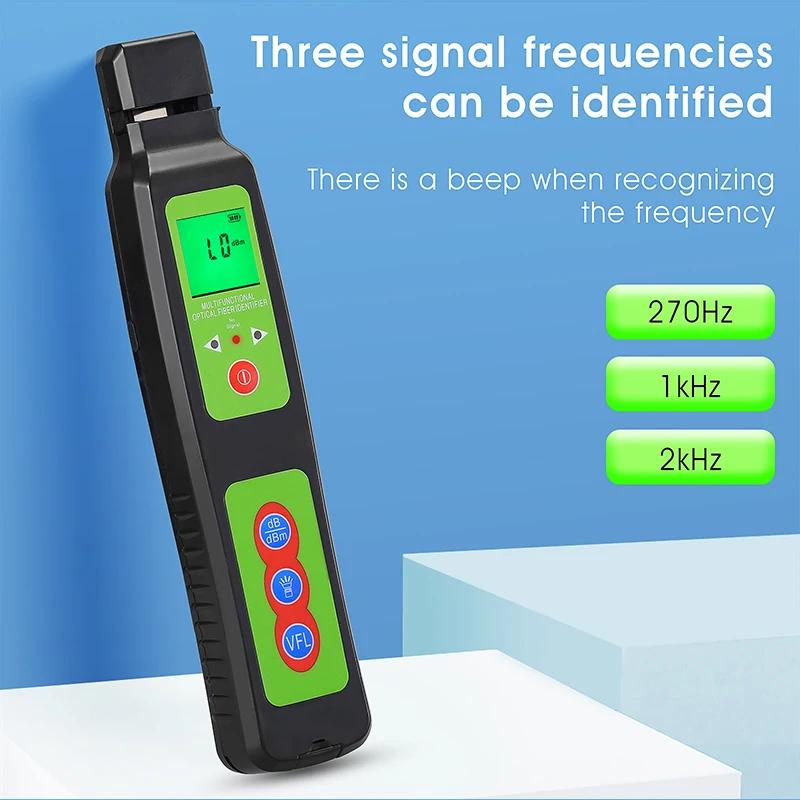

- Identify signal frequency: CW, 270Hz±5%, 1kHz±5%, 2kHz±5%
- Accuracy: +10dB ~ -30dBm (continuous wave); +10dB ~ -25dBm (modulation signal)

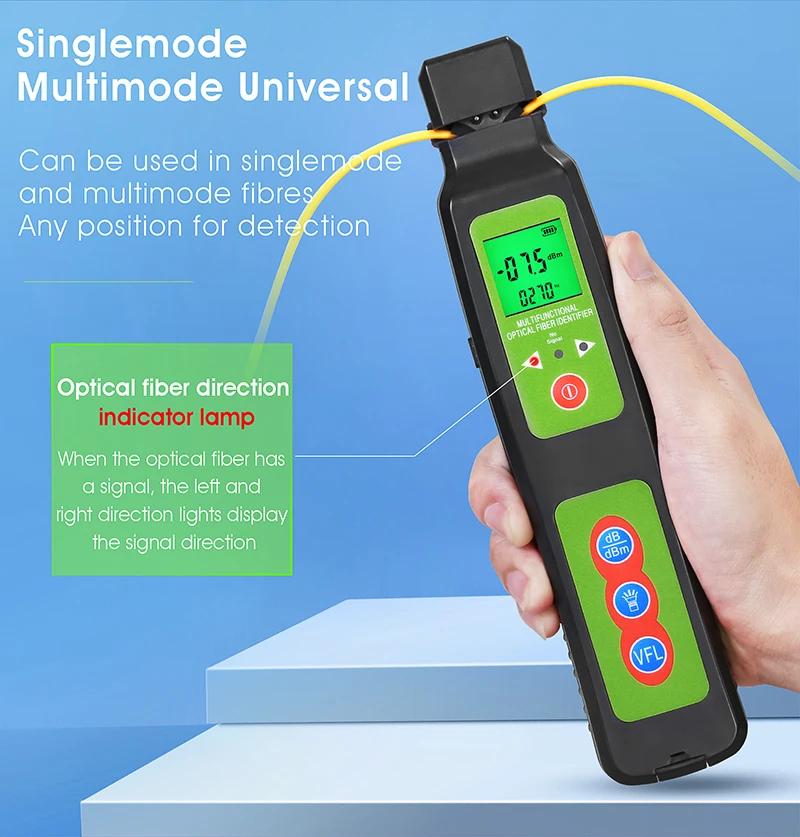

- Signal direction: signal lamp display
- Detector type: (diameter) 1mm InGaAs 2pcs

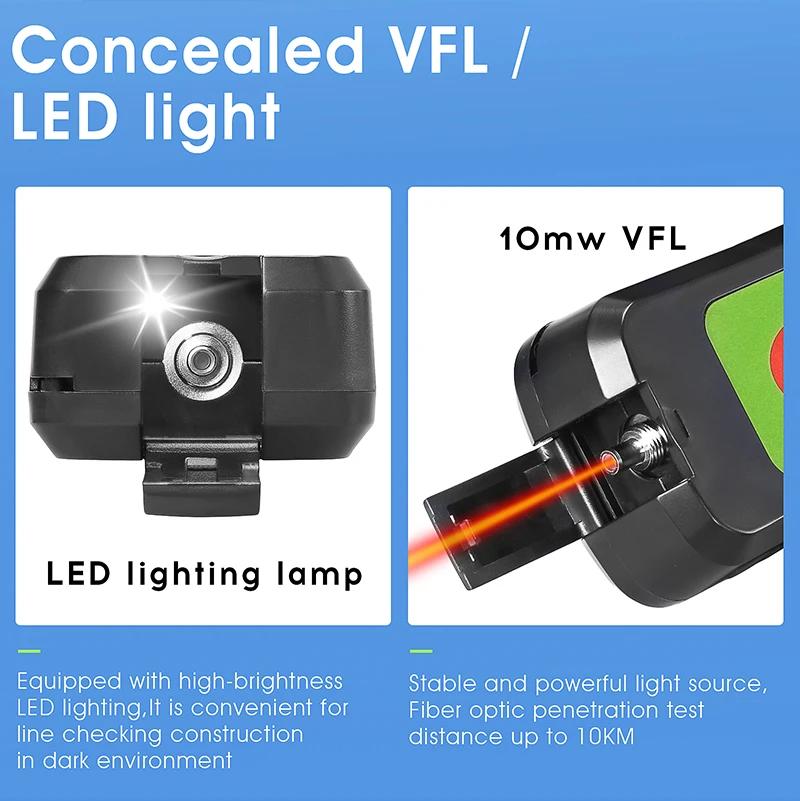

- VFL test wavelength: 650nm±10nm
- VFL output power: > 10mw

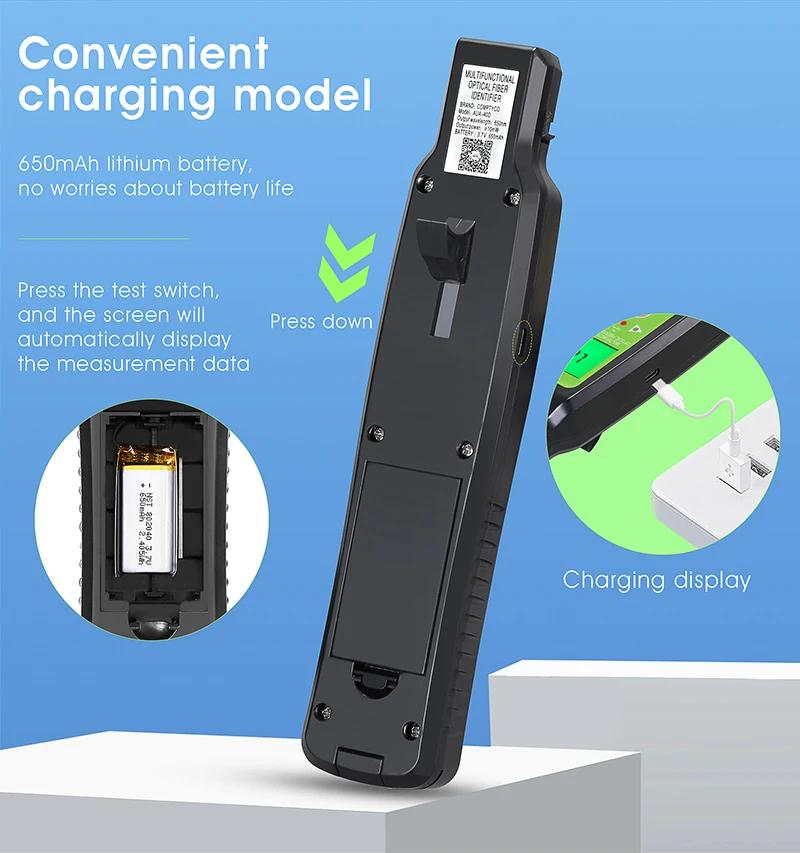

- Charging port: Type-C interface (for rechargeable version)
- Automatic shutdown: support
- Voice indication: support

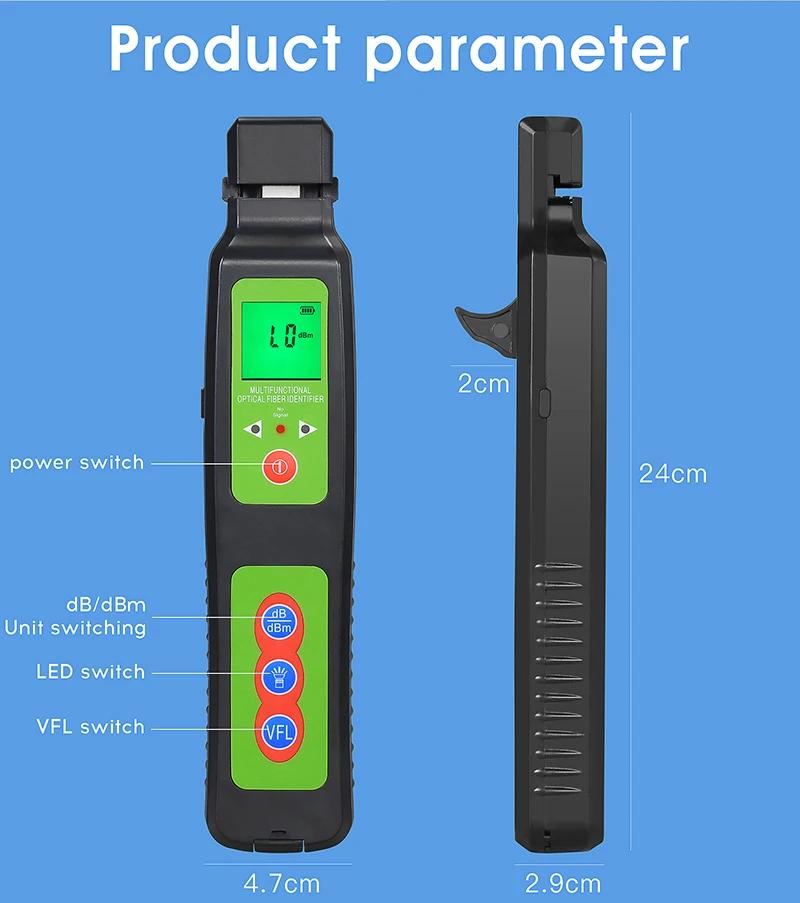

- Size: 24 x 4.7 x 2.9cm
- Weight: 170g

Package Contents (Depending on Selected Version):

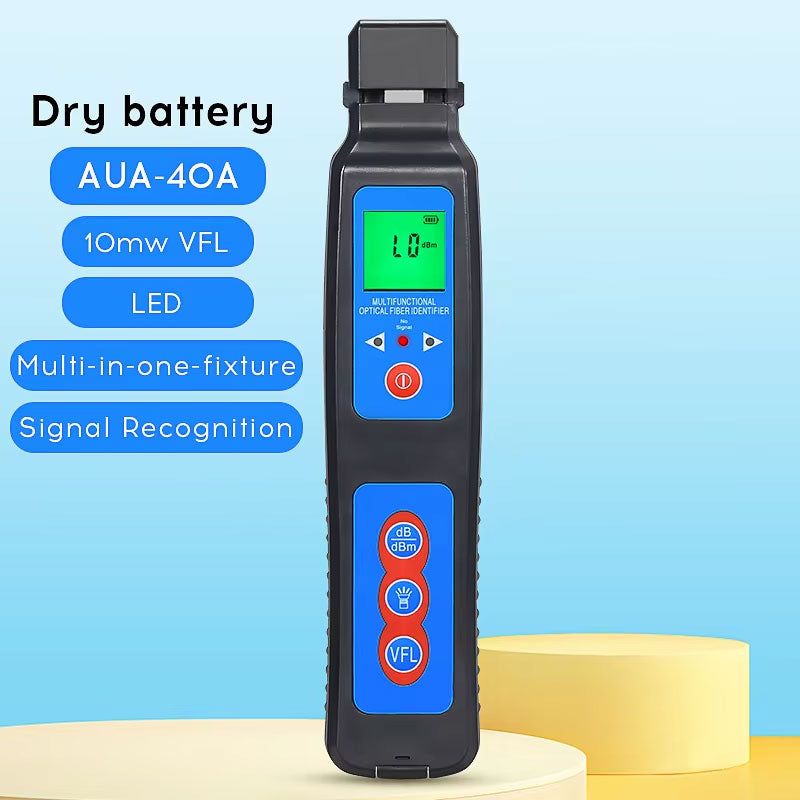

Dry Battery Version (AUA-40A):
- 1 x Optical Fiber Identifier
- 1 x Storage Bag
- 1 x User Manual

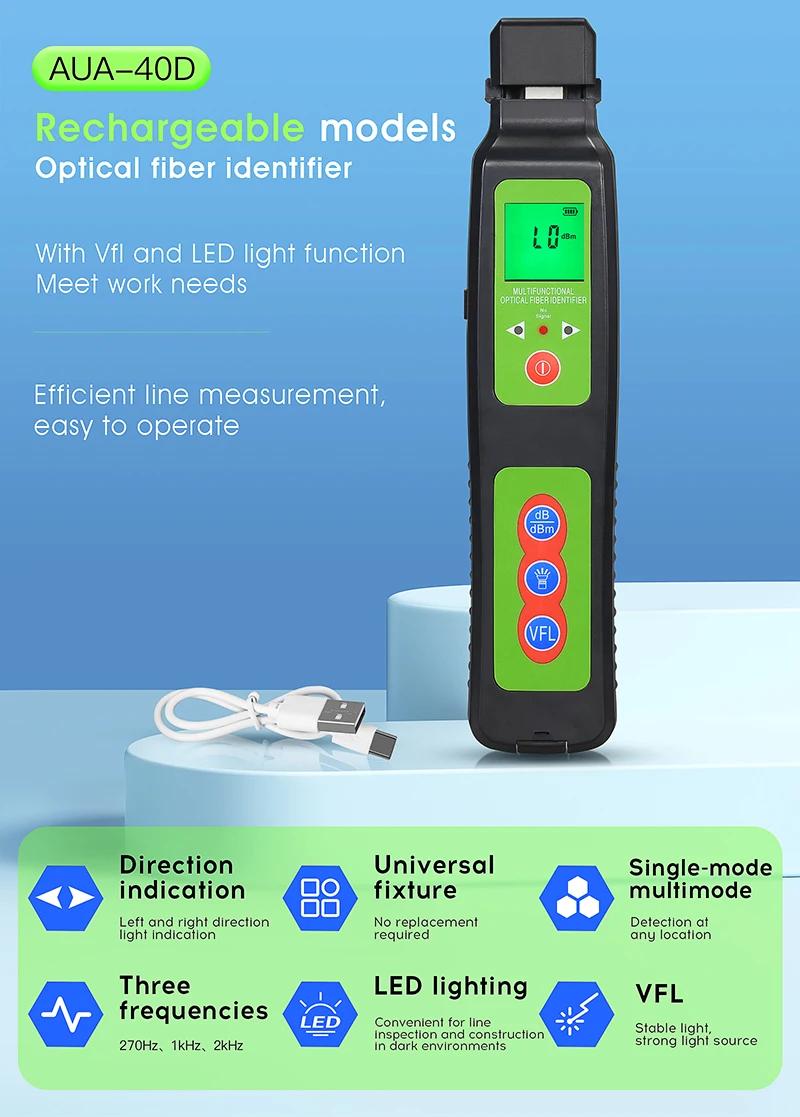

Rechargeable Version (AUA-40D):
- 1 x Optical Fiber Identifier
- 1 x Storage Bag
- 1 x User Manual
- 1 x Type-C Cable

Note:
- Battery is not included.
