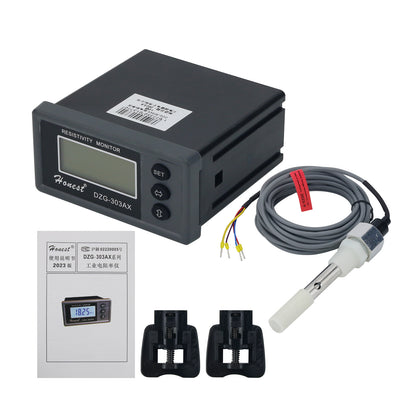

DZG-303AX Water Resistivity Meter Intelligent Resistivity Meter Tester Set for High Purity Water

DZG-303AX Water Resistivity Meter Intelligent Resistivity Meter Tester Set for High Purity Water

Description:
DZG-303AX is an industrial high purity water resistivity meter. It is suitable for online measurement and monitoring of high purity water resistivity value in industries such as electronics, chemical, pharmaceutical, power station and nuclear energy.

It uses advanced technology and single-chip microcomputer circuits for measurement and nonlinear temperature compensation of high-purity water. It is easy to use, with stable reading and correct compensation.

Specifications:
- Measuring range: 0~18.23MΩ·cm
- Measurement accuracy: ±2% (F· S)
- Temperature compensation: Single-chip microcomputer circuit is used for automatic nonlinear temperature compensation. Compensation range: 0~60°C; Compensation benchmark is 25°C

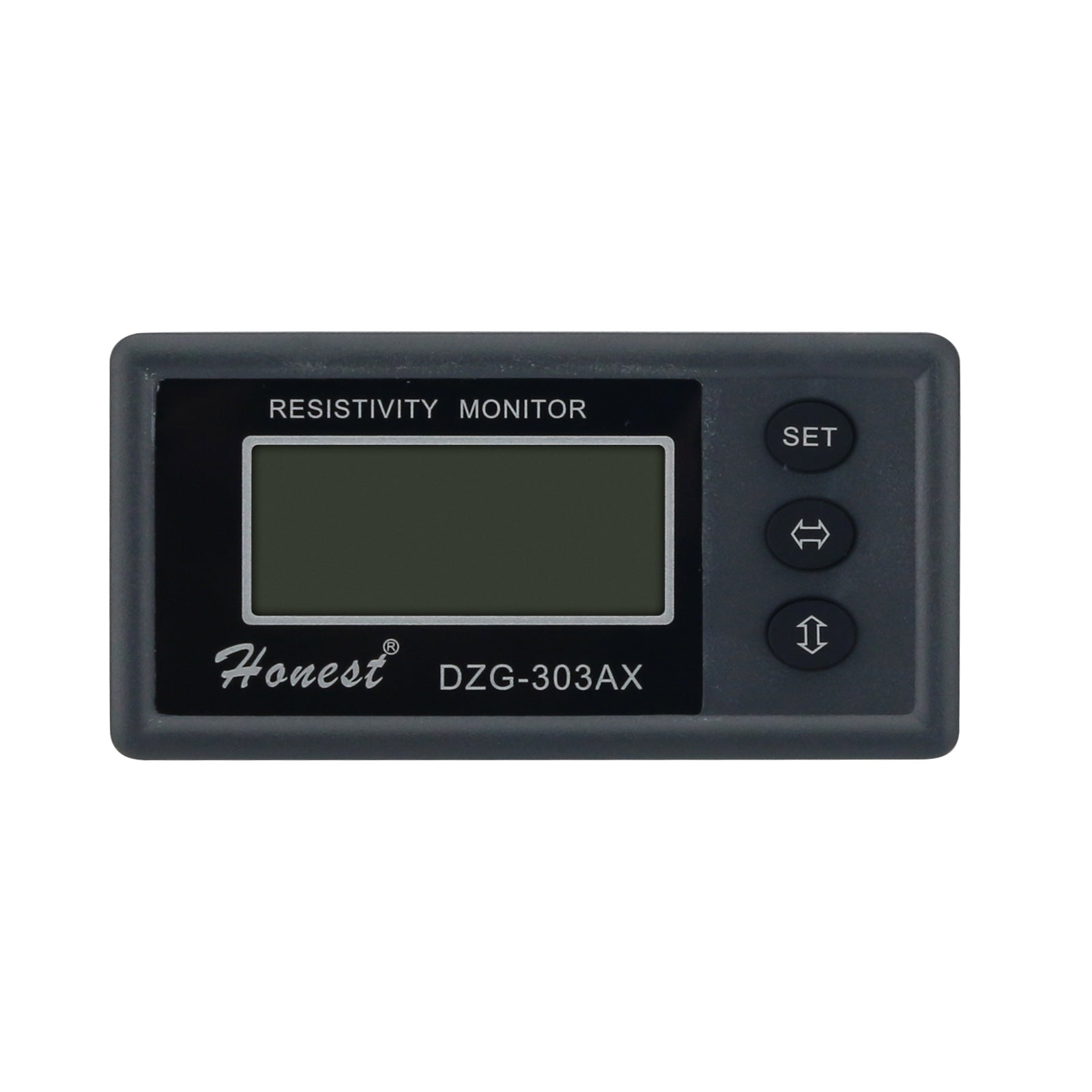

- Display mode: 0.56" LCD (with backlight) shows resistivity

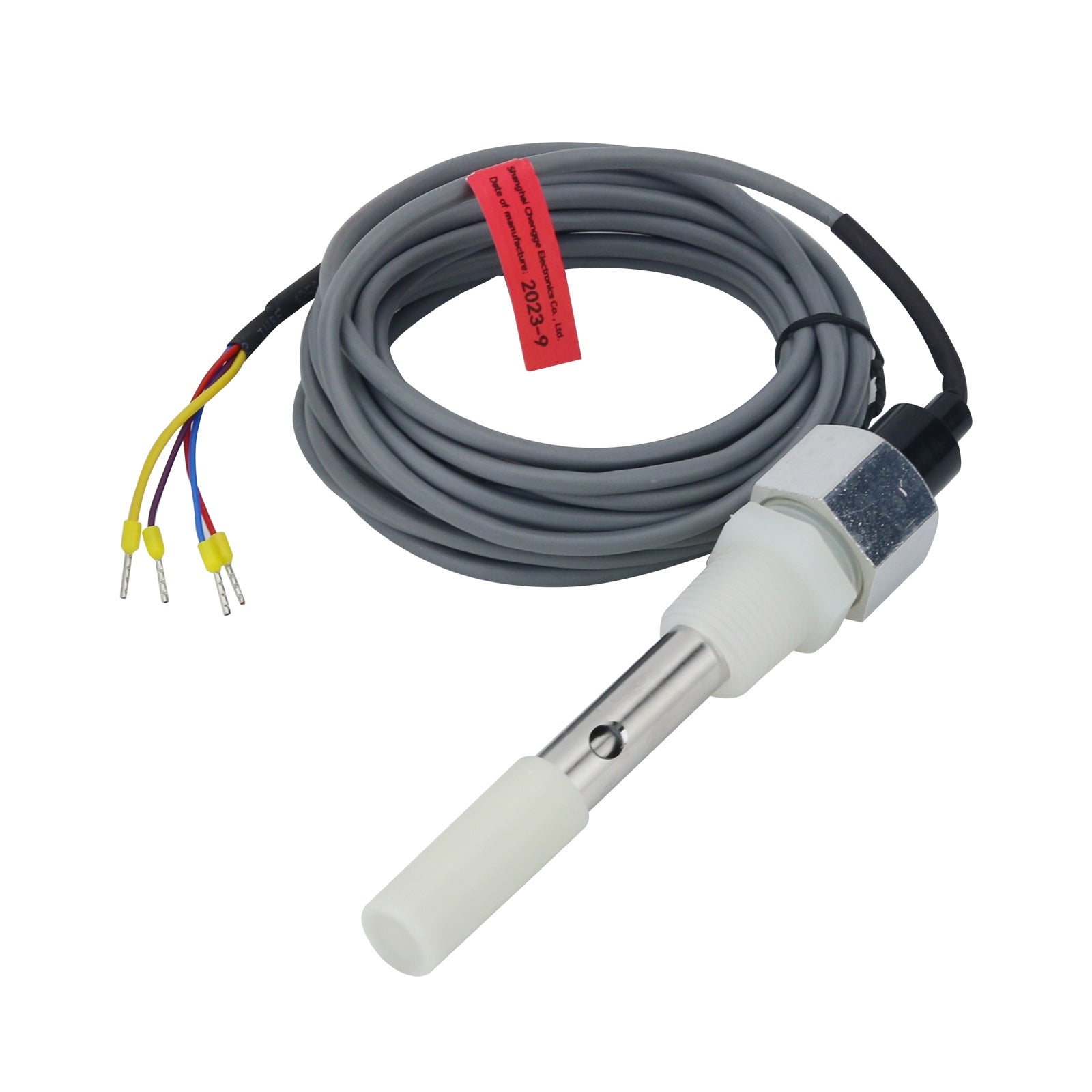

- Electrode configuration: 0.01cm-1 316L stainless steel electrode with a 5m/16.4ft cable. 0.01cm-1 electrode supports G 1/2 pipe threaded connection
- Optional signal output: 4~20mA current signal, maximum load 300Ω
- Product size: Panel size: 96 x 48mm/3.8 x 1.9"; hole spacing: 91 x 45mm/3.6 x 1.8"; depth: 100mm/3.9"
- Working conditions: Ambient temperature 0 °C ~ 50 °C; relative humidity≤ 90%
- Working power supply: AC220V± 10% 50Hz
- Product inspection basis: Q/TCDP03-2007

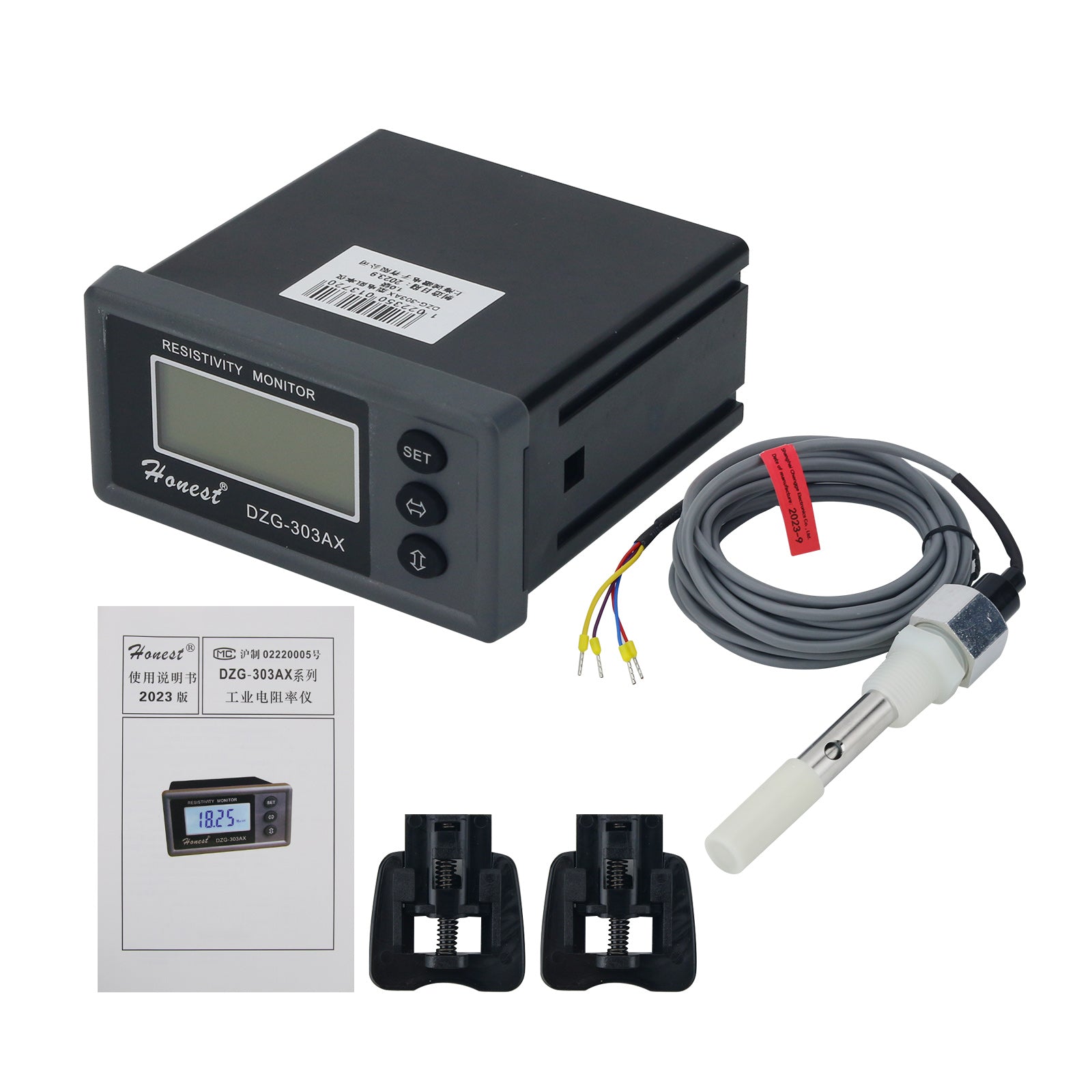

Package Included:
- 1 x Water Resistivity Meter
- 1 x Electrode
