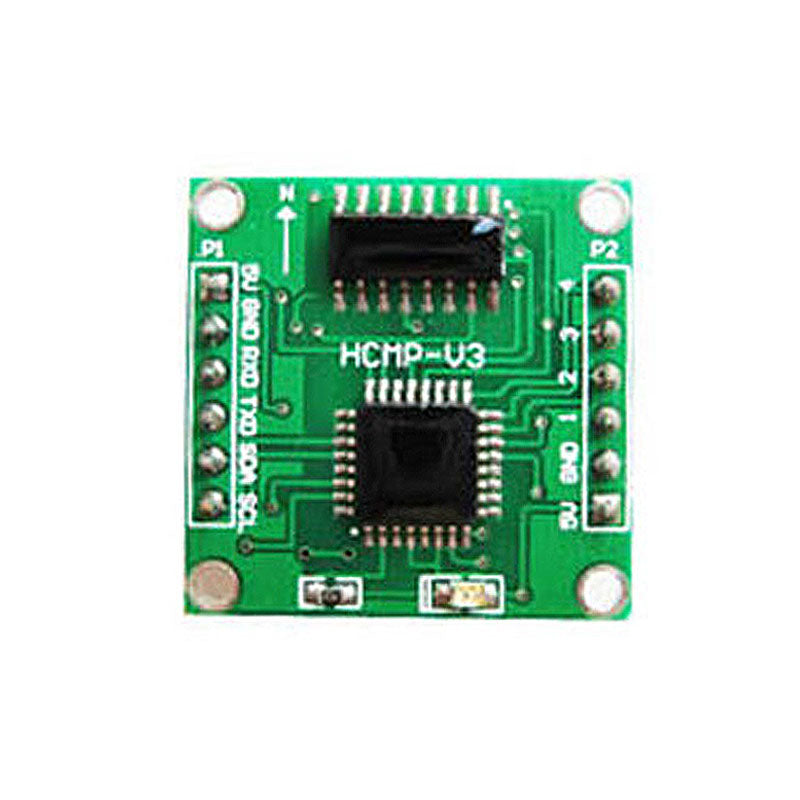

Electronic Compass Module Boat Compass For Instrument Robotic Navigation HCMP-V3

Electronic Compass Module Boat Compass For Instrument Robotic Navigation HCMP-V3

Description:
It is a high performance flat digital compass module. The magnetic component of the earth's magnetic field is sensed by a magnetoresistive sensor to obtain the azimuth angle.

The compass communicates with host computer in a 232 manner. High-grade filtering guarantees stable output, has a calibration function, and can set the relative angle function to adapt to different working environments.

Applications:
- Handheld instrumentation
- Robot navigation and positioning
- Autopilot for ship
- Antenna positioning
- Vehicle GPS navigation
- Ship model orientation
- Navigation system

Technical Parameters:
- Heading Measurement range: 0~359.9°
- Heading Resolution: 0.1°
- Accuracy: <0.5° RMS
- Response Frequency: 33 Hz
- Operating Voltage: 5.0 VDC
- Size: 26 * 26 mm

Package Included:
- 1 x Electronic Compass Module

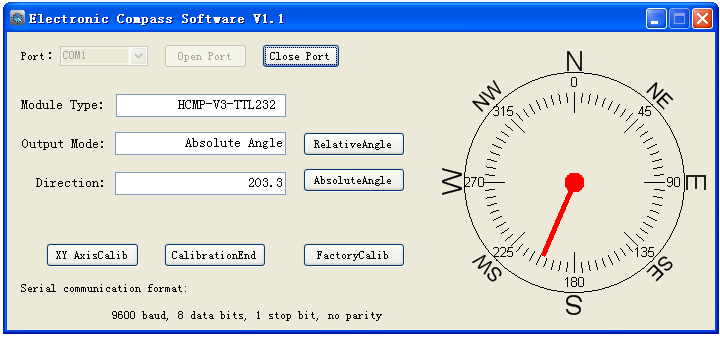

English Test Software:


Note: Please contact us to get test software and PDF instructions after purchasing. Thank you!
