ES9020 0-2000V 0.1uA-199.9uA Intelligent Lightning Protection Components Tester SPD Tester for Arresters and Surge Protectors

ES9020 0-2000V 0.1uA-199.9uA Intelligent Lightning Protection Components Tester SPD Tester for Arresters and Surge Protectors

Description:
- Intelligent lightning protection component tester, also known as lightning protection component tester, SPD field tester. It’s a Special instrument for performance testing of lightning arresters, surge protectors, varistors, cermet discharge tubes, and direct-air lightning arresters. The instrument adopts the charging function and is used offline to overcome the shortcomings of the traditional product to be plugged in and used inconvenient on-site operation, the voltage output 2000V application range is more extensive, the use of high voltage short circuit protection, automatic discharge function, the instrument is reliable, safe and durable. At the same time, it adopts luxurious large-color screen display, data storage, data review, qualified judgment, automatic shutdown, USB data upload and other functions. The machine is beautiful and high-grade, wide in range, high in resolution, convenient in operation, convenient to carry, accurate, reliable, stable in performance and strong in anti-interference ability.

- Moreover, it has anti-vibration, dust-proof and moisture-proof structure and adapts to the harsh working environment. It is an indispensable instrument for meteorological lightning protection, electric power, post and telecommunications, communication, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring performance parameters of various arresters and surge protectors.

- The intelligent lightning protection component tester consists of medium and large scale integrated circuits. The output power of this instrument is large, the initial operating voltage measurement range is 10-2000V, the leakage current measurement range is 0.1 ~ 199.9uA, the repeatability is good, and the one-button measurement is convenient and quick.

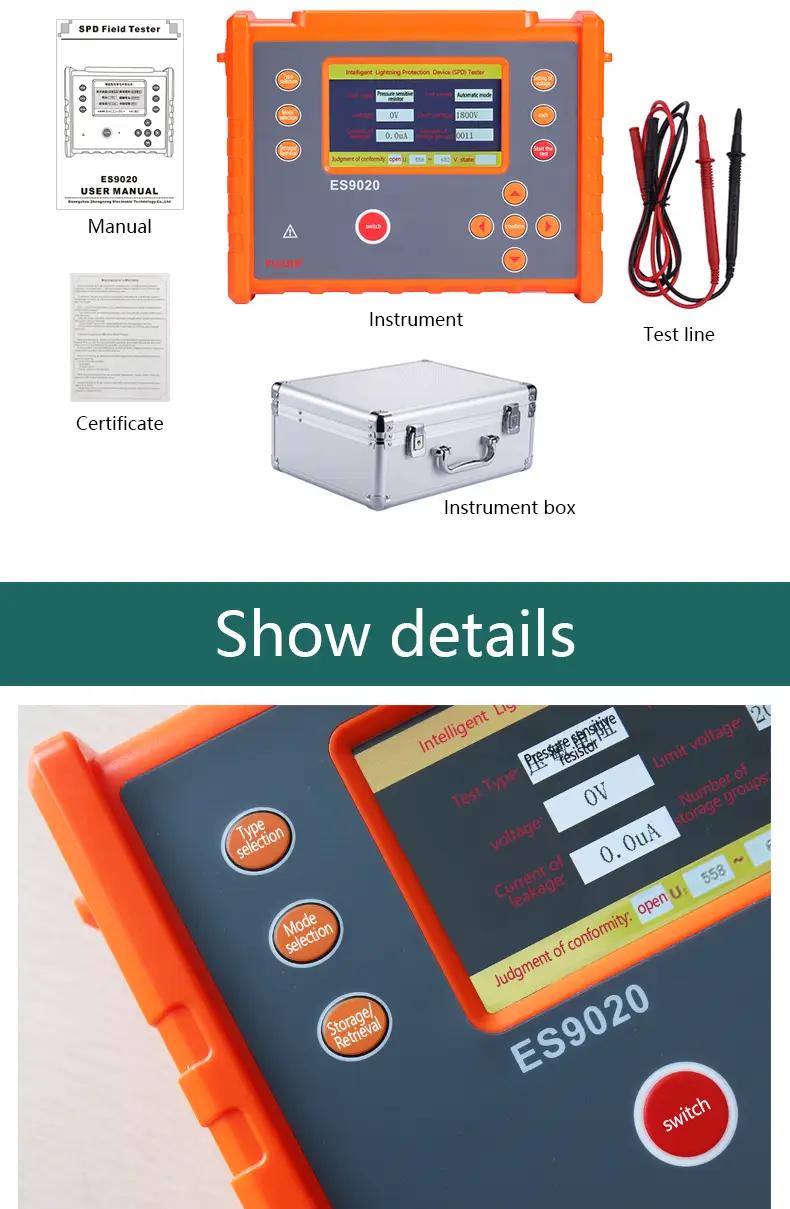

Package Included:
- 1 x Set of ES9020 SPD Tester
