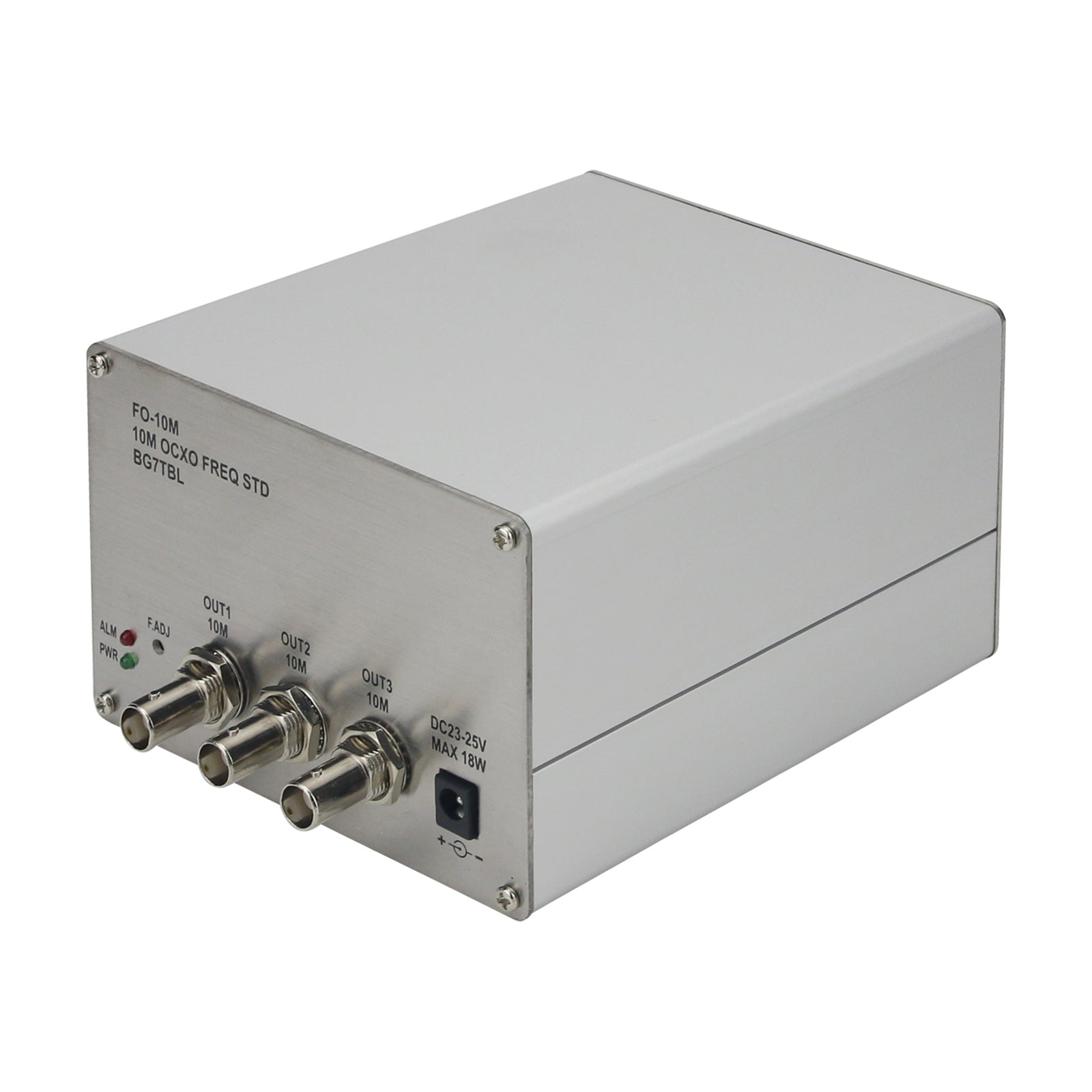

FO-10M OCXO Frequency Standard 10MHz Reference Stable Operation Using 10811 OCXO For HP/Agilent

FO-10M OCXO Frequency Standard 10MHz Reference Stable Operation Using 10811 OCXO For HP/Agilent

Specifications:
- Model: FO-10M
- Item name: 10M OCXO frequency reference
- Large high-quality 10811 OCXO for HP/AGILENT with low noise, stable operation
- Power supply: DC23-25V, ≤18W
- 10M waveform, amplitude: Sine wave, amplitude 12dBm+/-2dB
- Frequency adjustment range: about 10Hz
- Output interface: Power supply 5.5/2.1 socket; Signal output, BNC port
- Indicator lights:
* ALM: Alarm indicator. When frequency is not stable enough, the light is on.
* PWR: Power indicator light. The light is on when it is powered on.
- Dimensions: 120*83*160mm (W*H*D) (including front connectors)

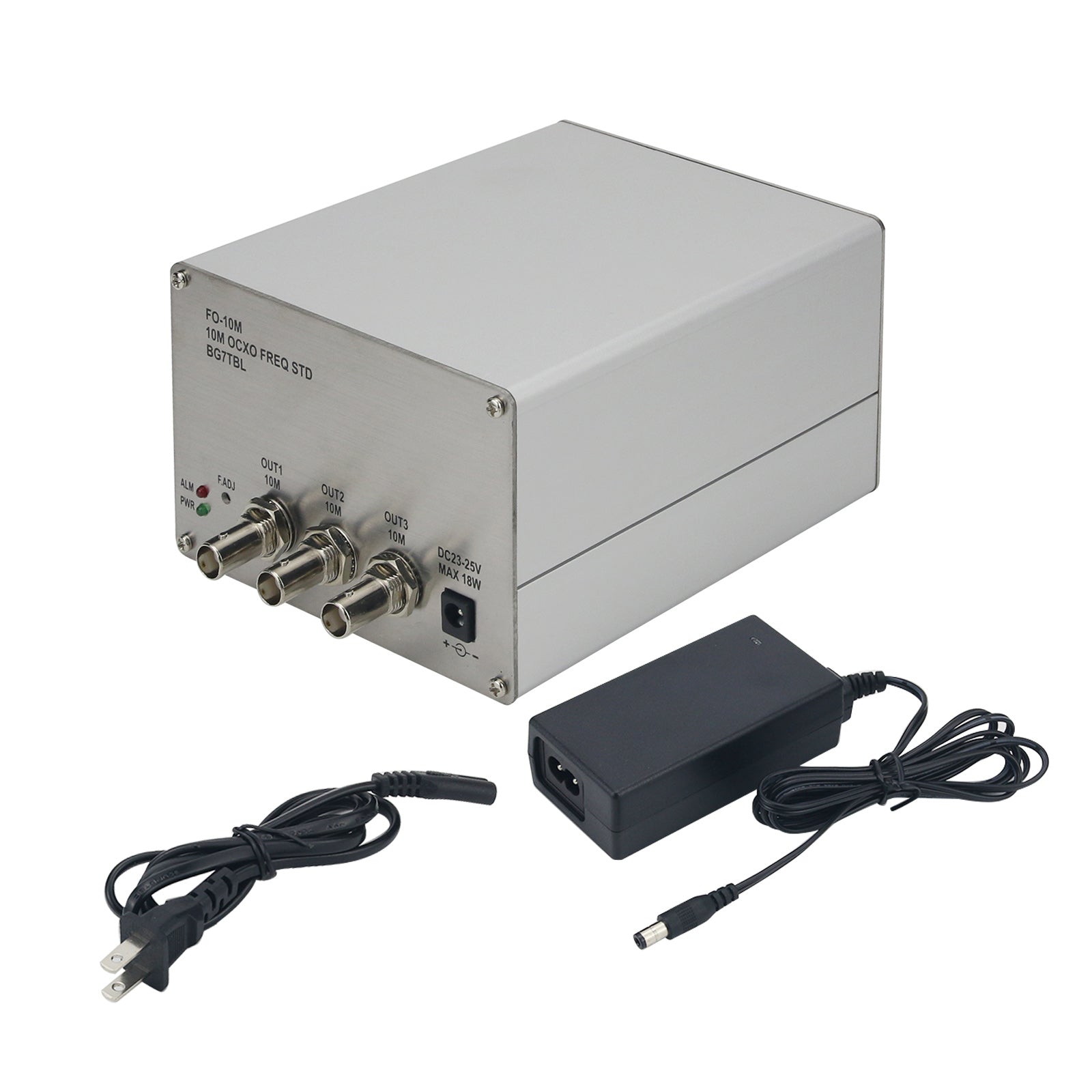

Package Included:
- 1 x Set of Frequency Standard
