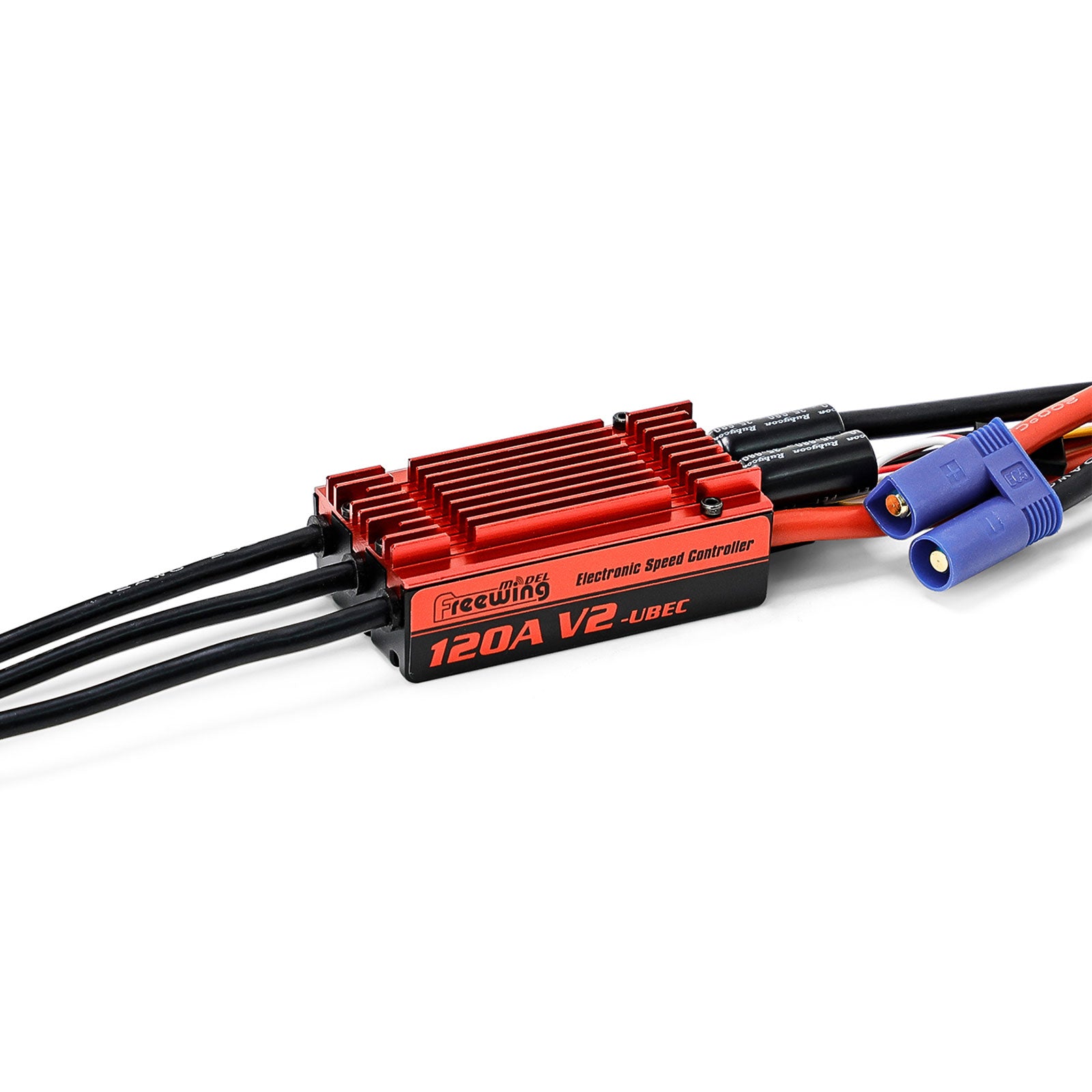

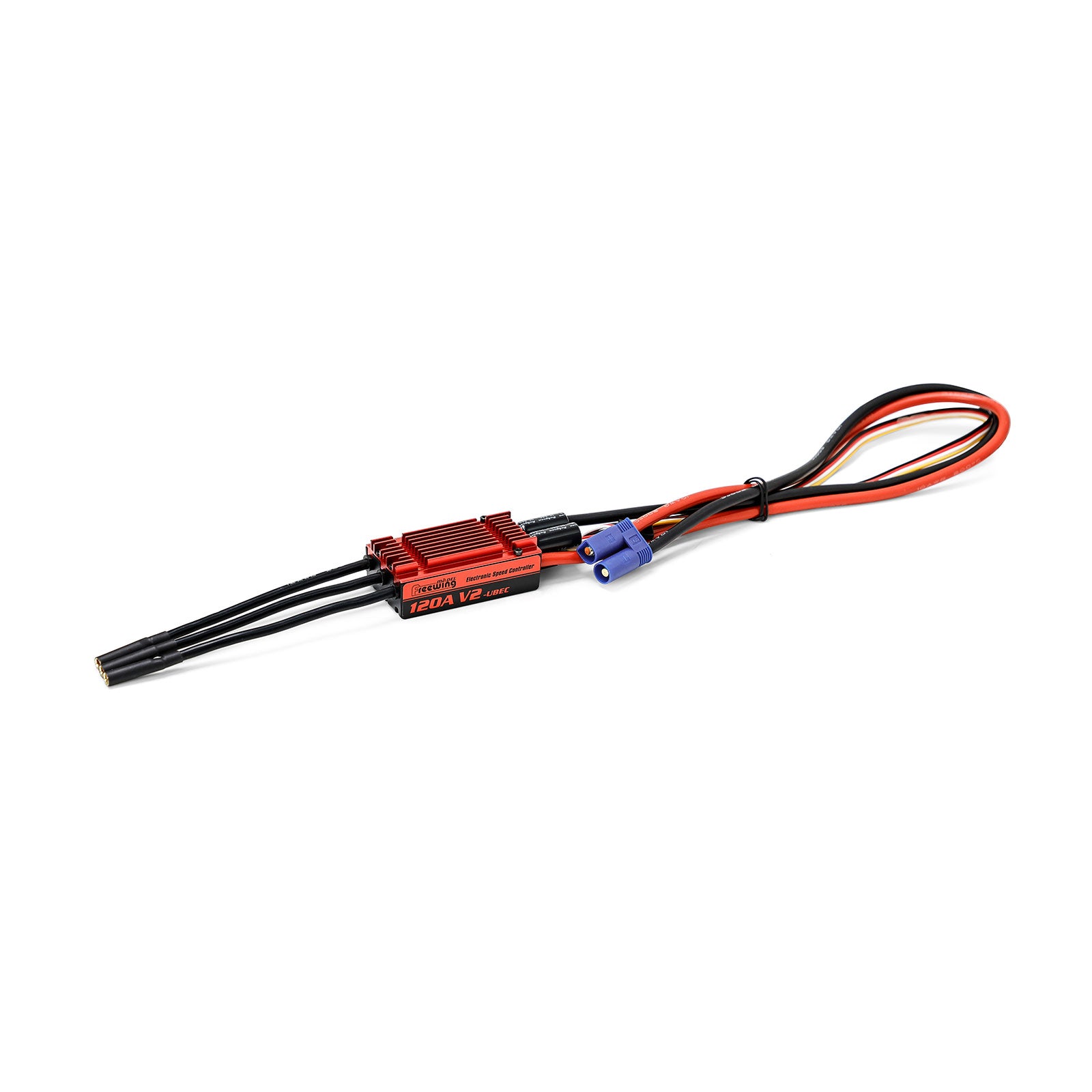

Freewing 120A V2 ESC Brushless Electric Speed Control 3-8S Input Support Reverse Brake Function Racing Drone Accessory

Freewing 120A V2 ESC Brushless Electric Speed Control 3-8S Input Support Reverse Brake Function Racing Drone Accessory

Specification:
- ESC: 120A
- Input voltage: 3 - 8S
- Using plug: EC5
- BEC output: BEC 5V/6V/7.4V/8.4V at 10A
- Reverse brake function: support
- Product size: 85 x 35 x 22mm
- Weight: about 117g

Package Included:
- 1 x ESC

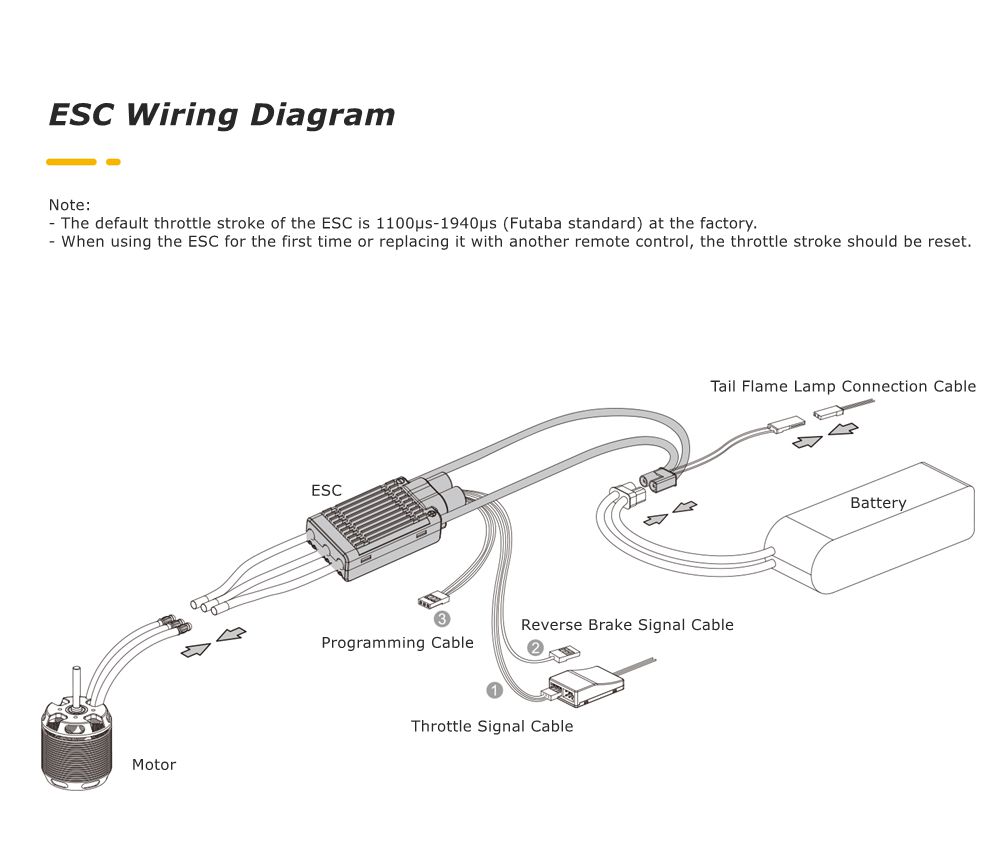

Signal Cable Description:
- Throttle signal cable (white, red, black): insert the receiver throttle channel or flight control throttle channel, where the white line is used to transmit throttle signals, and the red and black lines are the output lines of BEC.
- Reverse brake signal cable (yellow): when using the reverse brake, the signal line must be connected to other idle channels of the remote control to control the opening and closing of the reverse brake function.
- Programming cable (yellow): connect the LED programming box for parameter settings.
- Tail flame lamp connection cable: connect the LED tail flame control board.
