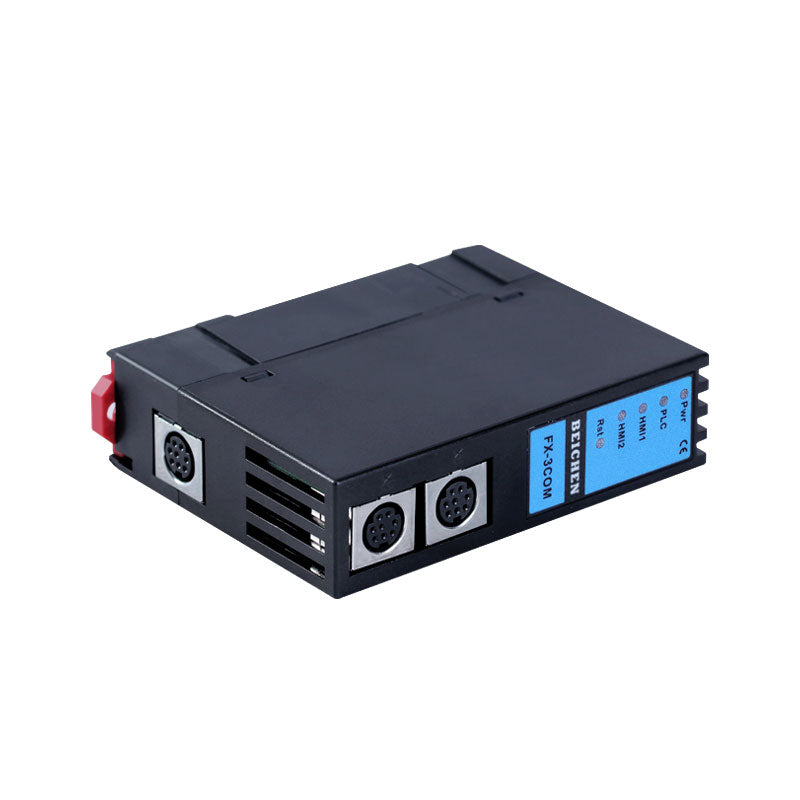

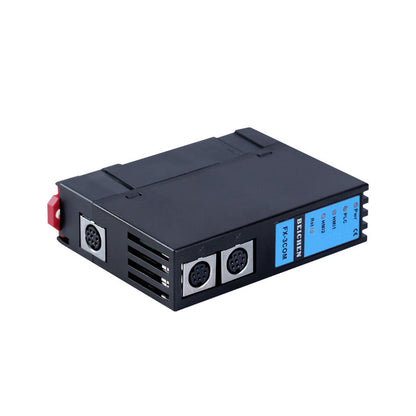

FX-3COM Ethernet Module PLC One to Three Round Port Module for Mitsubishi FX Series Programming FX3U/FX3G/FX3S

FX-3COM Ethernet Module PLC One to Three Round Port Module for Mitsubishi FX Series Programming FX3U/FX3G/FX3S

Description:
- FX-3COM can expand one RS422 programming port for Mitsubishi FX3U/FX3G/FX3S to three RS422 programming ports, which can be used for touch screen and upper computer communication.

Specification:

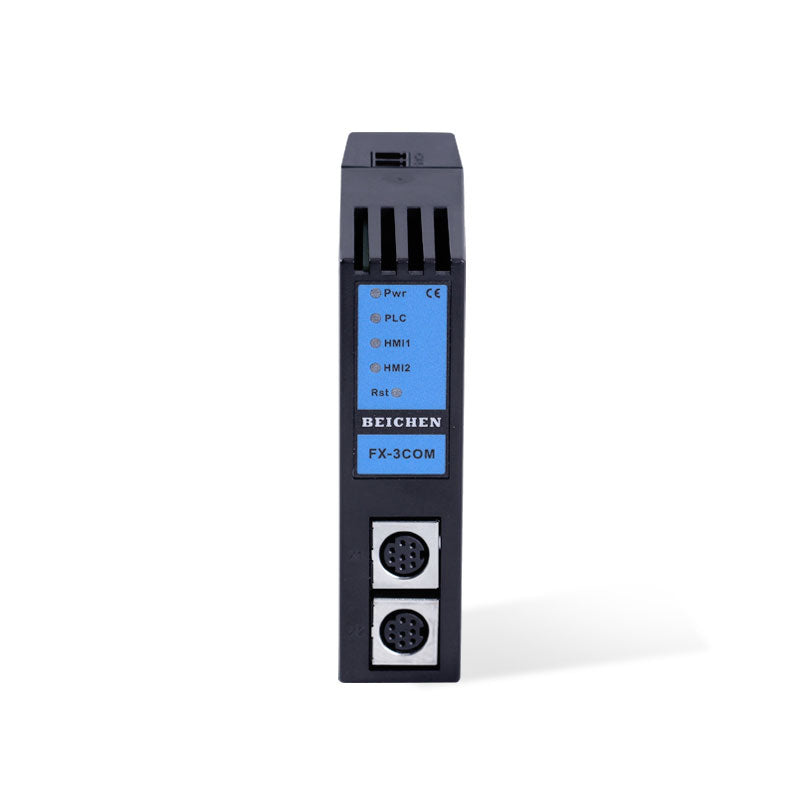

- Status display: Pwr, PLC, HMI1, HMI2 (Round Port)
- Programming software: for GX Works2
- Configuration software: for MCGS, for KingView, for FORCECON, etc.
- OPC software: for KepWare OPC (programming port protocol)
- Power supply: communication port or external 24VDC
- Voltage type: 24VDC/100mA
- Working temperature: 0 ~ 60℃
- Working humidity: 90% (non-condensing)
- Installation method: 35mm guide rail
- Size: 90 x 24 x 65mm
- Weight: 120g

X1 Interface (for PLC): RS422
- Interface type: MD8 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 115.2Kbps
- Supported protocol: FX programming port

X2 Interface (for HMI): RS422
- Interface type: MD8 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocol: FX programming port

X3 Interface (for HMI): RS422
- Interface type: MD8 Communication Female
- Transmission speed rate: 9.6K, 19.2K, 38.4K, 57.6K, 115.2Kbps
- Supported protocol: FX programming port

Package Included:
- 1 x Ethernet Module
- 1 x 0.6m Communication Cable
