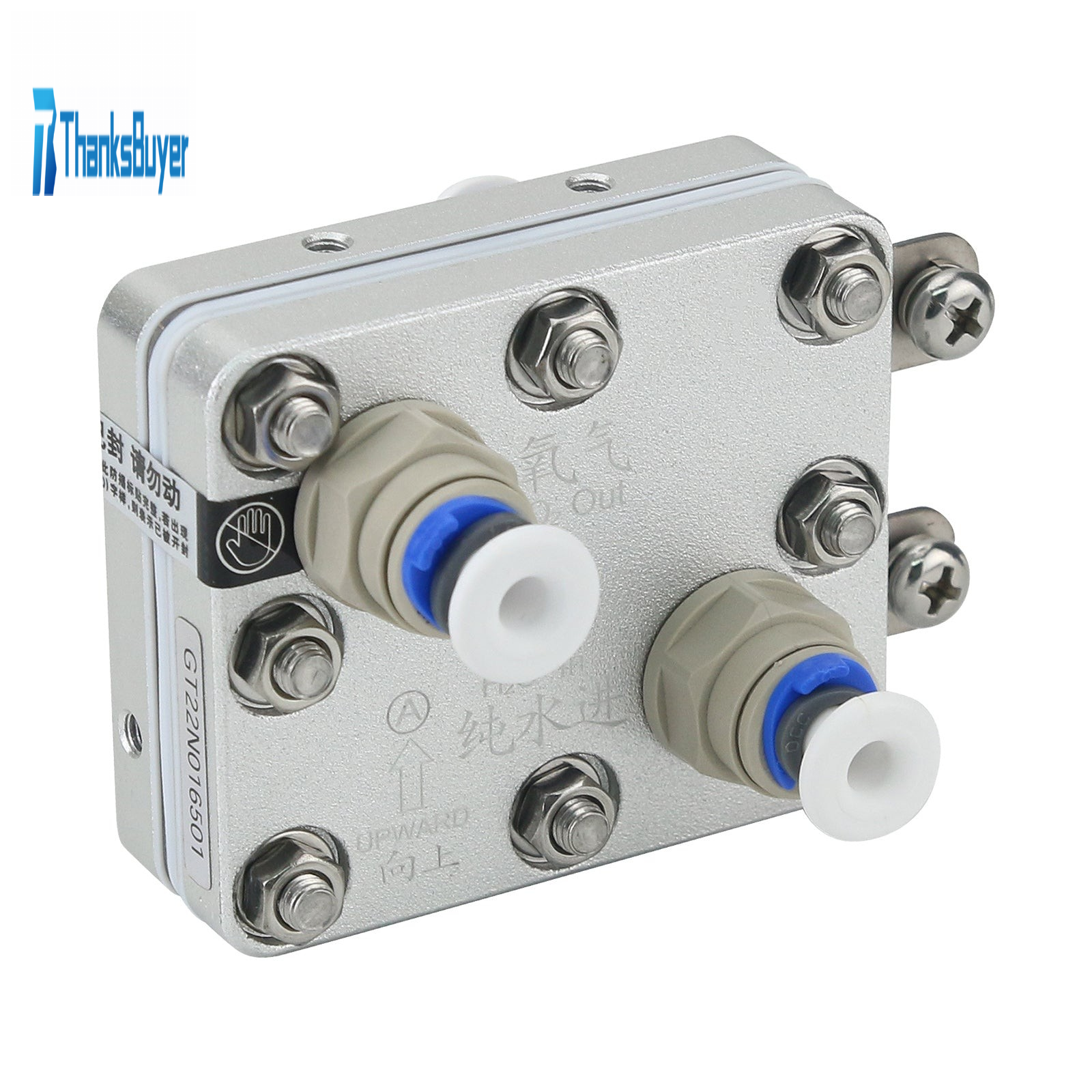

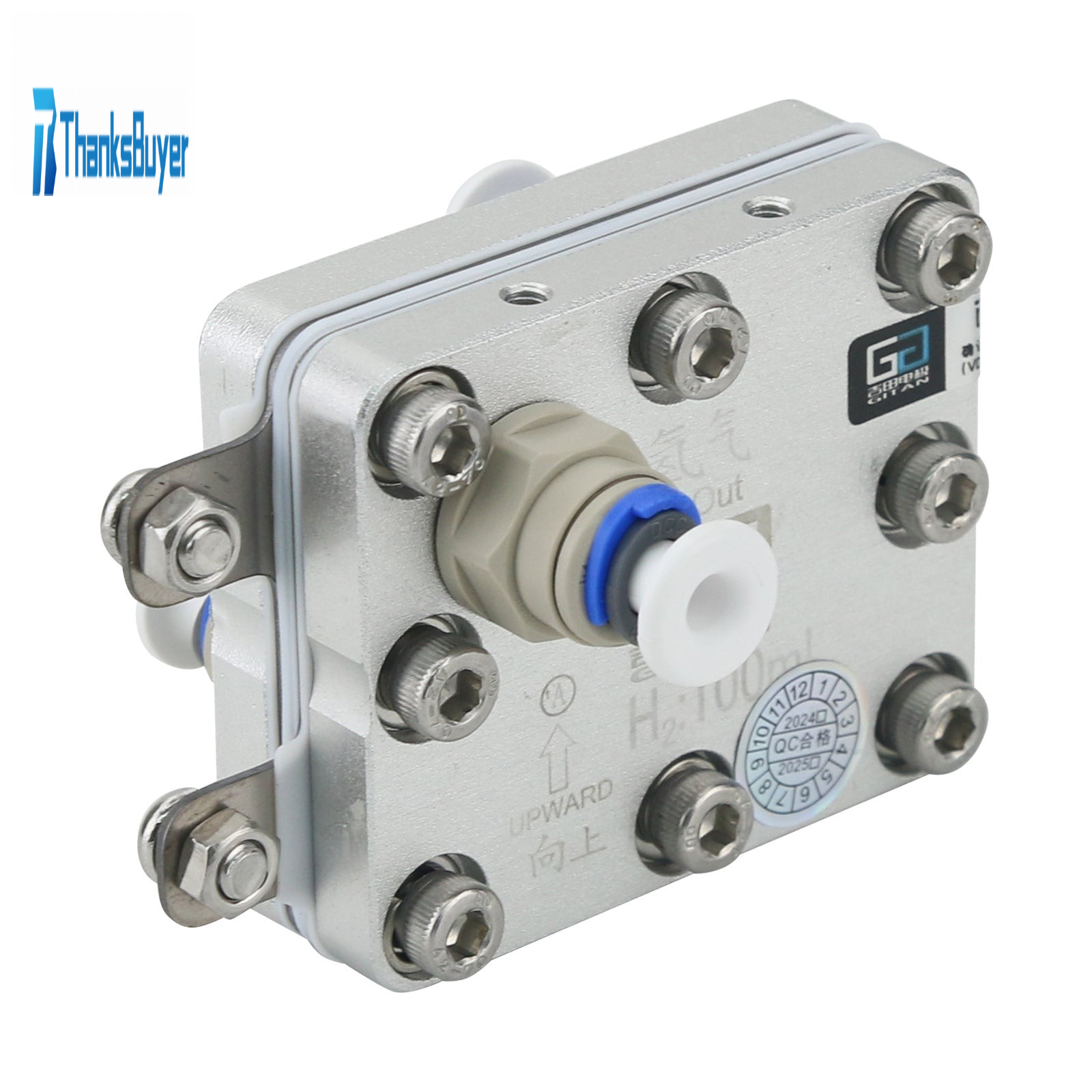

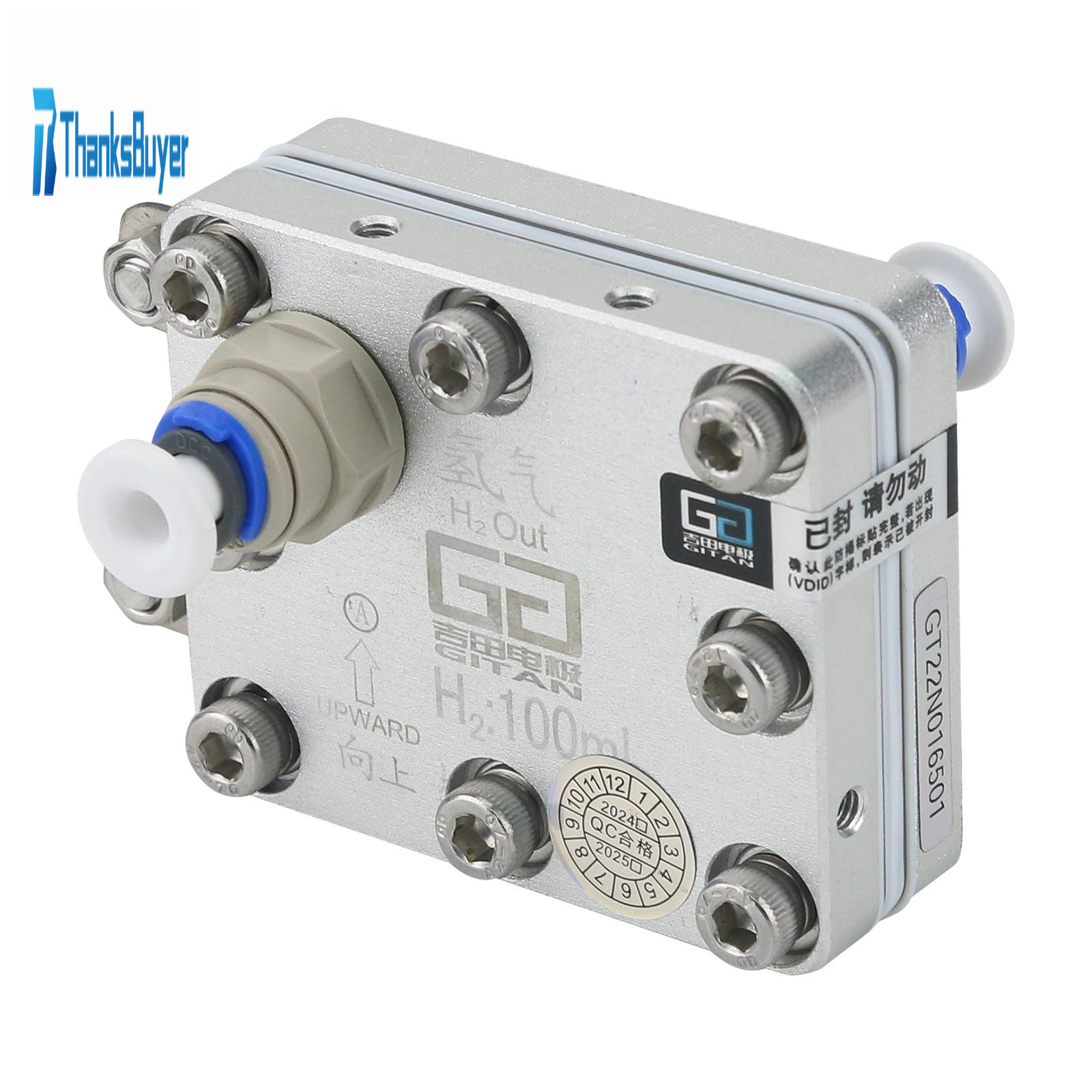

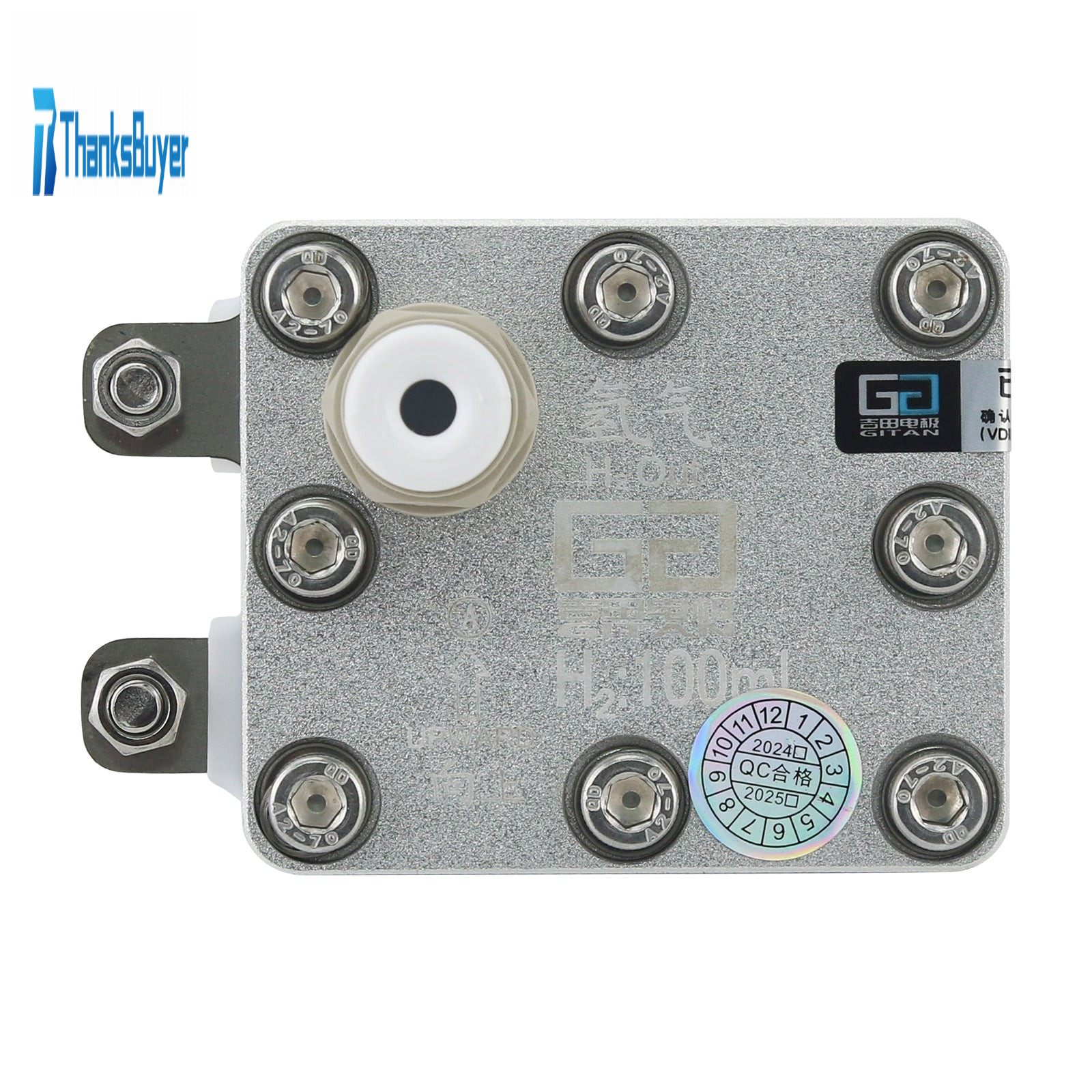

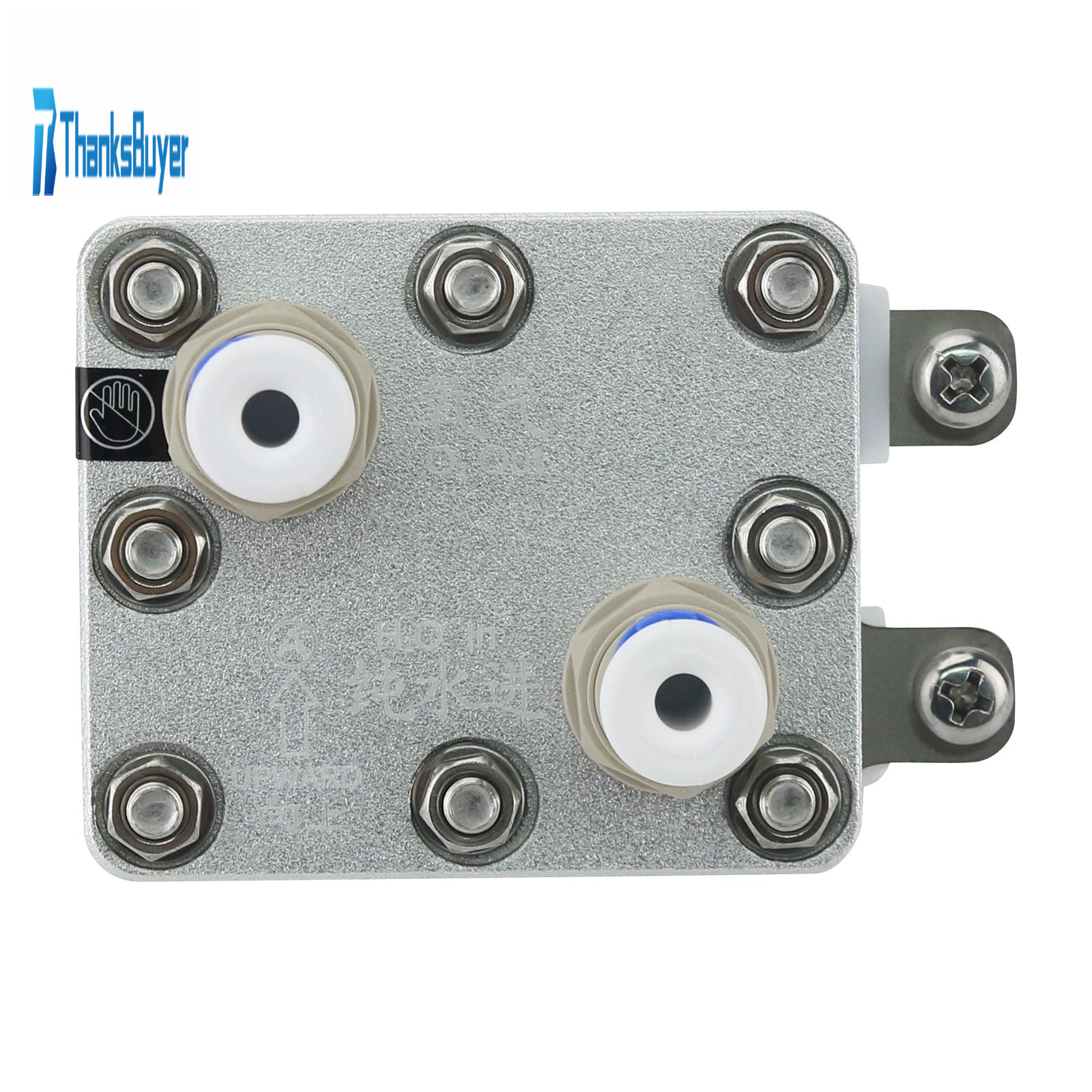

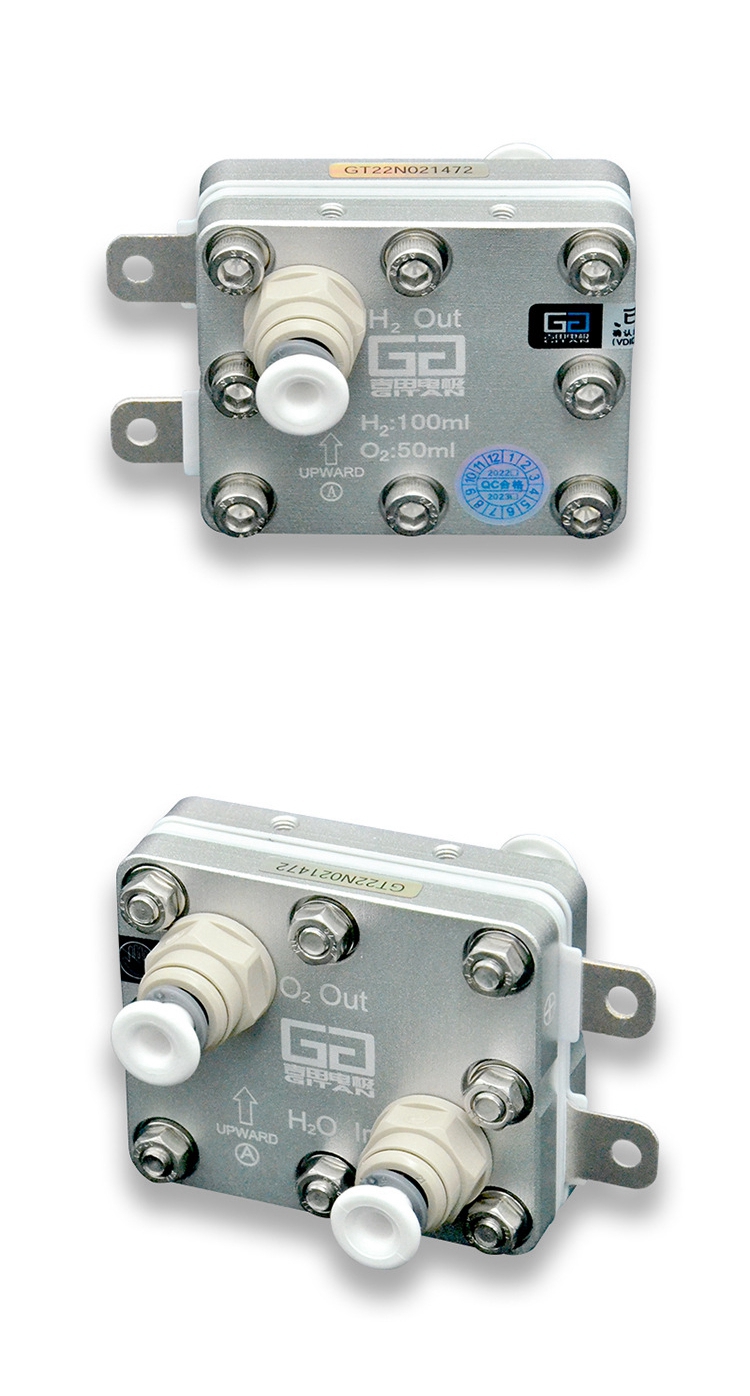

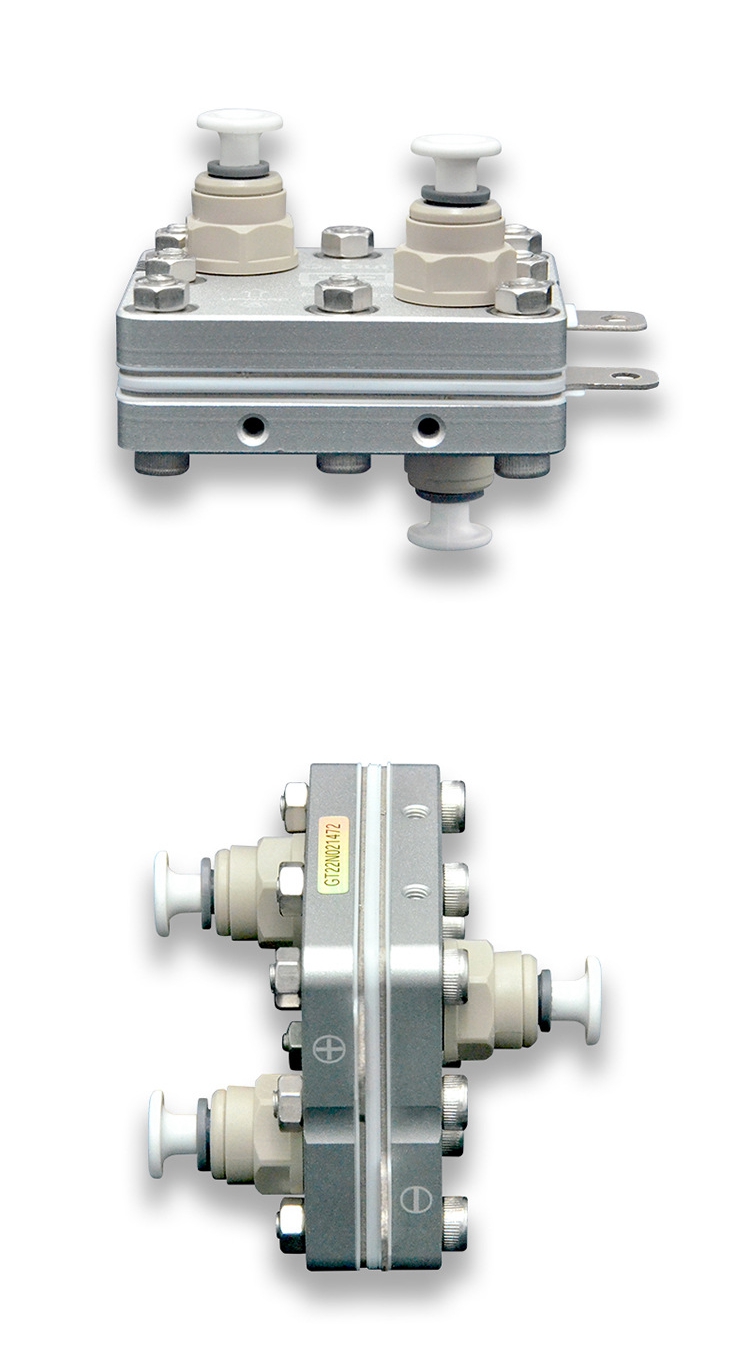

GT-A100 100ML Electrolytic Cell Module PEM Hydrogen Generator for Pure Water and Distilled Water

Specification:
- Model: GT-A060
- Hydrogen yield: 100 ± 5ml/min
- Working medium: pure water or distilled water, TDS < 5ppm
- Input water pressure: <0.2MPa
- Output pressure: 1.0MPa
- Water supply: water tank - module cycle between the water supply, water level difference needs to be more than 15cm
- Product size: 81.5 x 52 x 57mm
- Mounting hole size: 2 x M4
- Inlet and outlet diameter: 1/4 inch quick connector
- Power supply type: constant current power supply
- Input voltage: DC3.5 - 5V
- Input Current: 13 - 15A
- Surface temperature: <60℃
- Suggested hydrogen water flow rate: 900 - 1200ml/min

Package Included:
- 1 x Hydrogen Generator
