Horizontal HF Dipole Antenna Ant Band 7MHz 40m Waterproof

Horizontal HF Dipole Antenna Ant Band 7MHz 40m Waterproof

Features:
1. Fully waterproof design, it can be used in the field for portable use.
2. It can be equipped with 2-3 pairs of vibrators for multi-band use at the same time.

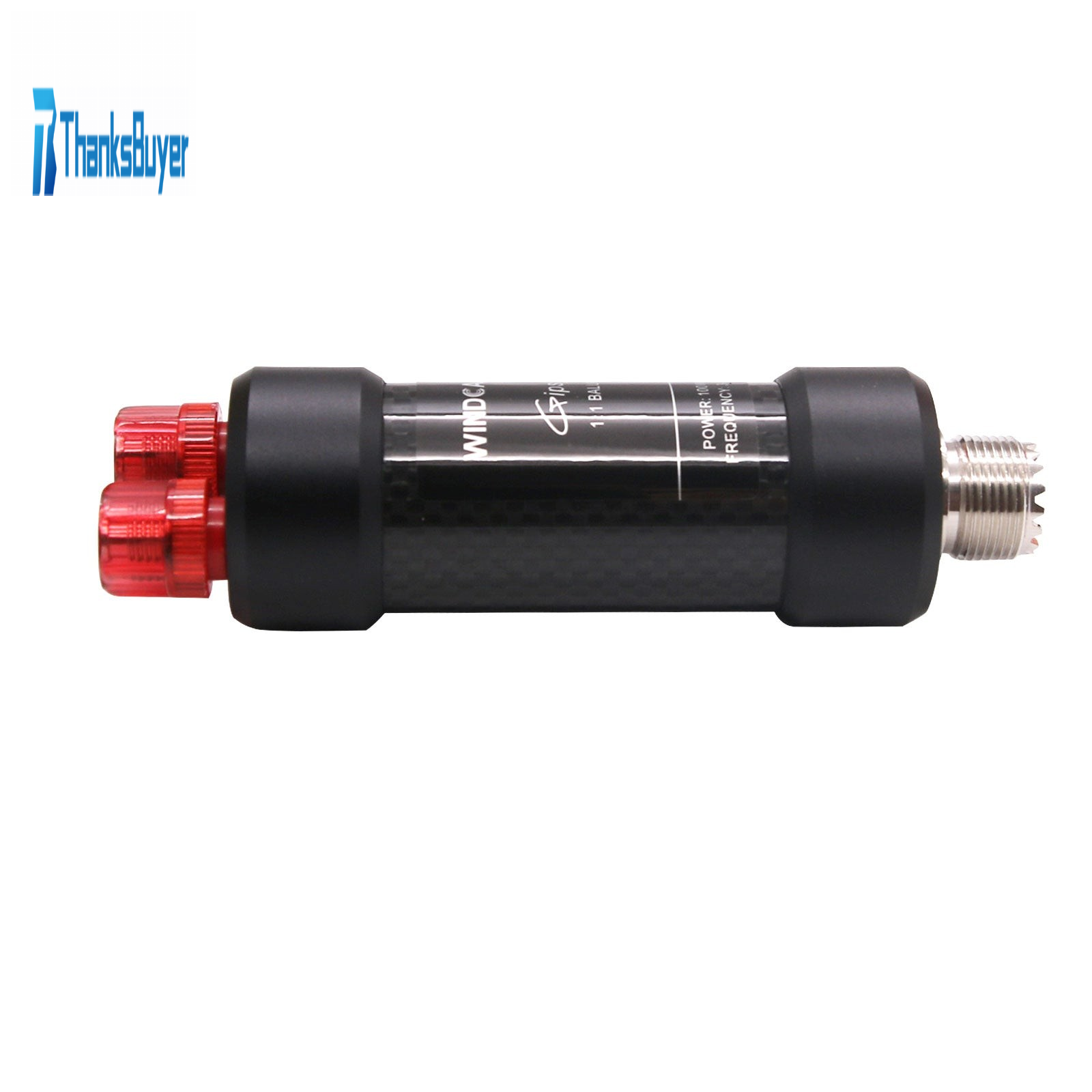

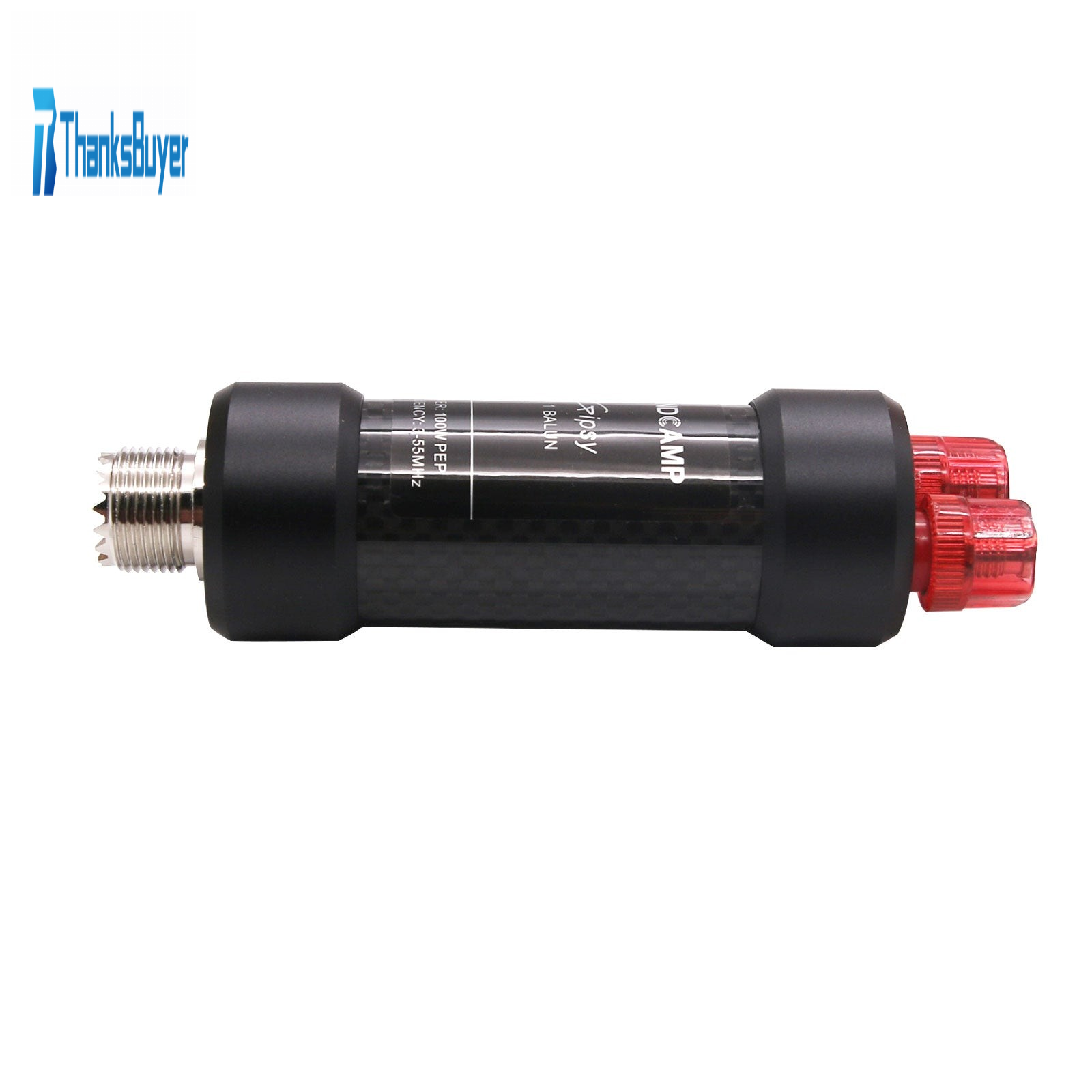

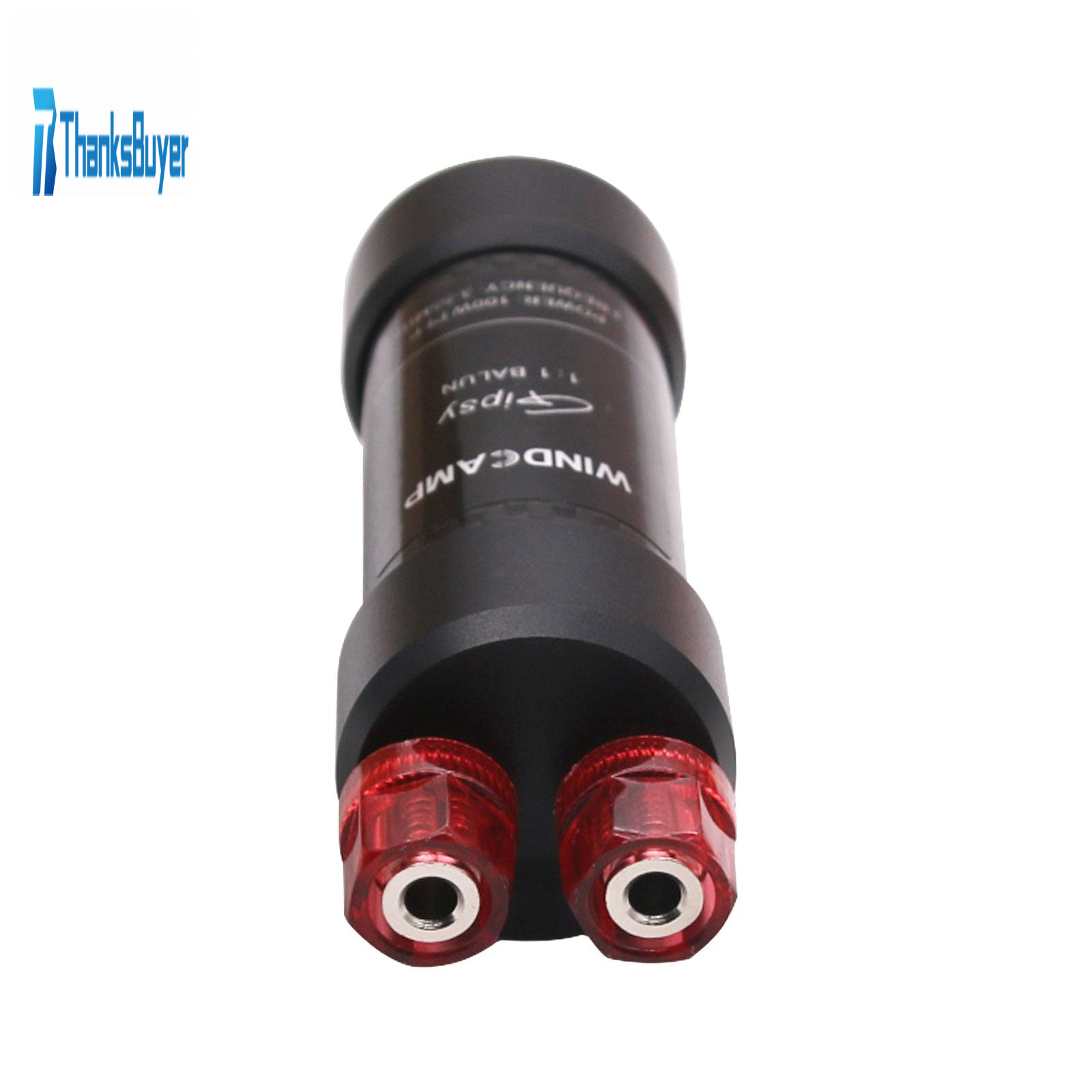

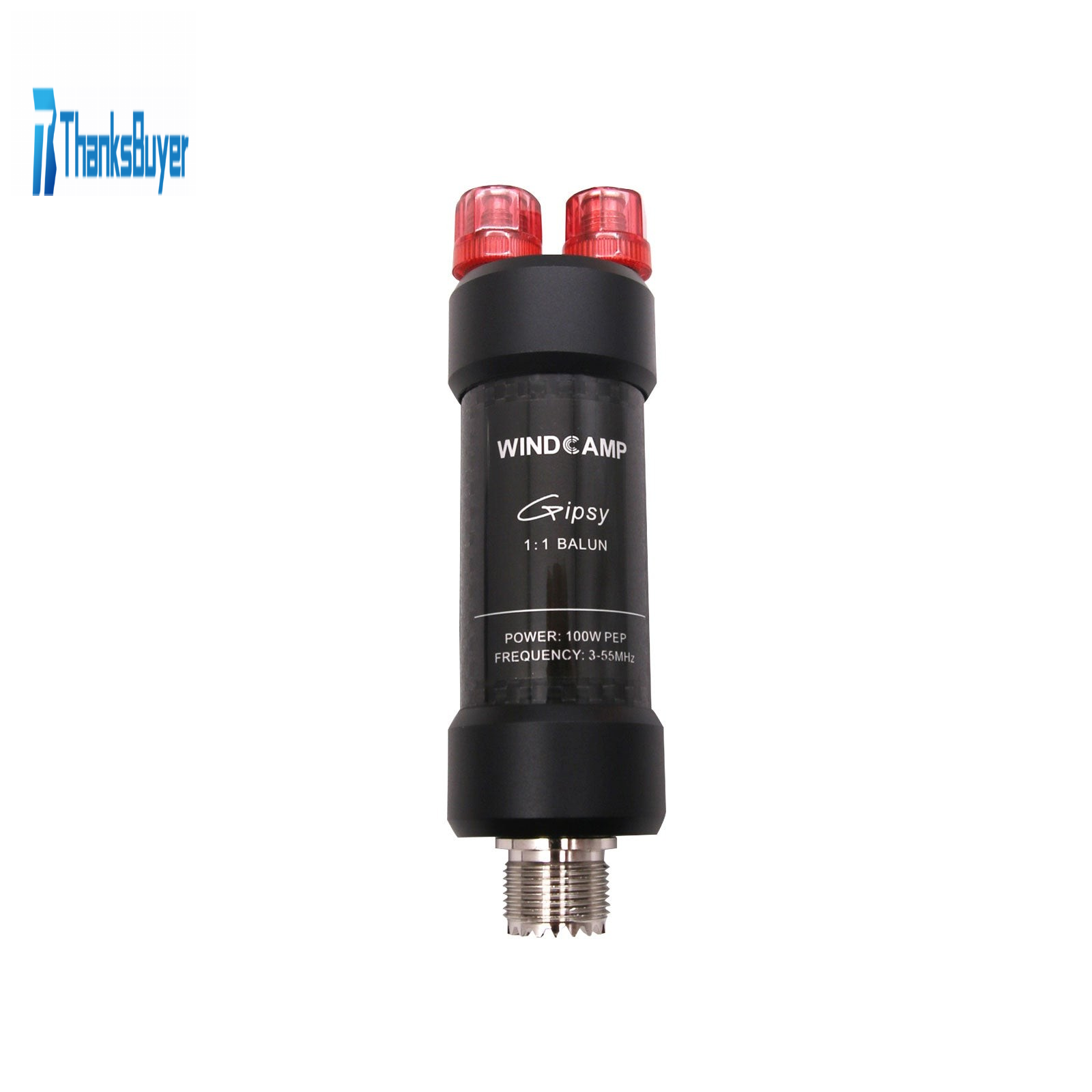

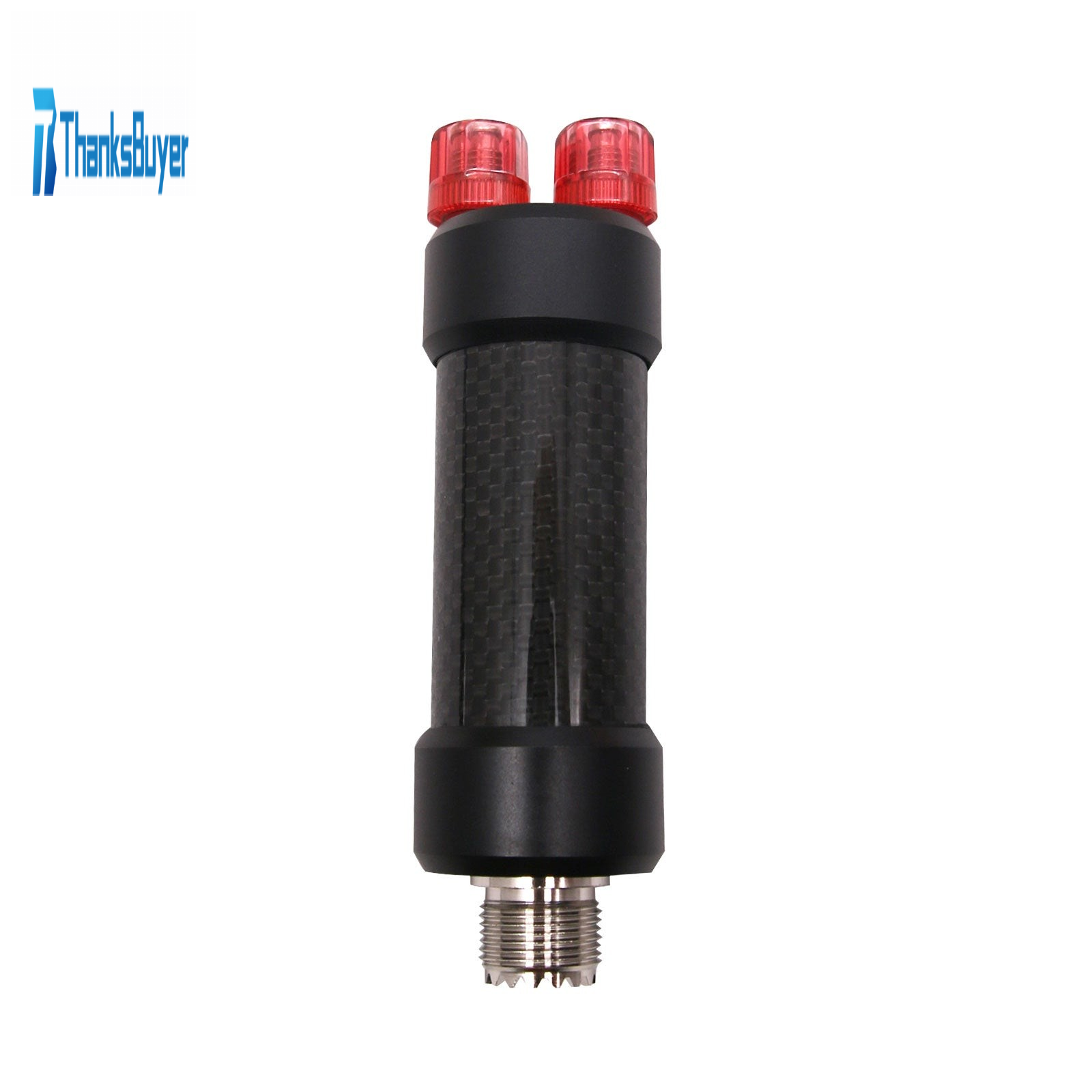

3. Carbon fiber balun structural parts and CNC aluminum alloy parts are used.
4. The original vibrator line fast adjuster greatly facilitates the fine adjustment of the frequency resonance point under extreme conditions.

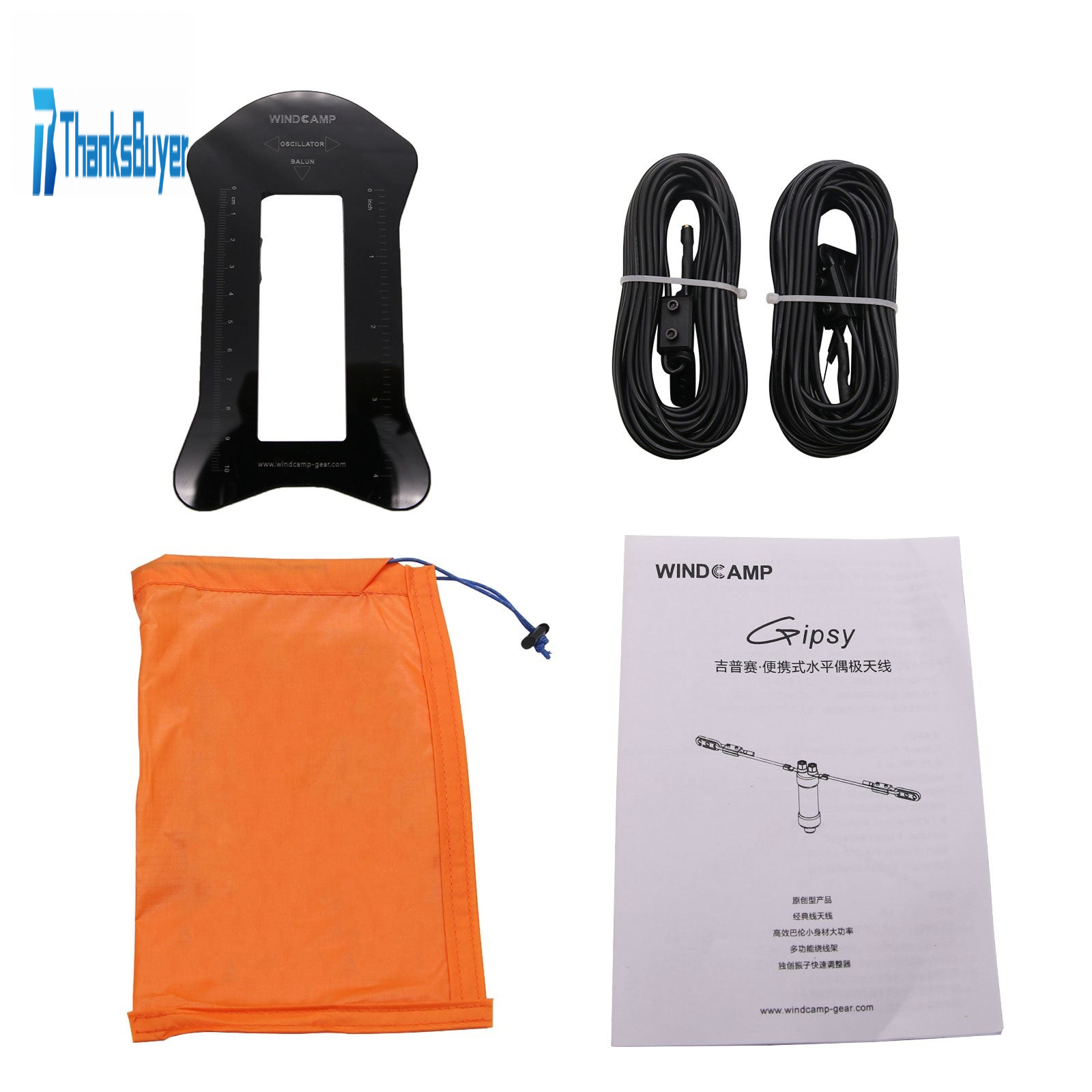

5. Incorporate outdoor concept design, multi-functional winder and storage bag.
6. Classic full-size horizontal dipole antenna, not sacrificing bandwidth and gain for portability.

Product Details:
- Band: 40m (7MHz)
- SWR: ≤1.5
- Impedance: 50Ohm
- Power: 100W PEP

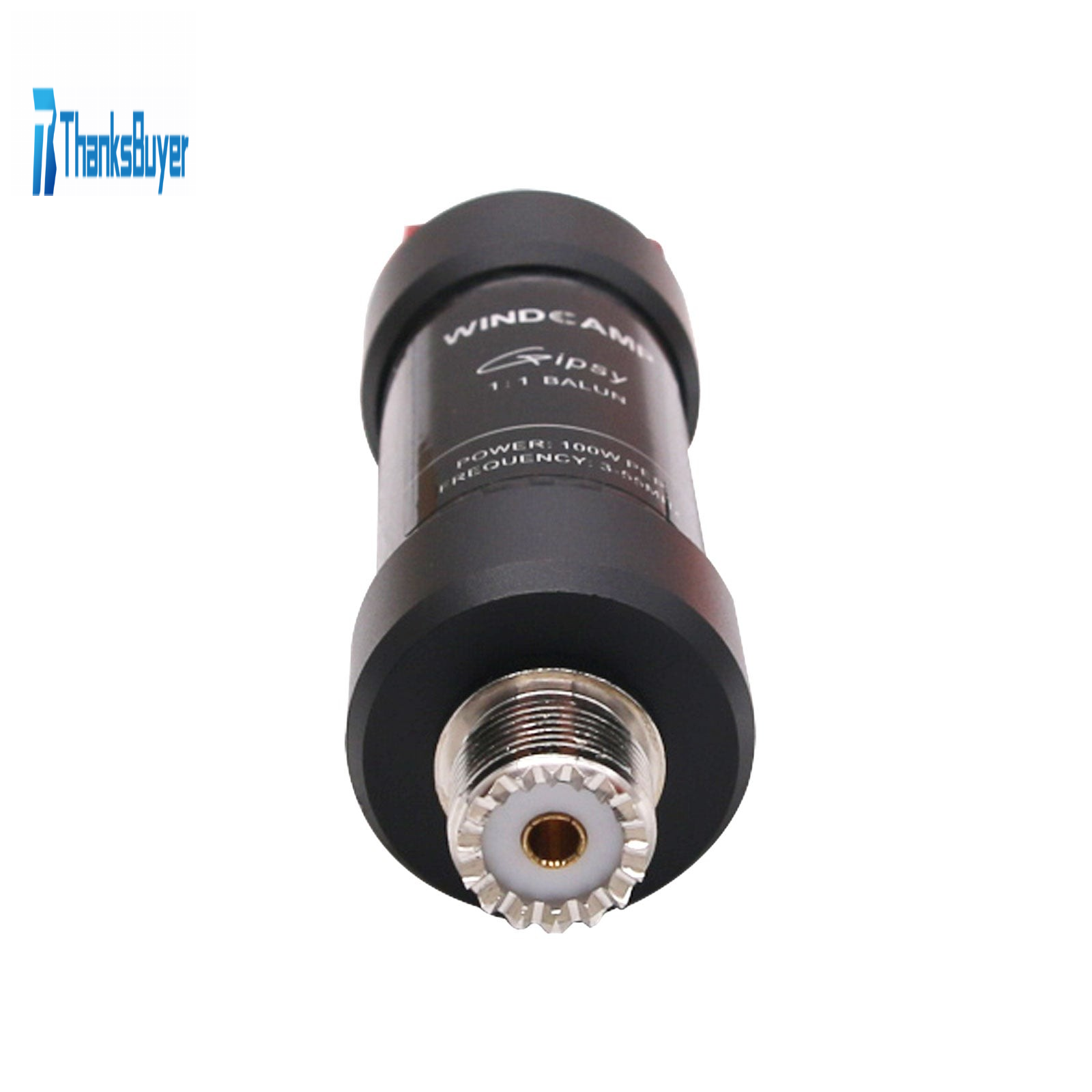

- Outlet: SL-16
- Irradiator: AWG16
- Balun: 1:1
- Package Size: 190×120×50(mm)
- Weight: 0.42Kg

Note: If you need other bands: 20m(14MHz)/15m(21MHz)/10m(28-29MHz) , please contact us for prices. Thank you!

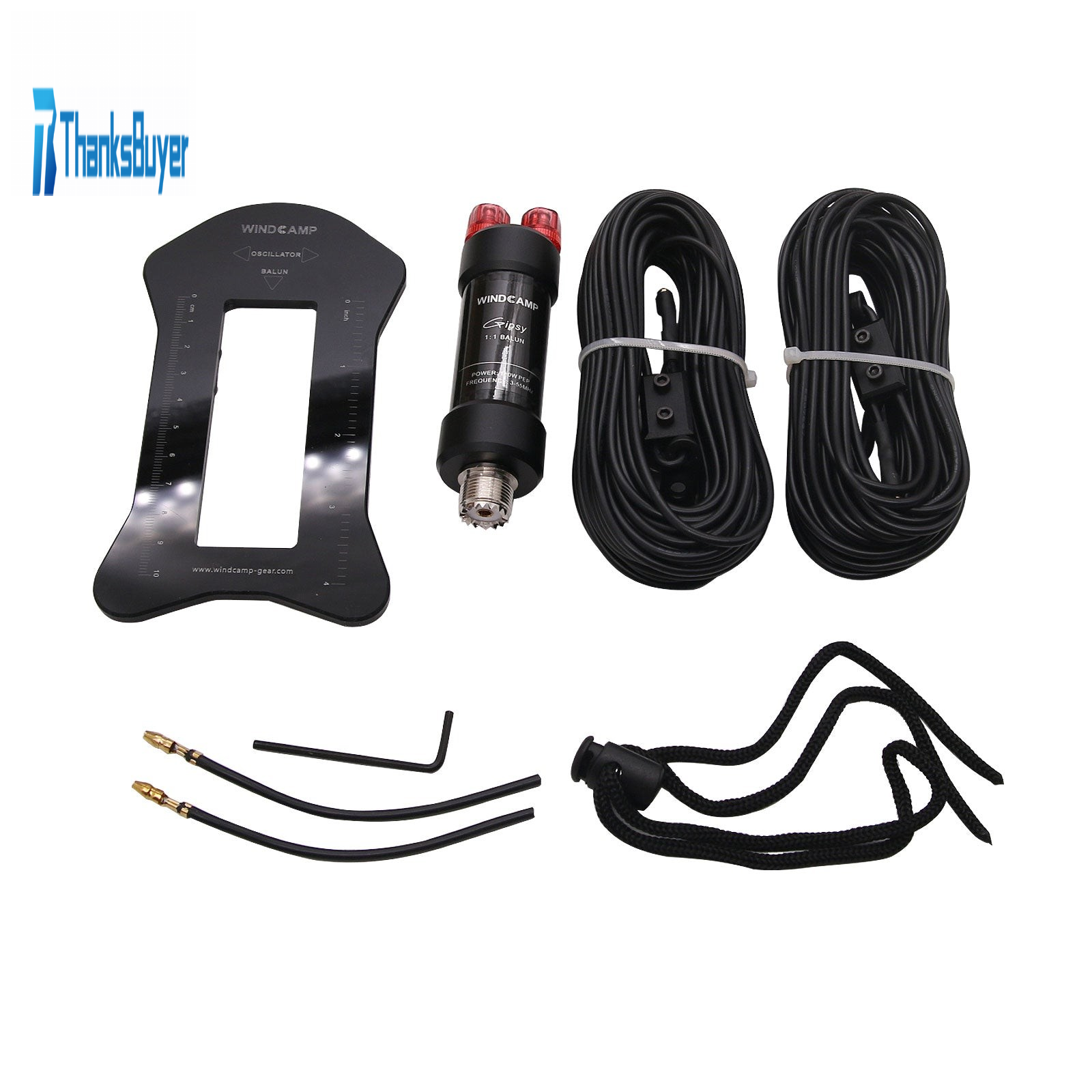

Package Included:
