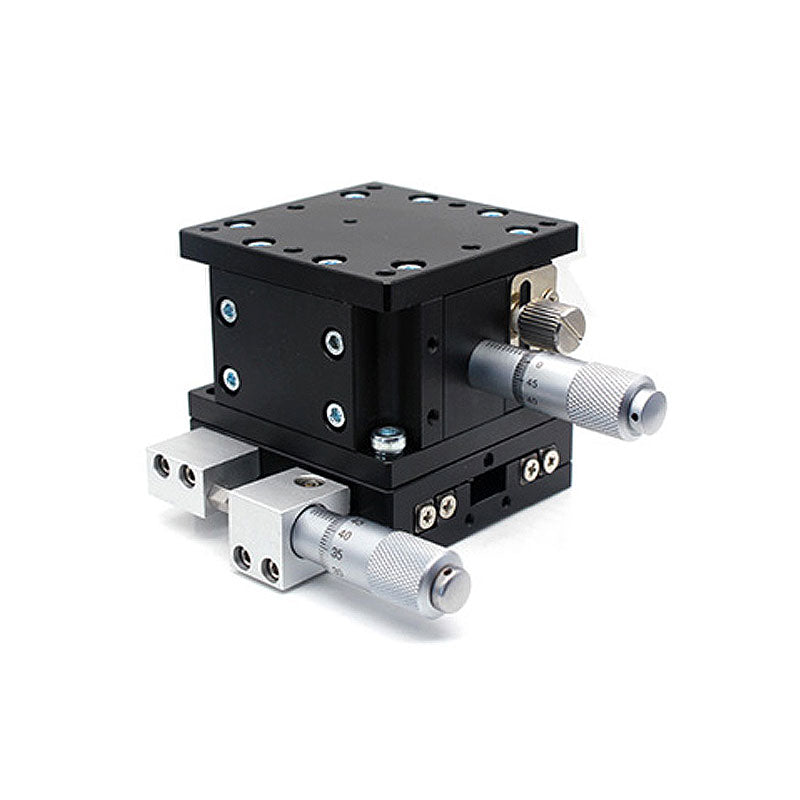

LE125-L-2 125x125MM/4.9x4.9" XZ Axis Sliding Table Precise Optical Lifting Platform Dual Guide Rail

LE125-L-2 125x125MM/4.9x4.9" XZ Axis Sliding Table Precise Optical Lifting Platform Dual Guide Rail

Features:
- XZ axis optical lifting platform
- Made from high quality materials
- Stable performance and easy installation
- Working table top: The aluminum alloy body is lightweight and corrosion-resistant
- Limit and locking screw: made of stainless steel, it is anti-rust and can used in a complex environment
- Guide rail: Ball-bearing and rail enables high-precision and smooth movement
- Micrometer: quality alloy micrometer with clear scale which is wear-resistant
- Applications: electronics, home appliances, automobiles, medical, smart phones, semiconductors, etc.

Specifications:
- Model: LE125-L-2
- Table top: 125x125mm/4.9x4.9"
- Travel: X axis ±12.5mm/0.5"; Z axis 20mm/0.8"
- Load capacity: 147N (15kgf)
- Minimum scale: 0.01mm/0.0004"
- Accuracy: 0.04mm/0.002"
- Parallelism: 0.04mm/0.002"
- Weight: 3.38kg/7.5lb

Package Included:
- 1 x Lifting Platform
