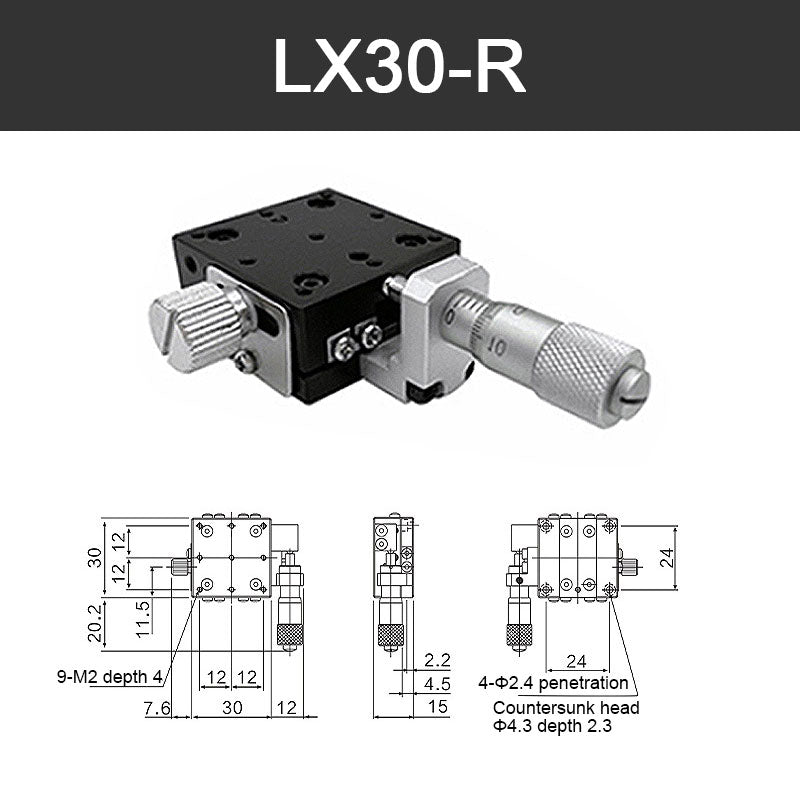

LX30-R 30x30MM/1.2x1.2" X-Axis Sliding Stage Fine-Tuning Manual Sliding Table Right Handed Micrometer

LX30-R 30x30MM/1.2x1.2" X-Axis Sliding Stage Fine-Tuning Manual Sliding Table Right Handed Micrometer

Features:
- Micrometer: Laser engraving. Min. scale 0.01mm/0.0004"
- Threaded holes: The top with threaded hole makes it easy to install; 40-50 (M3) and 60-125 (M4)
- Countersunk holes: Bottom with countersunk holes for easy installation; 40-50 (M3) and 60-125 (M4)
- Guide rail: Crossed roller guides are used to realize high-precision and smooth movement
- Quantitative movement: Rotating the platform can achieve precise adjustment of the angle. After turning the platform to the approximate position, it is fixed with rough and fine switching screws, and then fine-tuned using side micrometer
- Application: Applied to industries including electronics, home appliances, automobiles, medical, smart phones, and semiconductors

Specifications:
- Travel: ±3mm/±0.1"
- Table top size: 30x30mm/1.2x1.2"
- Table top thickness: 15mm/0.6"
- Load: 14.7N (1.5kgf)
- Body material: aluminum alloy
- Minimum scale: 0.01mm/0.0004"
- Accuracy: 0.01mm/0.0004"
- Parallelism: 0.02mm/0.0008"
- Weight: 0.06kg/0.1lb

Package Included:
- 1 x Sliding Table
