MACH3 USB 4 Axis TB6560 Stepper Motor Driver Board with MPG USB Port+USB Cable+CD

MACH3 USB 4 Axis TB6560 Stepper Motor Driver Board with MPG USB Port+USB Cable+CD

Product Details:
- Motor type: Stepper Motor
- Model Number: TB6560

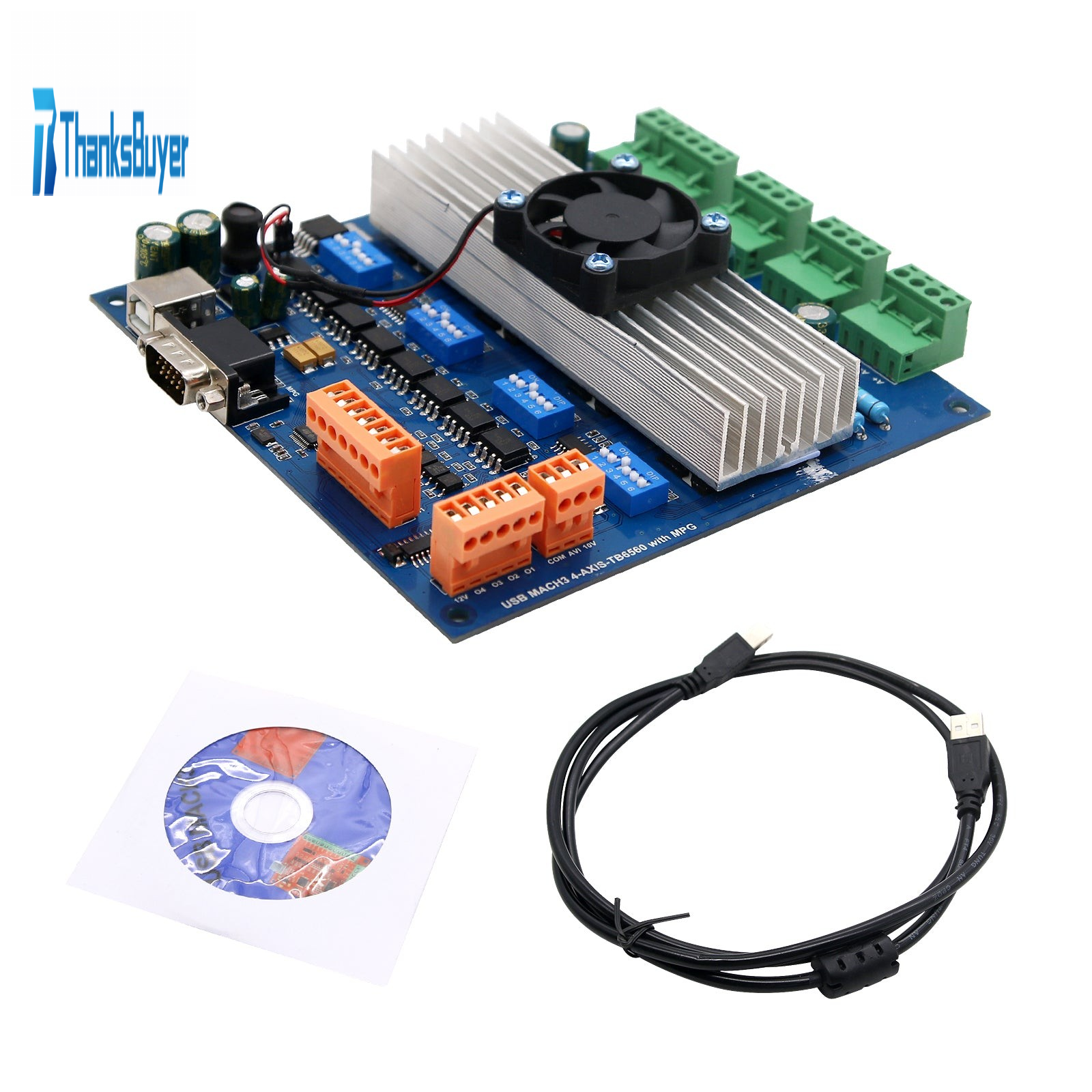

Package Included:

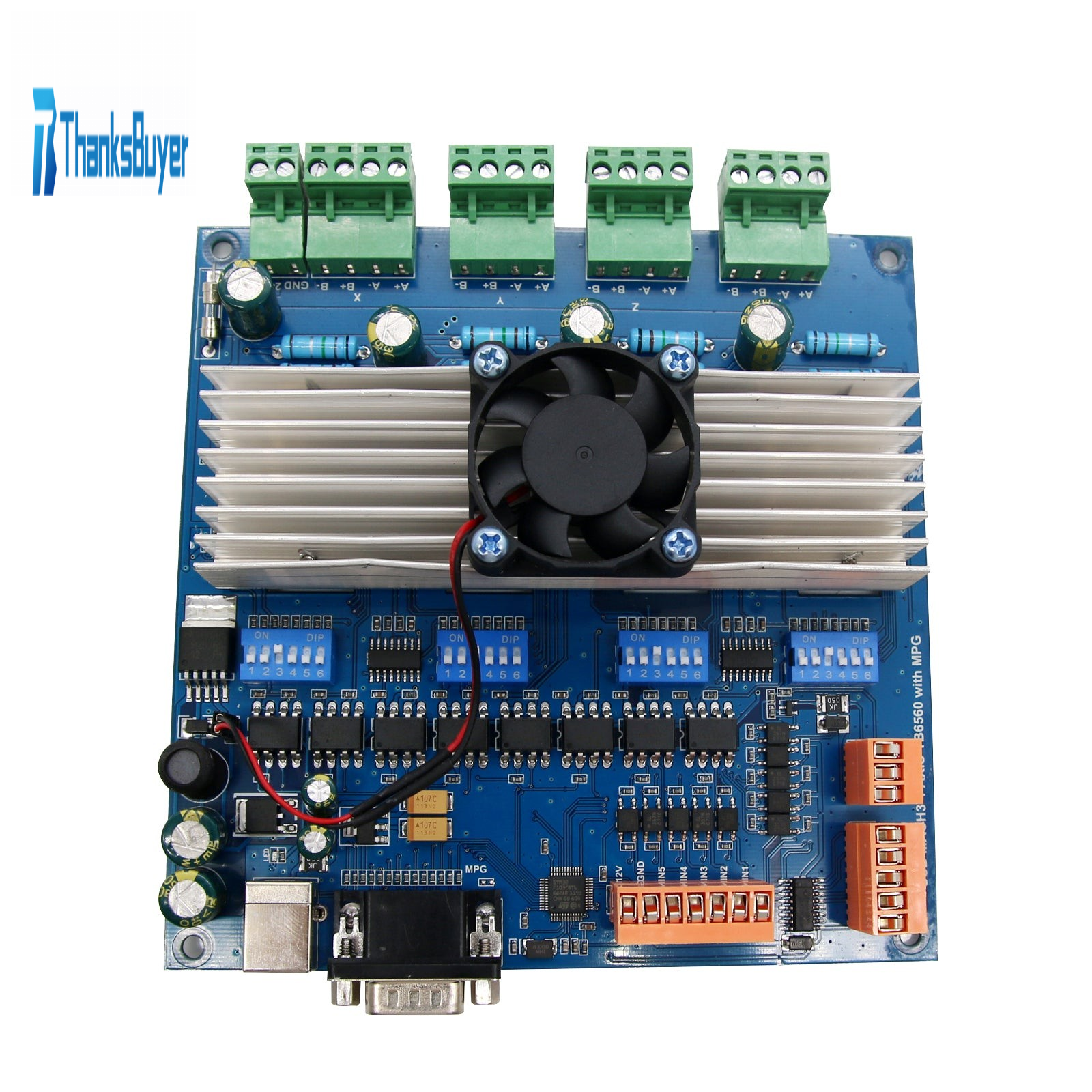

- 1 x USB MACH3 4 Axis –TB6560 Card

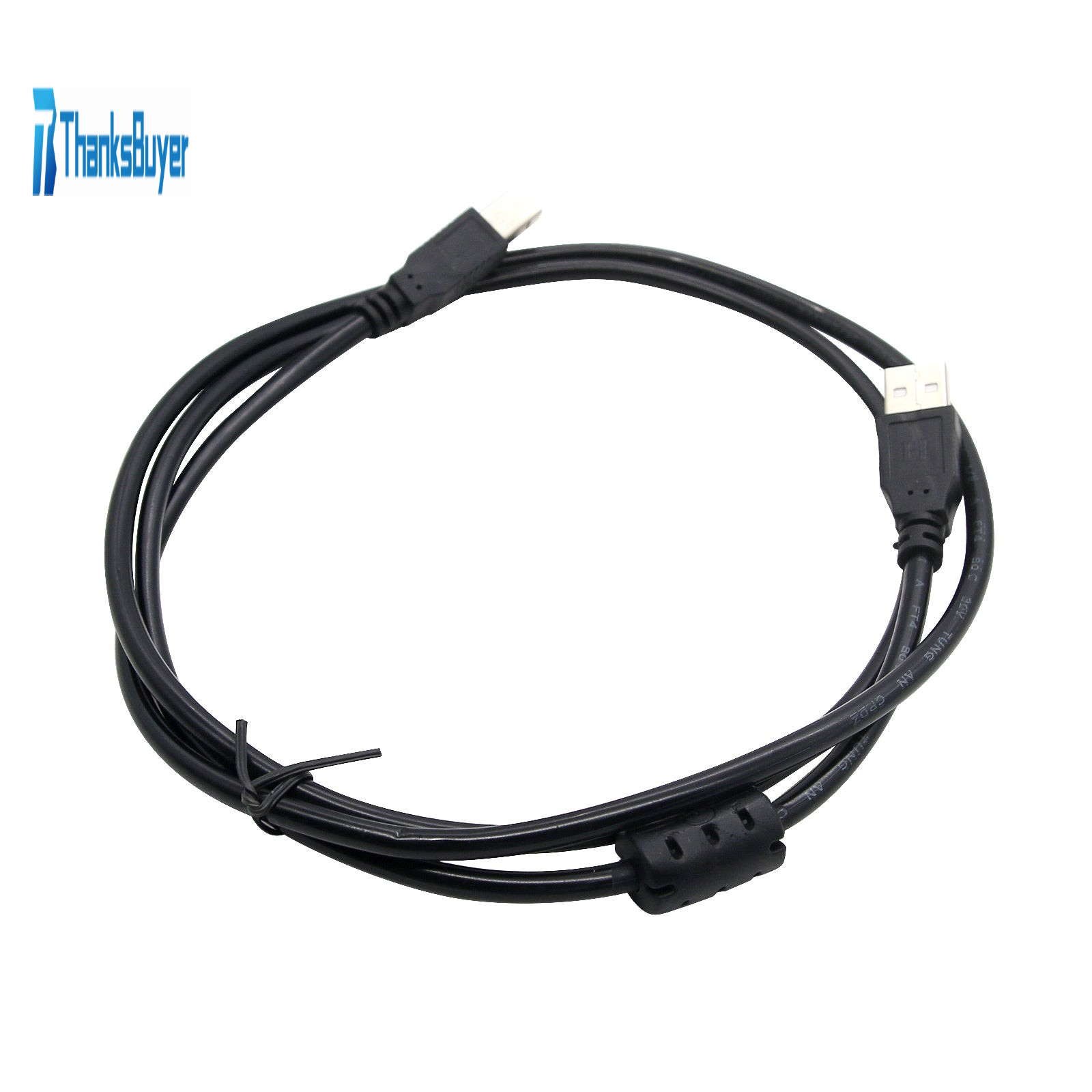

- 1 x USB cable
- 1 x CD

Features:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;
2. Maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping moto
3. 4 general-purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch, auto tool zero, home switch etc.
4. Support for connecting electronic handwheel;
5. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed
6. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
7. 1 status LED, indicate connection status on the board.
8. Resolution 1, 1\2, 1\8, 1\16 micro stepping output;
9. Four (or three) channels 3.5A adjustable output current for 2/4 phase bipolar stepper driv
10. Bulid with 4 outputs and 5 inputs

Basic connection diagram:
