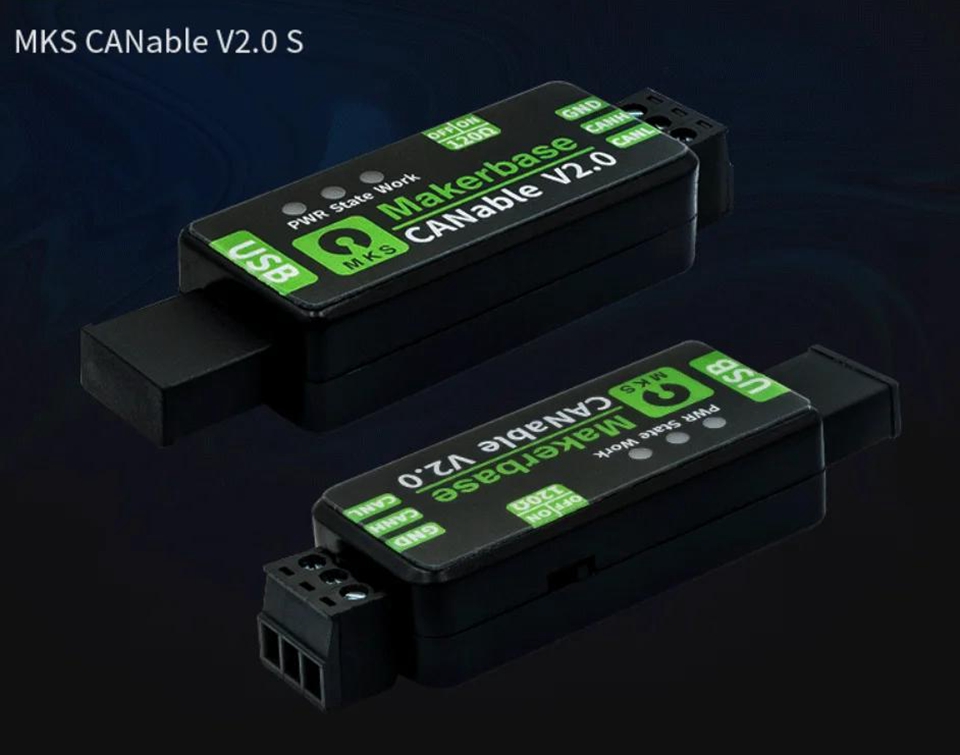

Makerbase MKS CANable V2.0 S 170MHz High Performance CAN Bus Analyzer USB to CAN Adapter Module Support for CAN FD

Makerbase MKS CANable V2.0 S 170MHz High Performance CAN Bus Analyzer USB to CAN Adapter Module Support for CAN FD

Description:
- CANable 2.0 is a small, low-cost, open-source USB to-CAN analyzer. CANable enumerates as a virtual serial port on your computer and acts as the serial line for the CAN bus interface. When using the candleLight firmware, CANable is enumerated as a native CAN interface on Linux. CANable 2.0 supports the standards CAN2.0A, CAN2.0B and CAN FD.
- MKS CANable V2.0 Pro is an upgraded version of the MKS CANable V2.0. Under the premise of high-speed transmission rate and high operation stability, the MKS CANable V2.0 Pro has stronger anti-interference ability, which is very suitable for industrial debugging or motor field application.
- CANable analyzers are compatible with ARM-based embedded platforms such as: for Raspberry Pi, for Raspberry Pi Zero, for ODROID, for BeagleBone, etc., making them ideal for integration into OEM products.

Features:
- Support CAN2.0A, CAN2.OB, baud rate up to 1M.
- Support candleLight, sIcan firmware, sIcan initially supports CAN-FD, the test rate can reach 2M/5M baud rate.
- Compatible with socketcan through sIcand.
- Optional enable/disable termination resistor via jumper.
- Support Type- C USB interface, online firmware upgrade and DFU mode upgrade firmware.
- Using high-performance ARM Cortex-M4 STM32G431C8T6 processor, operating frequency up to 170MHz.
- Provide schematic diagrams, firmware and source code, host computer, etc. Complete information and easy to use.

Difference between MKS CANable V2.0 Pro S and MKS CANable V2.0 S:
- MKS CANable V2.0 Pro S isolates the power supply, GND and communication signals. This version is more anti-interference ability, which can effectively protect the equipment. It is more suitable for industrial debugging or motor field applications.

Package Included:
- 1 x USB to CAN Adapter

MKS CANable Tutorial Video:
- https://www.youtube.com/watch?v=6MChPbeG6D0&list=PLc2RScfrSFEBboq8GDhRPEapSpJCIDf9d

CANable official:
- https://canable.io

MKS CANable Github:
- https://github.com/makerbase-mks/CANable-MKS
