Microwave Capacitors RF Feed Box Bias Tee Coaxial Feed RF Blocking 10M-6GHz Low Insertion Loss

Microwave Capacitors RF Feed Box Bias Tee Coaxial Feed RF Blocking 10M-6GHz Low Insertion Loss

Application Scenarios:
1. Antenna radio frequency feed
2. Connect the instrument to block direct current when testing the module [The spectrum analyzer and signal source cannot be directly connected to direct current, so DC block is required.]

Module Specifications:
- Volume: 4.5*3*1.4cm (without protruding SMA size)
- Product Weight: 66g (including host + TYPE-C cable)

Module Parameters:
1. Working frequency: 10M-6GHz
2. Insertion loss: ≤1dB (refer to the measured S21, S11 curve for details)
3. Normal working voltage of DC blocking: DC-250V [for ATC DC blocking capacitor nominal withstand voltage value of 250V, high frequency microwave low insertion loss capacitor]
4. Normal working voltage and current of feeding: ≤350mA [The feeding current is mainly related to the inductance current limit of feeding. The currently used microwave radio frequency inductor is 350mA; the maximum feed voltage is 50V]. Powered via the TYPE-C interface
5. Input and output impedance 50 ohms, input and output interface SMA (female connector). If you need male connector, please contact us

Package Included:
- 1 x Bias Tee Aluminum Alloy Shell
- 1 x TYPE-C Male Cable [For power feeding, do not need to be connected when used as a DC isolator]

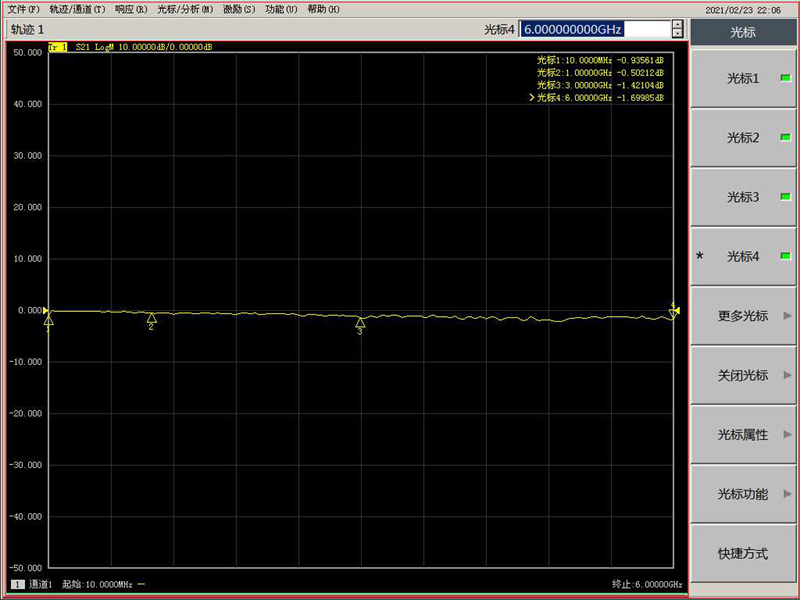

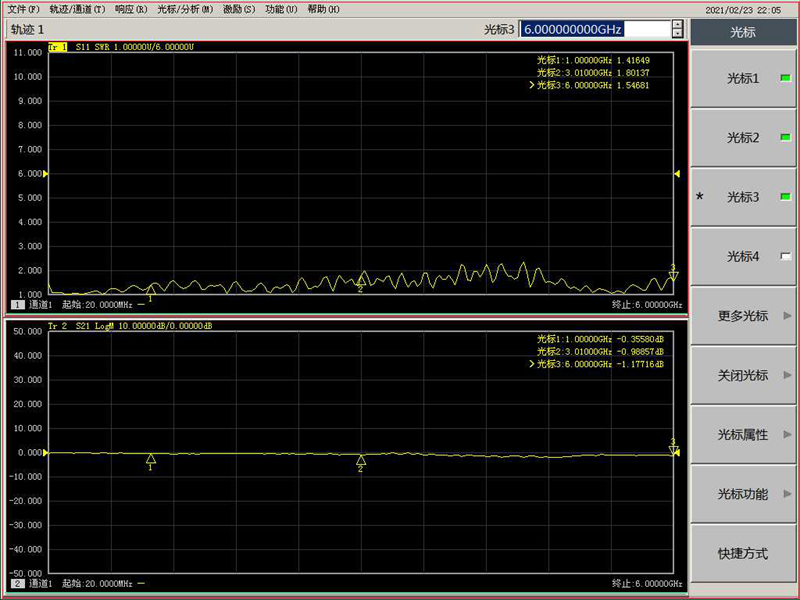

Measured S Parameters:
