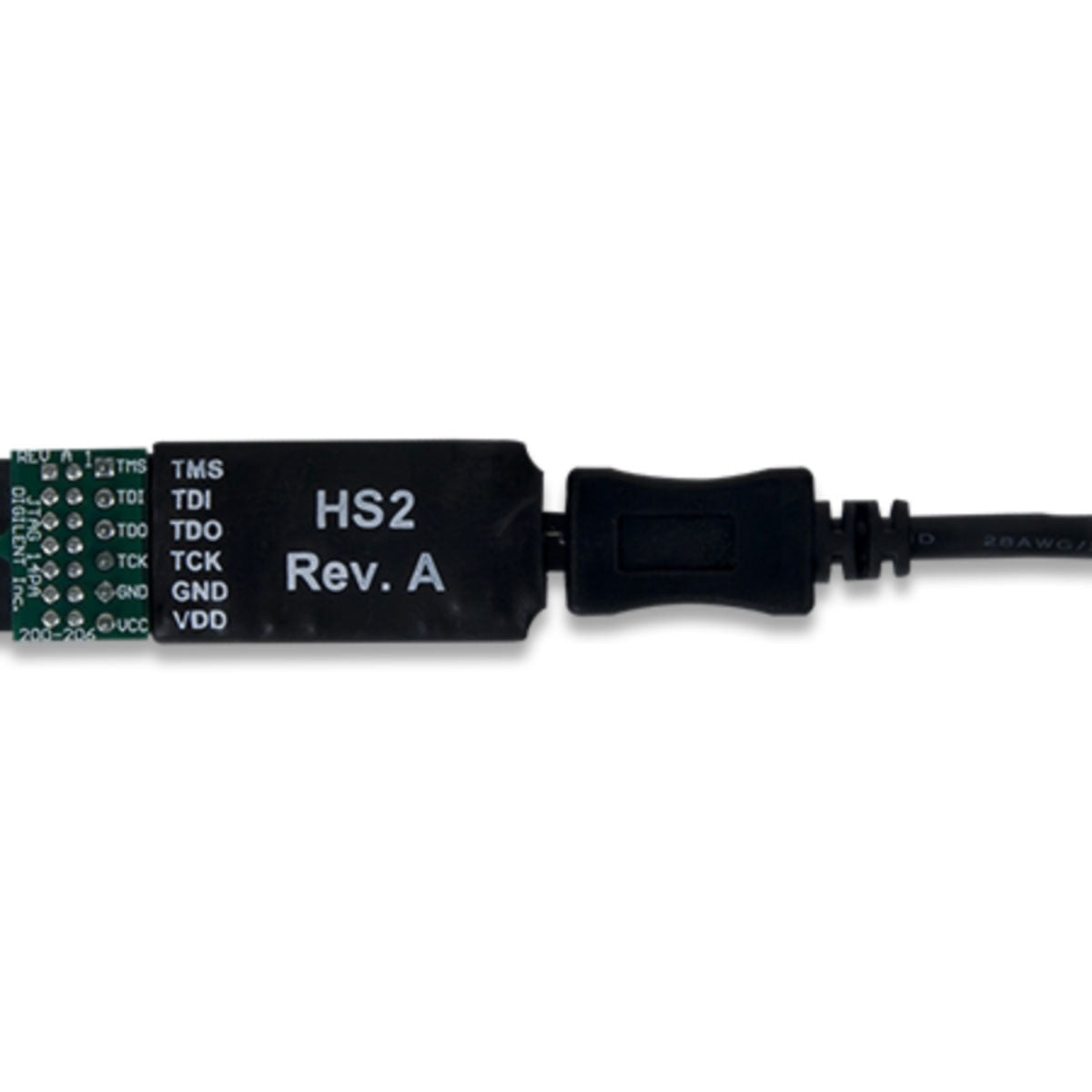

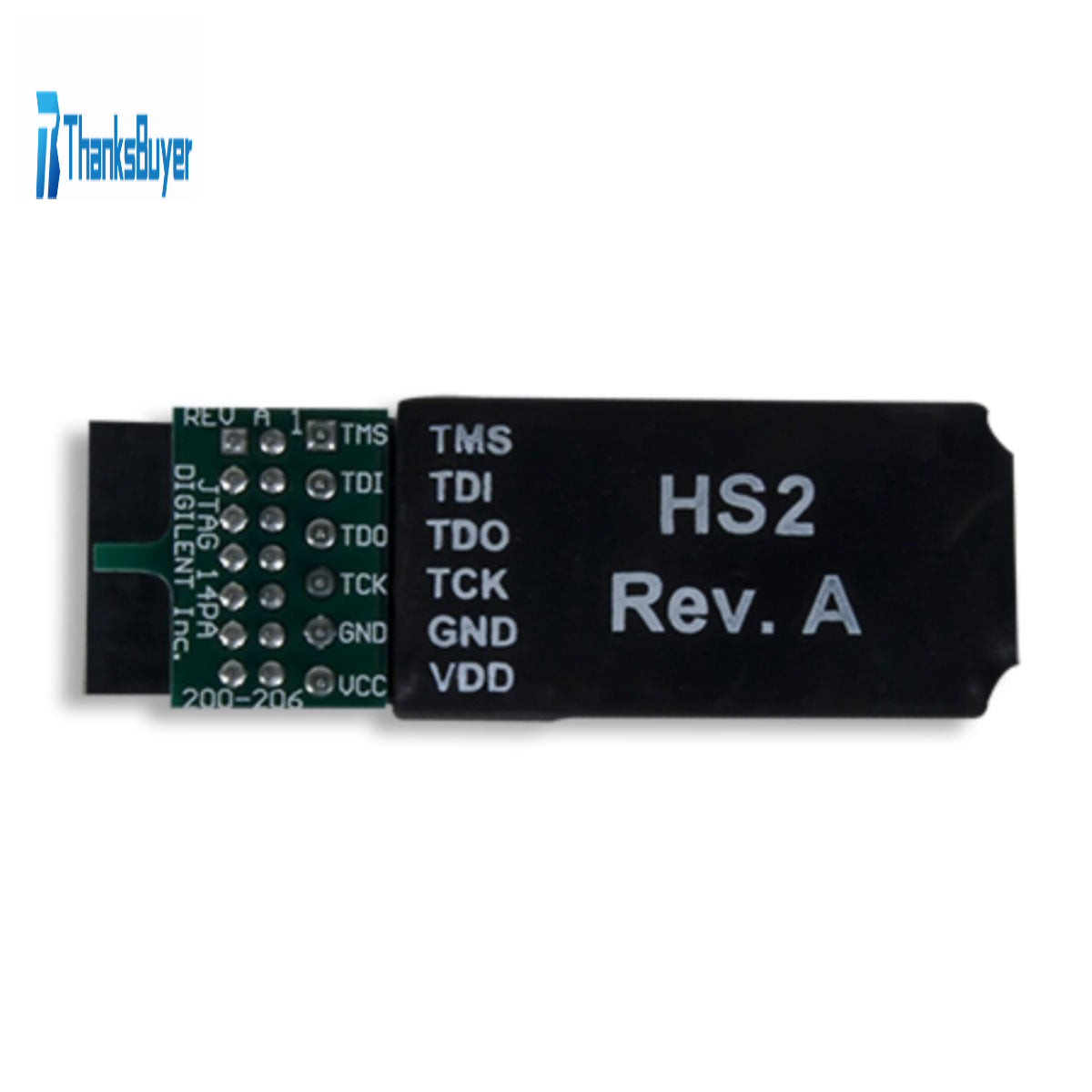

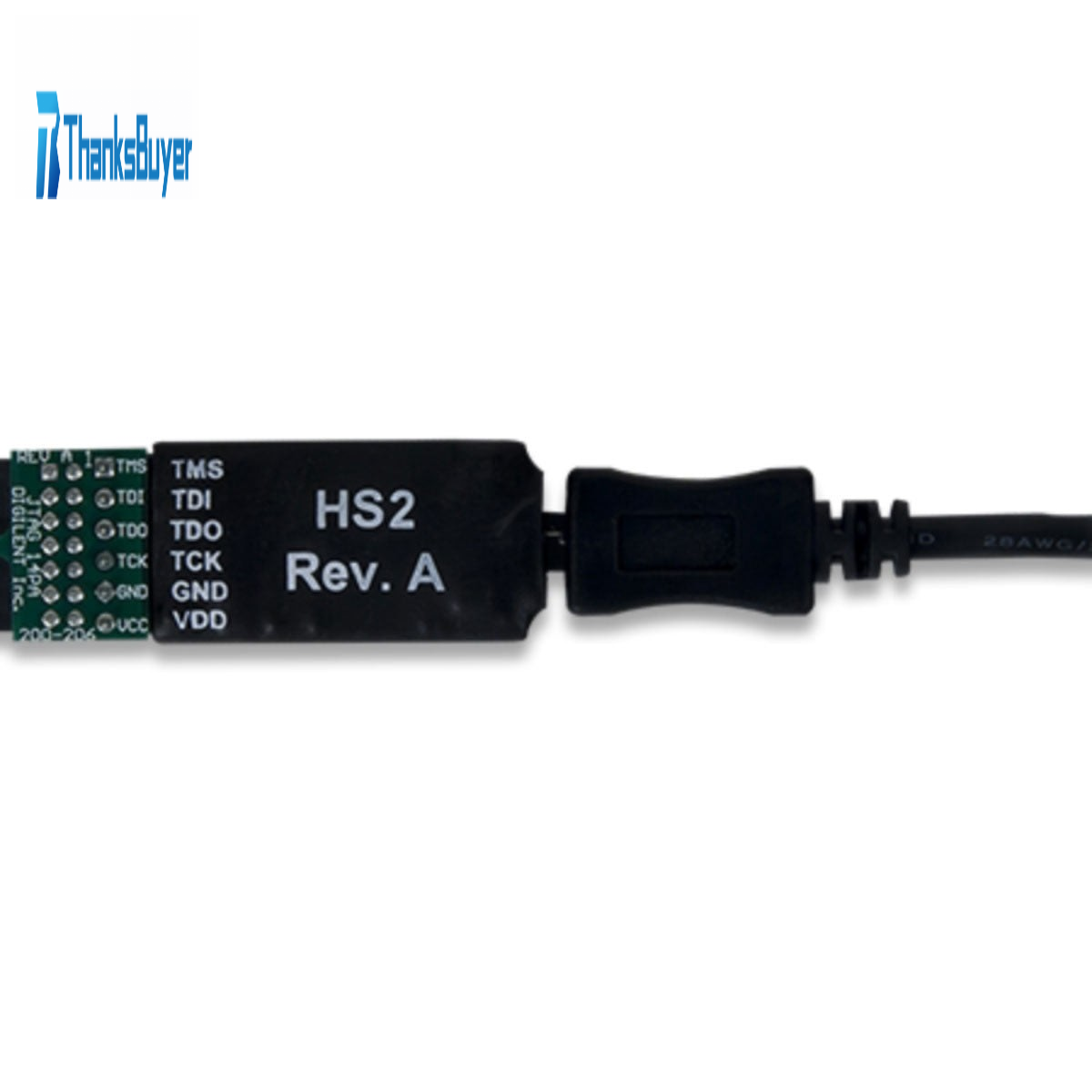

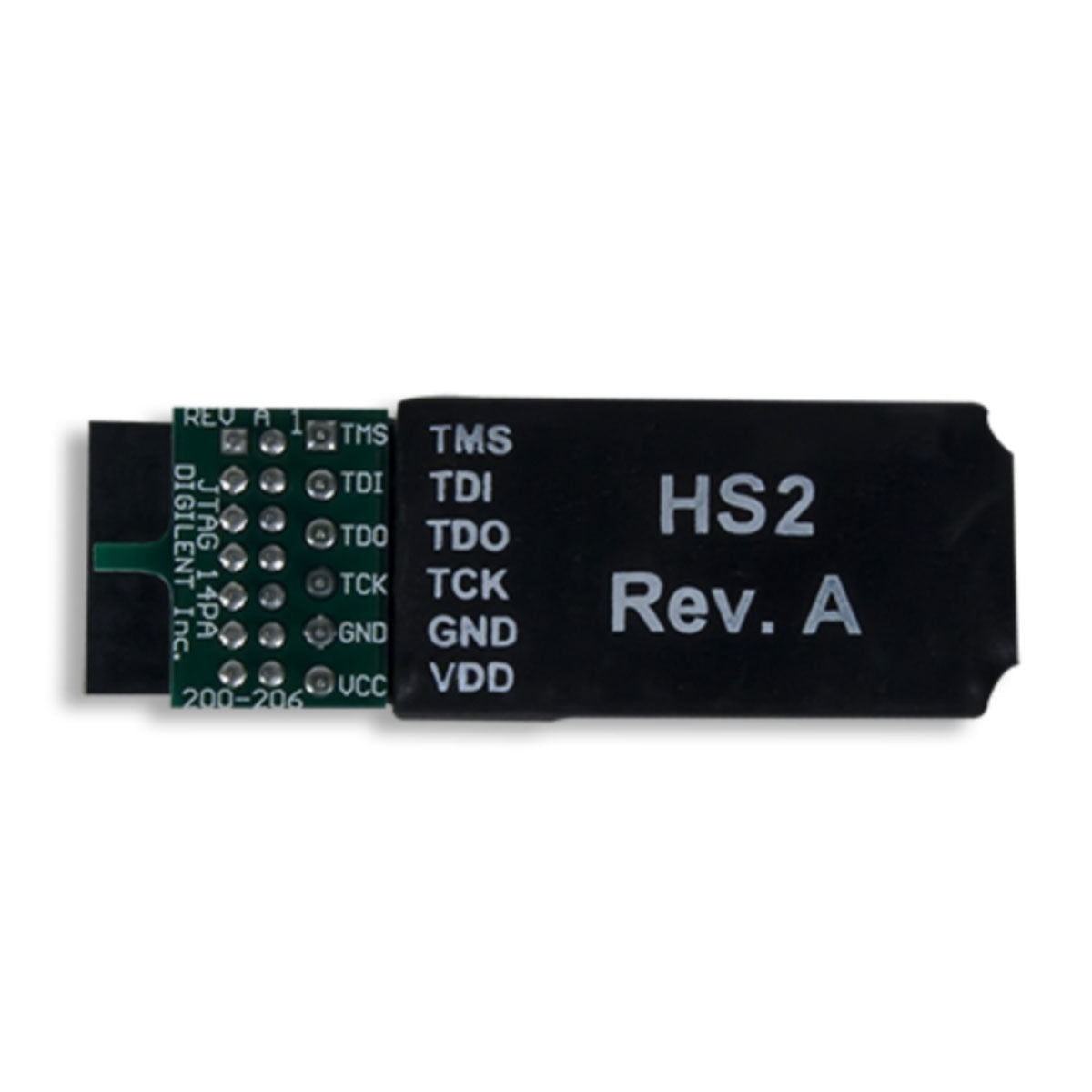

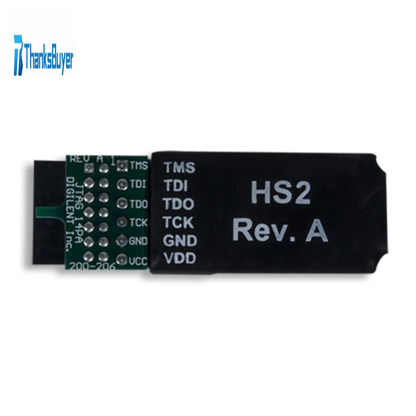

Multifunctional JTAG HS2 FPGA Downloader with Micro-AB USB2 Interface Debugger Programmer 410-249 for Digilent

Description:

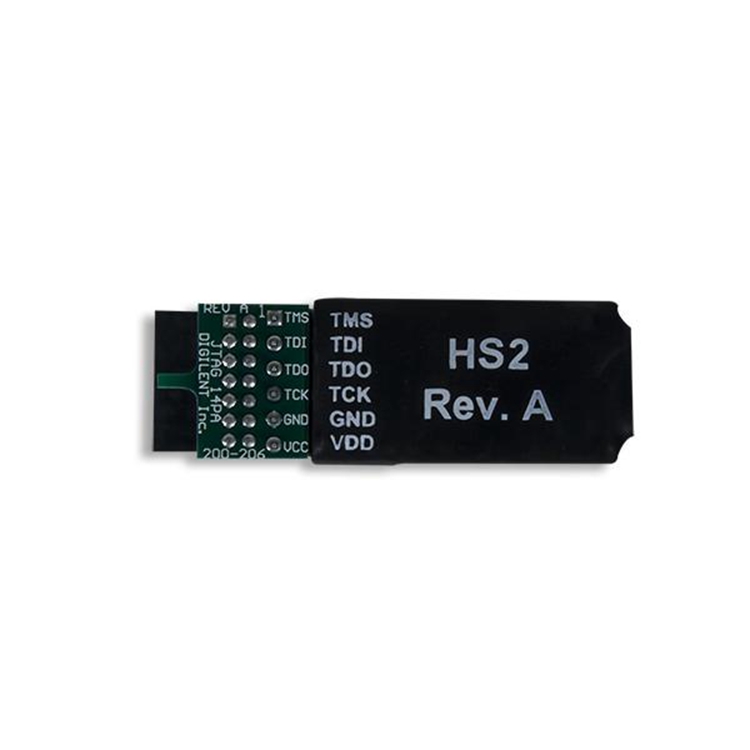

- JTAG-HS2 programming wire is a high-speed programming solution designed for FPGA. The wire is fully compatible with all tools and can be driven seamlessly by software for iMPACT, ChipScope and EDK. The JTAG-HS2 programming wire can be connected to the target board in the following two ways:
  For Digilent's 6-pin, 100mm spacing programming connector.

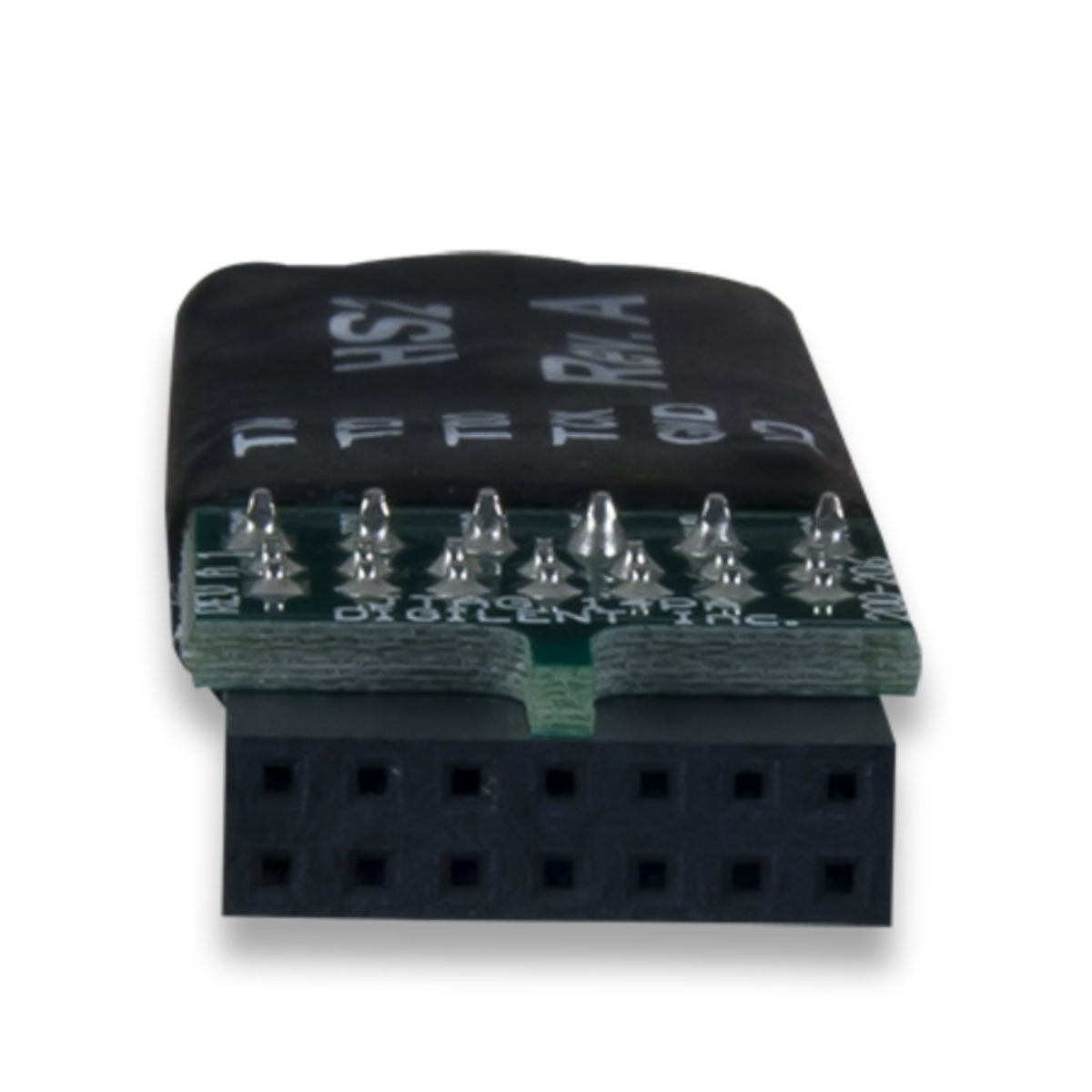

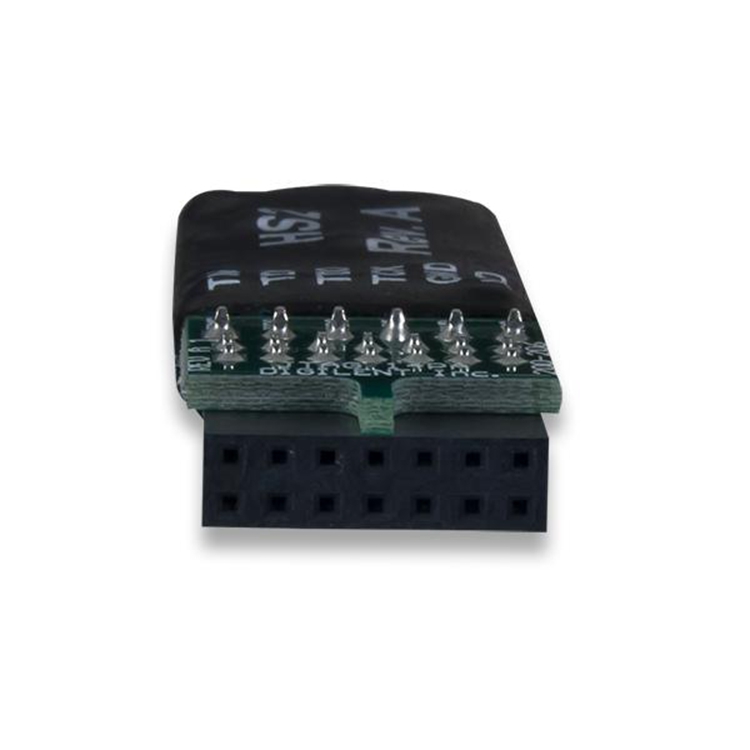

  For 2X7, 2mm connector with attached adapter.

- The PC powers the JTAG-HS2 through a USB port. When the JTAG-HS2 is connected to a PC, the PC will automatically recognize it as a Digilent programming wire, even if the wire is not connected to the target board. JTAG-HS2 has a separate VDD pin to provide JTAG signal buffering. All JTAG signals use 24 ma high-speed tri-state buffers, supporting signal voltages from 1.8V to 5V and bus speeds of up to 30 megabits/SEC. To ensure proper operation, the VDD pin voltage of the JTAG-HS2 must be consistent with the voltage driving the JTAG port on the FPGA.

- When a JTAG signal is available at high electrical impedance, the JTAG bus can be shared with other devices (unless the JTAG bus is actively driven during programming). The JTAG-HS2 product comes with A Type-A to micro-USB cable that can be connected to the module end on the opposite side of the motherboard connector to ensure that the small and light JTAG-HS2 can be securely connected to the motherboard connector.

Precaution:
- Due to the built-in functionality of this module on all Digilent FPGA development boards, it is not necessary for Digilent FPGA development boards to use this module.

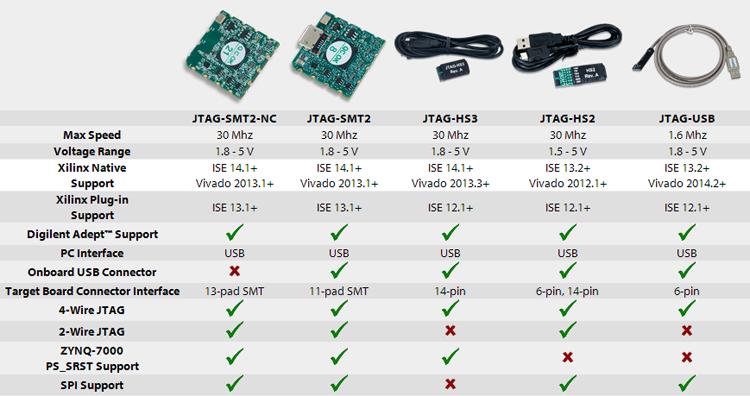

Product Data:
- Processor/IC: for Analog Devices ADP123AUJZ Linear voltage regulator
- Connector: USB2 Micro-AB
- Programming: support all programming tools. It is fully compatible with Digilent Adept software and Adept SDK

Product Features:
- Analog Devices ADP123AUJZ Linear voltage regulator
- For FPGA JTAG programming/debugging solution with small size, complete function and multifunctional integration
- Compatible with IEEE 1149.7-2009 Class T0-Class T4 (including 2-wire JTAG)
- Independent reference voltage to drive JTAG signal voltage; The reference voltage can be between 1.8V and 5V
- High-speed USB2 interface that can drive the JTAG/SPI bus at up to 30Mbit/SEC
- The JTAG/SPI frequency can be set by the user
- The Micro-AB USB2 interface is used
- SPI programming solution (up to 30Mbit/ SEC after classes in modes 0 and 2, up to 2Mbit/ SEC in modes 1 and 3)
- Fully compatible with Digilent Adept software and Adept SDK to create custom JTAG/SPI applications

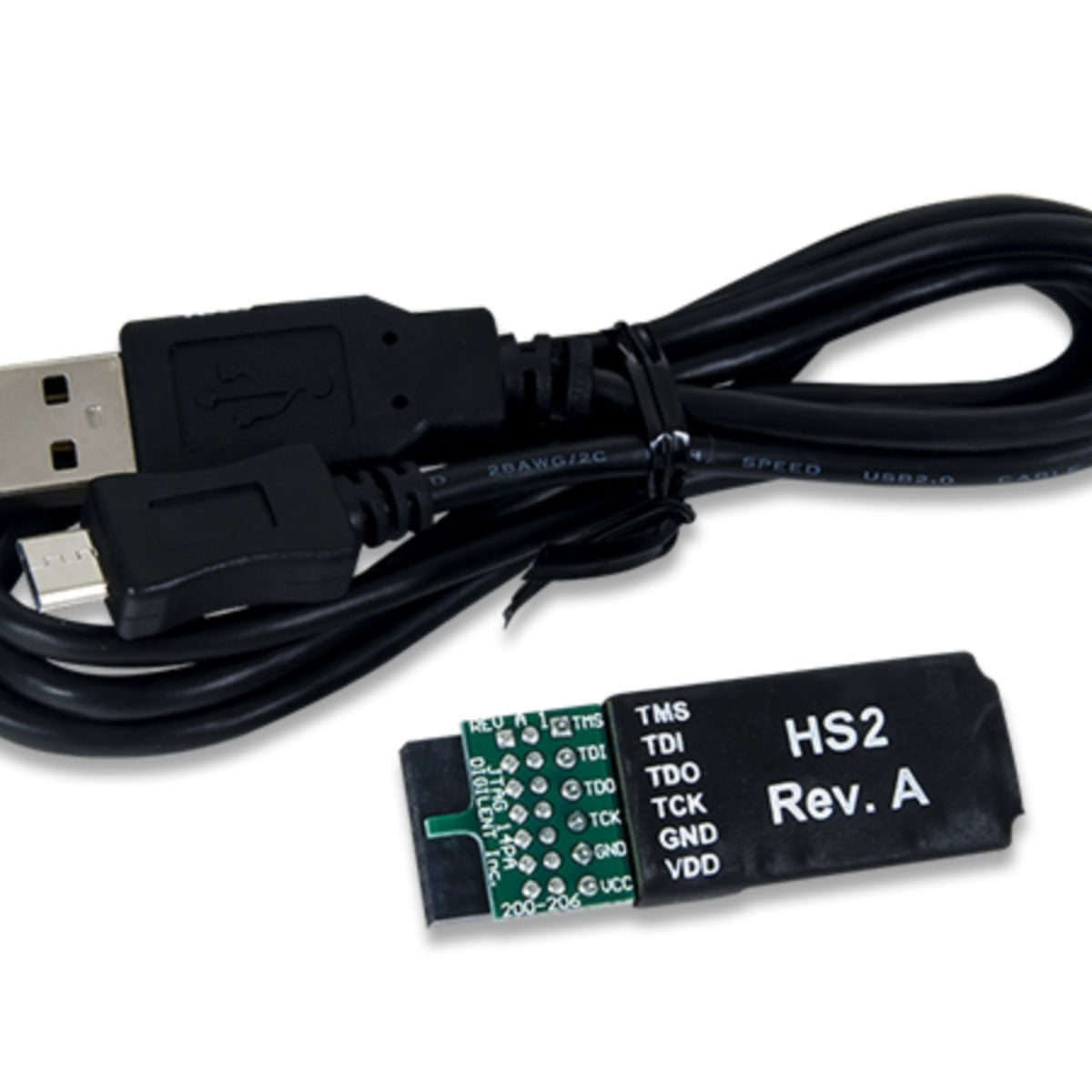

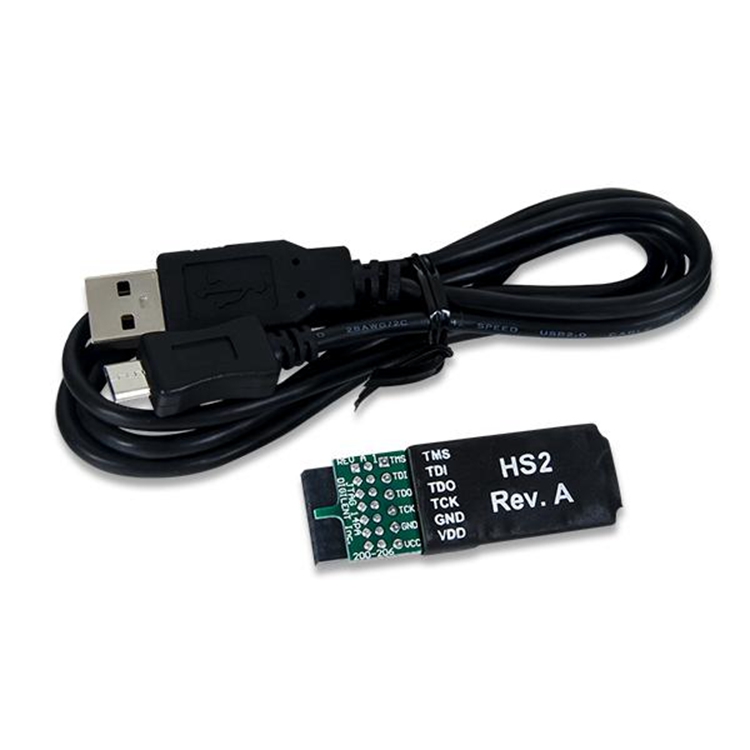

Package Included:
- 1 x Debugger Module
- 1 x USB Cable
