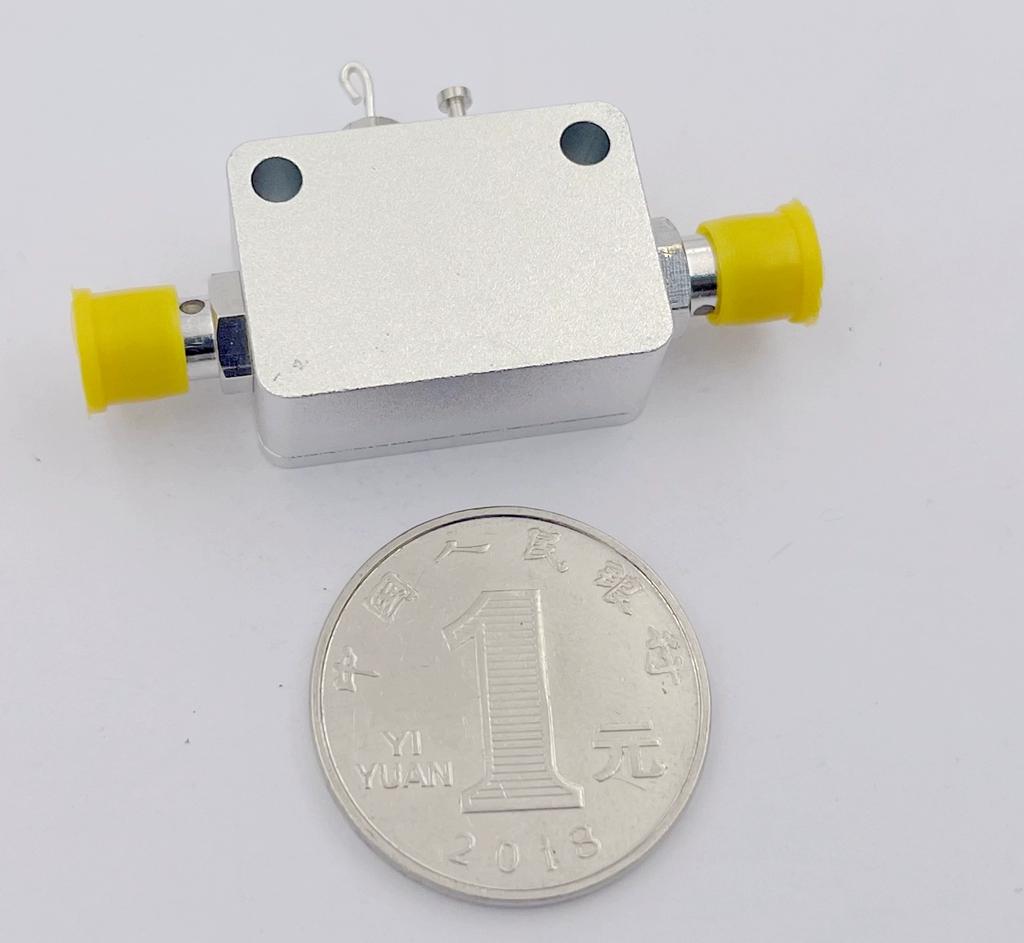

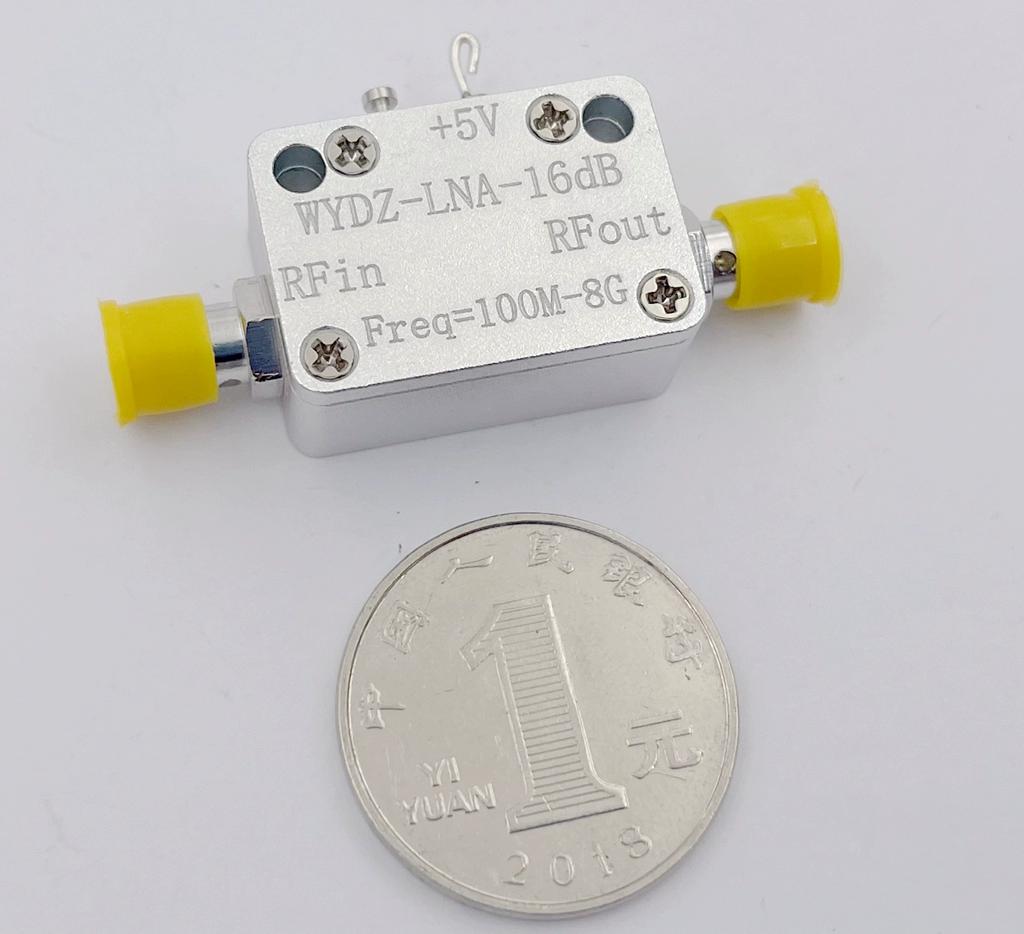

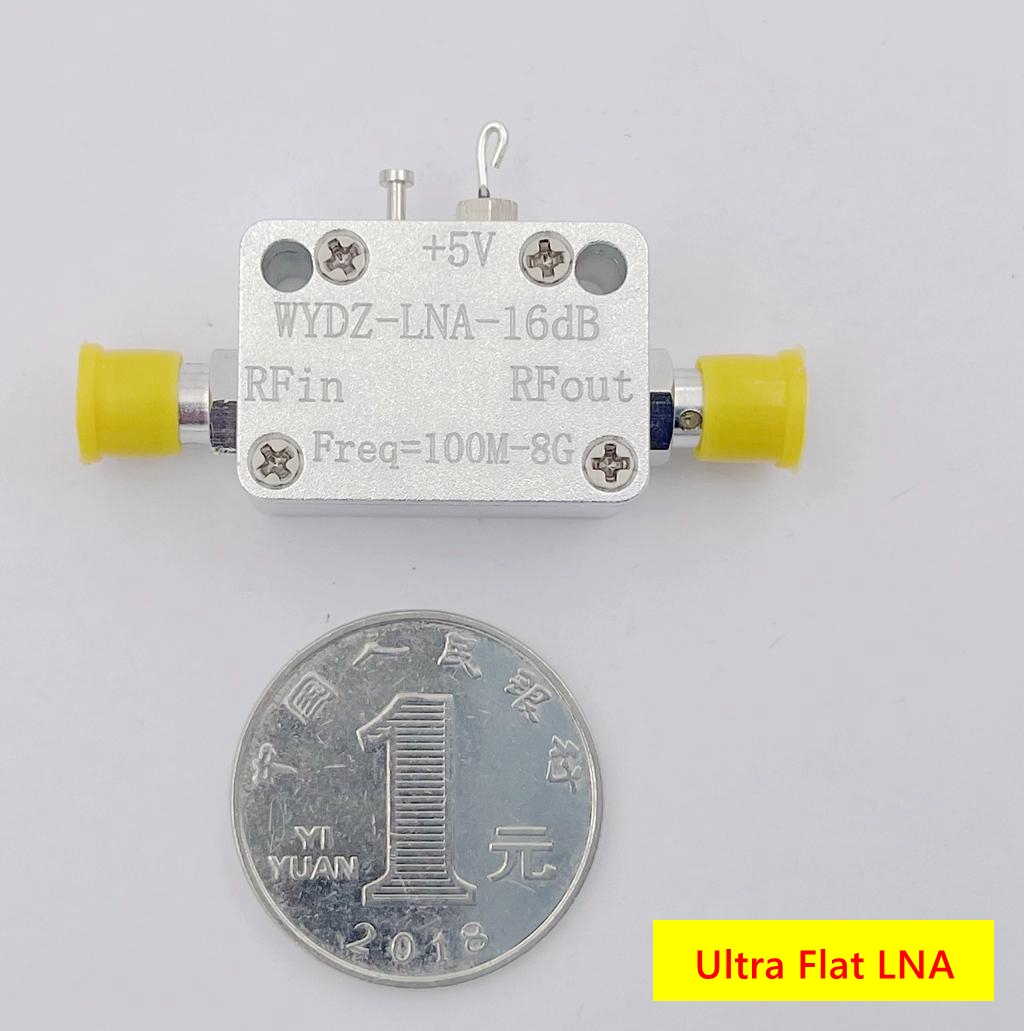

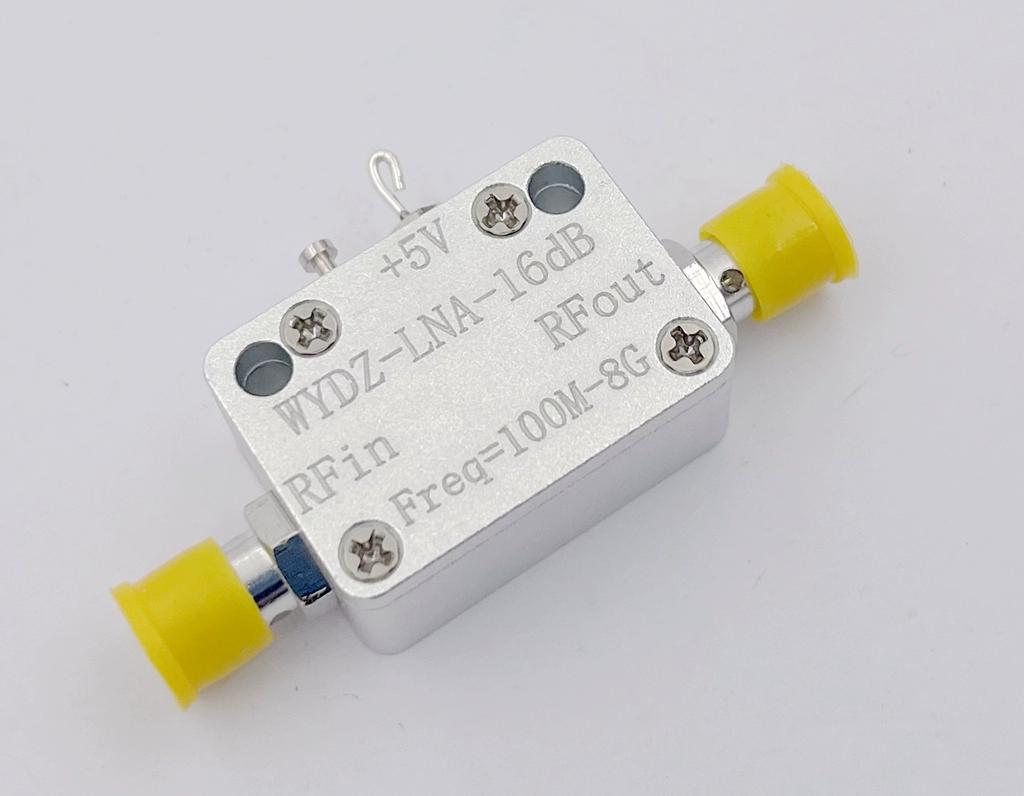

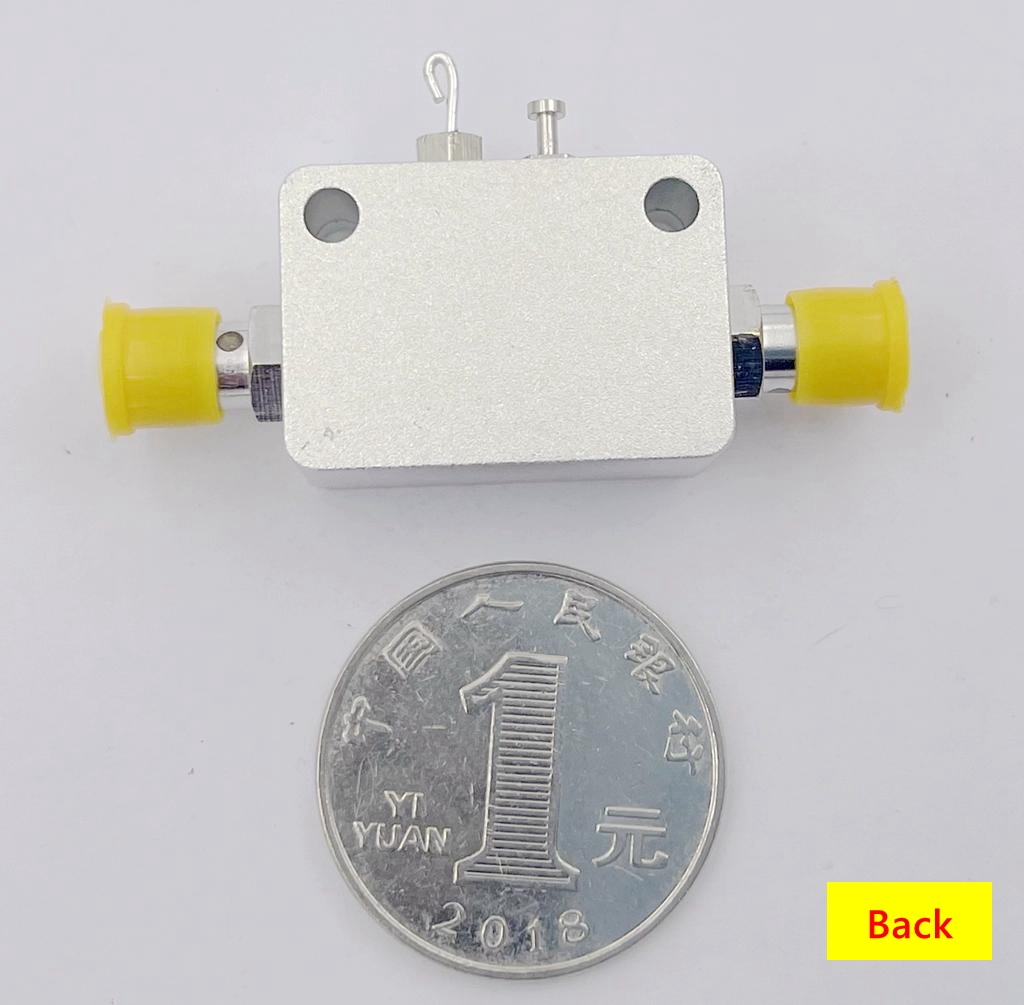

New WYDZ-LNA-100M-8G-16dB 100MHz - 8GHz 50ohms 5V/50mA UWB RF Low Noise Amplifier with SMA Female Connector RF Accessory

New WYDZ-LNA-100M-8G-16dB 100MHz - 8GHz 50ohms 5V/50mA UWB RF Low Noise Amplifier with SMA Female Connector RF Accessory

Description:
- It is an ultra-wide band low phase noise amplifier with full frequency band of 100M-8000M, noise coefficient <= 4.5, GdB gain > 16dB and very good flatness less than 2dB.
- 5V power supply.
- It can be used as an input low noise amplifier for broadband receivers, or as a driver for mixer local oscillator signals.
- It can be directly applied as a system module or as a verification platform.

Specification:
- Working frequency: 100M - 8000M

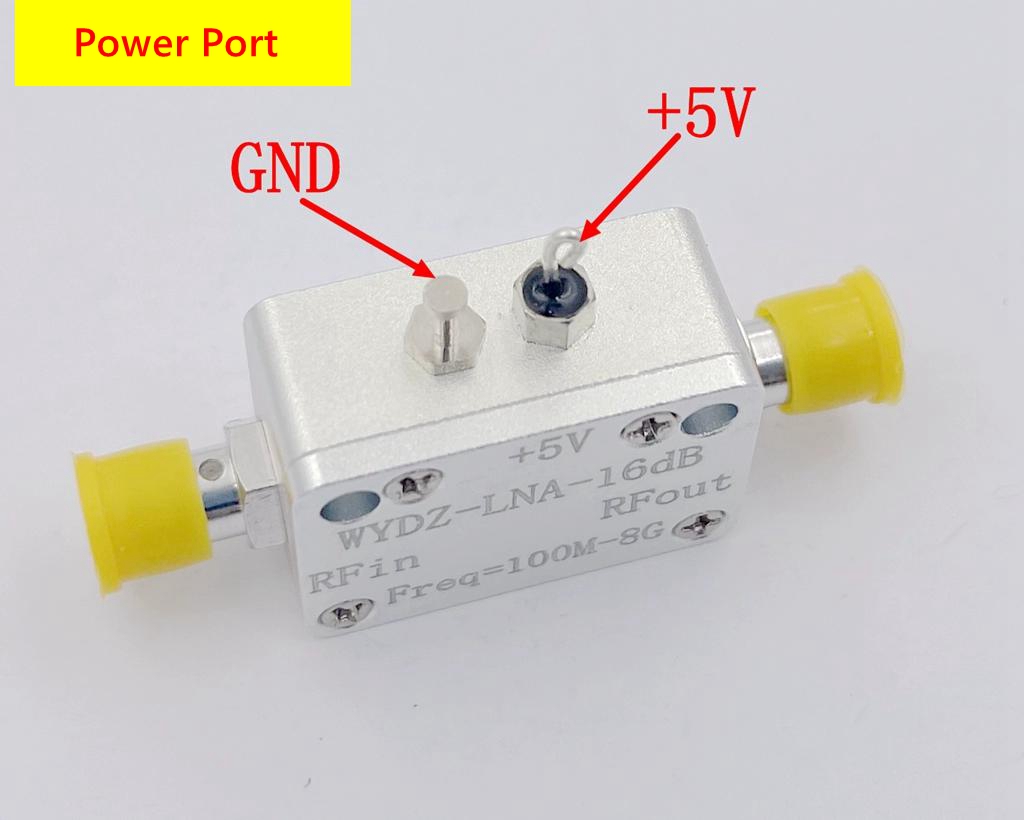

- Working voltage: 5V/50mA

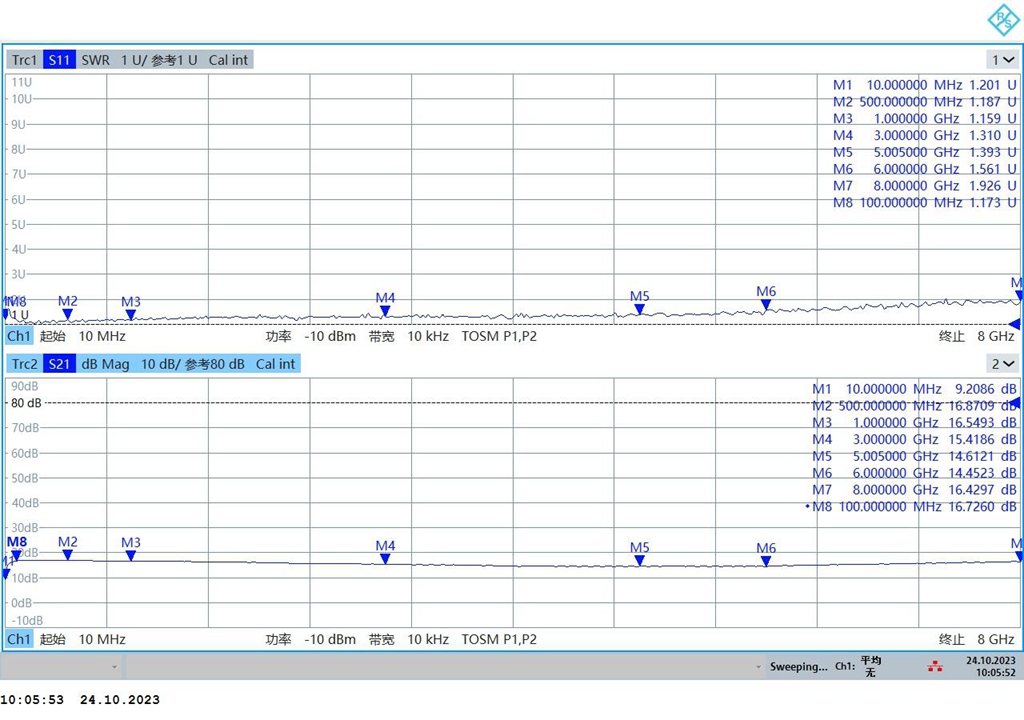

- Gain: 16dB at 100M - 8000M
- NF: 4.5dB at 4000M
- P1Db: 13dBm at 4000M
- Size: 26 x 18 x 12mm (excluding the connector length)
- Input and output impedance: 50ohm

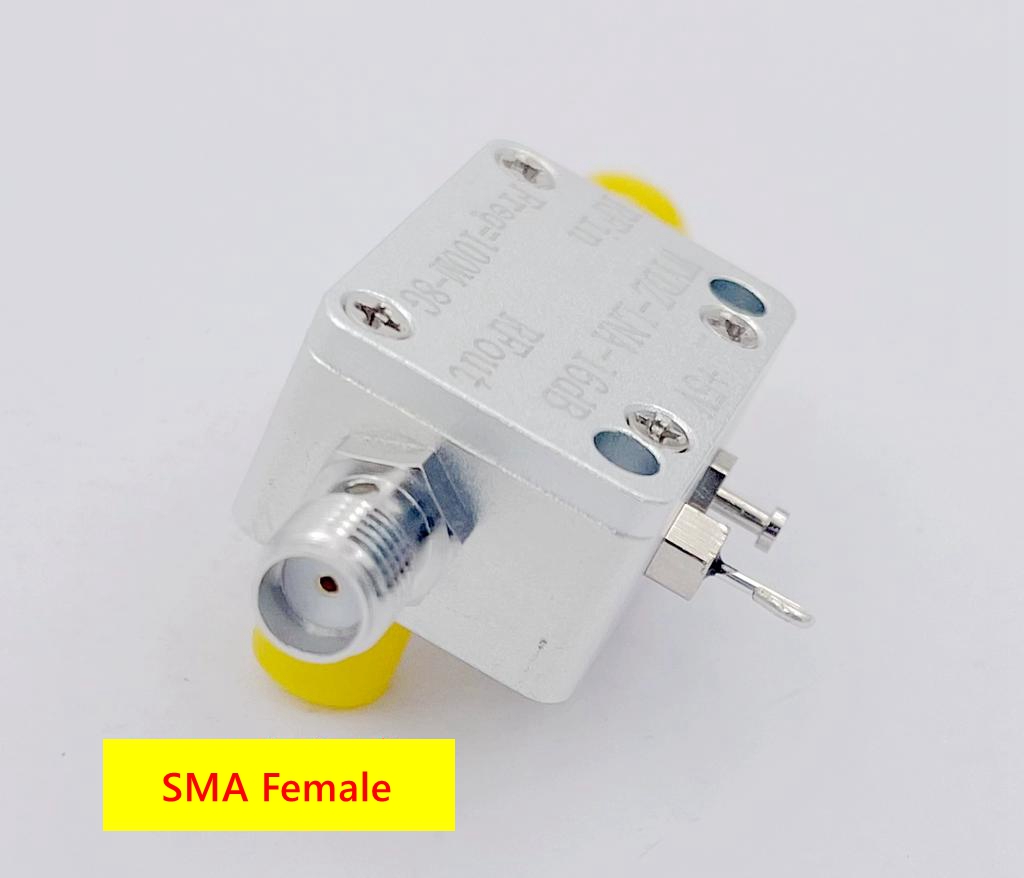

- Connector: SMA Female connector

Package Included:
- 1 x LNA
