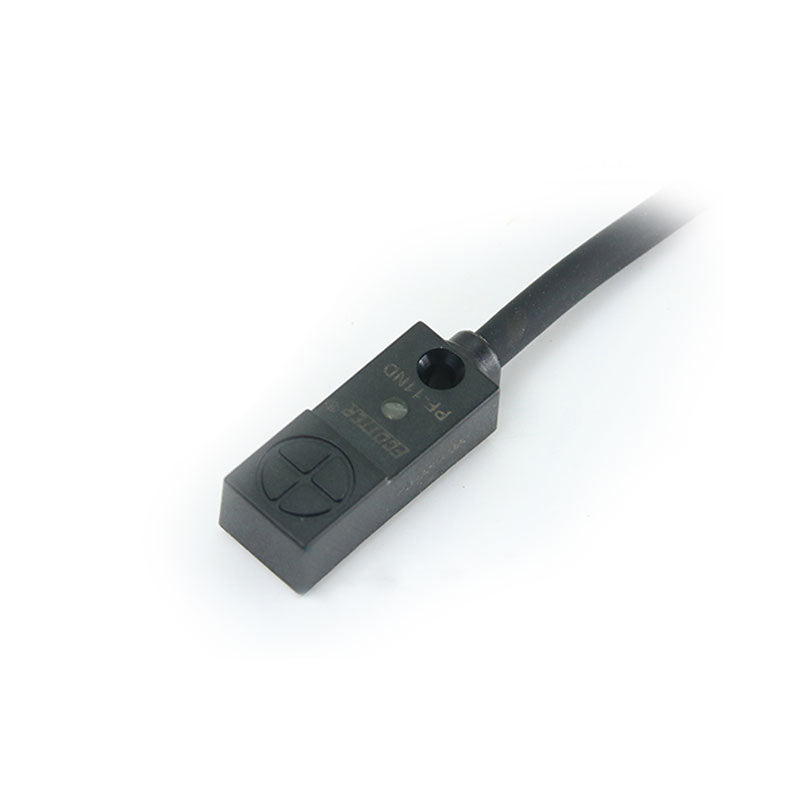

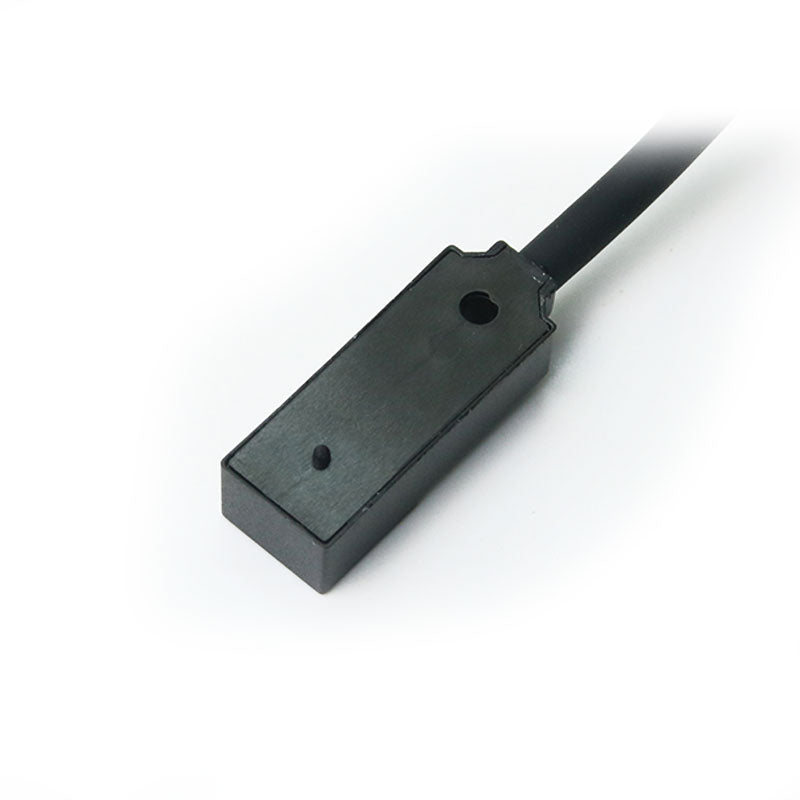

PF-11PAD Original Inductive Square Proximity Switch Sensor for the Induction Detection

PF-11PAD Original Inductive Square Proximity Switch Sensor for the Induction Detection

Parameter:
- Model: PF-11PAD
- Detection distance: 4mm
- Detection direction: top surface

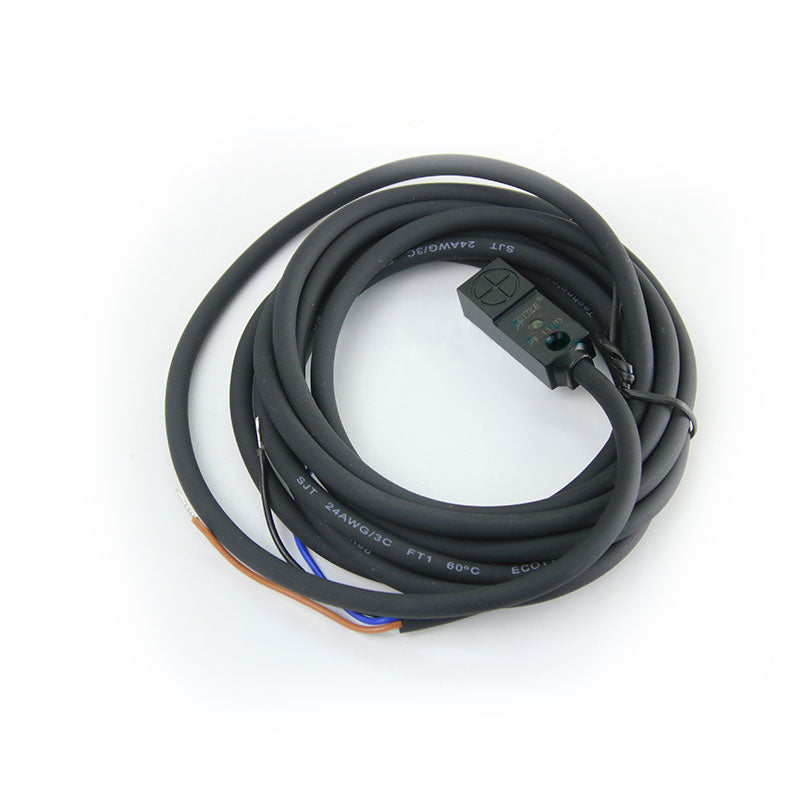

- Connection mode: 3-core cable (diameter: 4mm)
- Power voltage: 10-30VDC
- Controlled output: Normally Closed
- Maximum output current: 200mA
- Power consumption: <8mA
- Power polarity reverse connection protection: Built-in
- Leakage current: <0.1mA
- Residual voltage: <1.5VDC
- Response frequency: 800Hz
- Short circuit protection: No
- Hysteresis loop: 10%
- Environment temperature and humidity: -25℃~55℃/35%~90% relative humidity
- IP protection grade: IP67
- Dimension: 30 x 11 x 8mm

Package Included:
- 1 x PF-11PAD Proximity Switch
