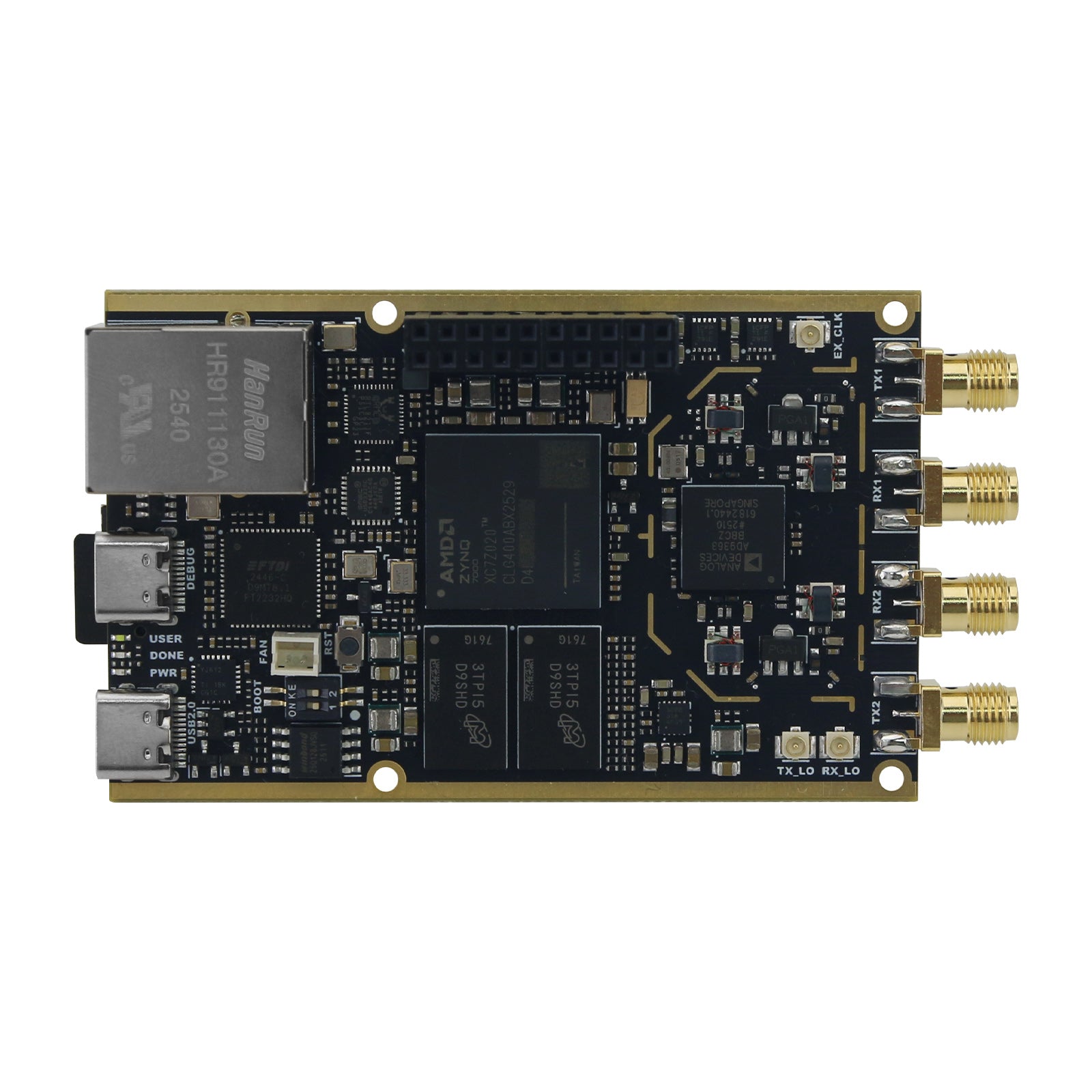

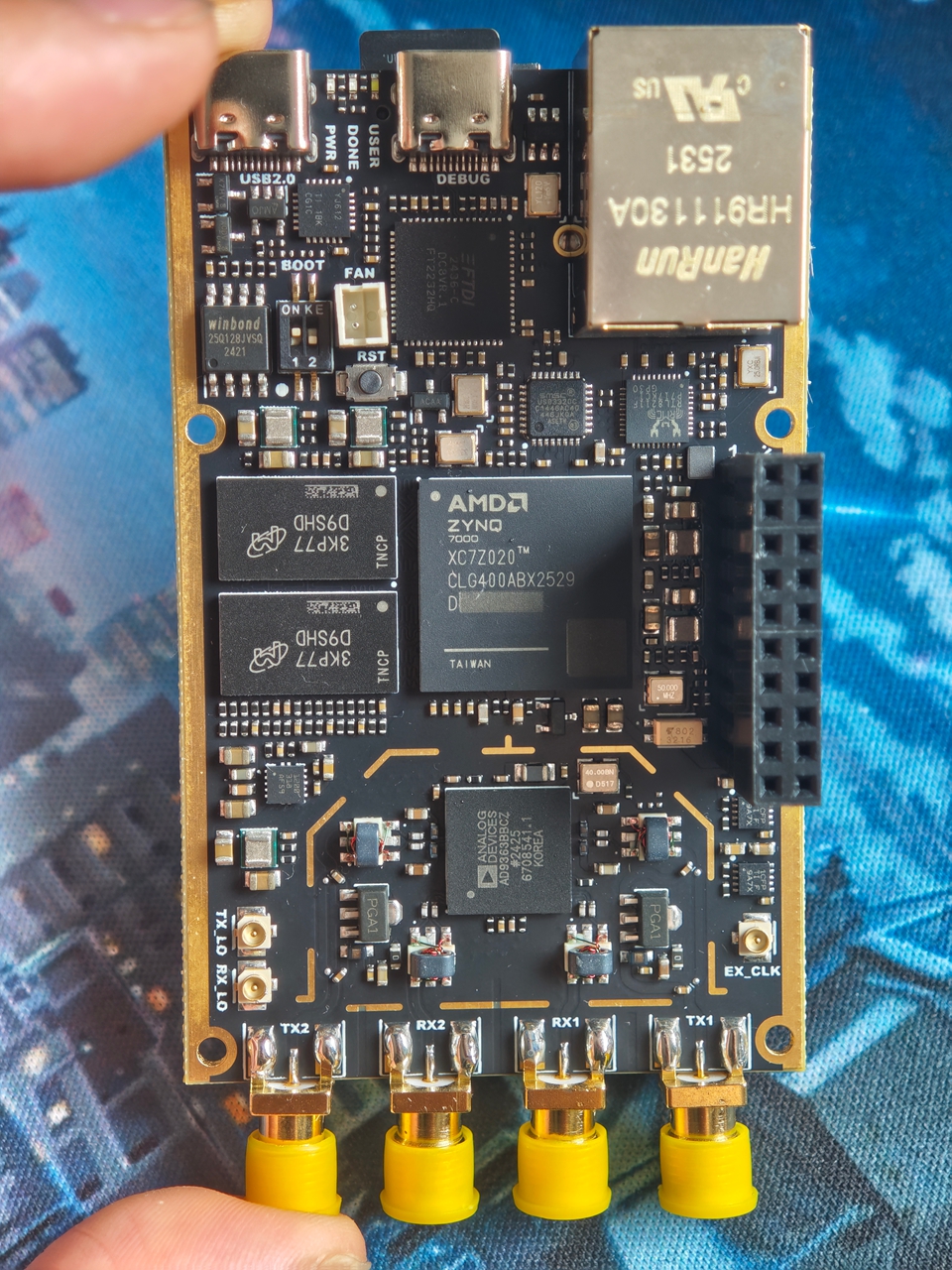

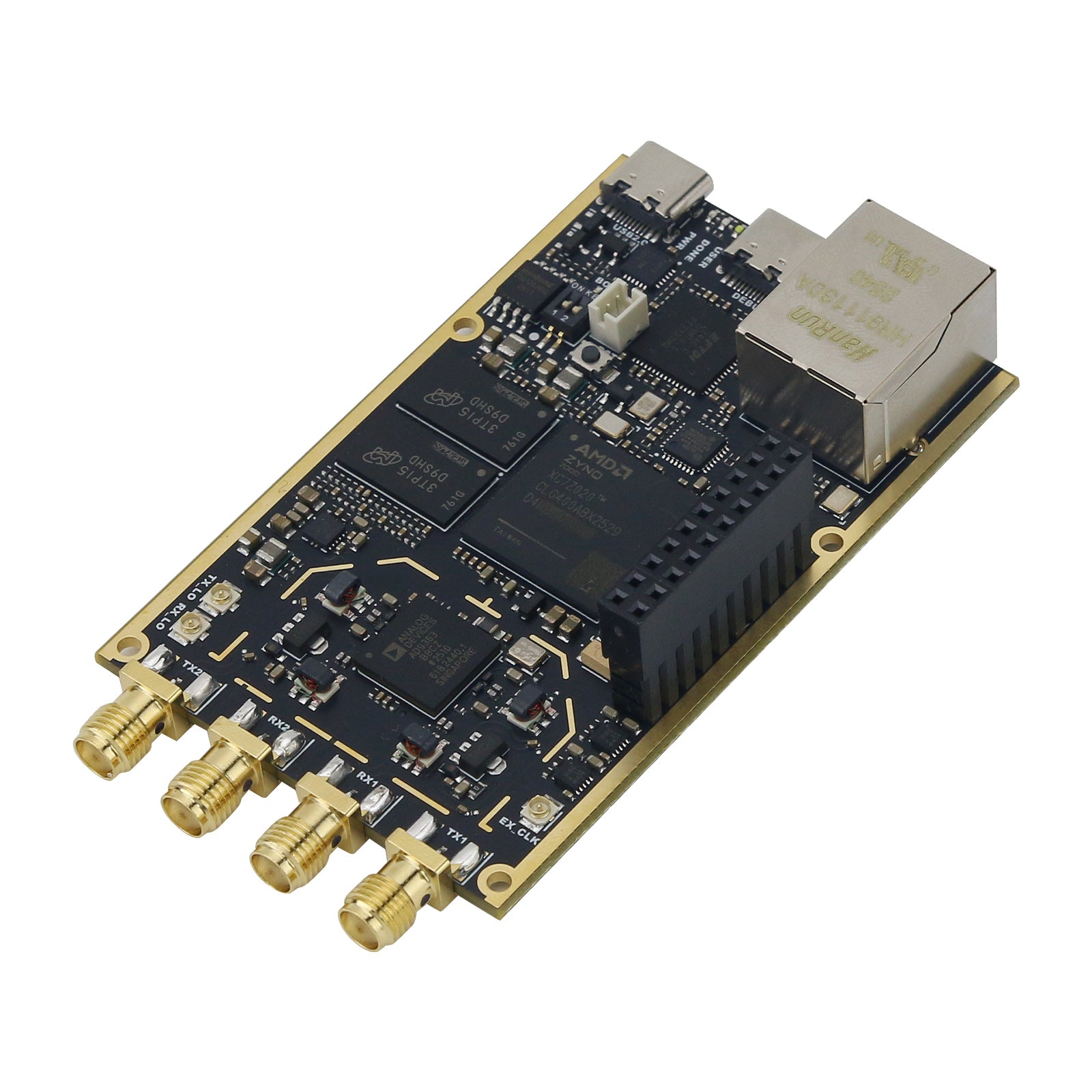

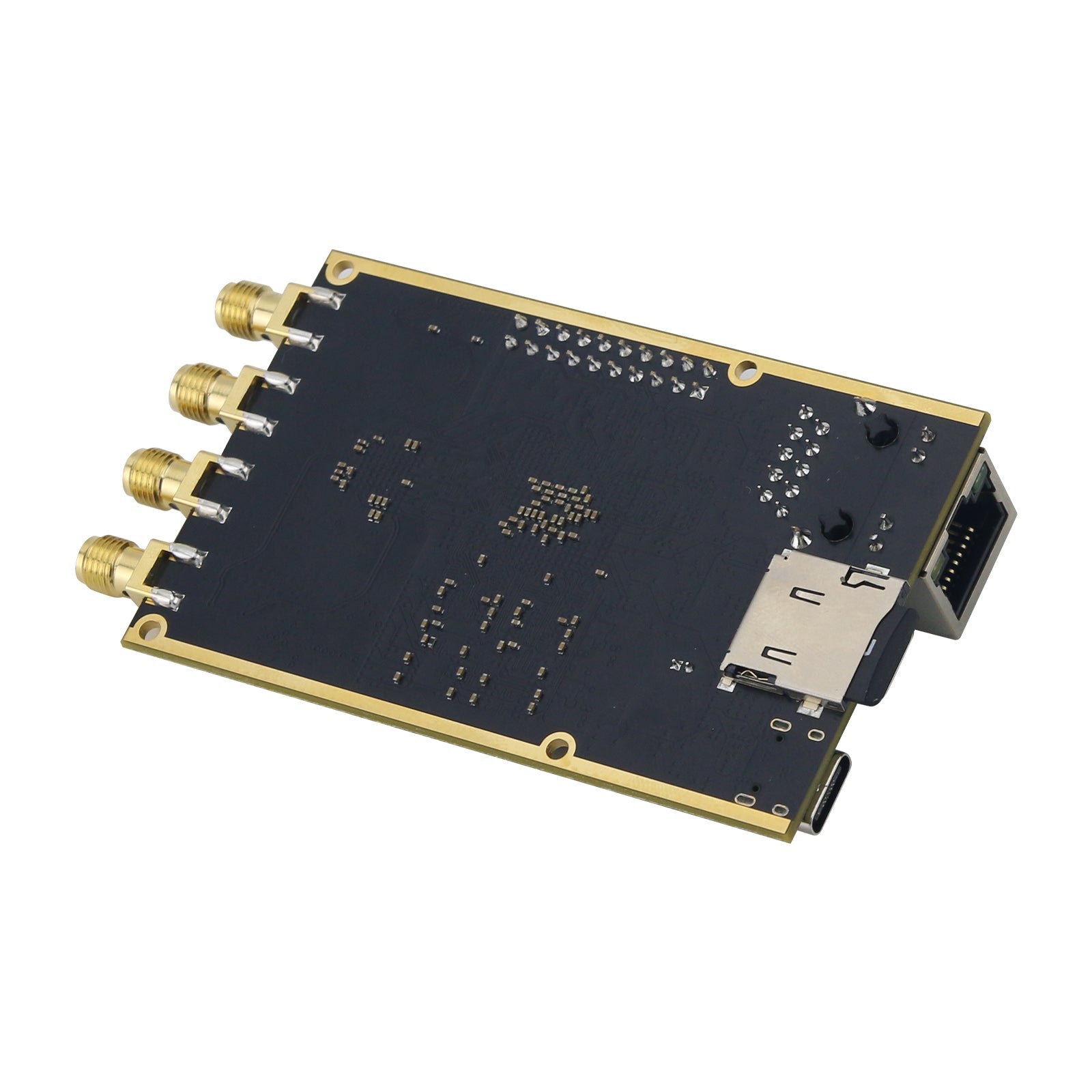

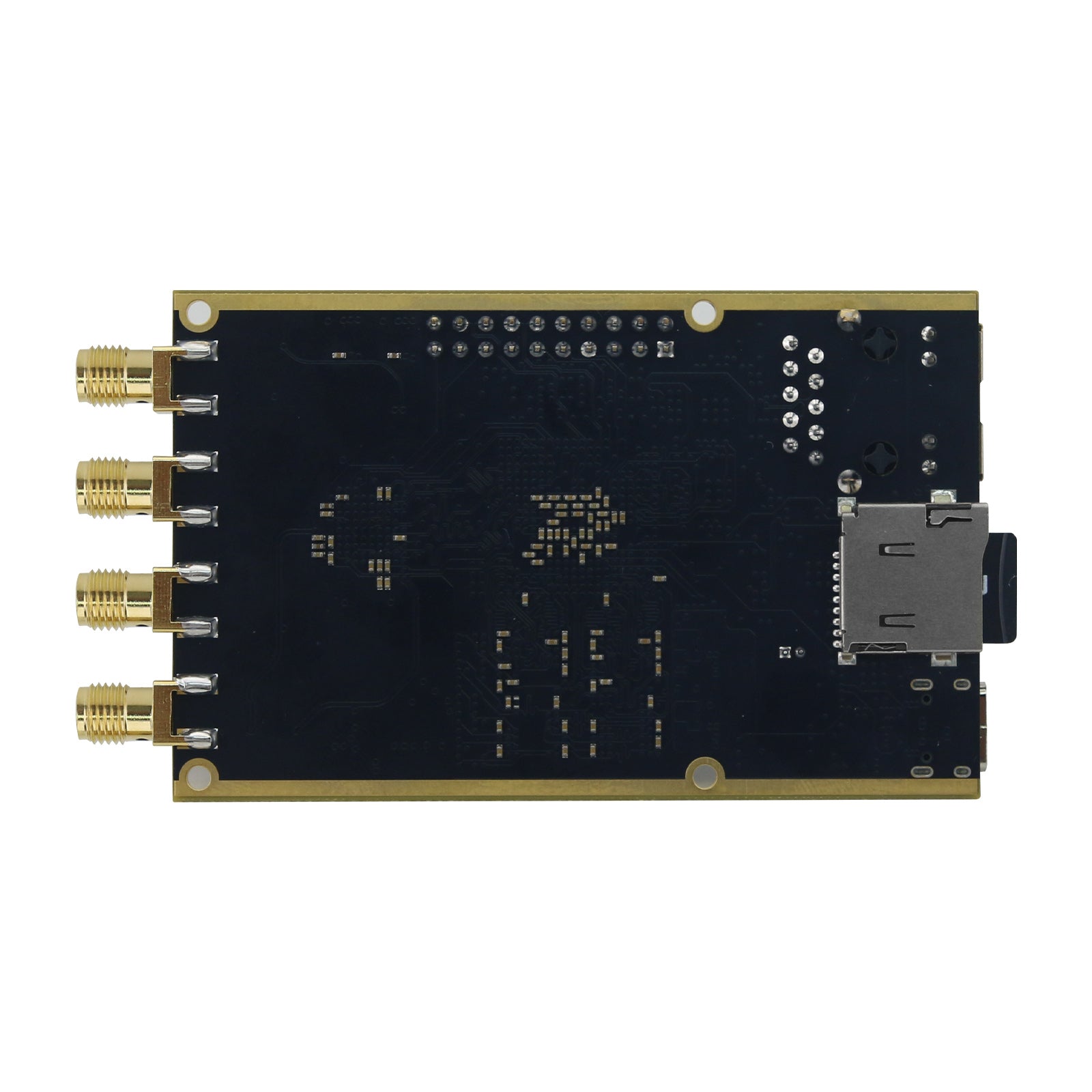

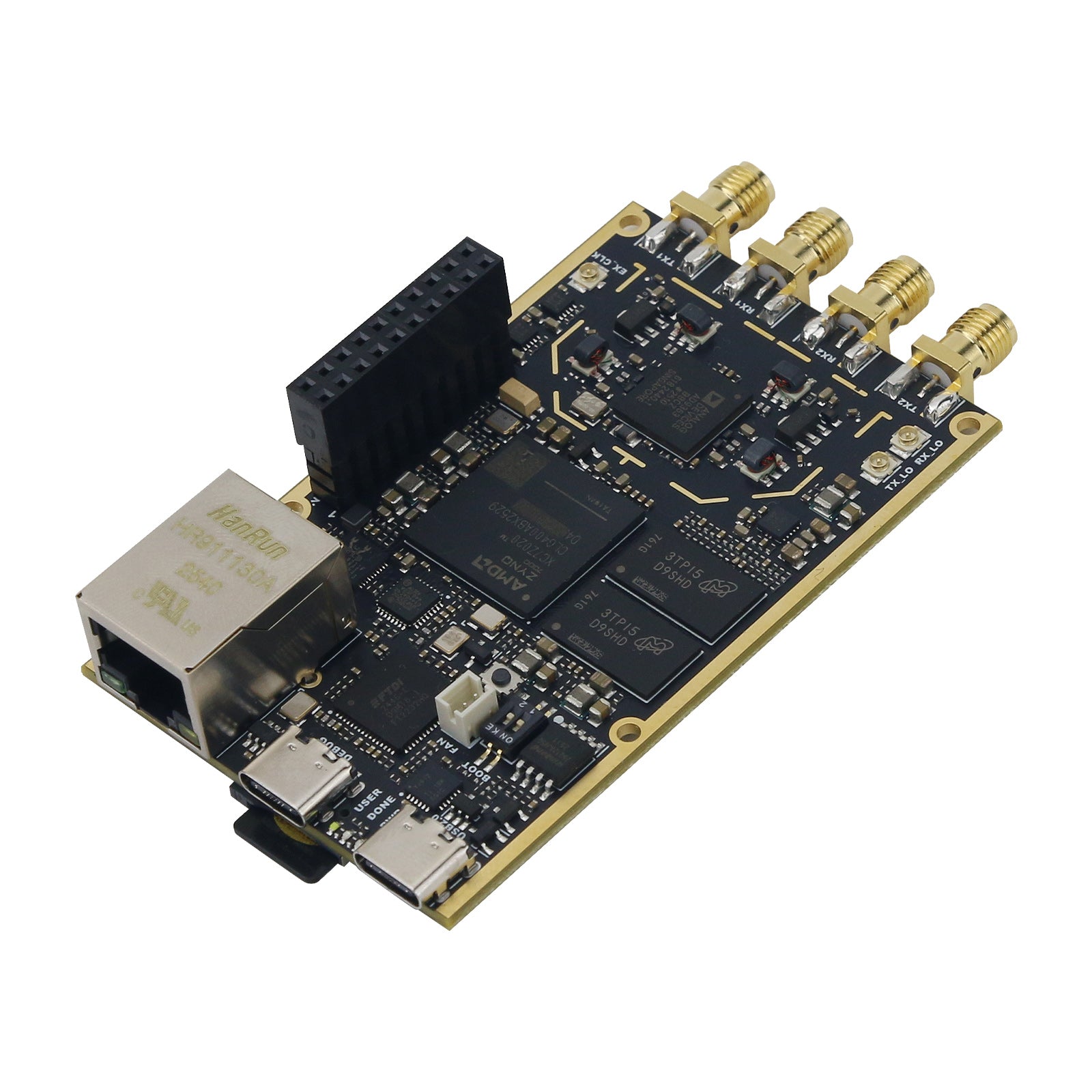

Professional Version 70MHz-6GHz 7020+AD9363 SDR Development Board with Power Amplifier for Pluto SDR

Professional Version 70MHz-6GHz 7020+AD9363 SDR Development Board with Power Amplifier for Pluto SDR

Improvement:

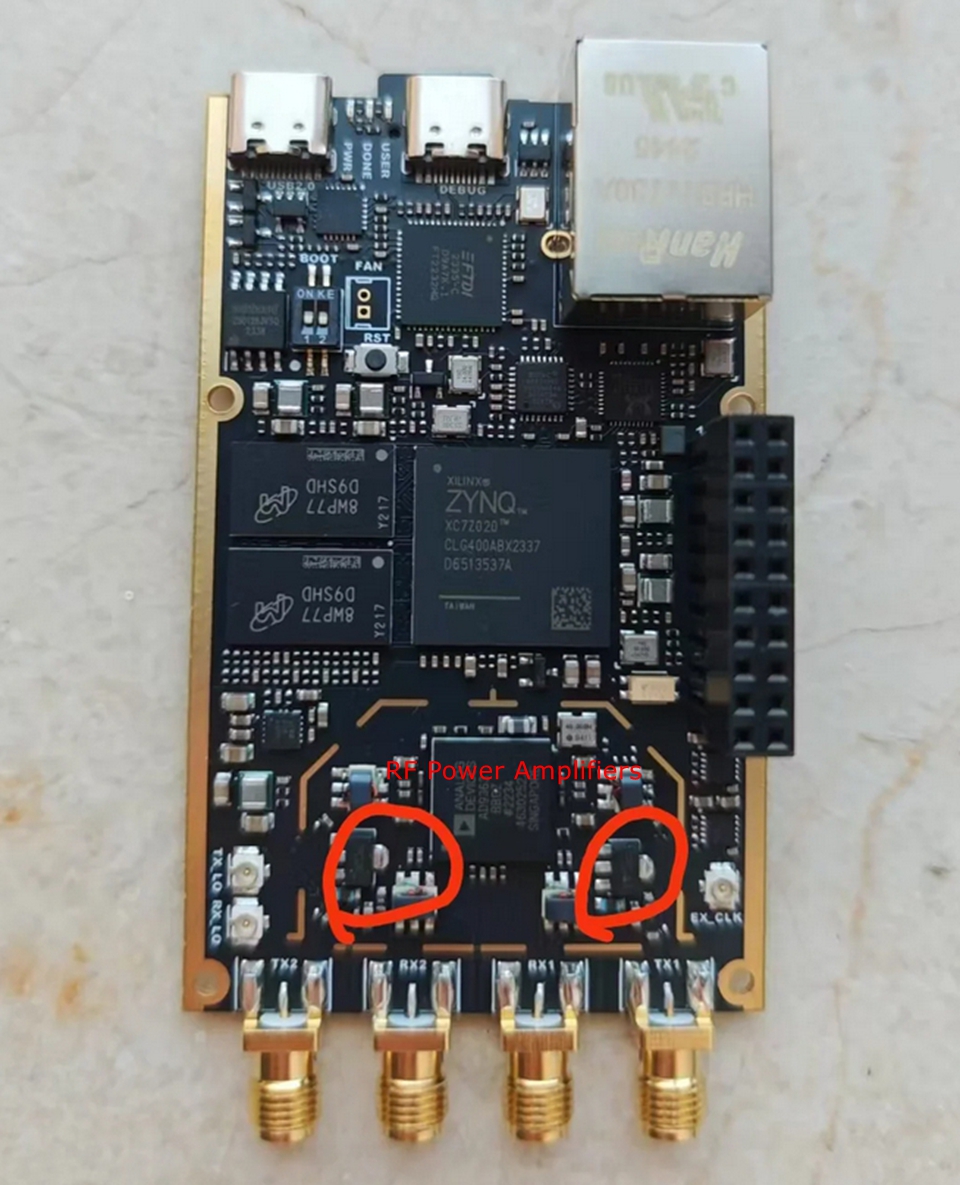

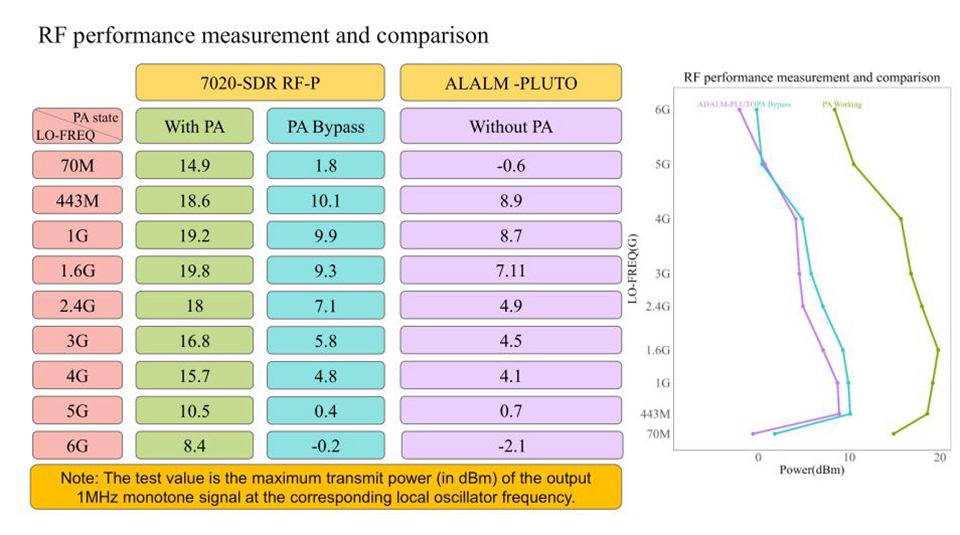

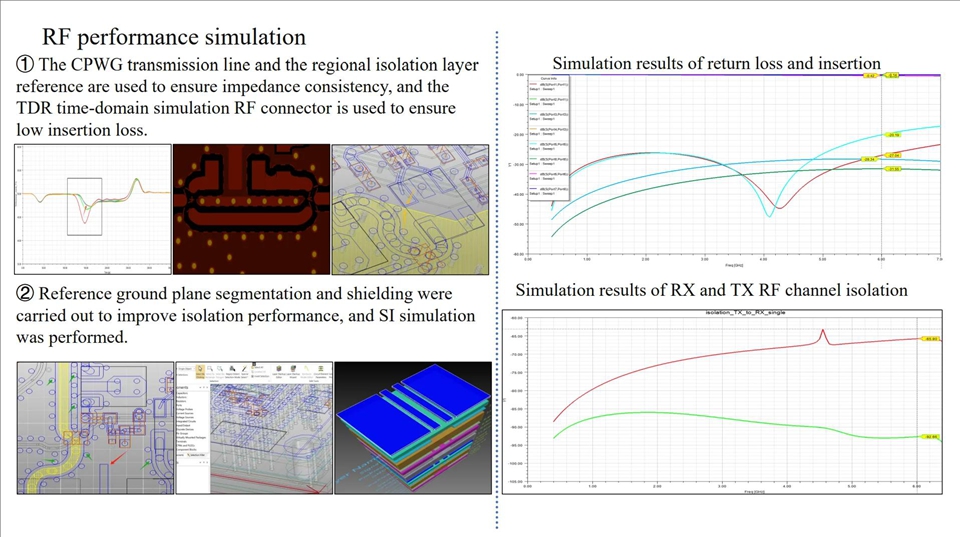

- Strict simulation and impedance control of the RF part, adding PA to increase output power.

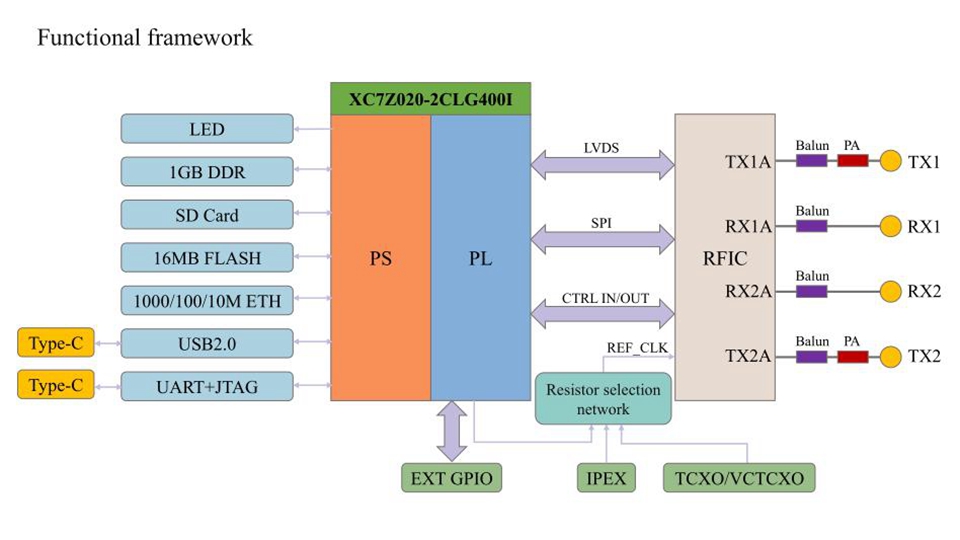

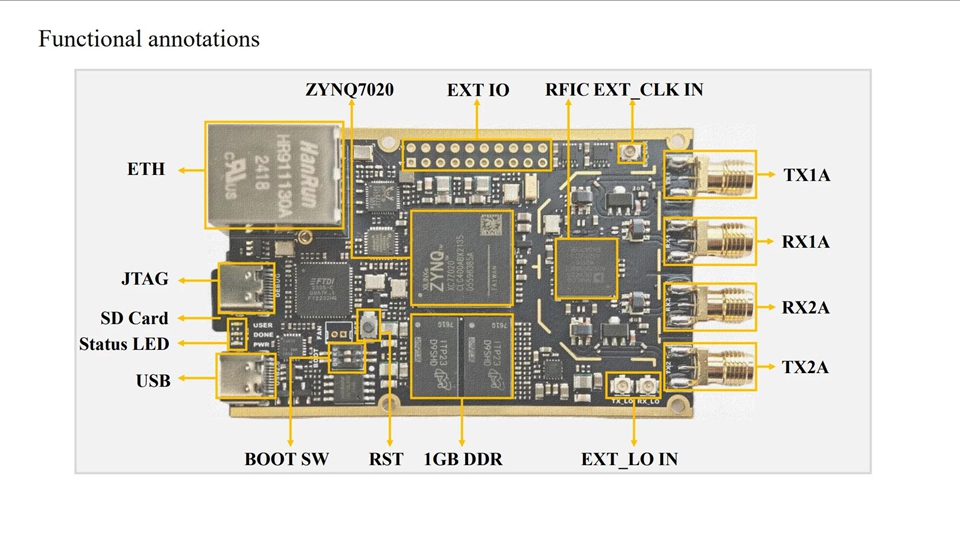

Hardware Peripherals:
- Double 1GB DDR
- N25Q128 FLASH, can be used to start
- One channel SD card, can be used to start
- Integrated FT2232 debugger, with serial port
- PS side USB2.0
- PS side Gigabit Ethernet
- PL side with crystal oscillator, can drive AD9363 with pure PL
- Support external input of local oscillator

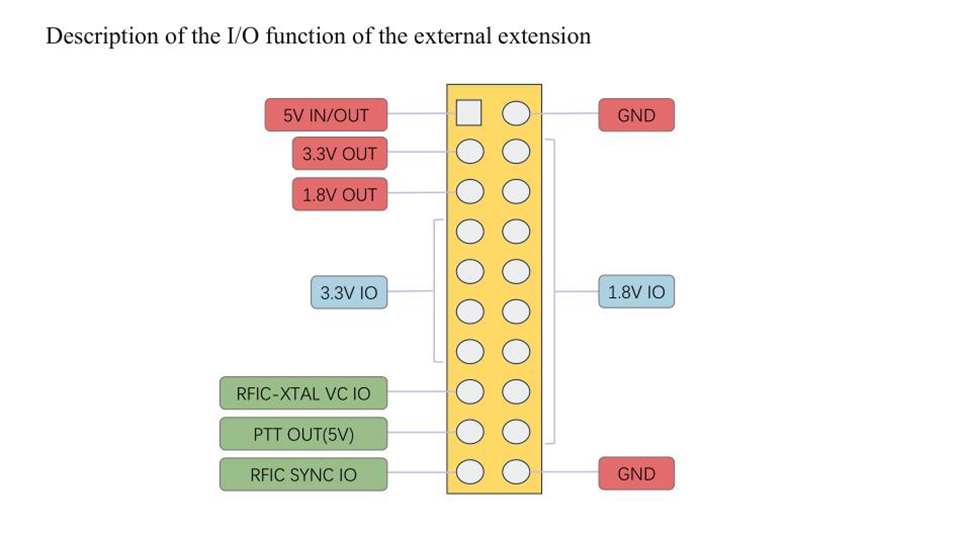

- With expansion GPIOs

Supported Software:
- For IIO Oscilloscope, SDR Sharp, GNU Radio, MATLAB, and other software that support for libiio.

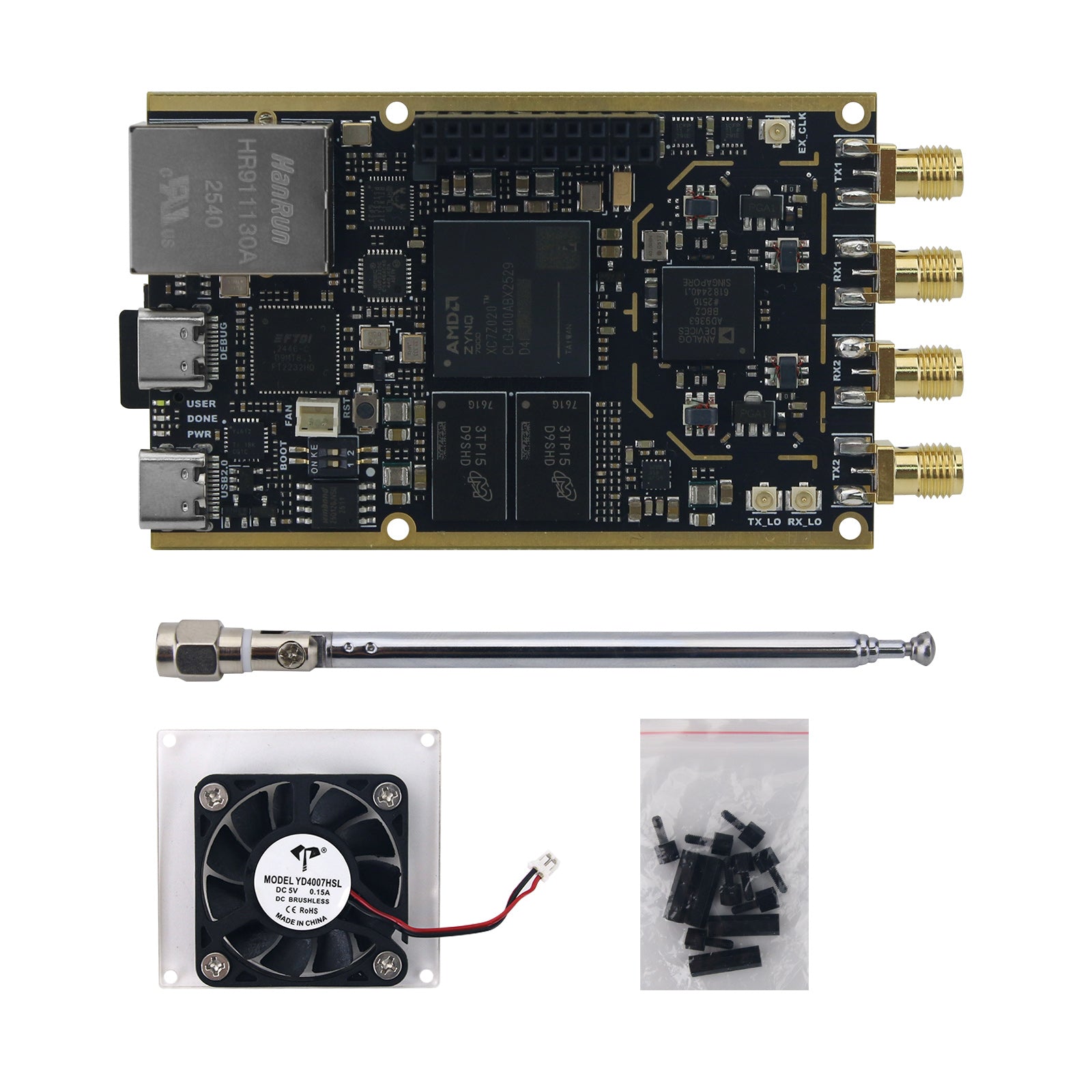

Package Included:
- 1 x SDR Development Board
- 1 x Cooling Fan Kit
- 1 x Telescopic Antenna
