PS4-0.5/6-SI 500MHz - 6000MHz Power Divider One to Four Power Splitter with Gold-plated Brass SMA Female Connector

PS4-0.5/6-SI 500MHz - 6000MHz Power Divider One to Four Power Splitter with Gold-plated Brass SMA Female Connector

Specification:
- Model: PS4-0.5/6-SI
- Frequency: 500 ~ 6000MHz

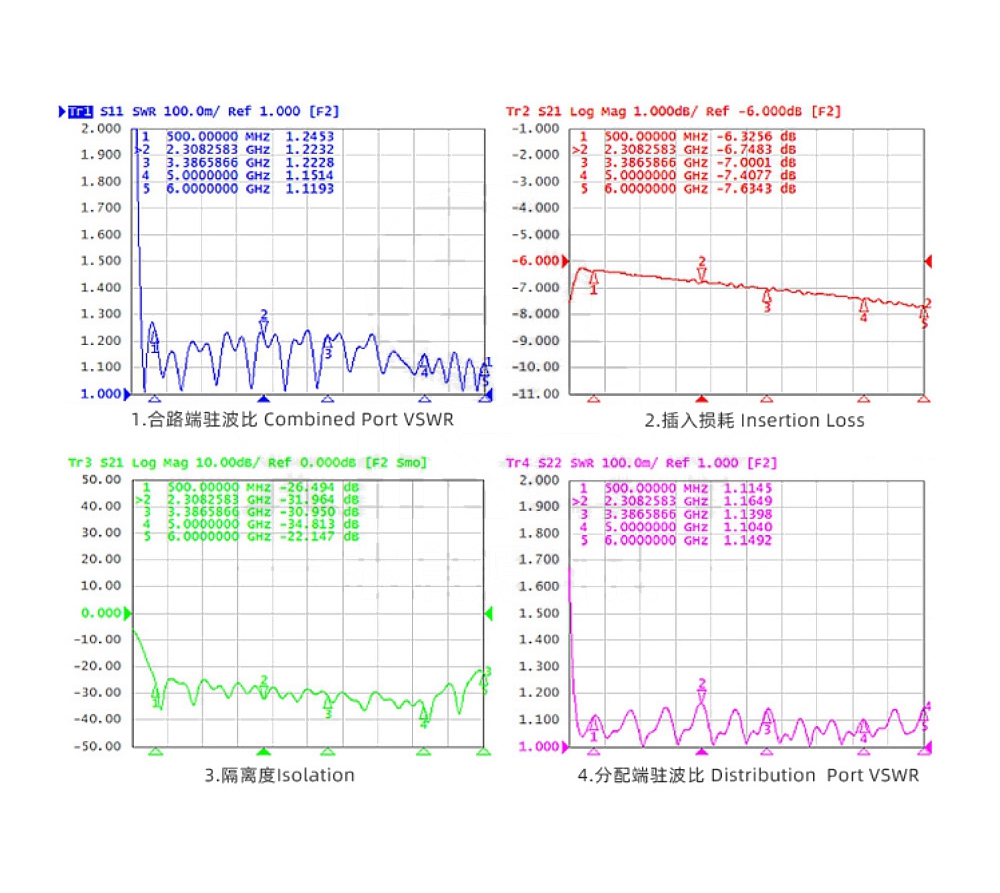

- Insertion loss: ≤1.8dB (not included the theoretical loss 6.0dB)
- Input SWR: Typ. 1.16/Max.1.25
- Output SWR: Typ.1.12/Max.1.20
- Isolation degree: Typ.28dB/Min.20dB
- Amplitude balance: ≤0.3dB
- Phase balance: ±4°
- Impedance: 50ohms
- Terminal connector: SMA - Female connector
- Withstand power: 30W for power divider; 2W for combiner
- Operating temperature: -35℃ ~ +75℃
- Size: 100 x 62 x 12mm
- Weight: 185g

Package Included:
- 1 x Power Divider
